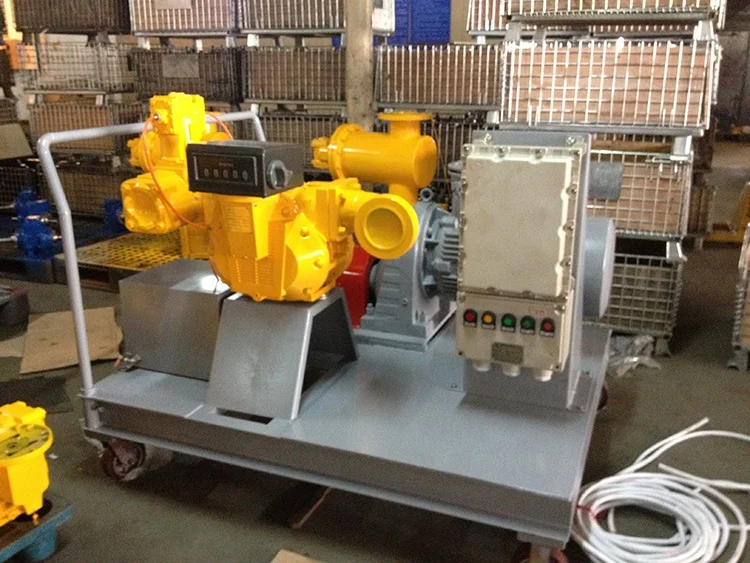

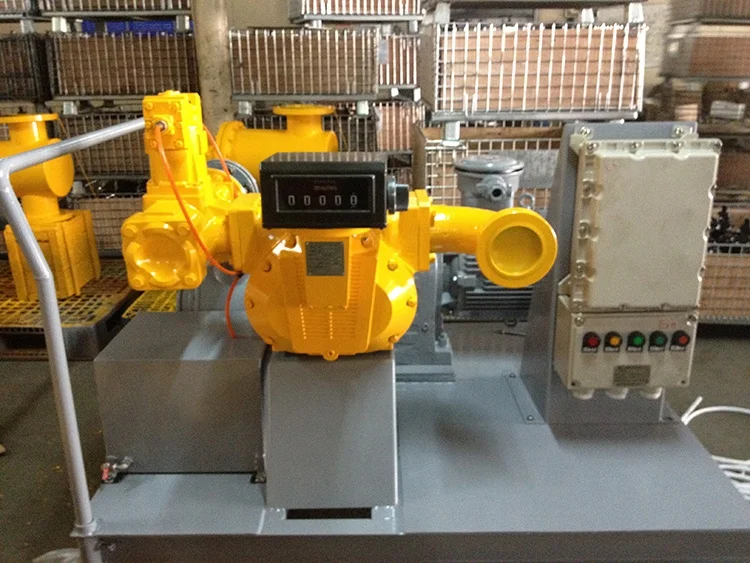

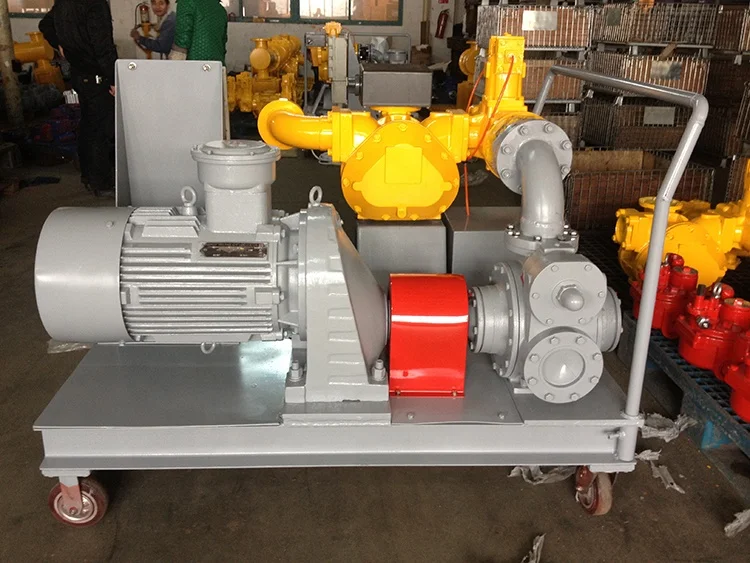

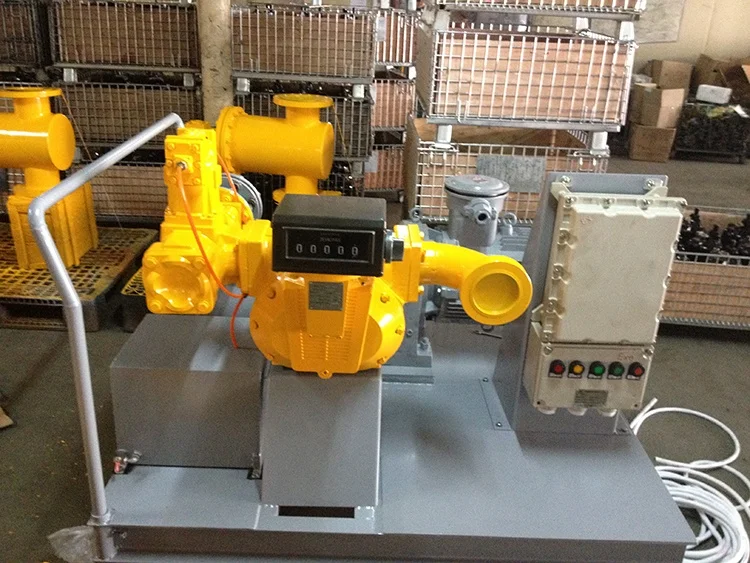

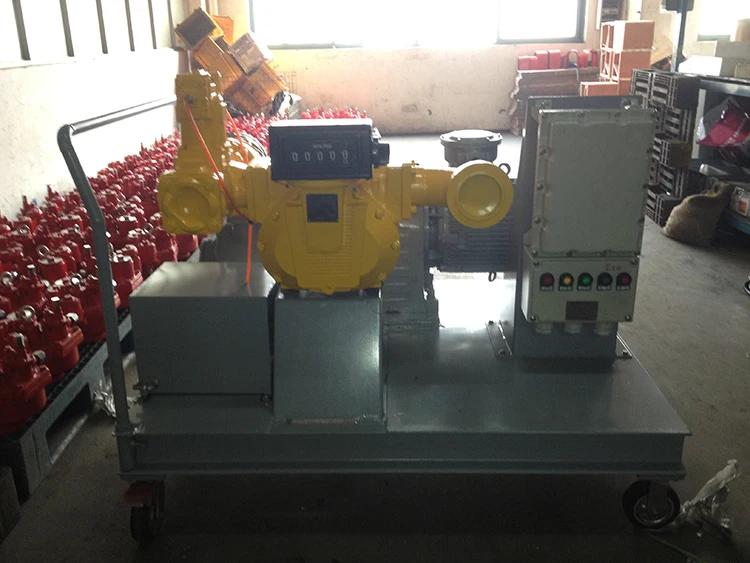

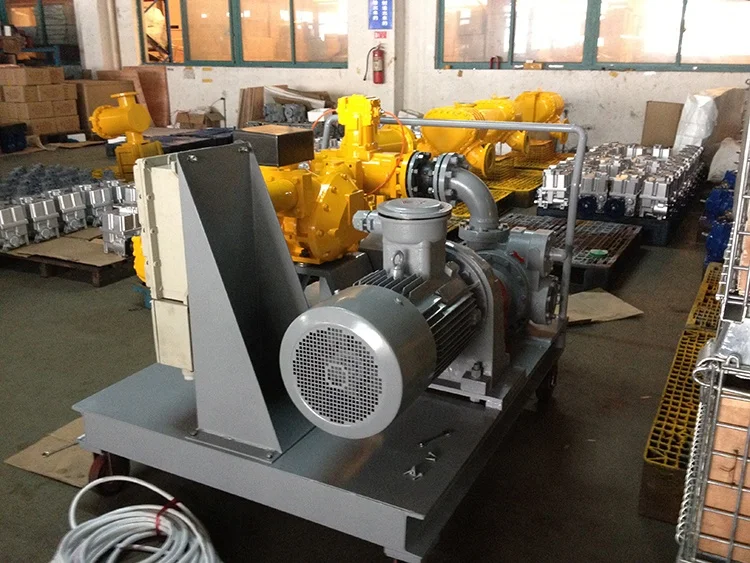

Bestfueling PD flow meter rotary vane pump assembled mobile bulk fuel dispenser unit
- Category: >>>
- Supplier: Wenzhou Bestfueling Machinery Co. Ltd. [Zhejiang China]Wenzhou
Share on (62209920166):
Product Overview
Description

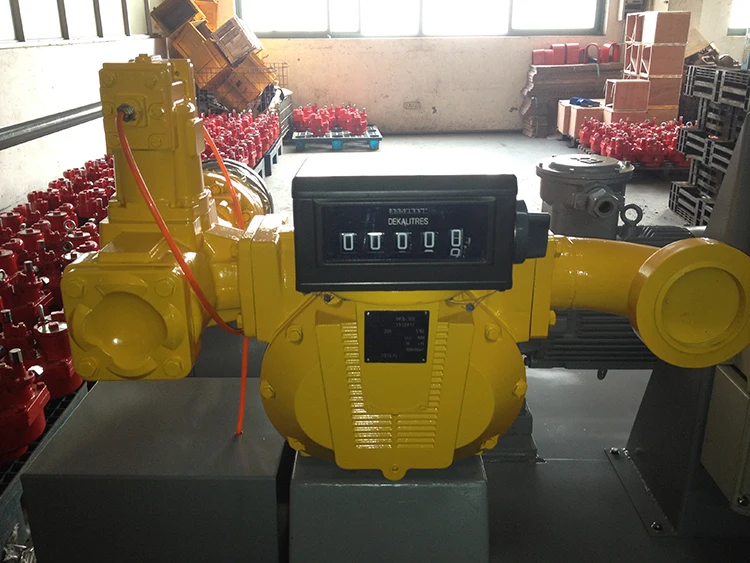

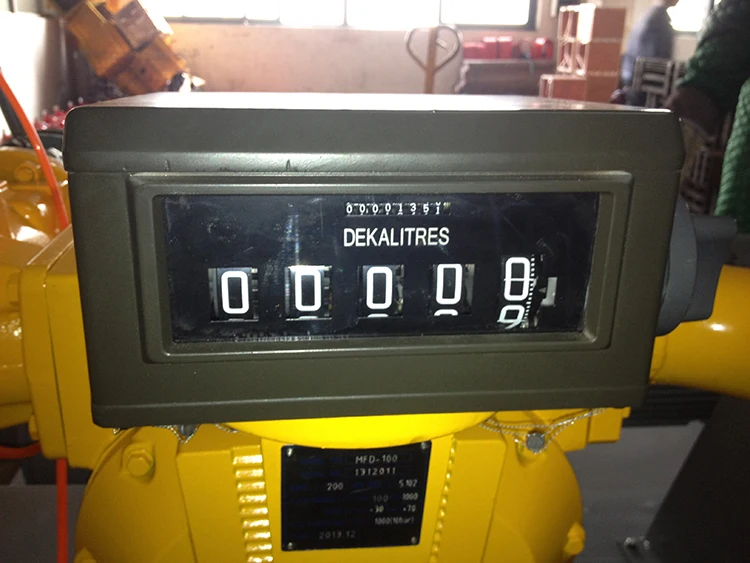

| Positive displacement flow meter | |||||
Model | Flow rate | Diameter | Accuracy | Volume Per Revolution | |
| M-40-1 | 20-250L/min | 40mm/1.5" | +-0.2% | 0.309L | |
| M-50-1 | 55-550L/min | 50mm/2" | +-0.2% | 0.681L | |
| M-80-1 | 115-1150L/min | 80mm/3" | +-0.2% | 1.839L | |
| Model | M-40-1 | M-50-1 | M-80-1 | M-100-1 | M-150-1 |
| Size | 40mm/1.5" | 50mm/2" | 80mm/3" | 100mm/4" | 150mm/5" |
| Flow range | 20-250L/min | 55-550L/min | 115-1150L/min | 170-1700L/min | 300-3000L/min |
| Max.pressure | 10 Bar/150PSI | ||||
| Accuracy | +-0.2% | ||||
| Repeatability | <=0.05% | ||||
| Standard measurement | Unit liter / US gallon / Imperial gallon | ||||
| Meter body | Aluminum,Cast iron,Steel,stainless steel available | ||||
| Seal&Gasket | Bunna"N";Viton;Teflon available | ||||
Stranier Mesh Viscosity | 80 for Diesel,40 for Gasoline 30SSU-1500000SSU | ||||

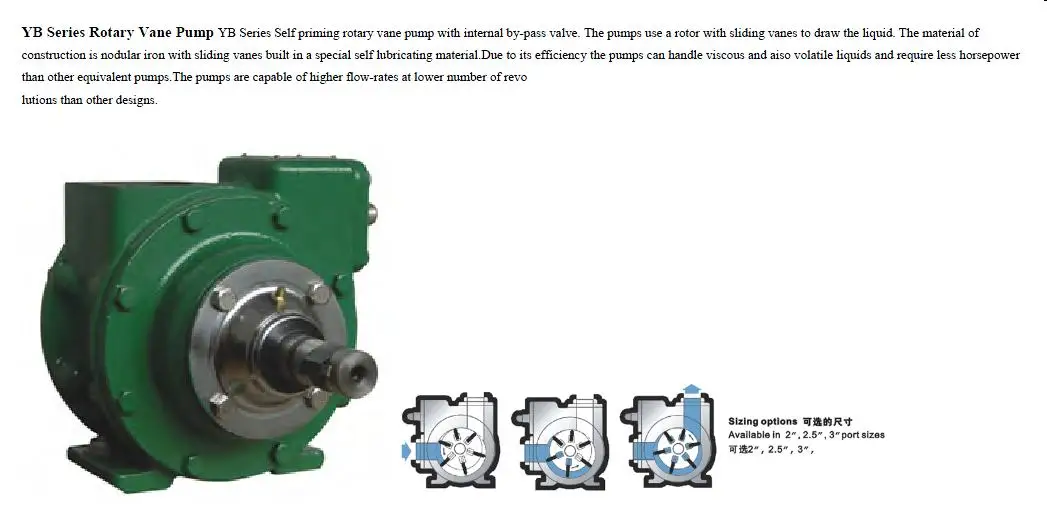

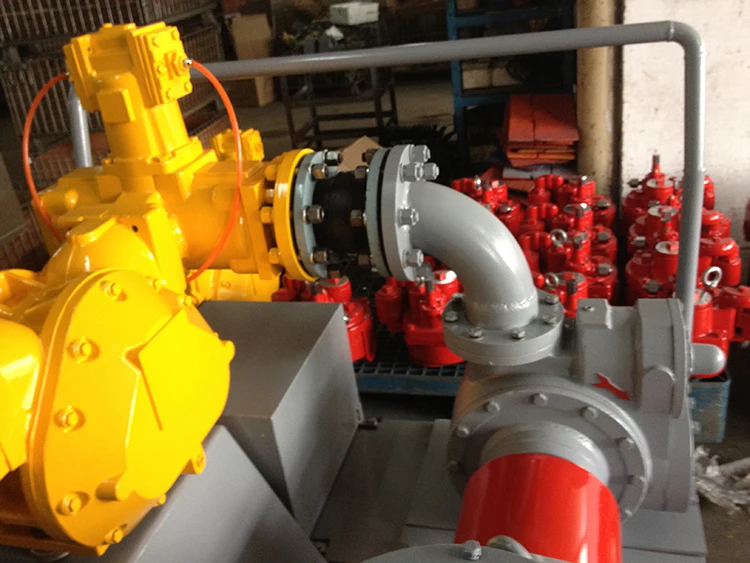

| Fuel rotary vane pump | |||||
| Model | YB-50 | YB-65 | YB-80 | YB-100 | |
| Rated speed | 640RPM | 640RPM | 640RPM | 500RPM | |
| Power | (Hp) | 3 | 5 | 9.5 | 17.5 |
| (KW) | 2.2 | 3.7 | 7.1 | 13 | |
