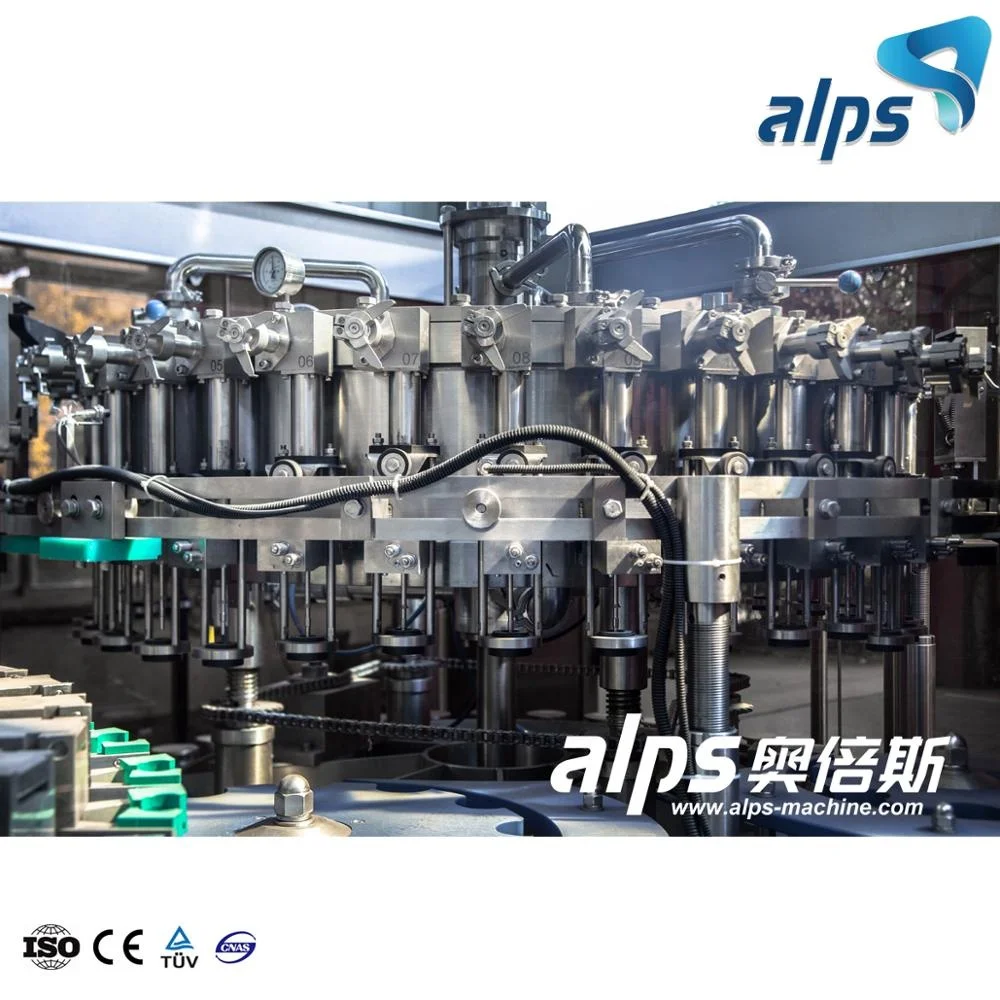

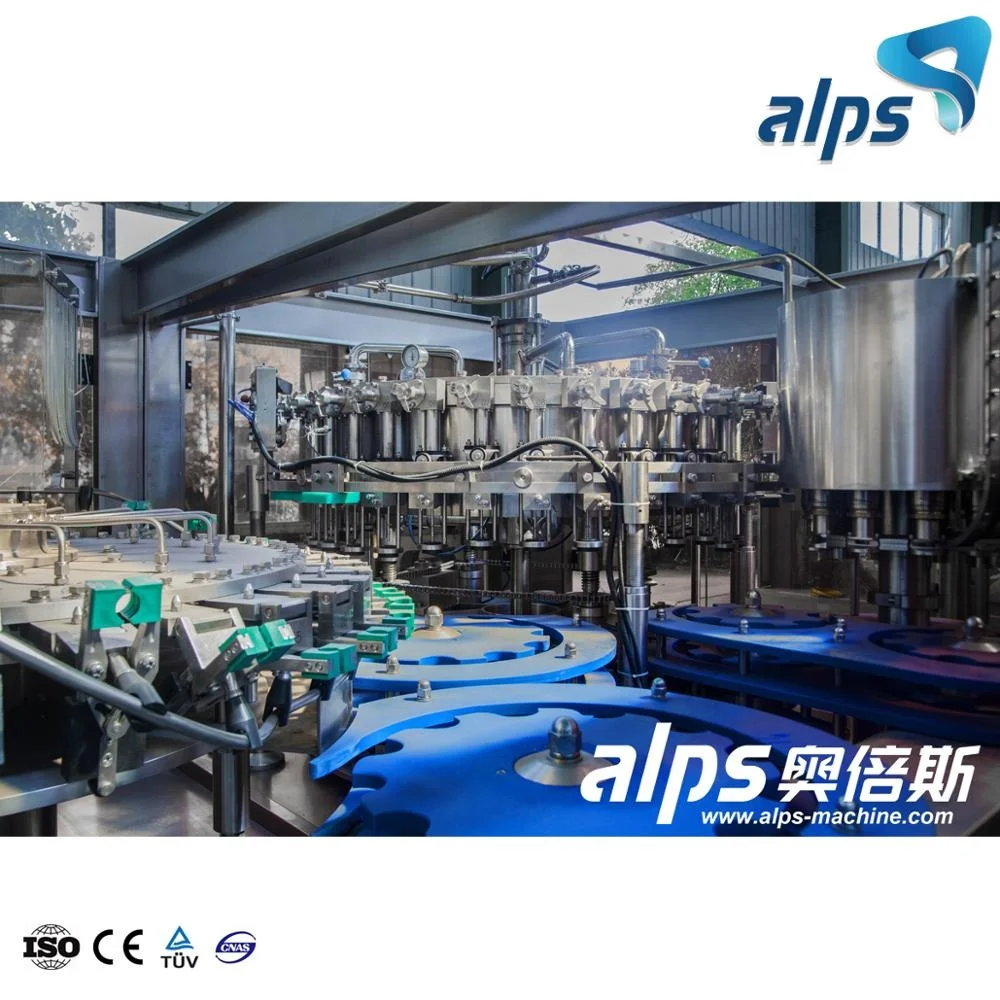

Automatic Rotary Monoblock Type Glass Bottle Fruit Grape Wine Liquor Whisky Beer Bottling Plant Filling Machine
- Category: >>>
- Supplier: Zhangjiagang Alps Machine Co. Ltd.
Share on (62210004488):
Product Overview
Description
Product Description
Automatic Rotary Monoblock Type Glass Bottle Fruit Grape Wine Liquor Whisky Beer Bottling Plant Filling Machine

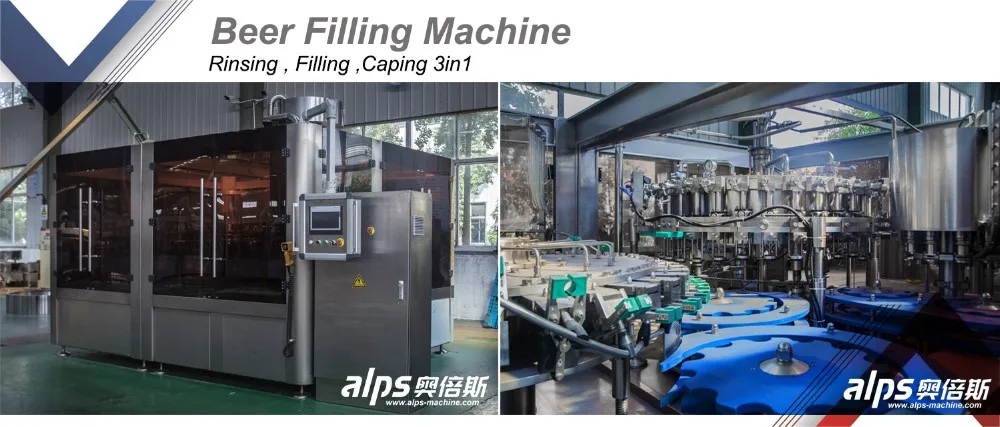

*We supply complete solution for the beer production line ,including Beer filling machine (Rinsing,filling capping 3in1) ,
Beer cold glue labeling system ,beer film packaging machine & carton box packing machine ,also can supply the beer processing system ,like saccharification system & filteration system ,and fermentation and storage system
Technical parameter :Beer Filling Machine | ||||||||||||
Model | LGF12-12-1 | BGF12-12-4 | BGF18-18-6 | BGF24-24-8 | BGF32-32-10 | BGF40-40-12 | ||||||
Capacity (for 500ml) | 500bph | 1000bph | 1500bph | 3000bph | 6000bph | 10000bph | ||||||
Suitable bottle | Glass Bottle / PET Bottle | |||||||||||
Bottle volume | 200ml ~ 1L | |||||||||||
Compressor air | 0.3-0.7Mpa | |||||||||||
Air consumption | 0.37 m3/min | |||||||||||
Rinsing pressure | >0.06Mpa <0.2Mpa | |||||||||||
Application | Beer filling machine | |||||||||||
Total power (KW) | 1.2kw | 3.6kw | 4.8kw | 5.8kw | 6.2kw | 7.8kw | ||||||
Overall dimensions | 2.3*1.9m | 2.5*1.9m | 2.8*2.15m | 3.1*2.5m | 3.8*2.8m | 4.5*3.3m | ||||||
Height | 1.8m | 2m | 2.2m | 2.3m | 2.5m | 2.6m | ||||||
Weight(kg) | 800kg | 2000kg | 3000kg | 4500kg | 8000kg | 12000kg | ||||||
Introduction:
This beer filling machine is my company's introduction of German technology, combined with the characteristics of beer production industry, designed to develop small-scale beer filling equipment. The machine has excellent mechanical operation reliability, improved rinsing, filling, cover screwing, disinfection sterilization and other functions.
Main Features

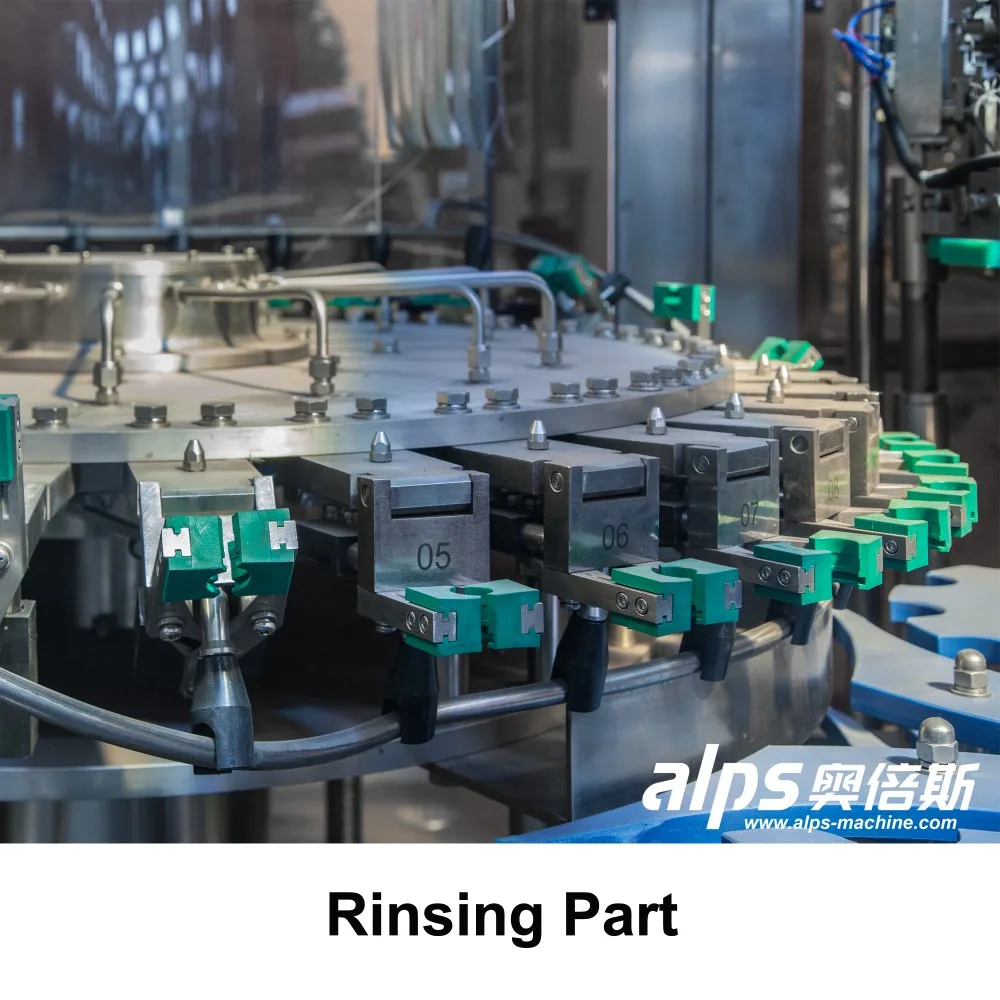

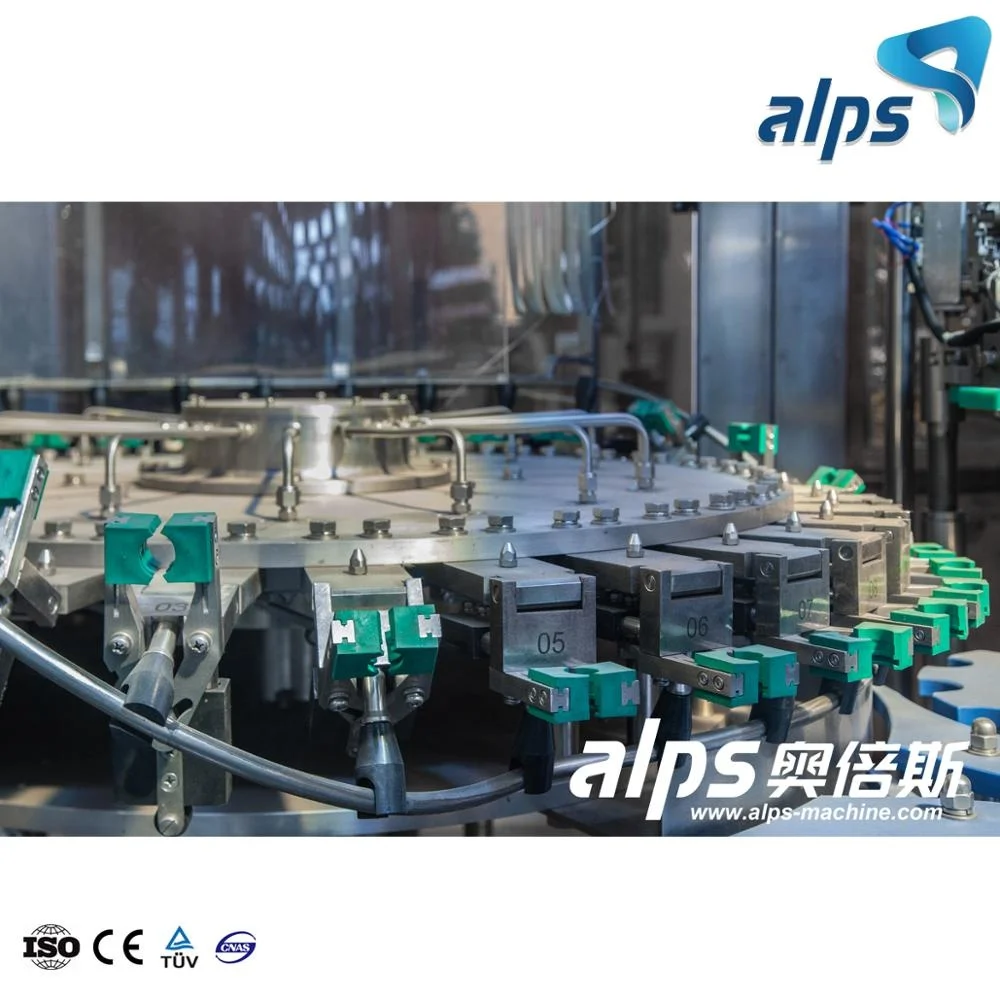

1)The rinsing machine using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.
2)Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.

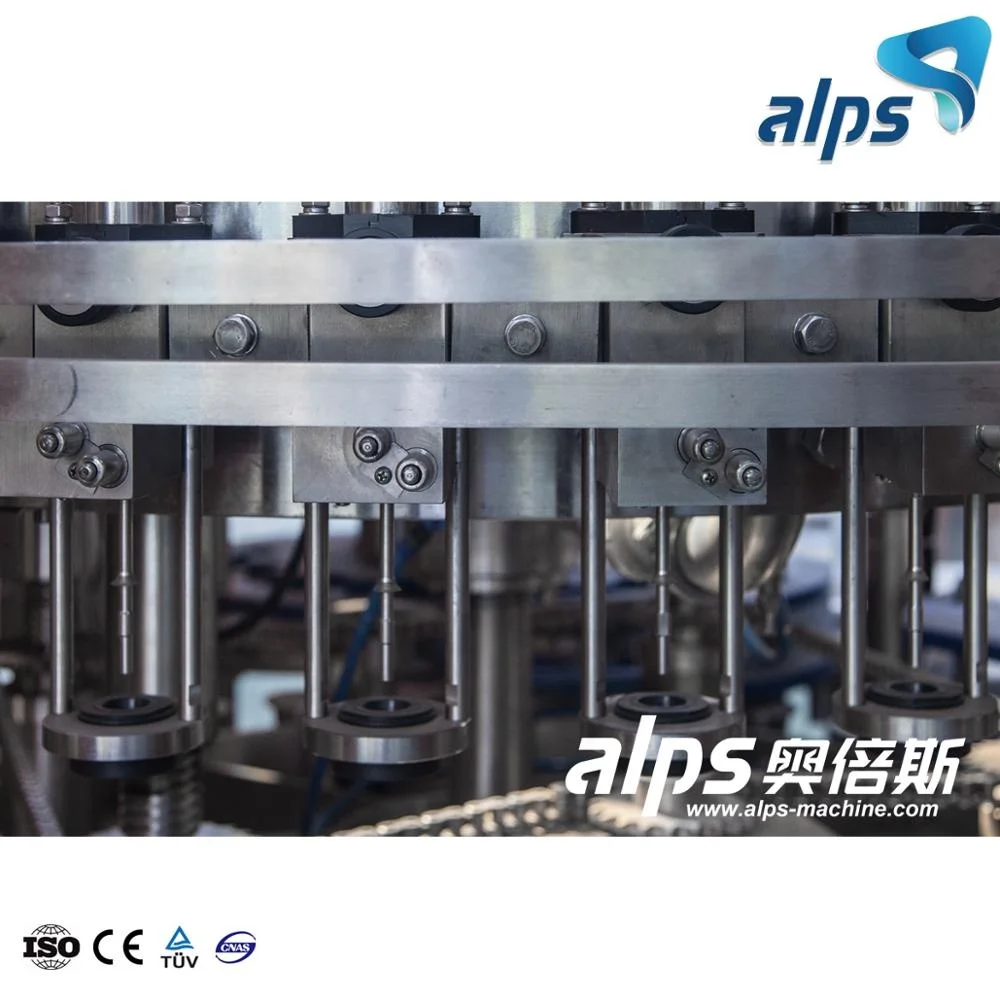

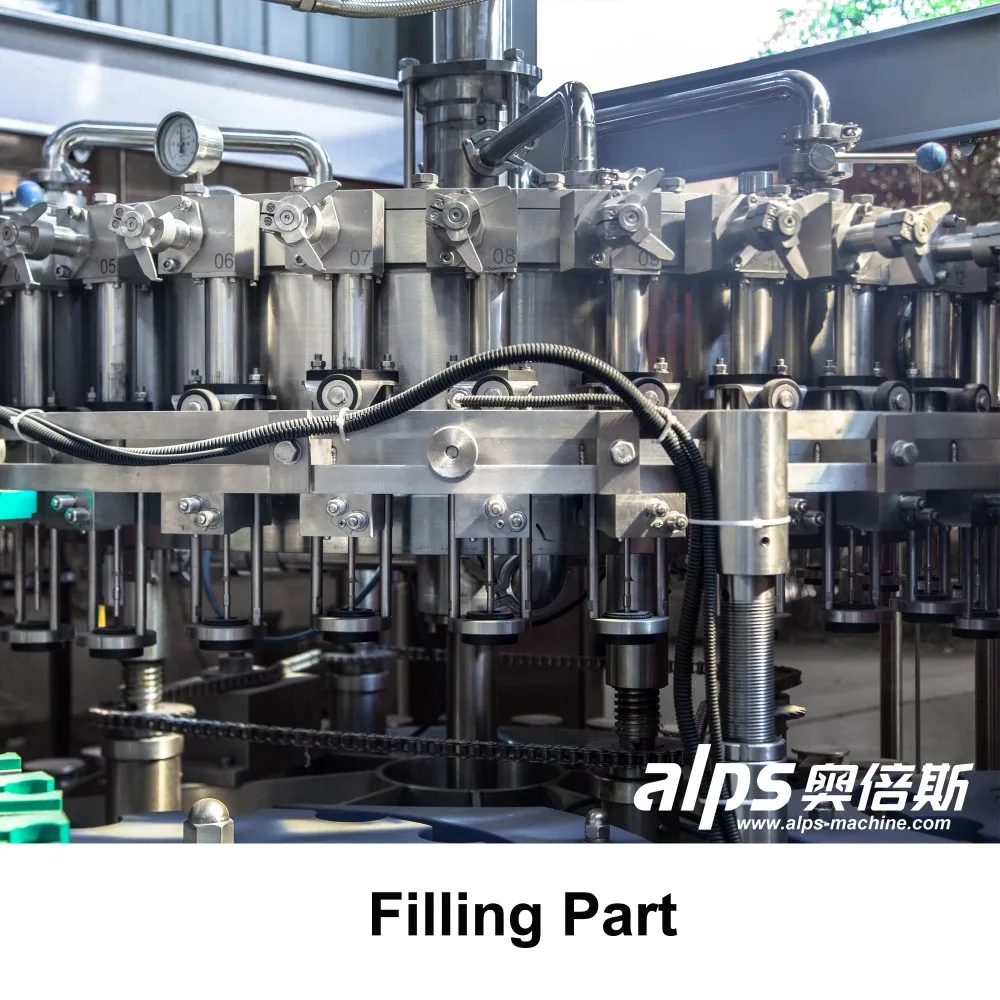

3)Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.

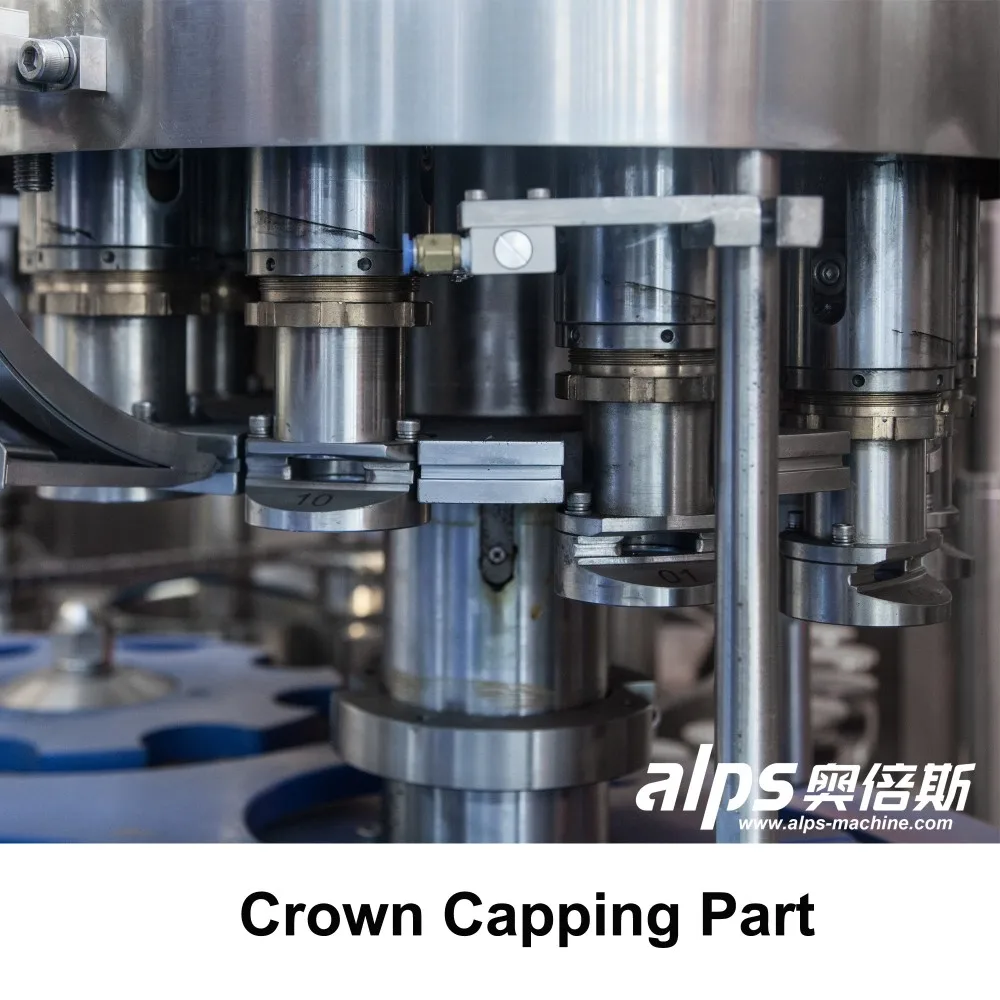

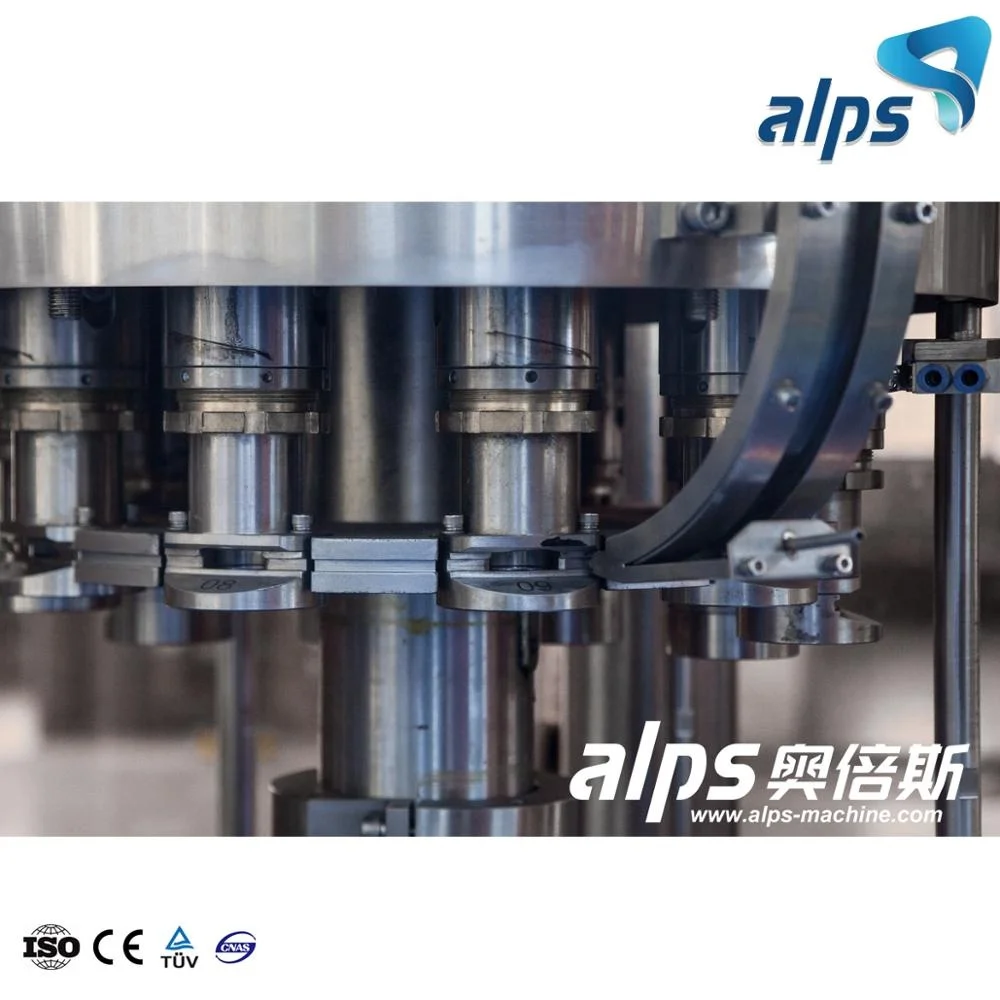

4)Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy and reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic unloading, reducing the rate of broken bottles.
5)Before the capping, use hot water bubble set to displace bottlenecks air, ensuring the oxygen content of less than 0.15mg / L.
6)Filling machines includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically exhausting device.
7)With perfect CIP cleaning function, and capable of rinsing filling pipes with acid, lye liquid and hot water.
8)All the materials in contact with the valves, tanks, pipes are made of stainless steel 304 materials, inside and outside the wall of mirror-polished, ensuring it is healthy.
9)Manually dry oil lubrication system to make sure equipment maintenance is more convenient.
10)The whole operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; no cap no operation, and other security protection.
2)Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.
3)Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.
4)Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy and reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic unloading, reducing the rate of broken bottles.
5)Before the capping, use hot water bubble set to displace bottlenecks air, ensuring the oxygen content of less than 0.15mg / L.
6)Filling machines includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically exhausting device.
7)With perfect CIP cleaning function, and capable of rinsing filling pipes with acid, lye liquid and hot water.
8)All the materials in contact with the valves, tanks, pipes are made of stainless steel 304 materials, inside and outside the wall of mirror-polished, ensuring it is healthy.
9)Manually dry oil lubrication system to make sure equipment maintenance is more convenient.
10)The whole operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; no cap no operation, and other security protection.
Detailed Images
Name | Brand | Area |
PLC | Siemens | Germany |
Inverter | Siemens | Germany |
Contactor | Siemens | Germany |
Touch screen | Siemens | Germany |
Inverter | Siemens | Germany |
Motor | ABB | Swiss |
Pneumatic parts | FESTO | Germany |
Electrical parts | Schneider | France |
Beer Brewing System
Beer brewing equipment designed for the ever-evolving craft brewer. Built for great beer!
Between brewhouses, fermenters, brite tanks and more, SDET has the experience and know how to design and install the beer brewing equipment for breweries of any size. Whether you need a turnkey brewing system or individual pieces of equipment for handling raw materials, brewing or packaging.
Brewing system
saccharification system & filteration system ,and fermentation and storage system
Turnkey Project Design
Including beer material supply ,electrical system ,public water system .
More Products
Company Profile
ZHANGJIAGANG ALPS MACHINE is
*Standardized workshop of total 12,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
*International certification, National Certificate of equipment verification, and more than 30 invention patents
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.
*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
*International certification, National Certificate of equipment verification, and more than 30 invention patents
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.
*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
Q For a new starter, how can you help me start and run a water or beverage bottling plant?
A We can help you do the bottle design, label design and choose the suitable labeling and package type according to your localmarket. If you have confirm the factory size, we can also make the machine layout design accordingly. We can help you install themachines, train your staff how to operate, maintain the machines and even help you hire experienced Chinese engineer to work inyour factory as a production manager.
A We can help you do the bottle design, label design and choose the suitable labeling and package type according to your localmarket. If you have confirm the factory size, we can also make the machine layout design accordingly. We can help you install themachines, train your staff how to operate, maintain the machines and even help you hire experienced Chinese engineer to work inyour factory as a production manager.
Q What is the guarantee or warranty of your machines?
A We give 18 months warranty for the mechanical parts and 12 months warranty for the electric parts.
A We give 18 months warranty for the mechanical parts and 12 months warranty for the electric parts.
Q How can we check our machines if we order the machines from you?
A We will test all the machines before shipment, you can come to inspect the machines or we can take videos for you.
A We will test all the machines before shipment, you can come to inspect the machines or we can take videos for you.
Q How can I know the quality of your machines before I order?
A We have many projects in different countries, with the customers’ permission, we can guide you to visit the factories and see the machines running.
You are also very welcome to visit our company in China to see the machine running in our factory.
A We have many projects in different countries, with the customers’ permission, we can guide you to visit the factories and see the machines running.
You are also very welcome to visit our company in China to see the machine running in our factory.
Q Can your company provide turnkey project from A to Z?
A Yes, we can provide the turnkey project for beverage production line, from PET preform and cap making machine, PET bottle blowing machine, water treatment plant, juice or carbonated drink mixing plant, filling and packing machines.
A Yes, we can provide the turnkey project for beverage production line, from PET preform and cap making machine, PET bottle blowing machine, water treatment plant, juice or carbonated drink mixing plant, filling and packing machines.
