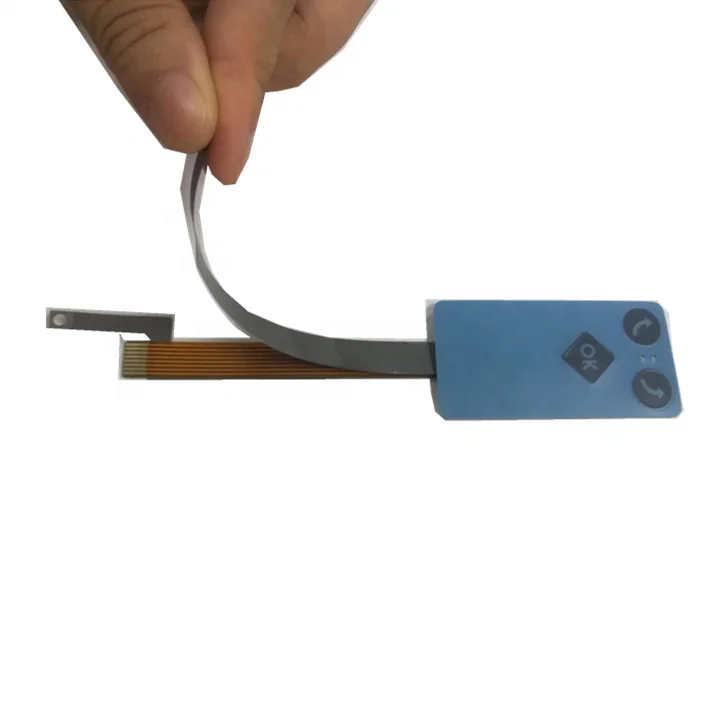

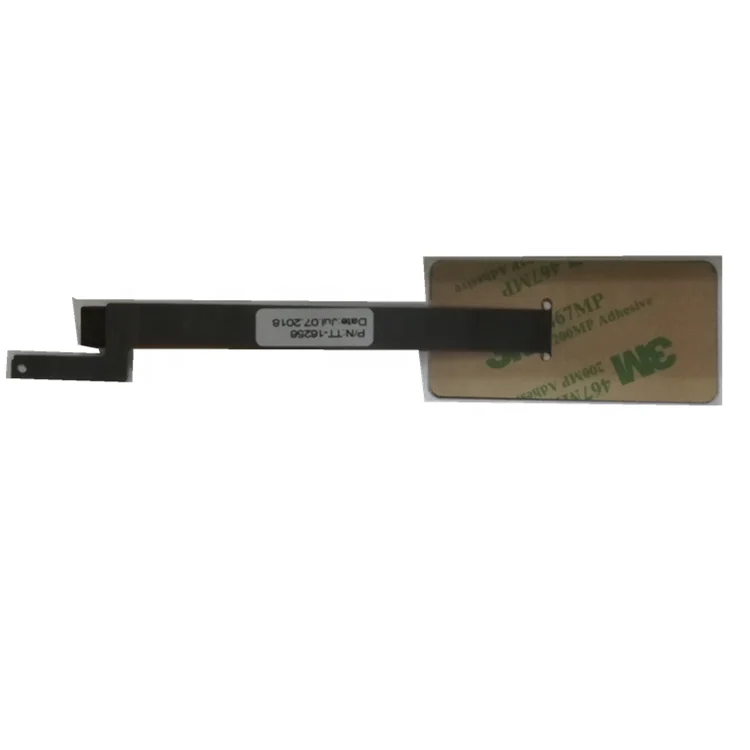

Super September ESD silver and carbon paste Printing AG or C plasma dual FPC  Immersion gold LED  membrane switches keypad





ESD Anti-Static Design


1. Pass of Siver + Carbon (ShichuangDongfang):


Silver :BC-1000H(60%)+Carbon:423SS(40%)





FPC


1. 0.188 mm thk;


2. Material: rolled copper, 1oz Cu;


3. 2 layers;


4. Immersion Gold;

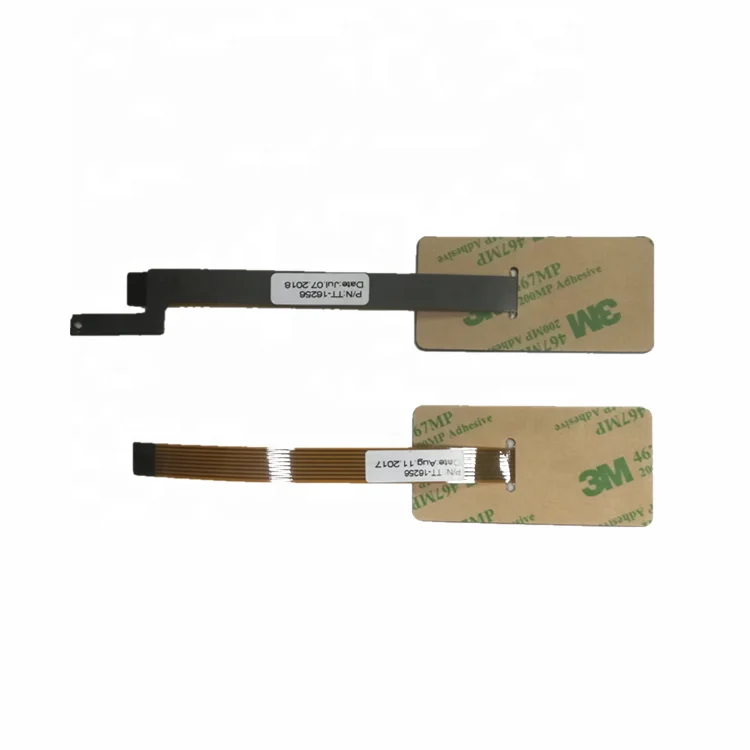

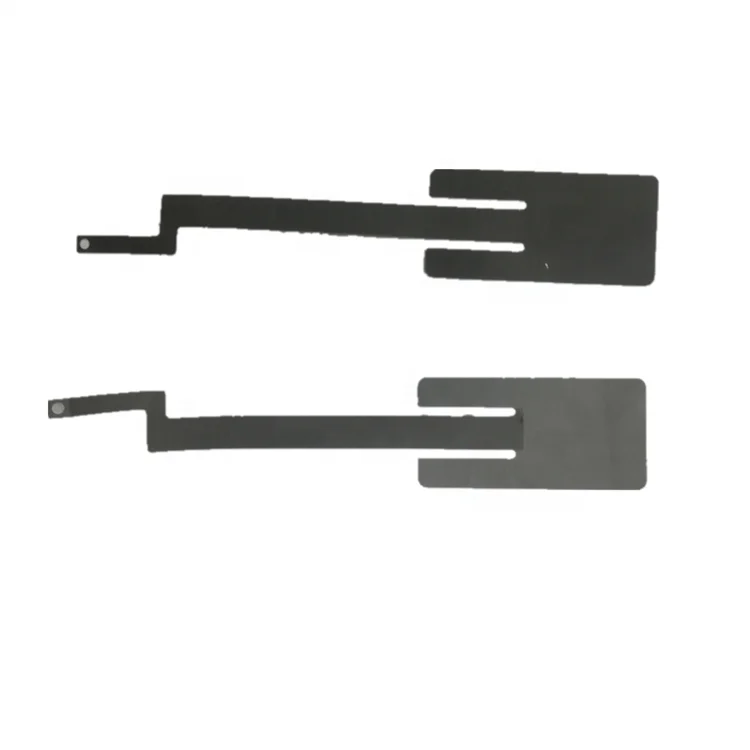

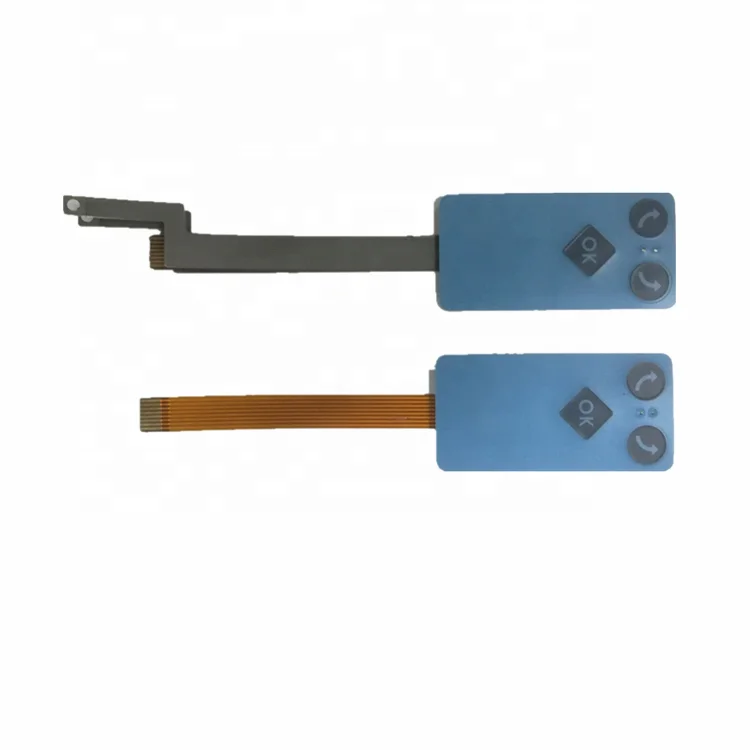

UTC20190711_115921UTC20190711_120230UTC20190711_115952UTC20190711_120102_















Membranes Switches - Technical Specifications:
















































Electrical Characteristics:



Circuit Rating:



35V(DC),100mA,1W







Contact Resistance:



10Ω ~500Ω(variable depending on tail length & material used)







Insulation Resistance:



≥100MΩ 100V DC







Dielectric Strength:



250V Rms(50-60Hz 1min)







Contact Bounce:



≤5ms



Mechanical Characteristics:



Operating pressure:



Plane type: 57g~284g(2~10OZ)
touch-type\\Tactile type: 170g~450g(6~16OZ)







Switch Stroke:



Planar type: 0.1~0.5mm
Tactile type: 0.6~1.5mm







Life Expectancy:



Planar type ≥ five million closures
touch-type\\Tactile type ≥ one million closures



























Environmental parameters:



Operating Temperature:



-40℃~+80℃







Storage Temperature:



-40℃~+85℃







Humidity:



40℃,90%~95%,240 hours, Vibration: 20G, max








UTC-01UTC_02UTC_03






FAQ


 1.Are you a manufacturer or trading agent?
We are a high-tech manufacturer and have 15 years experience on producing Touch Screens(Touch Panel) , TFT LCD(liquid crystals display), membrane switches, Flexible Printed Circuit Board (FPC or flexible PCB), Graphic Overlays, Silicon Rubber Keypads, PCB(printed circuit board) Designs, Plastic Housings, Printed Labels, Decals , Aluminium Parts and more.

2.Can you offer samples?
(1)Stock Samples: If you paid the freight cost, we can provide free samples for you.

(2)Customized Samples: We will offer you 5 pcs free samples after we receive the tooling charge cost.

3. What is the delivery time?
(1)Customized sample: About 5 to 10 working days.
(2)Mass production: About 10--15 working days.

4. Is the prototype necessary?
Yes.Most of the items are customized orders,so the prototype will be sent to customer for approval.

5.What is the MOQ?
Generally, we require 50pcs for MOQ or USD200 for equivalent.

6. What is the terms of payment?
As the client need,we mainly receive trade assurance,TT,west union,PayPal etc.
