Product Overview

Description

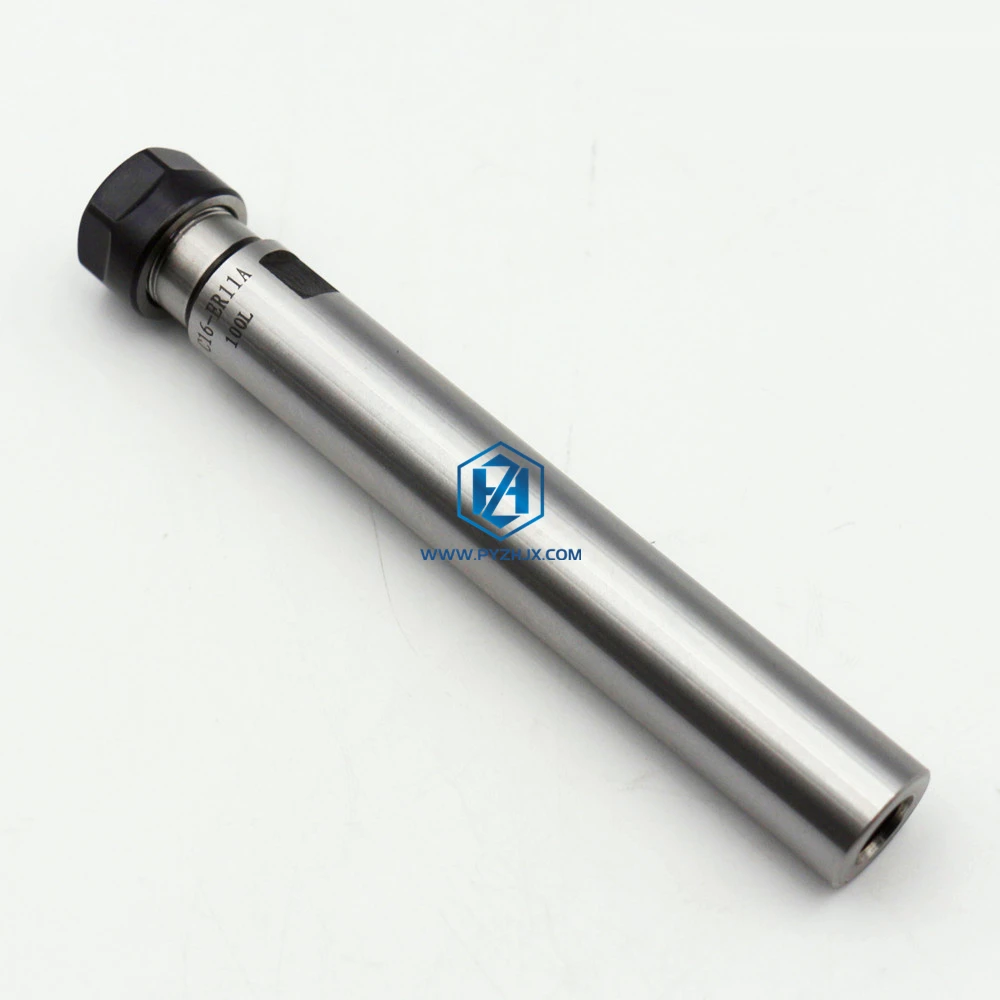

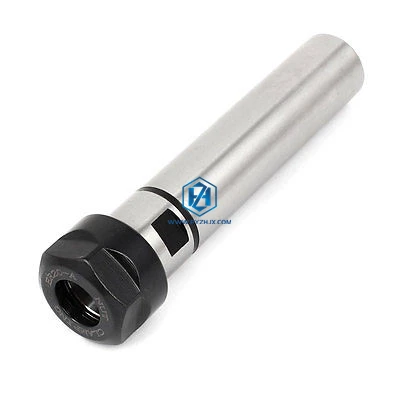

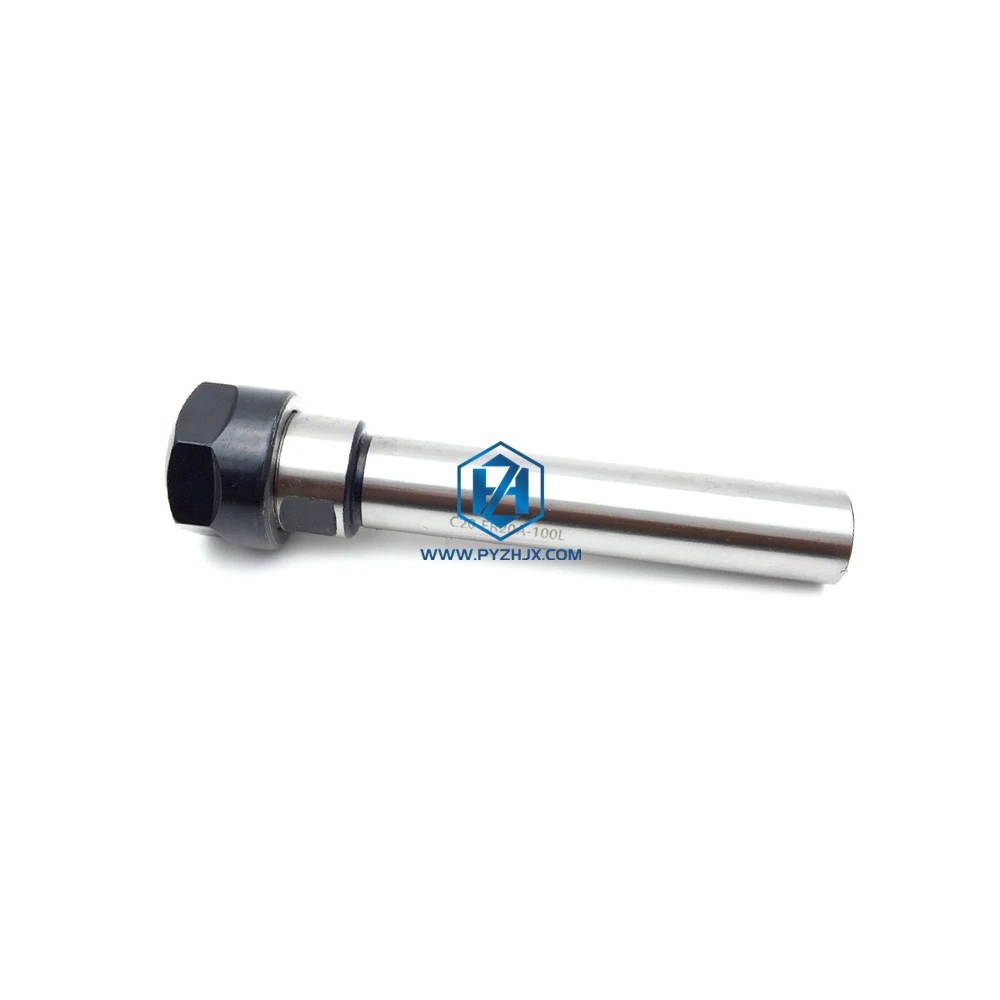

Milling Straight Shank Types ER Collet Chuck

Product Discription



Pingyuan Zhenghao Mchinery Co., Ltd

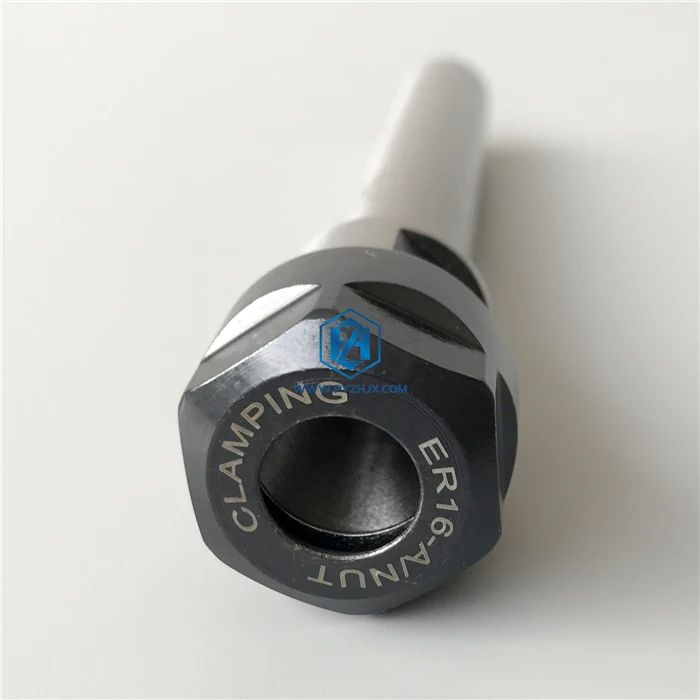

Introduction for Milling Machine Straight Shank Types ER Collet Chuck with Mini Nut



  • Production: straight shank collet chuck
  • Hardness: HRA50-53
  • Model Number:Straight Shank Type ER Collet chuck
  • Material : 40Cr

 Milling Machine Straight Shank Types ER Collet Chuck with Mini NutMilling Machine Straight Shank Types ER Collet Chuck with Mini Nut

Order No.ModelCL1
661611050C16-ER11A-501650
661611100C16-ER11A-10016100
661616100C16-ER16A-10016100
661616150C16-ER16A-15016150
662016050C20-ER16A-502050
662016100C20-ER16A-10020100
662016150C20-ER16A-15020150
662020050C20-ER20A-502050
662020100C20-ER20A-10020100
662025250C20-ER25--502550
662025100C20-ER25--10025100
662516100C25-ER16A--10025100
662516150C25-ER16A--15025150
662520100C25-ER20A--10025100
662520150C25-ER20A-15025150
662525100C25-ER25--10025100
662525150C25-ER25--15025150
662532100C25-ER32-10025100
6632325100C32-ER25--10032100
663232100C32-ER32--10032100
663232150C32-ER32--15032150
663240100C32-ER40--10032110
664032100C40-ER32--10040100
664040100C40-ER40--10040100
Related Products

Milling Machine Straight Shank Types ER Collet Chuck with Mini Nut Related Products



Milling Machine Straight Shank Types ER Collet Chuck with Mini NutC32 - ER32 Straight ShMilling Machine Straight Shank Types ER Collet Chuck with Mini NutMilling Machine Straight Shank Types ER Collet Chuck with Mini NutMilling Machine Straight Shank Types ER Collet Chuck with Mini Nut



Packaging & Shipping

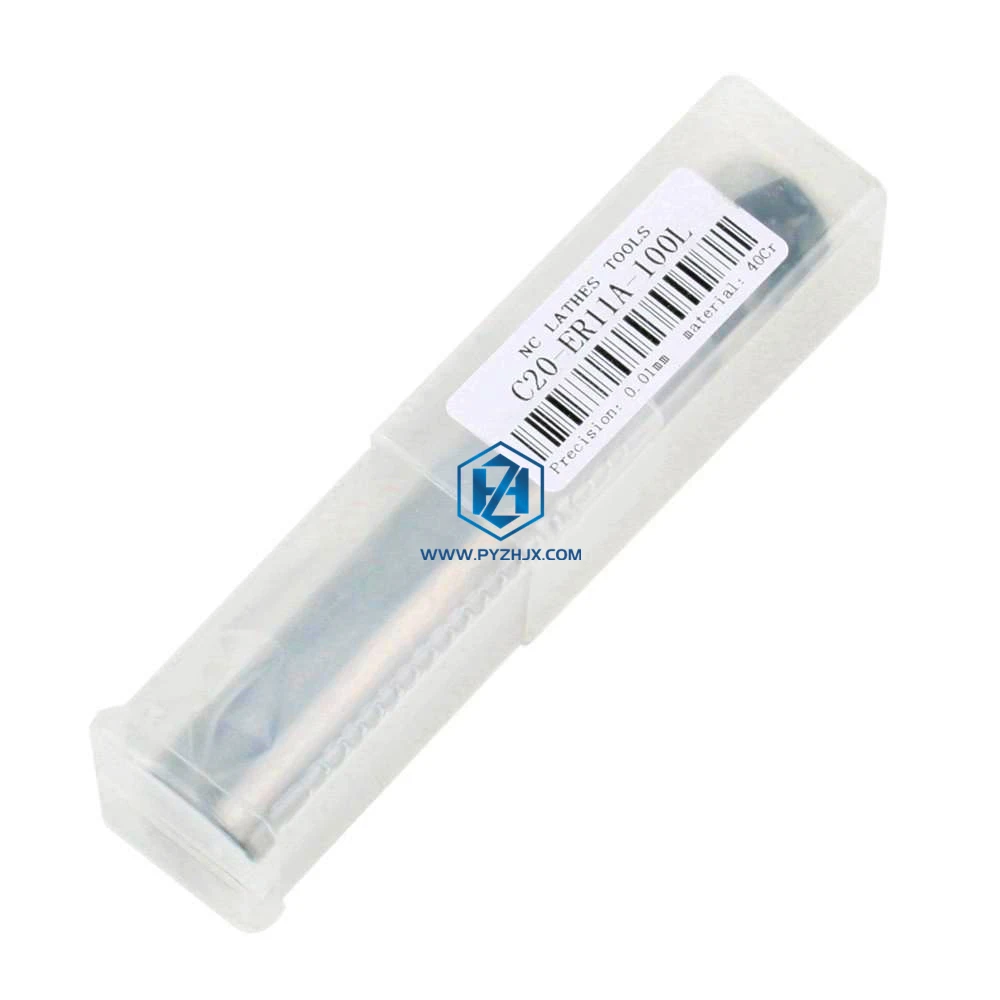

  • Package: Plastic bags inside, cartons, wooden box, pallets.Or as per need.
  • Logo and shipping marks:Zhenghao or as per need.
  • Logistics: By sea, air and courier according to the order quantity and weight.
  • Milling Straight Shank Types ER Collet Chuck
FAQ
  • About us: We XZH are factory since 1998,  one of the most professionalmanufacturer of modular vises and other machine tool accessroes.
  • Market: Our customers and distributors are mainly in Europe, America, USA, Australia, Switland, French, South Africa, Argetina, Russia...
  • Products: We manufacture clamping tools for CNC machining center, machine tools, lather, used for drilling, milling, cutting, clamping, boring, facing and finishing. The products include: modular vice, tool vice, machine vise, universal vise,      quick change too post, wedge type, pston type, 40-position type, Italy style pull studs, collet clamping nuts, collets, collet chuck holders of differen standard, BT, ISO, NT,  CAT,SK, SC...
  • Collet: We manufacture precision BT collets chucks of different type: BT30, BT40, BT50, they cold match ER collet, SK collet, SC collet, OZ collet, TG collet, FMB collet, FMS collet, MTA collet, MTB collet, SLN collet, APU collet
  • Delivery: We arrange the products with less weight and in emergency with delivery by air, heavy and batch products for shipping by sea.
  • Cooperation: We also provide customized products and OEM service.
  • Service: 24 hours service all day round. Welcome to visit our factory for distribution and agent cooperation.
  • Milling Straight Shank Types ER Collet Chuck
