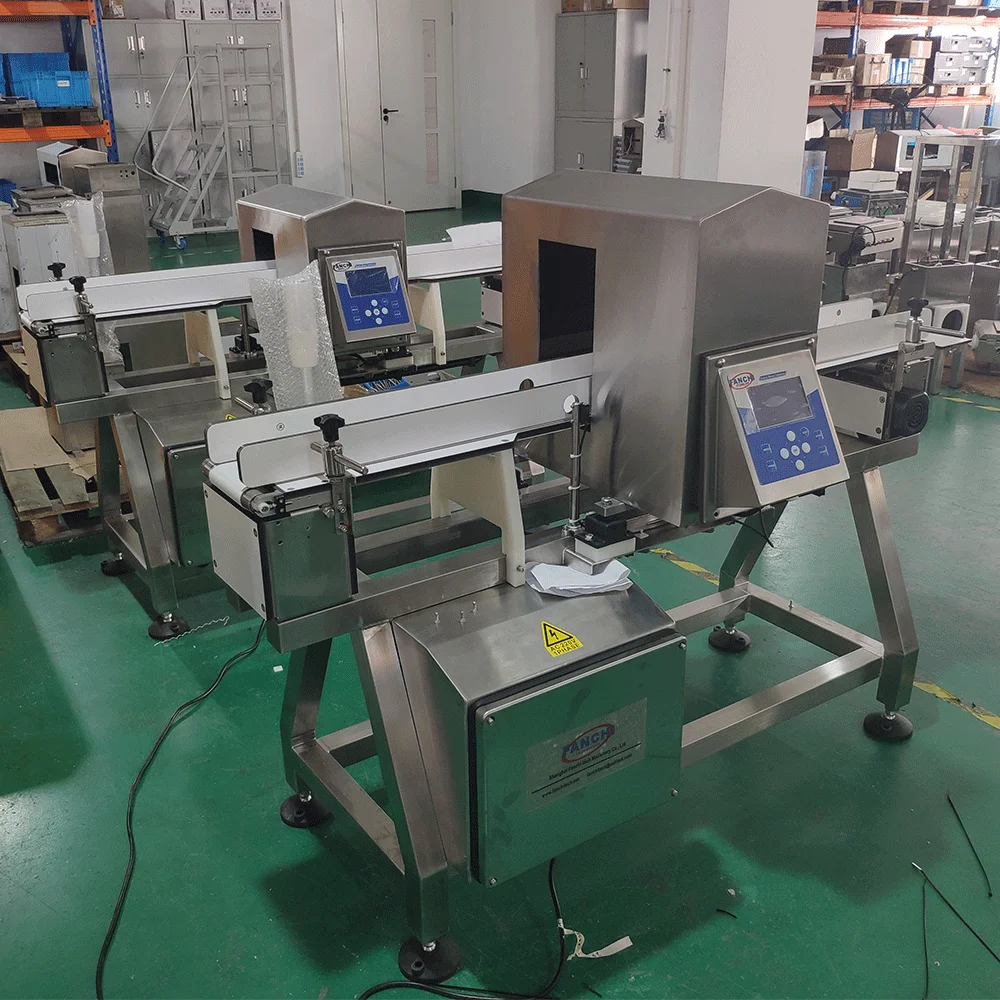

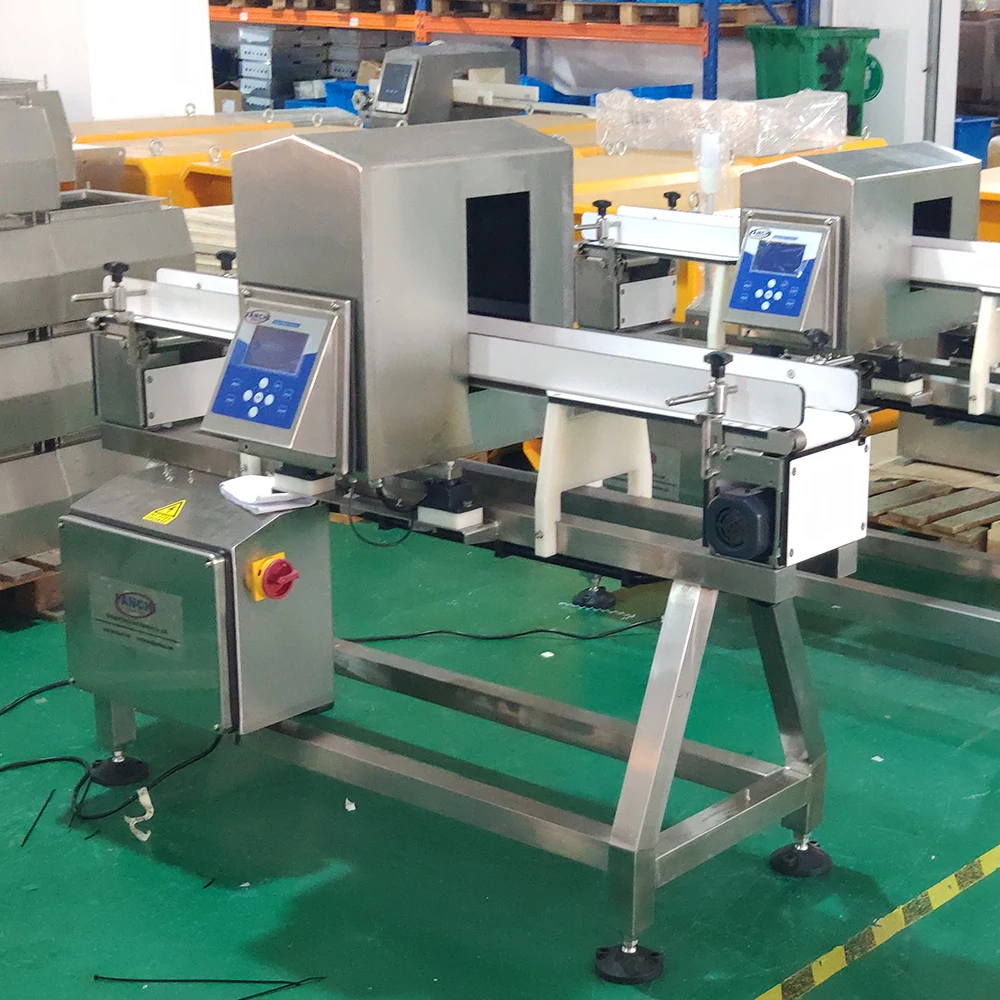

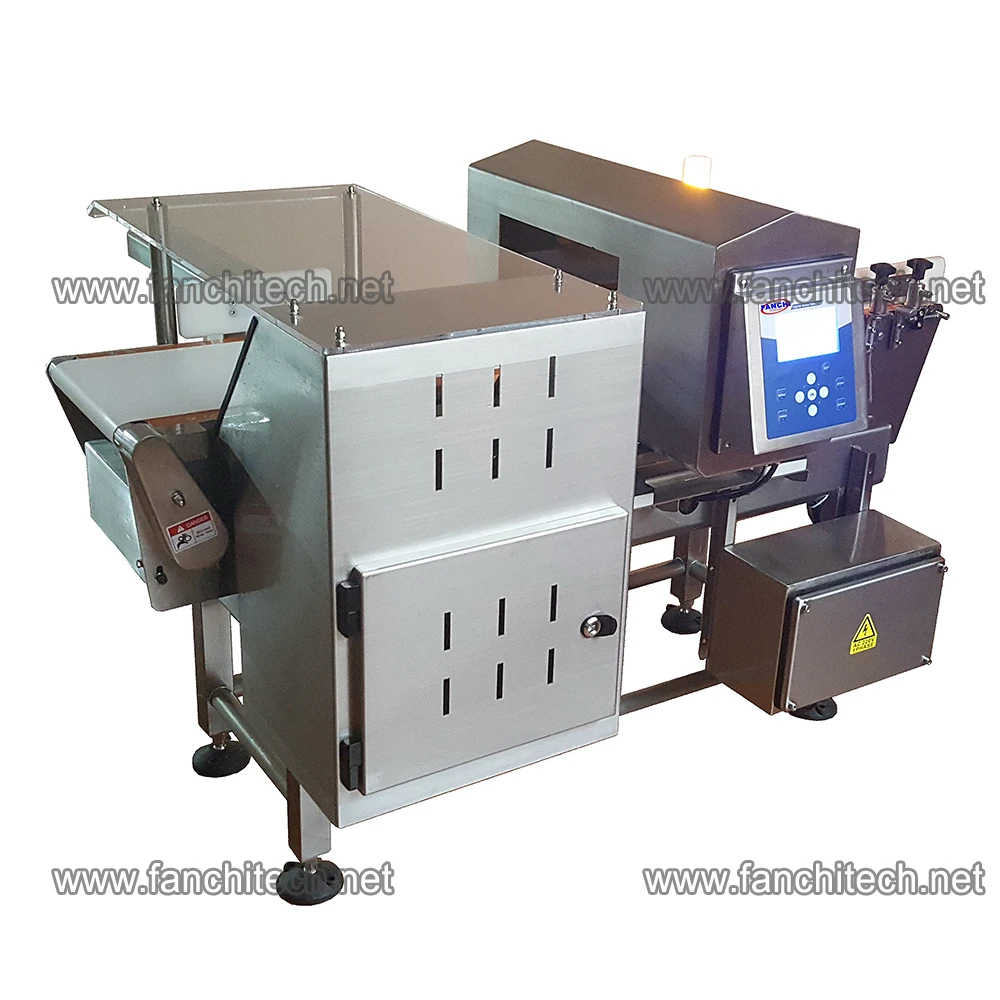

Fanchi tech Metal Detector for Bottles and Jars Vertical Metal Detector for products in a standing position
- Category: >>>
- Supplier: Shanghai Fanchi-Tech Machinery Co. Ltd.
Share on (62210141353):
Product Overview
Description
Product Overview
Fanchi-tech Conveyor Metal Detector FA-MD-II
Fanchi-tech Vertical Type Metal Detector is suitable for tall products in containers, such as beverages and seasonings in glass and plastic bottles. Specially designed for bottled prodducts by adding transitional plate, ensure smooth transportation between conveyors; Highest sensitivity for all types of bottled products.
FEATURES AT A GLANCE
1.Full range of aperture sizes to suit bottles/jars being inspected.
2.Auto parameter setting by intelligent product learning.
3.Higher interference proof by multi-filtering algorithm and X-R orthogonal decomposition algorith
4.Enhanced detecting stability by intelligent phase tracking technology.
5.Anti-interference photoelectric isolation drive allows remote installation of operation panel.
6.Further improvement in metal sensitivity and detecting stability by adaptive DDS and DSP technology.
2.Auto parameter setting by intelligent product learning.
3.Higher interference proof by multi-filtering algorithm and X-R orthogonal decomposition algorith
4.Enhanced detecting stability by intelligent phase tracking technology.
5.Anti-interference photoelectric isolation drive allows remote installation of operation panel.
6.Further improvement in metal sensitivity and detecting stability by adaptive DDS and DSP technology.
7.Storage of 50 product programs by ferromagnetic random access memory.
8.Able to detect all kinds of metal, such as iron, stainless steel, copper, aluminum, etc.
9.Multilevel password protection provides secure access
10.Fall-off proof device for bottle type products.
11.Optional full-cover or open type collecting bin.
12.Optional output safety cover with gate-open sensor that stops the machine.
13.SUS304 frame and major hardware parts by CNC tooling.
8.Able to detect all kinds of metal, such as iron, stainless steel, copper, aluminum, etc.
9.Multilevel password protection provides secure access
10.Fall-off proof device for bottle type products.
11.Optional full-cover or open type collecting bin.
12.Optional output safety cover with gate-open sensor that stops the machine.
13.SUS304 frame and major hardware parts by CNC tooling.
Right elevation
Left elevation

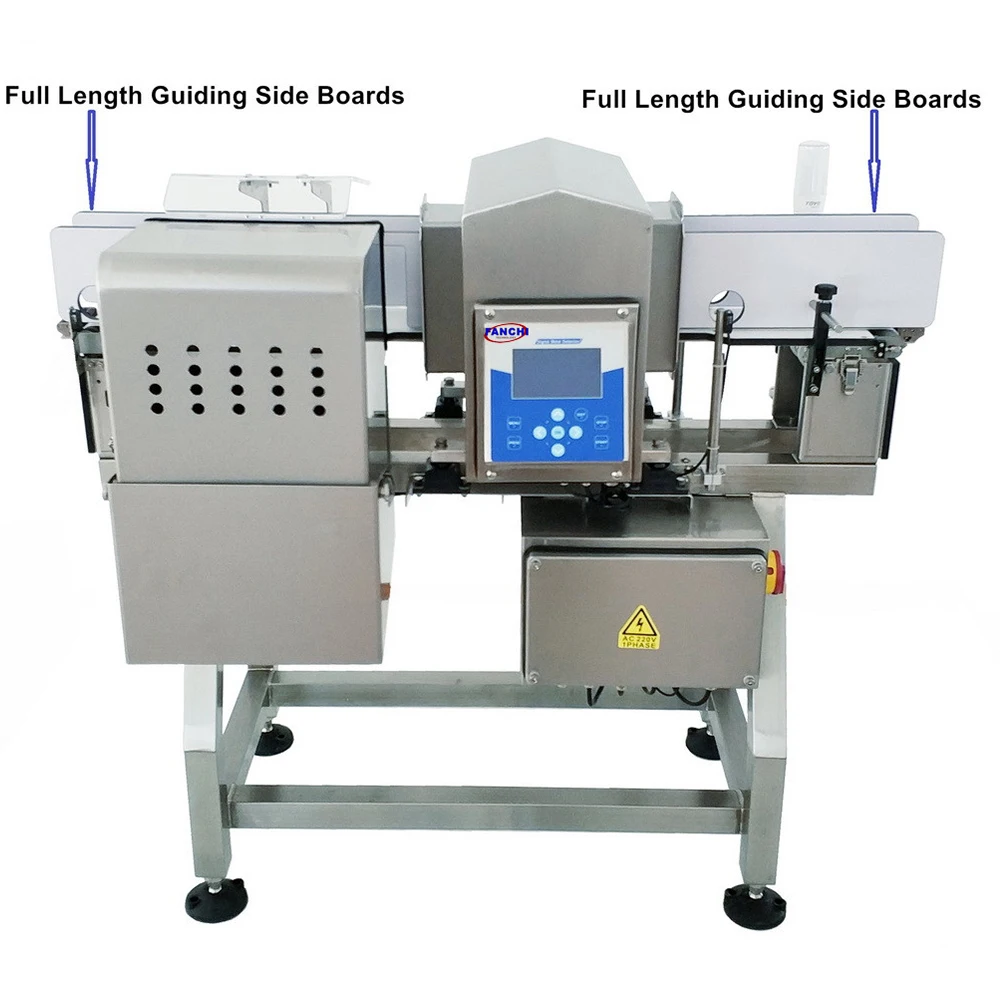

Front elevation

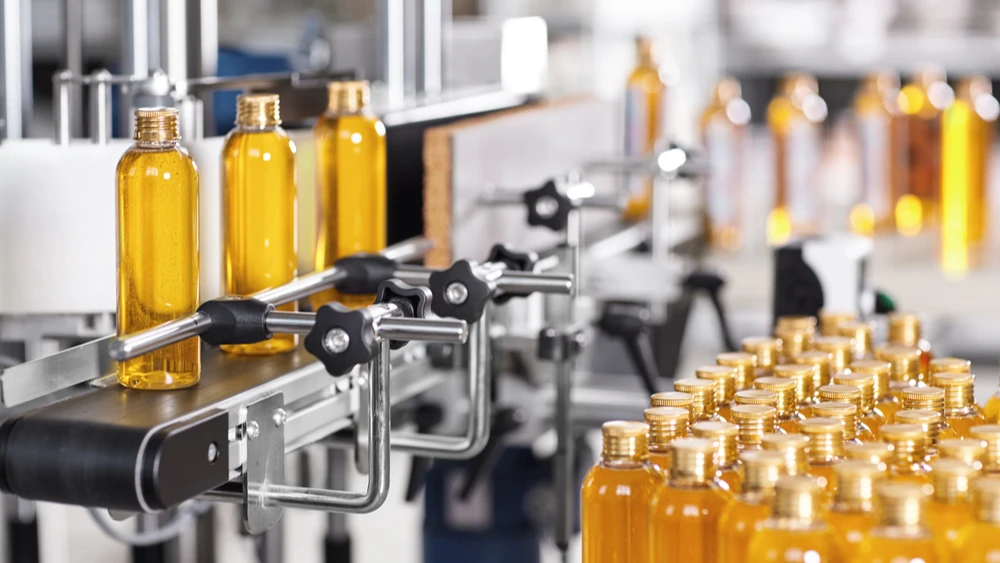

Inspection Solutions for Bottles
Fanchi-tech Vertical Metal Detector For products in a standing position, Max Pass height: 500 mm
Maximum pass width: 250mm
Maximum pass width: 250mm
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Product Name | Fanchi-tech Vertical Metal Detector |
2 | Material of Construction | 304 Brushed stainless steel |
3 | Power Supply | 220-240 VAC, 50-60 Hz, 1 Ph, 400W 110 VAC, 60 Hz, 1 Ph, 400W |
4 | Temperature Range | -10 to 40° C (14 to 104° F) |
5 | Humidity | 0 to 95% Relative Humidity (Non-condensing) |
6 | Belt Speed | 5-45m/min(variable) |
7 | Conveyor Belt Material | Food level PU belt |
8 | Operation Panel | Key Pad(Touch Screen is optional) |
9 | Product Memory | 100 |
10 | Rejecting Mode | Sound and light alarm |
11 | Software Language | English(Spanish/French/Russian, etc optional) |
12 | Conformity | CE (Declaration of Conformityand Declaration of Manufacturer) |
13 | Automatic Reject Options | Belt-Stop / Stop On Detect, Pusher, Air-blast, Flipper, Flap, etc |
Key Components
● Durable EMA alarming tower
● US ferromagnetic random access memory
● Japanese Oriental motor
● SUS 304 roller bearing
● US ferromagnetic random access memory
● Japanese Oriental motor
● SUS 304 roller bearing
● Food grade PU conveyor belt
● Japanese SMC pneumatic components
● Danish Danfoss frequency converter
● Optional keypad and touch screen HMI.
● Japanese SMC pneumatic components
● Danish Danfoss frequency converter
● Optional keypad and touch screen HMI.
Company Profile
Company Profile
We’re a group company owning Fanchi and ZhuWei brands, founded in 2013, and now being an industry leader in the custom fabrication, finishing of sheet metal products and product inspection equipment. In Sheet Metal Fabrication Industry, our ISO-certified company handles everything from pre-production prototypes to high-volume production runs, while performing all fabrication and finishing in-house. This means we can provide high-quality, quick-turn parts at competitive prices. Our versatility means that, for example, we can design, fabricate, finish, silk screen, assemble and ship custom sheet metal enclosures and assemblies. We assure quality at every step of the process with computerized and in-process inspections, and regular troubleshooting. Working with OEM’s, assemblers, marketers, installers and servicers, we offer the “full package” of product development and fabrication, from start to finish. The typical products/projects we’ve made are including Electronic Equipment, Bill payment kiosks, Check sorters, Filter Enclosures, Electrical Control Cabinets, etc.
In Product Inspection Industry, we’ve been designing, manufacturing and supporting inspection equipment used to identify contaminants and product defects within the food, packaging and pharmaceutical industries, principally offering Metal Detectors, Checkweighers and X-Ray Inspection systems, believing that through superior product design and engineering the production of higher quality equipment with customer-satisfied service could be achieved.
Our quality and certification: our Quality Management System is at the heart of everything we do and combined with our measurement standards and procedures, it meets and exceeds the requirements of ISO 9001-2015. Besides, all our products are fully compliant with EU safety standards with CE Certificate, and our FA-CW series Checkweigher is even approved by U L in North-America(through our distributor in US).
With integration of our Sheet Metal Fabrication Business, our Product Inspection sector has the following advantages: short lead times, modular design and excellent availability of spare parts, coupled with our passion for customer service, allows our customers to: 1. Comply with, and exceed, product safety standards, weight legislation and retailer codes of practice, 2. Maximize production uptime 3. Be self-sufficient 4. Lower lifetime costs.
SALES AND SERVICE NETWORK
Certifications
Fanchi CE for Metal Detector
Fanchi CE for Checkweigher
Fanchi CE for X-ray Machine
Test Pieces Certificate
Fanchi Group ISO Certificate
SASO Certicate
After-sale Services
After-sale services
Fanchi-tech recognises that providing great service, with great people on time, every time shows you the value of their investment in
our company. Our cost effective designs and industrial ruggedness has ensured a longevity of high standard world-wide equipment.
For reliability, serviceability we make our machines with standard and universal parts so once you own a machine in emergency's
you are able to get your local fitter or local electrician to look after them. 12 months parts and labor is warranted on all
equipment installed and supplied by Fanchi
our company. Our cost effective designs and industrial ruggedness has ensured a longevity of high standard world-wide equipment.
For reliability, serviceability we make our machines with standard and universal parts so once you own a machine in emergency's
you are able to get your local fitter or local electrician to look after them. 12 months parts and labor is warranted on all
equipment installed and supplied by Fanchi
FAQ
1. How often should we test the metal detector with the metal test samples?
The detectors performance, detection and rejection of test samples, should be verified on an hourly basis as well as at the
beginning of a product run or at a shift change. Also whenever any settings are updated or changed, the test samples should be used. Industry standards and auditing requirements may dictate the testing frequency and procedure so do check with QA. Ultimately, the more often the detector is tested, the better. Should the detector fail a testing sequence, then all products since the last test would have to be rechecked.
beginning of a product run or at a shift change. Also whenever any settings are updated or changed, the test samples should be used. Industry standards and auditing requirements may dictate the testing frequency and procedure so do check with QA. Ultimately, the more often the detector is tested, the better. Should the detector fail a testing sequence, then all products since the last test would have to be rechecked.
2. What parts do you recommend for us to keep in our stock?
We recommend having a full spare parts kit on hand. This includes a power supply, search head board, digital board (DSP) and control panel. Having a full set will help when troubleshooting.
3. What is the detector capable of detecting?
The capability of the metal detector is dependent on many factors that will limit the sensitivity.
The most common limiting factor is the product effect. In many applications the product may be conductive and acts like metal This effect must first be overcome before determining sensitivity. The sensitivity is not only determined by product effect. Other factors such as but not limited to, aperture size, operating frequency, product speed and environment may also limit sensitivity.
The most common limiting factor is the product effect. In many applications the product may be conductive and acts like metal This effect must first be overcome before determining sensitivity. The sensitivity is not only determined by product effect. Other factors such as but not limited to, aperture size, operating frequency, product speed and environment may also limit sensitivity.
4. Are there any specific steps to maintain the metal detector system?
Generally the maintenance consists of the following: Inspecting the detector and system for damage Inspecting mechanical parts for signs of wear Ensuring electrical connections and cable entries are tight Keeping the system clean 5. Does our metal detector detect all metals? Unless you are inspecting product with pure aluminium packaging, which required a Ferrous in Foil detector, the metal detector will detect all kinds of metal. Metal detectors are generally tested with Ferrous, Non-Ferrous, Stainless Steel test samples. Testing with these three types of test samples will ensure that the detector is capable of detecting all metals.
