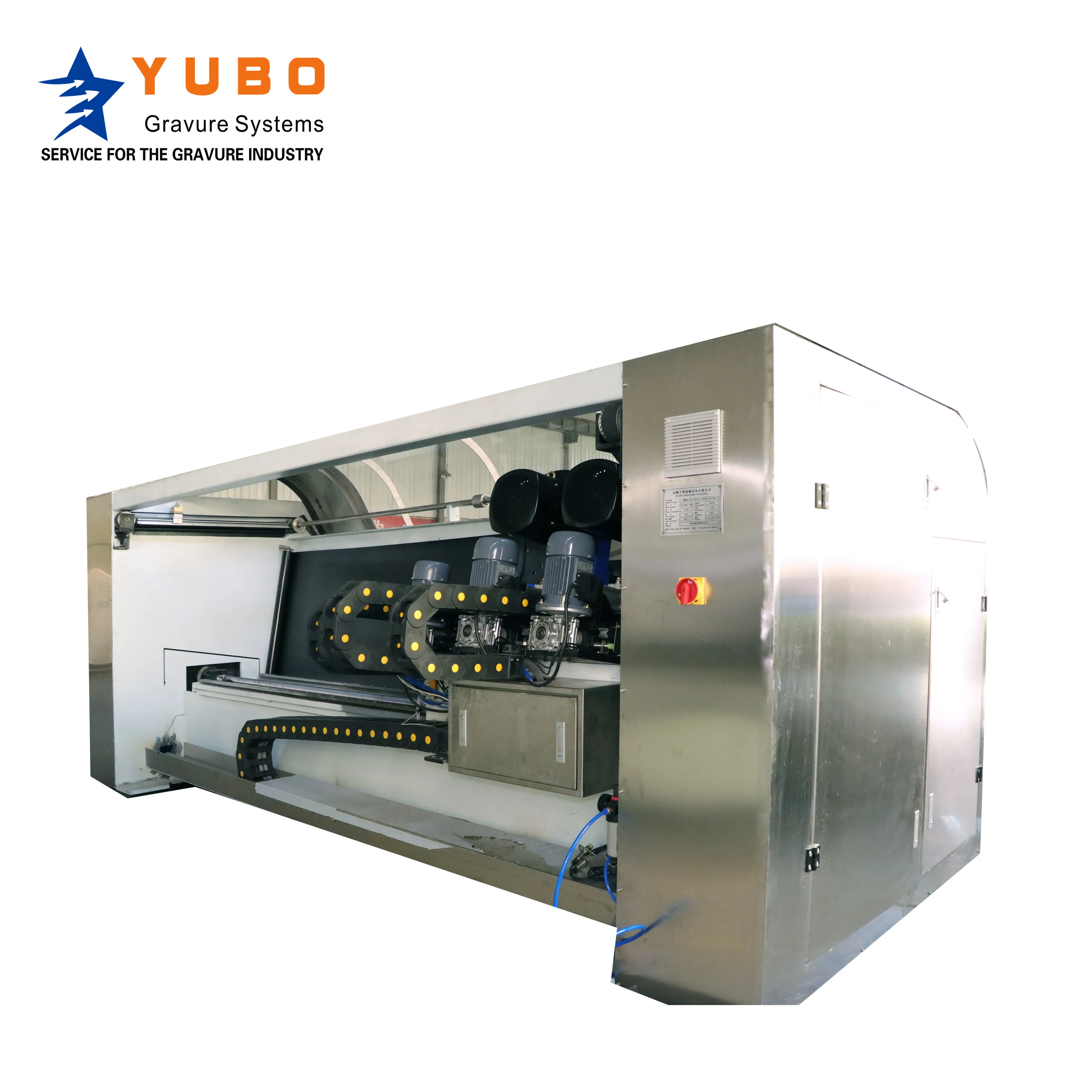

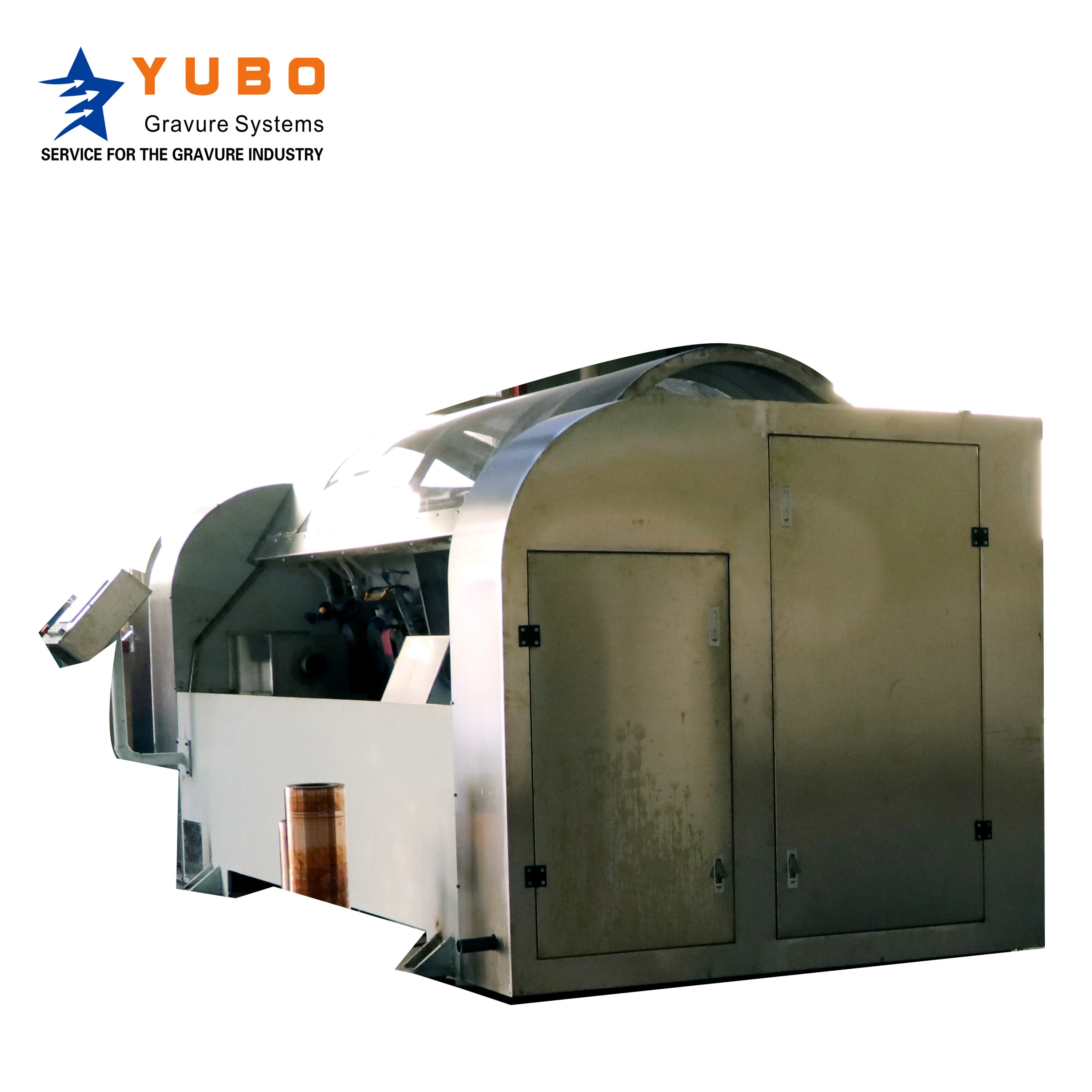

YUBO Three Heads Copper Grinding Polishing Machine Gravure Cylinder Polishing Machine
YUBO Three-Heads Copper Grinding Polishing Machine Gravure Cylinder Polishing Machine
YUBO Three-Heads Copper Grinding Polishing Machine Gravure Cylinder Polishing Machine
YUBO Three-Heads Copper Grinding Polishing Machine Gravure Cylinder Polishing Machine
YUBO Three-Heads Copper Grinding Polishing Machine Gravure Cylinder Polishing Machine
YUBO Three-Heads Copper Grinding Polishing Machine Gravure Cylinder Polishing Machine

YUBO Three Heads Copper Grinding Polishing Machine Gravure Cylinder Polishing Machine

Share on (62210340249):


Price:RUB 1,516,360.00 - RUB 3,790,900.00

Quantity:


Product Overview

Description

Product Description

Grinding machine is an important procedure in the entire plate-making equipment, and it is also necessary equipment following copper coating. Grinding has rough grinding and fine grinding. The equipment has the characters of reasonable and compact structure, stable performance, low noise, high efficiency and easy operation.

Features

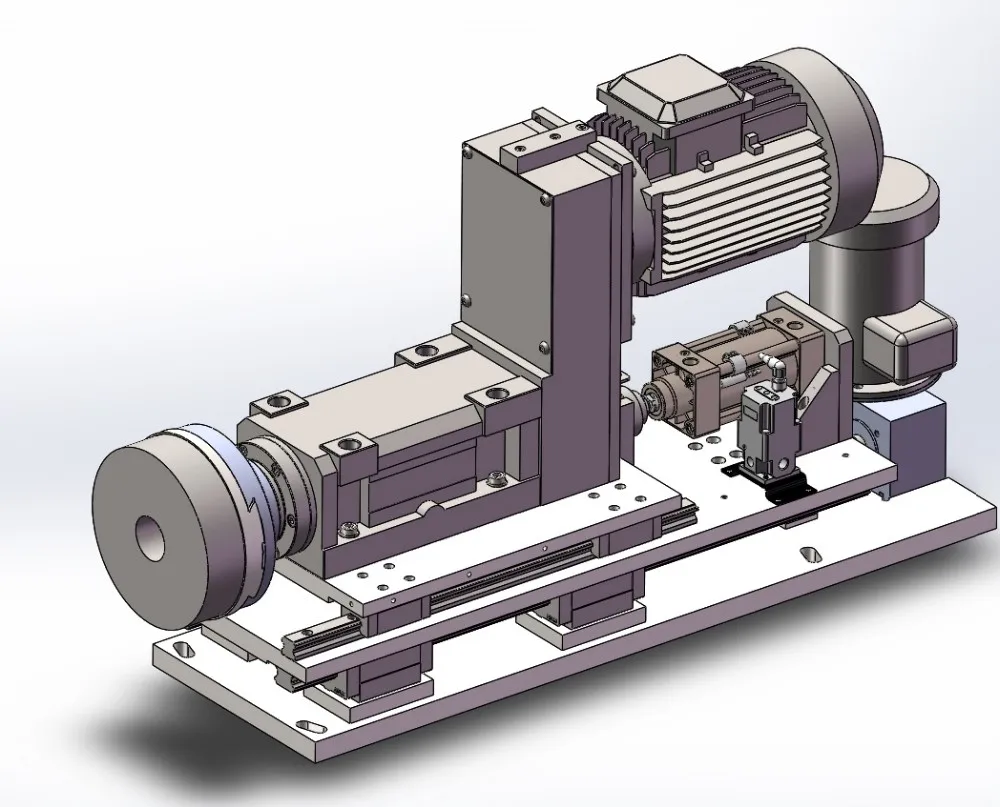

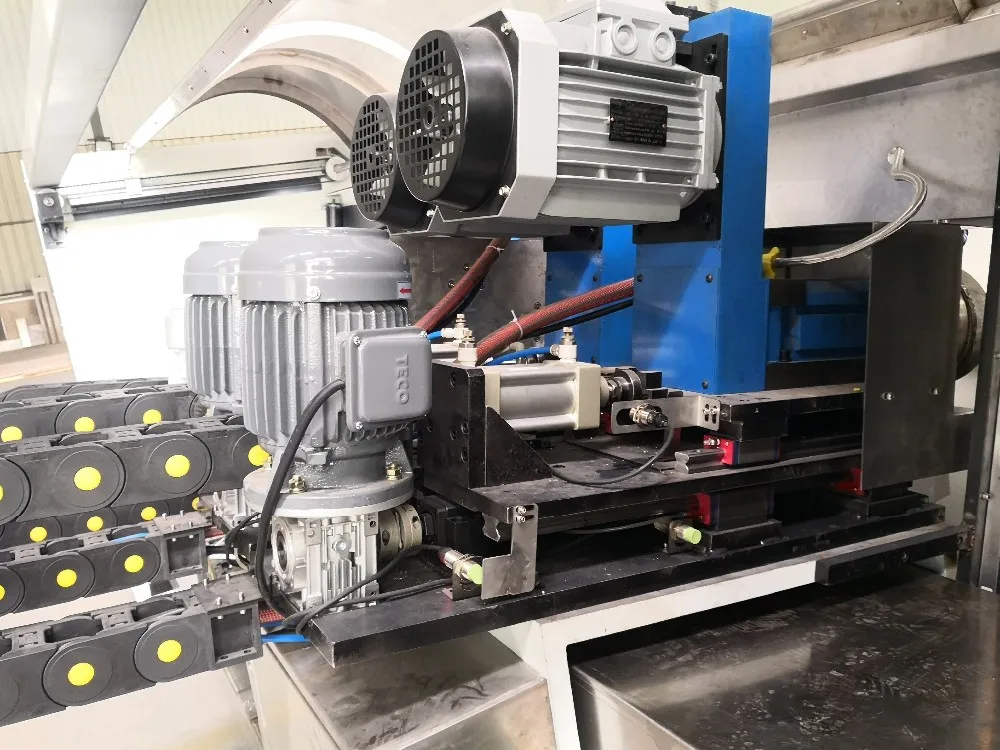

1.Our grinding head is a complete set of power heads,grinding head rotates more smoothly.

2.The angle of grinding head is 15 degrees,not the style of flat push,better for pressure control.

3.Movement mode:first cylinder work,then before and after screw move,the cylinder is pressed back and back to the signal,polishing head start work,move left and right.

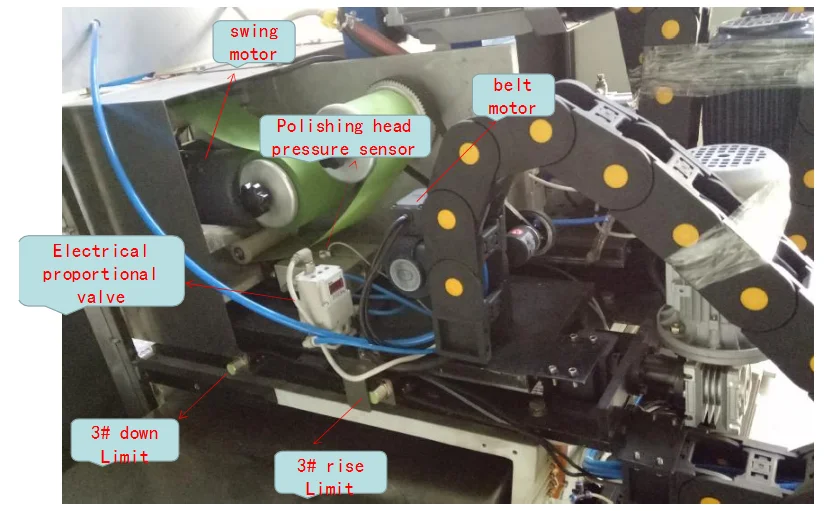

4.The three head pressures all are adjustable and realized by an electric proportional valve.all the parameter can be set in the program.

Detailed Images

CHARACTERS
(1).High efficiency:compared withe single head copper grinder,this machine just once load the cylinder,then the rough grinding and fine grinding can be finished.No need to oftenly replace the grinding stones and load/unload cylinder;

(2).PLC control system and touch screen operation system,more easily and simply to operate.

(3).Strengthened seal main stander ensures the intensity of the whole equipment and the stander against transmo-grification,which improves the resistance of shock.

(4).The rotation speed of cylinder and the grinding stone,and the moving speed of tailstock are adjusted by frequency conversion.So high working precision.

(5),The foreground adopts stainless steel guide-rail,water proof cover and water proof tank to ensure the waste liquid can noto flow into the inside of the machine,the inside components can be effectively protected.

(6).Fully automatic lubrication fuction:the lubrication oil is dosing automaticly to ensure the normal running of all the lubricating parts and prolong the machine s life.

Packing & Delivery

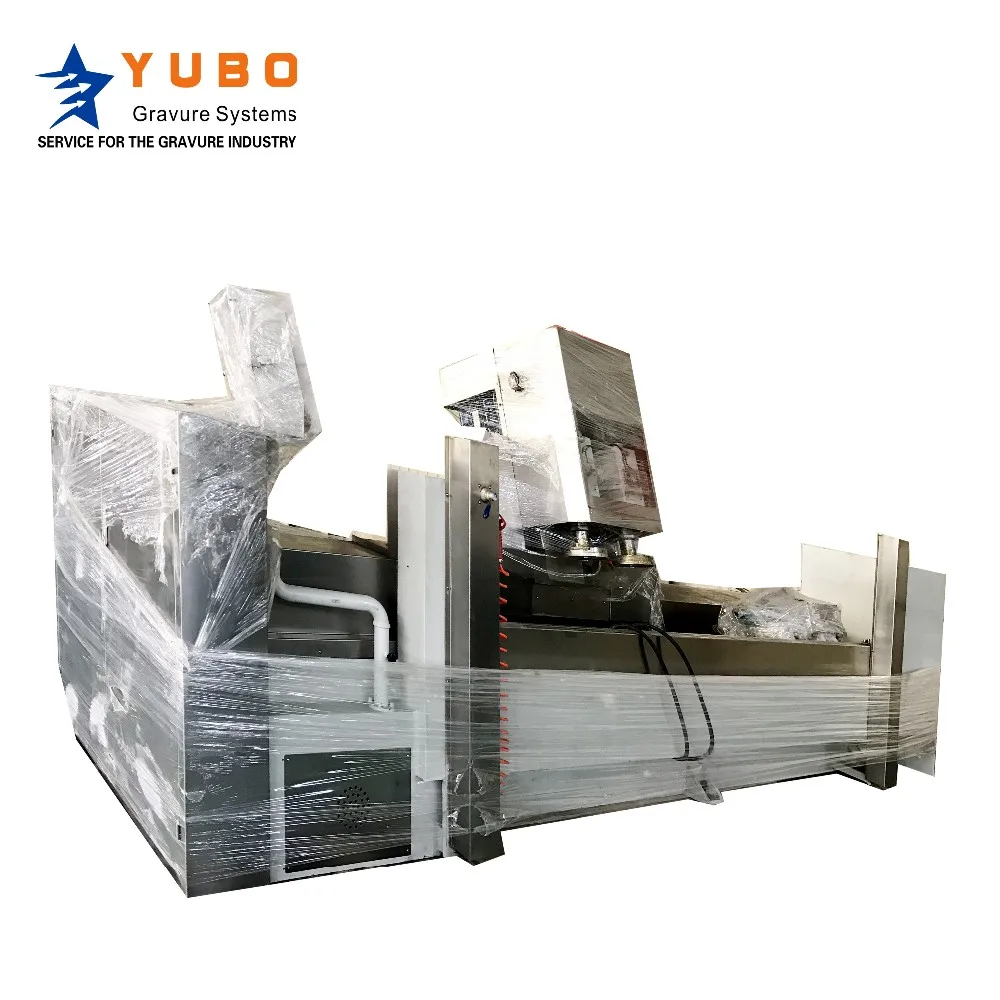

By winding with plastic film, the appearance of the machine is not easy to scratch, and ensure the integrity of machine parts.


Other parts will be packed in wooden cases and clearly marked.


According to customers requirements, We can provide on-site guidance and install machine services.

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Related Products

Product Name:

Double-heads copper grinding machine

Product Name:

copper polishing machine

FAQ

1. Q: Are you manufacturer or trading company?
    A : Both we are, we have our own factory for production, and trading company for export and import business.

2. Q : Where your factory located ?
    A : We are located in yuncheng city SHANXI province, near Yuncheng airport (YCU) .

3. Q: Do you have repair service?

    A : Yes, if you worry about the quality, can send your resharpable cutter for reparing. such as engraving stylus, fine cutter, sliding shoe, burr cutter etc.

4. Q: How can we contact with you?
    A : Send email or my Whatsapp/Wechat No.: 0086-13333591230
