dental use crucible for Induction Casting Machine
US $15.00-$18.00
Огнеупорный плавленый кварцевый тигель из силикона и керамики Чаша для плавления стекла
- Category: Quartz Products >>>
- Supplier: Zibo Longtai Cave Industry Technology Co. Ltd.
Share on (62210417448):
Product Overview
Description
Product Description
Melting pot crucible melting quartz bowl

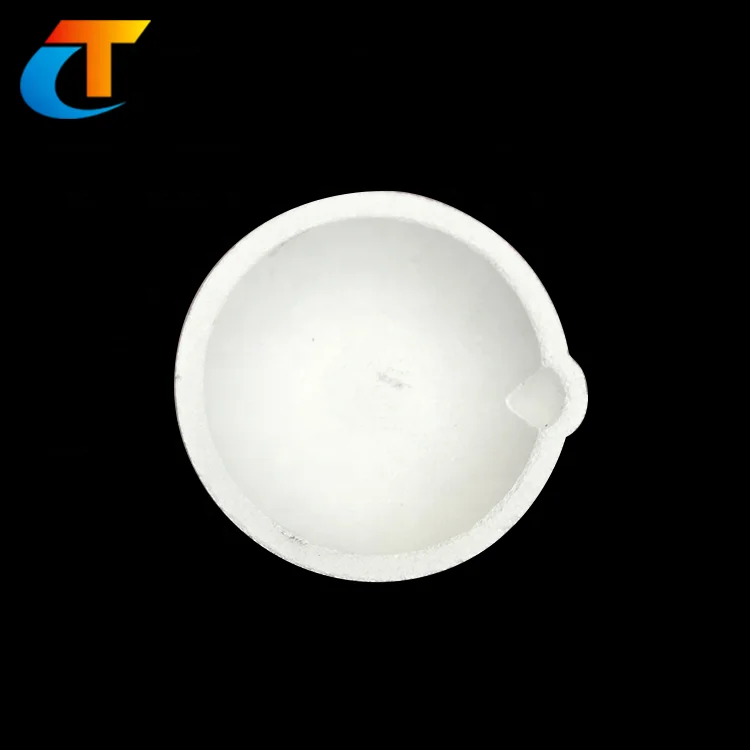

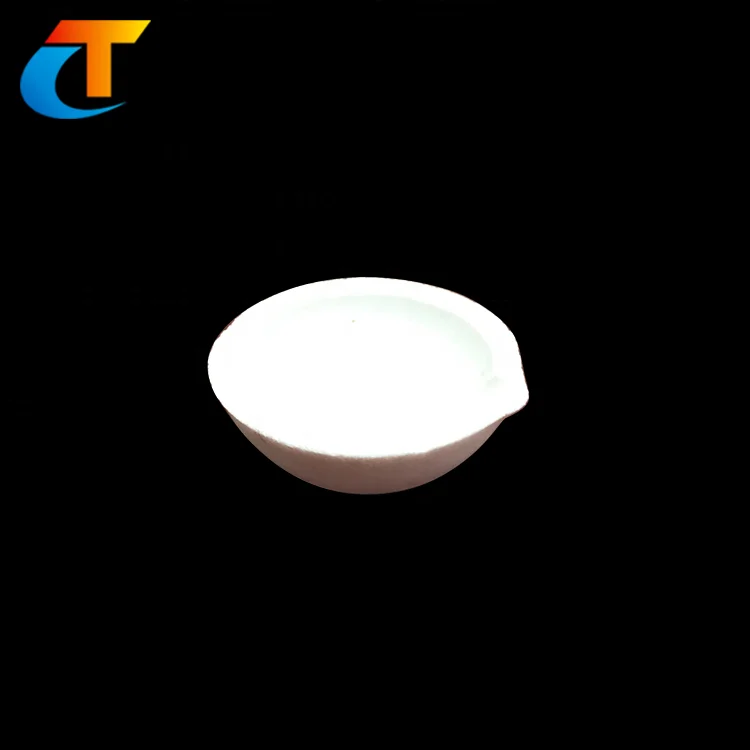

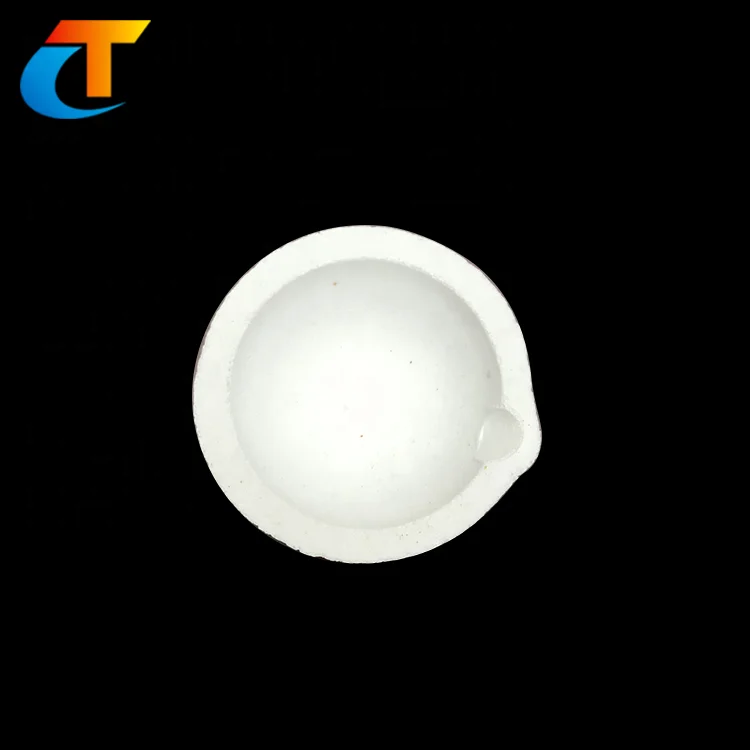

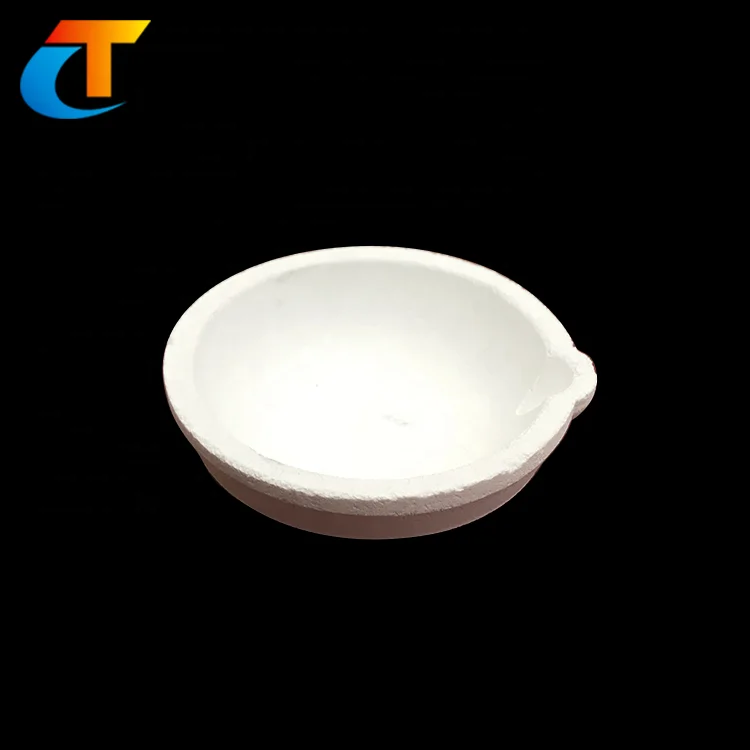

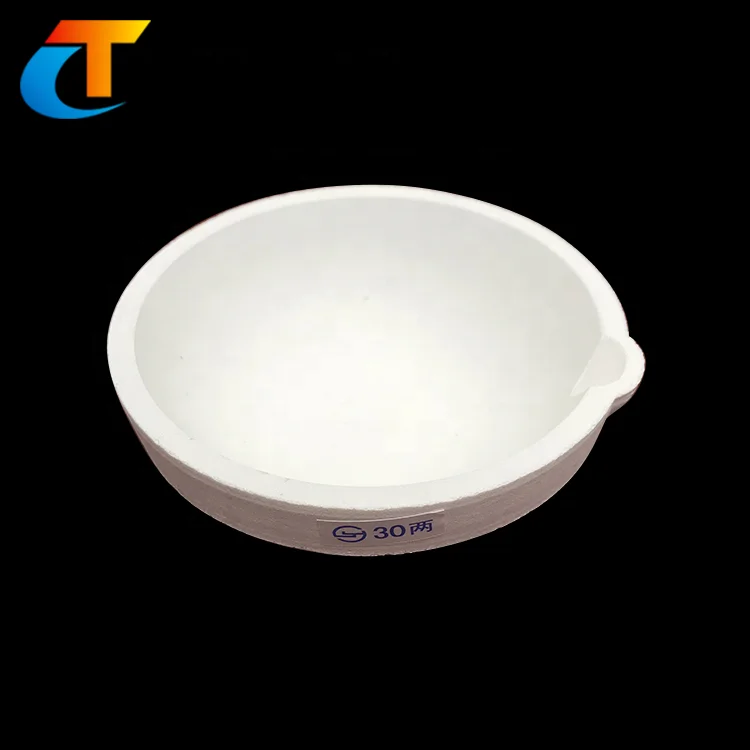

Quartz Ceramic Crucible
Quartz ceramic crucible is made of high pure fused quartz. The SiO2 content is more than 99.5%. Its shape is mainly square and cylindrical
Production process:
preparation slurry – molding by casting - workblank drying - sintering - cutting &grinding - finished products.
Quartz Ceramic Crucible Technique Index:
Item | Unit | Index | |||
Sio2 | % | ≥99.5 | |||
Bulk Density | g/cm3 | 1.80-1.90 | |||
Apparent Porosity | % | 14-17 | |||
Compressive Strength | MPA | ≥50 | |||
Coefficient Of Thermal Expansion | ×10-6/℃ | ≤0.6 | |||
Thermal Conductivity | w/m.℃ | 0.65 | |||
Long-term working temperature (℃) | 1100 | ||||
Maximum temperature (℃) | 1650 | ||||
feature | Fused quartz ceramic crucible with fine structure, low thermal conductivity, low thermal expansion coefficient, high dimensional accuracy, high temperature non-deformation, good thermal shock resistance, good electric properties and good chemical erosion resistance etc. | well | |||
Application | it is widely used in glass deep processing industry, metallurgy industry, electronic industry, chemical industry, aerospace and other fields. | 1250 | |||
Related quartz ceramic products application | the gate brick in float glass furnace, runner cover, hollow roller of float glass annealing furnace, quartz glass ceramic roller of horizontal tempering furnace, water mouth of cast steel, metal strip metallurgy and heat treatment furnace with hollow roller, glass kiln water mouth, punch, crucible, furnace body, sulfur, and cylinder, stir bar, basin, rotating tube, coke oven door etc. In addition, in the missile, rocket, radar and other aspects also have a small number of applications. | ||||
Model | Specification（mm） | Weight（kg） |
000-11 | Φ60×90 | 0.271 |
000-01 | Φ100×60 | 0.372 |
015-03 | Φ82×130 | 0.576 |
015-02 | Φ120×125 | 0.986 |
060-14 | Φ140×130 | 1.45 |
061-01 | Φ160×170 | 1.75 |
000-06 | Φ200×164 | 2.2 |
000-02 | Φ320×150 | 4.105 |
024-01 | Φ440×420 | 25.99 |
060-12 | 100（66）×120 | 0.8 |
033-01 | Φ106(117)×205 | 1 |
028-01 | 250×250×100 | 2.668 |
000-03 | 300×200×300 | 7.173 |
059-01 | 320×320×55 | 3 |
060-10 | 320×320×130 | 4.25 |
060-11 | 320×320×150 | 4.55 |
028-02 | 320×320×190 | 5.3 |
064-01 | 370×370×185 | 4.25 |
006-02 | 420×420×150 | 9.939 |
006-01 | 520×520×120 | 11.623 |
000-05 | 530×530×120 | 12.377 |
000-10 | 530×530×135 | 13.47 |
000-04 | 520×520×150 | 14.021 |
