Used Tecumseh compressor FH2480Z 2HP hermetic

Used Tecumseh compressor FH2480Z 2HP hermetic

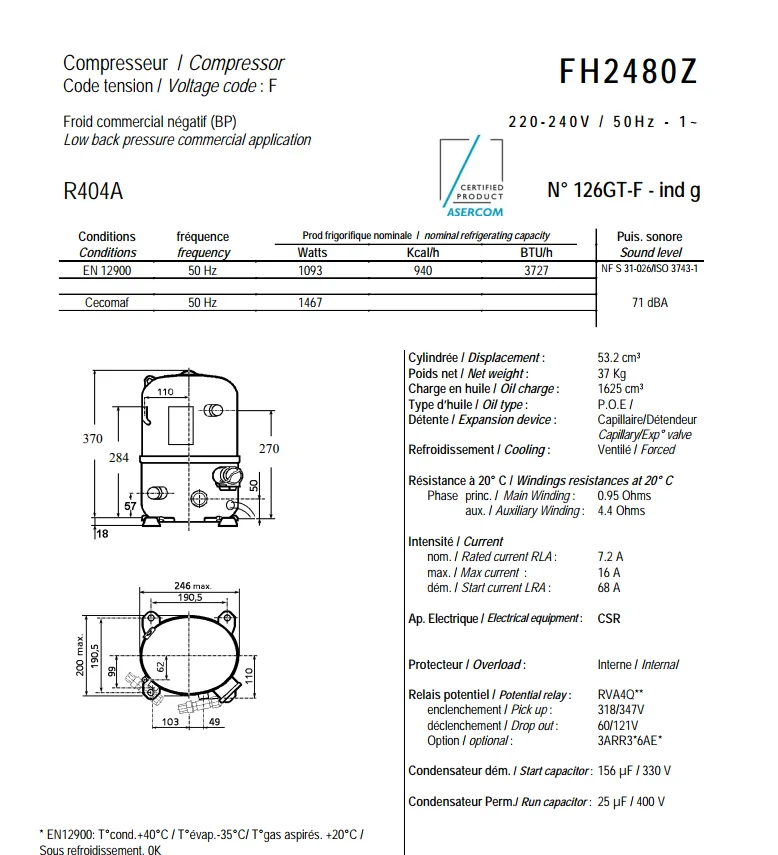

Model: FH2480Z

Refrigerant Gas: R-404A

Pression/temperature: LBP

Power: 2 HP

Voltage: 220-240 V

Current Type:  Single Phase

Frequency: 50 Hz

Compressor Type: Hermetic

Displacement: 53.2 cm³

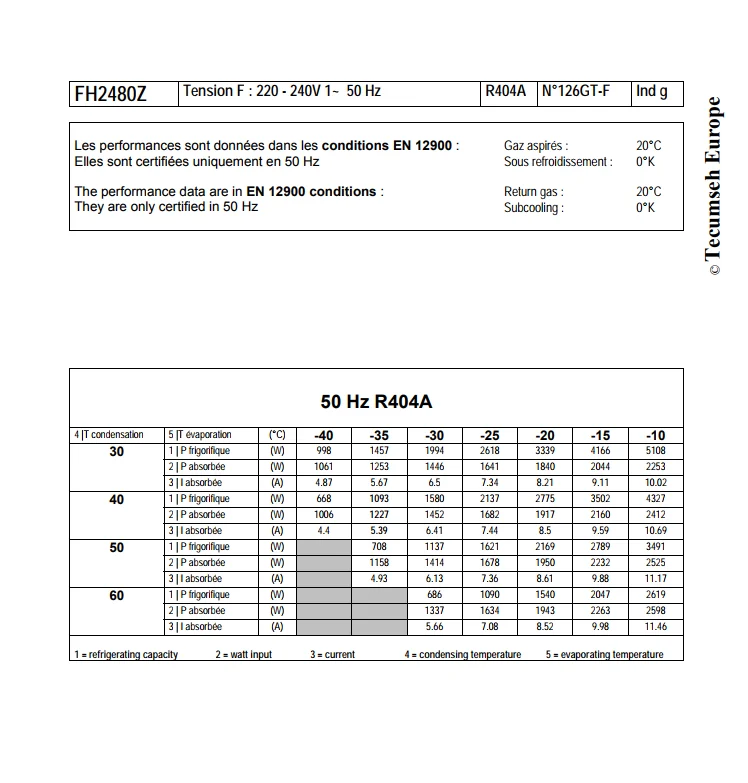

Power Cons. -35°C: 1158 W

Power Cons. -25°C: 1678 W

Power Cons. -10°C: 2525 W

T° Condensation: 50 °C

Cooling Cap. -35°C: 609 Kcal/h

Cooling Cap. -30°C: 978 Kcal/h

Cooling Cap. -25°C: 1394 Kcal/h

Cooling Cap. -20°C: 1865 Kcal/h

Cooling Cap. -15°C: 2398 Kcal/h

Cooling Cap. -10°C: 3002 Kcal/h

Voltage Range (50 Hz):198-253

Voltage Range (60 Hz):N/A

Locked Rotor Amps (LRA):68

Rated Load Amps (RLA 50 Hz):7.8

Rated Load Amps (RLA 60 Hz):0

Max. Continuous Current (MCC in Amps):16

Motor Resistance (Ohm) - Main:95

Motor Resistance (Ohm) - Start:4.4

MotorType:CSR

Overload Type:N/A

Relay Type: N/A
