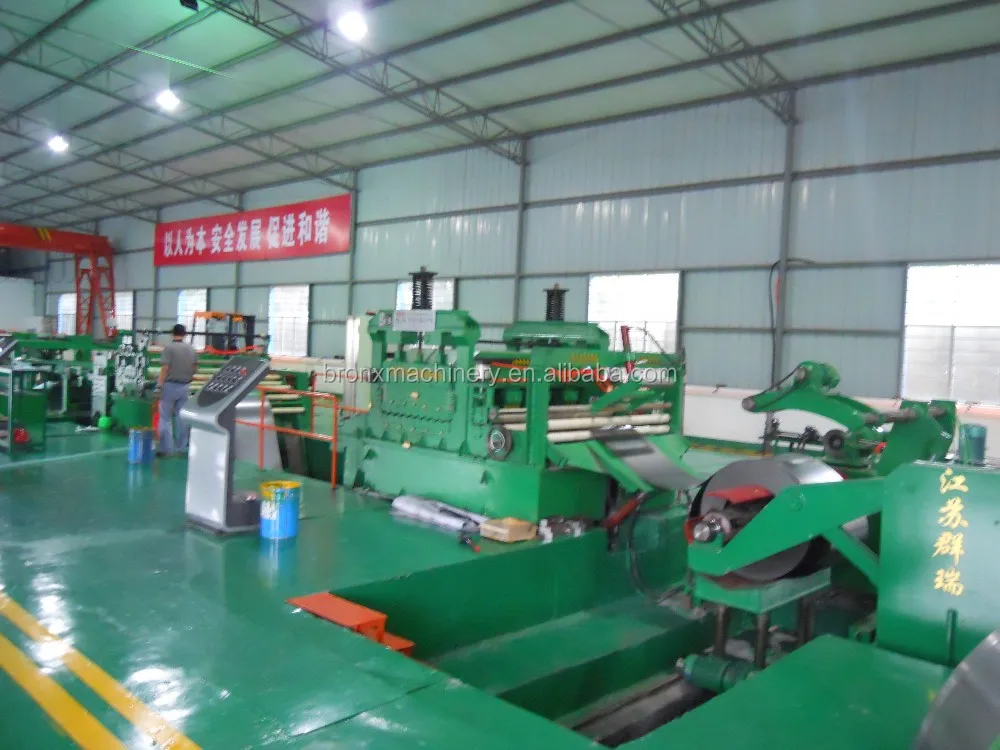

High Speed Stainless steel coil uncoiling leveling shearing stacking line

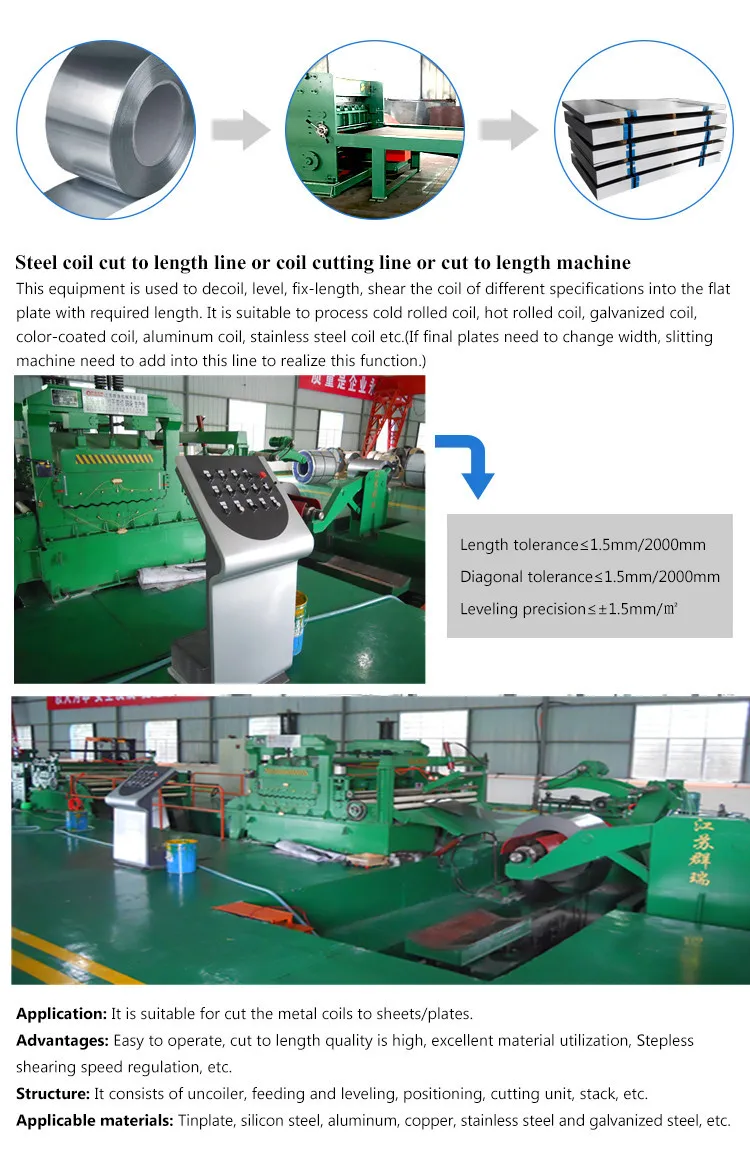

The cut to length line is used to get flat sheets from steel coils after 7-8 working procedures.

The total line is CNC control.

After operator put coil onto the loading cart, the following procedures will finish automatically.

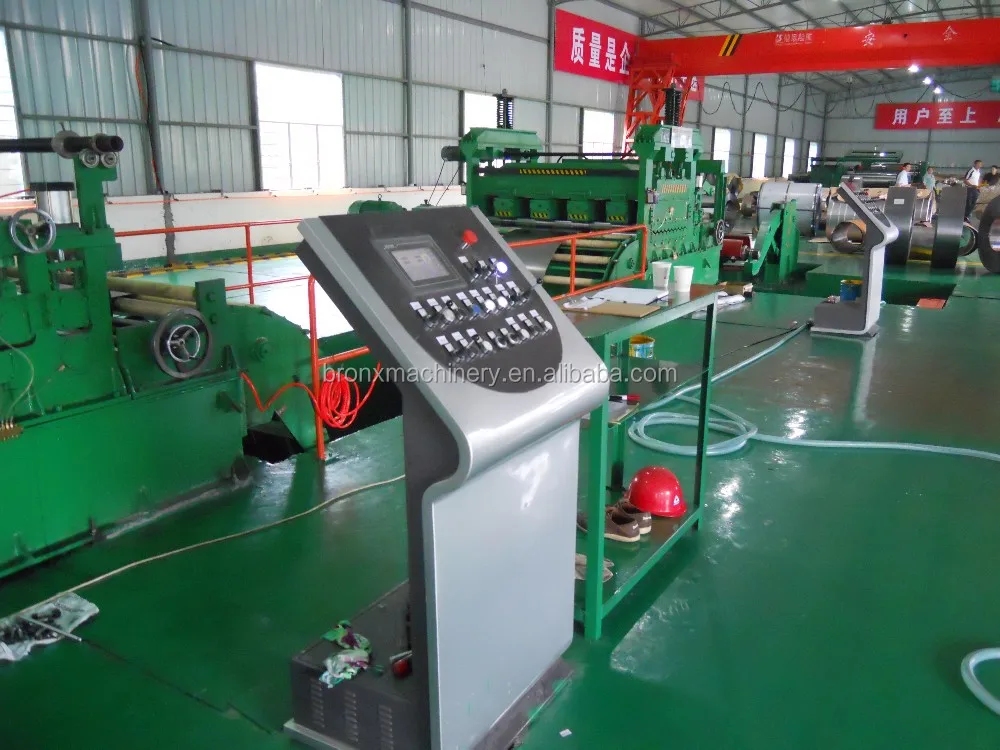

The touch screen in the controlling table will allow operator to input parameters required.

The total line is easy to operate.

Such a line normally containing below working procedures:

1.unloading cart (optional)

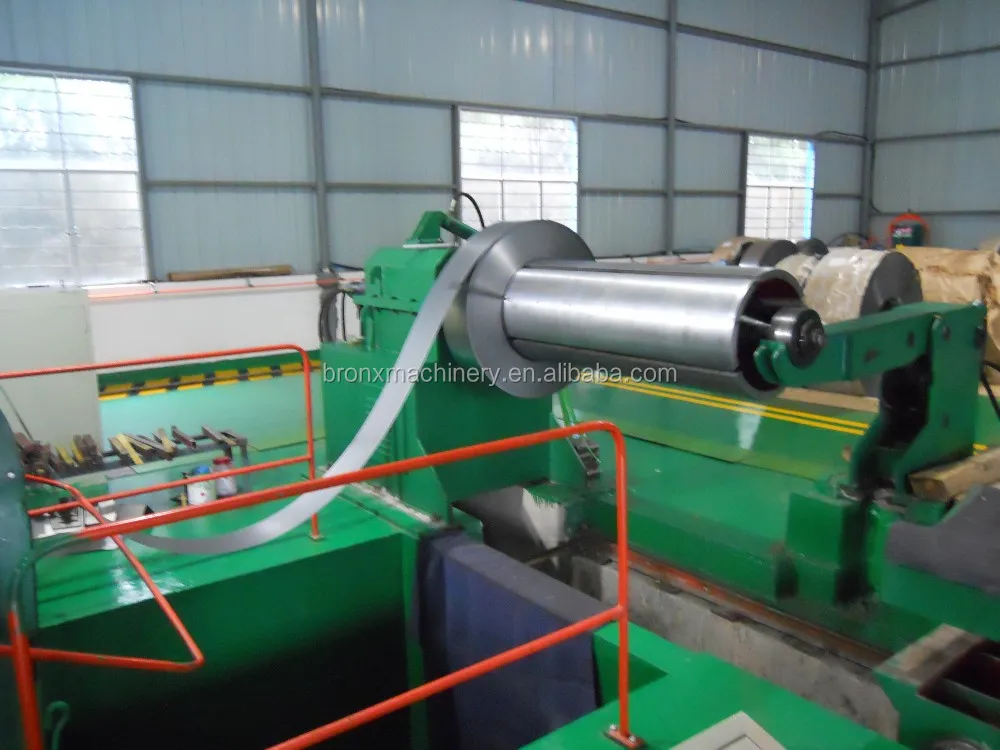

2. uncoiler

3. shoveling and pressing device

4. correcting facility

5. pinching

6. leveling (four high structure)

7. length fixing

8. shearing

9. stacking (optional)

10. electric control system

11. hydraulic control system

1. Our factory has decades of experience for metal coil and sheet processing machines production.
    We have professional engineer team for technical support.
    Over 30 years practical installing and testing experience accumulated makes sure the good running for machines.
2.Our QC department tracing every procedures during machine making to guarantee the qualified final output.
3. The electric and hydraulic elements using in our machines are all famous and long cooperated in China.
     They can work stable and have long working life.
