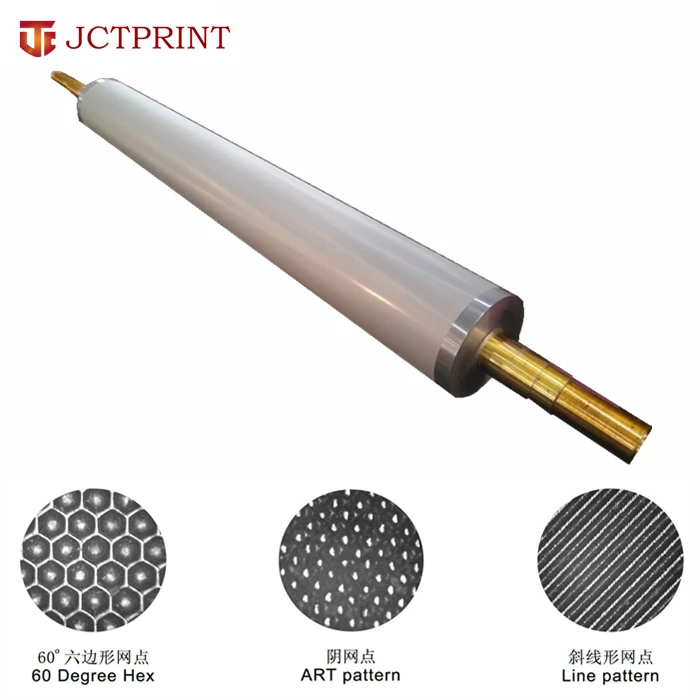

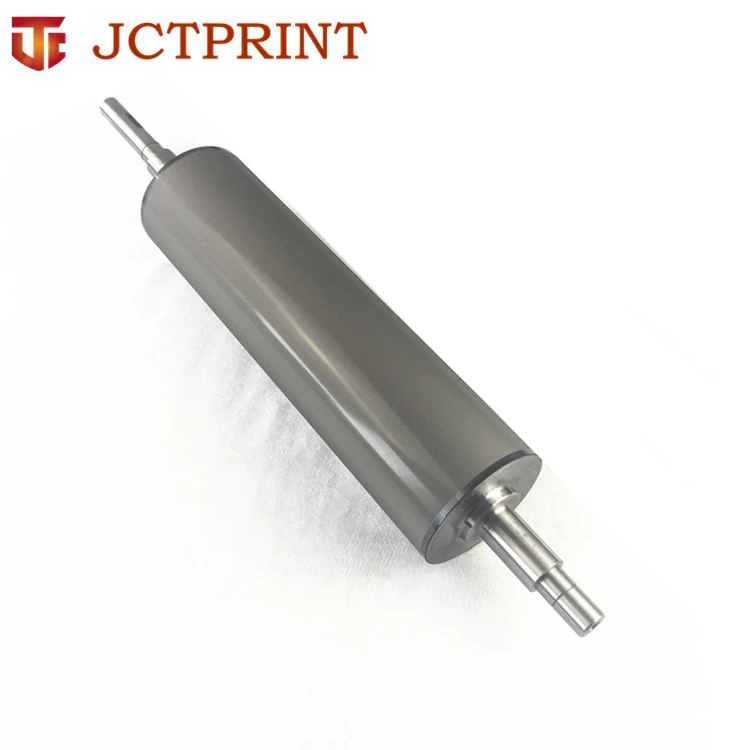

Laser Engraved Flexography ceramic anilox roller

Share on (62210506014):


Price:$299.00

Quantity:


Product Overview

Description

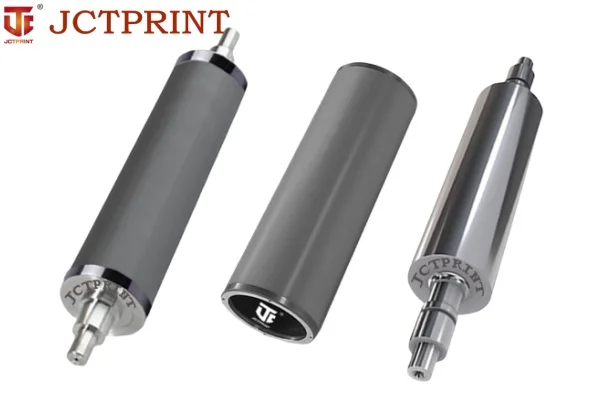

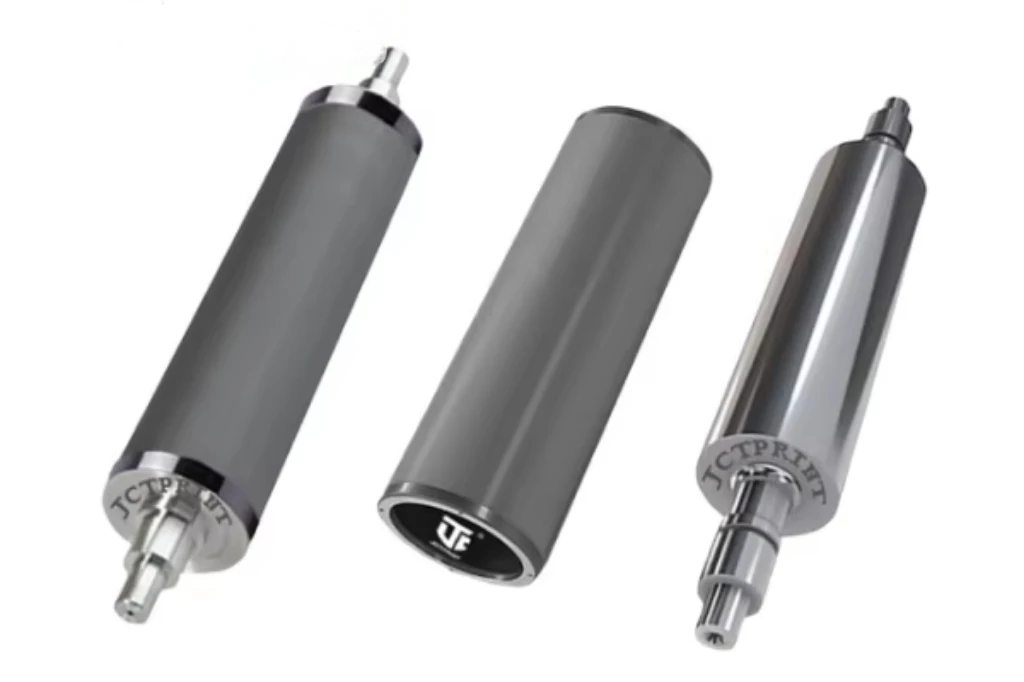

A variety of anilox rollers for your choice

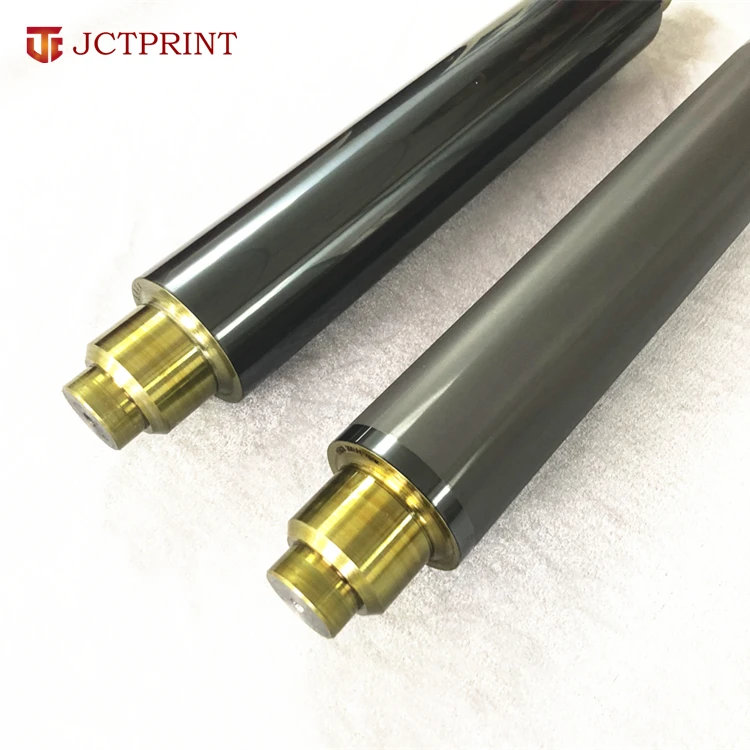

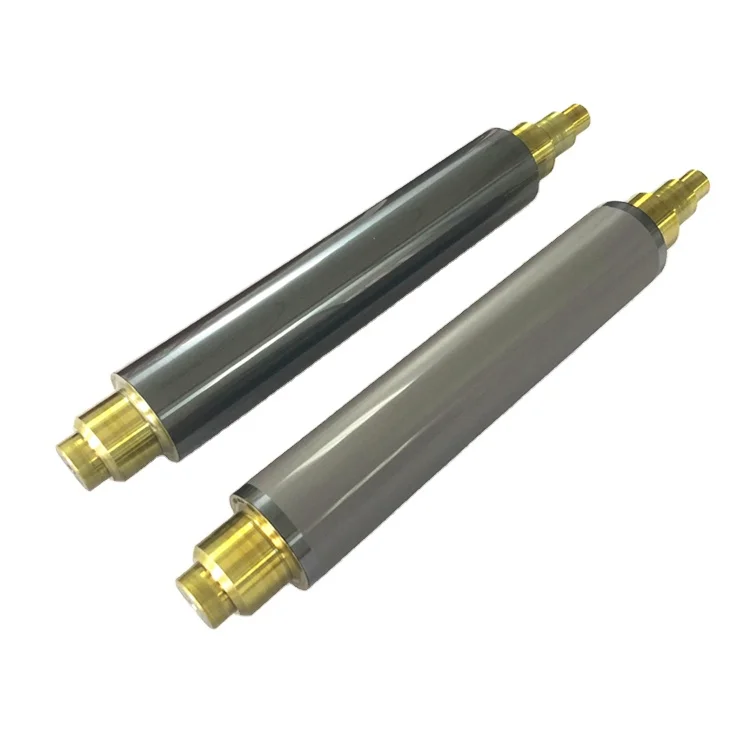

Ceramic anilox roller
Size range:10cm-1200cm
LPI Range:80-2000lpi
Material:Cr2O3
Delivery time:15-25 days
Sleeve type anilox roller
Size range:10cm-1200cm
LPI Range:80-2000lpi
Material:Cr2O3
Delivery time:20-30 days


Metal Anilox Roller
Size range:10cm-1200cm
LPI Range:80-300
Material:45# Steel
Delivery time:15-25 days
Proofing anilox roller
Size range:10cm-1200cm
LPI Range:80-2000lpi
Material:Cr2O3/45# Steel
Delivery time:15-25 days




Specification


Type
A nliox roller
Screen count range
30-2000 LPI
Maximum width
Sleeve:4800mm
Shaft:  5250mm
Diameter range
25-600 mm
Cell Angle
1-89°
Cell shape 细胞形状
Hexagon,Diagonal; Line,Quadrilateral,etc.
Various shapes can be provided based on customer requirements.
可根据客户要求提供各种形状。
MOQ
1PC

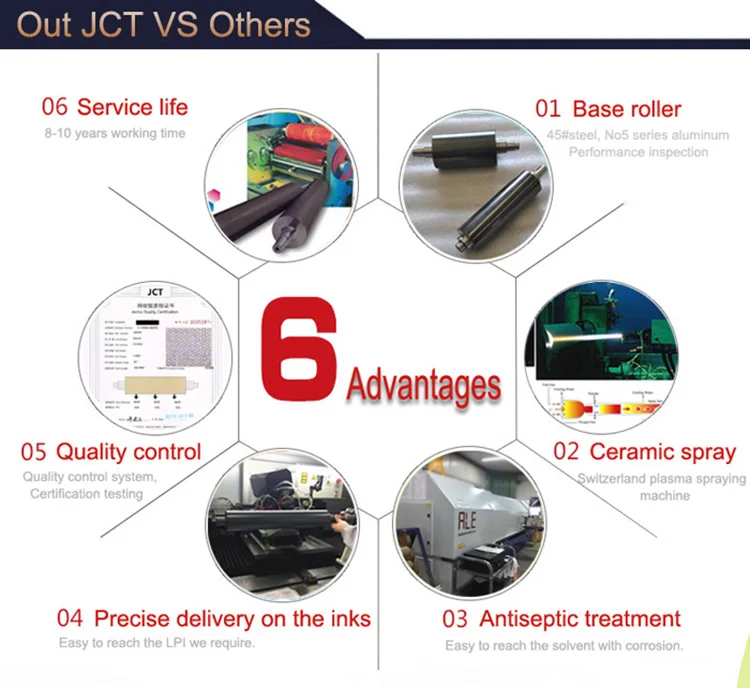

Our Advantages


1.Base roller process
Material :
#45 seamless steel tube or No5 series aluminum
General performance requiremen:45# steel tube
Thickness :
15mm-25mm We can also make the special thickness according to customers requirement.





strict inspection procedure of base roller:
Incoming inspection including drawing, surface roughness,straightness, dynamic balance, cylindricity
and so on.


2.Ceramic spraying
Using Swiss Oerlikon plasma spraying system.
The chrome oxide ceramics using are using also from this supplier.
The evenness of 80% ceramic powder can be controlled between 15u-35u.
The hardness of it can reach 1200HV.
3. Antiseptic treatment
Using the nanoscopic sealant to coat on the surface of the ceramic.
This kind of sealant can reach the tiny cell so it can realize a good production against the corrosion.


4.Precise delivery on the inks

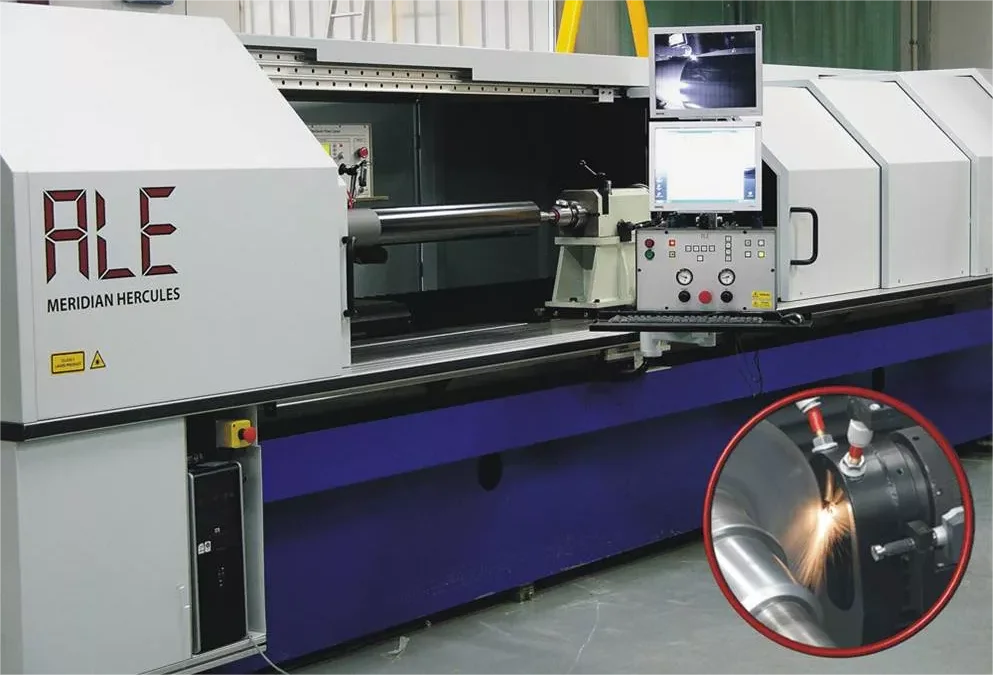

 We make trial engraving before the real engraving.
Using the scanner to scan each layer to test the volume of the cell.

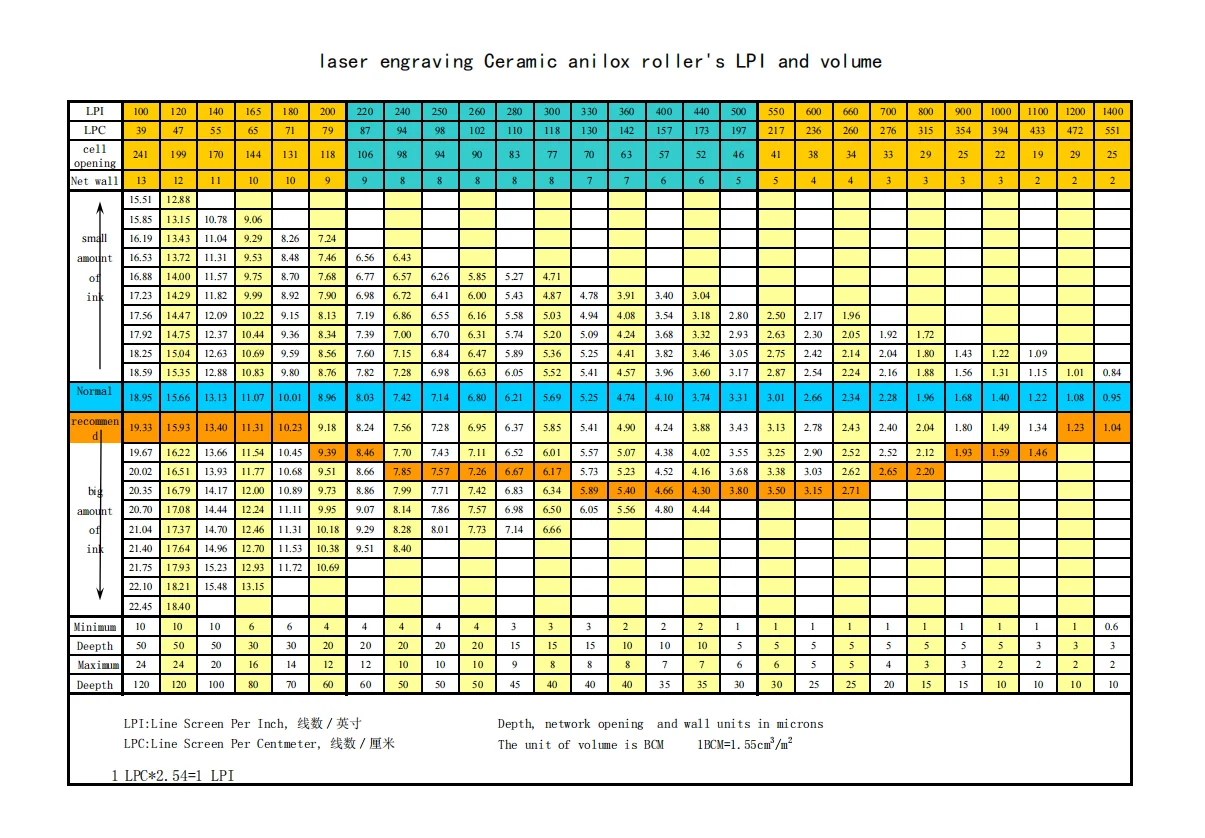

According to the realationship between the LPI and BCM , to make sure whether the LPI is ok.


5. Quality Control
We have the quality control system during the whole production from the very beginning to the end and our principle is to make sure each roller is qualified.

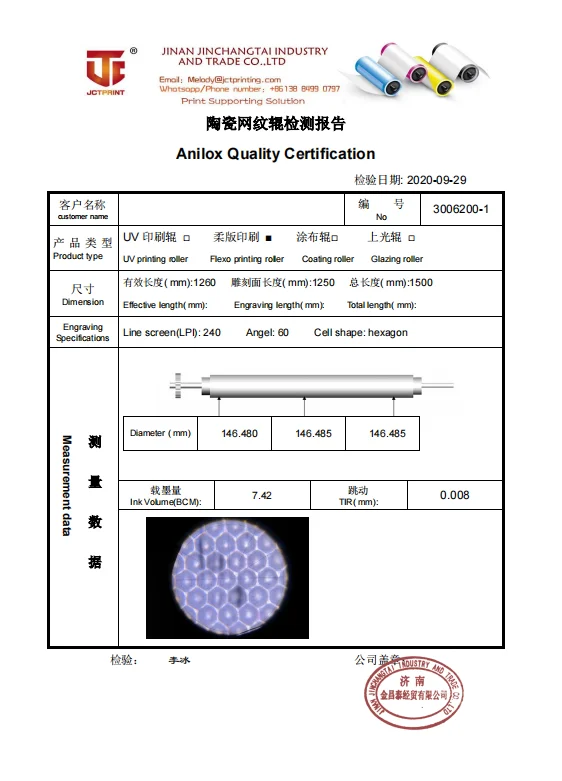

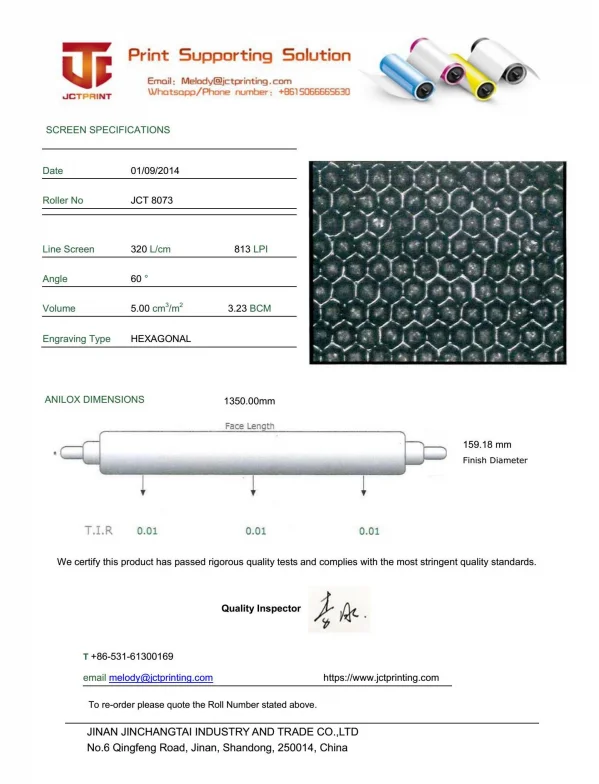

With the product that we will send to the customer we will issue the certification for our customers as following.

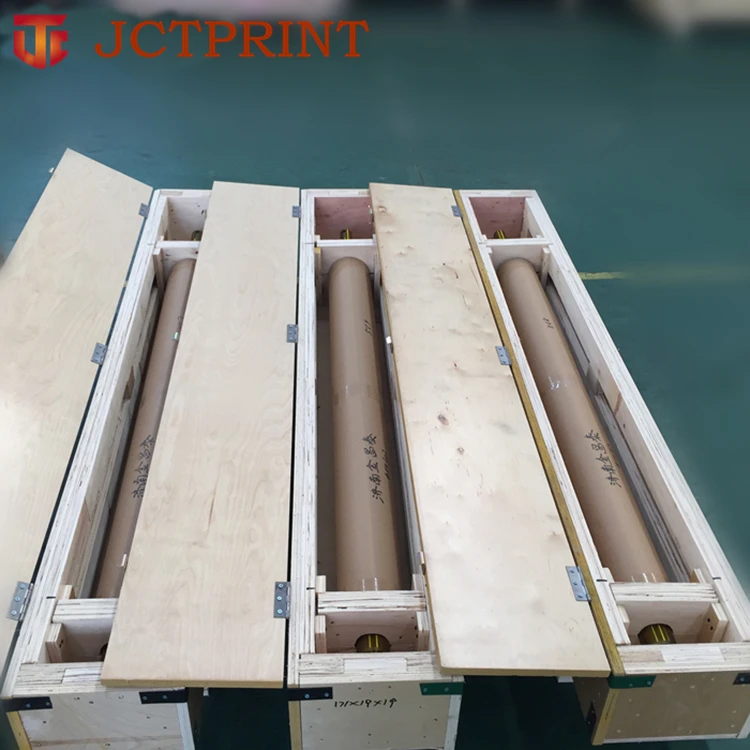

Product packaging


Wooden cases for exporting

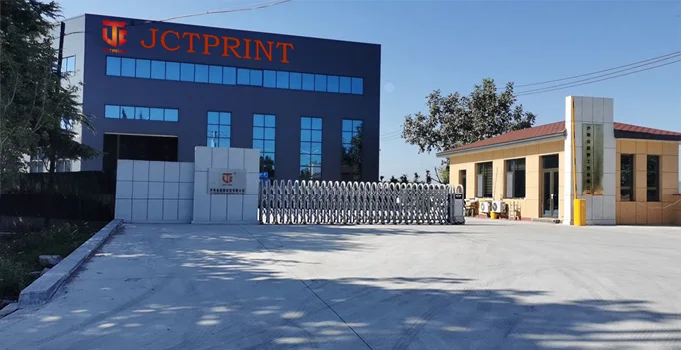

Company Profile


Jctprint, China's largest anilox roller manufacturer

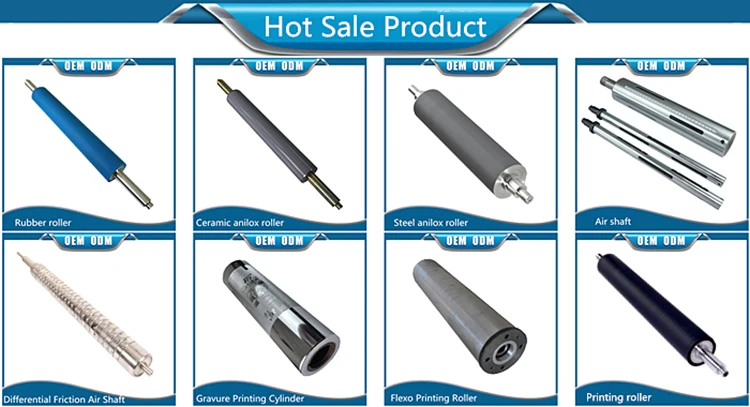

Provide a full range of anilox rollers
Jctprint, customized full range of anilox rollers, whether it is a roller for corrugated boxes or a roller for labels, we can
produce.
Jctprint, fast development
JCTPRINT was founded in 2000 .It has gradually occupied the international market by providing high-quality anilox rollers to printing plants, equipment manufacturers and sales partners around the world.


Why more and more people trust Jctprint?


6 production branches
Printing customers in more than 100 countries
.
Over 20 years of industry experience


Fast delivery 30 days
Invests 60% of funds in research, development and innovation




The most accurate rollers in the industry, with full process testing, and the quality far exceeds 99% of roller suppliers.

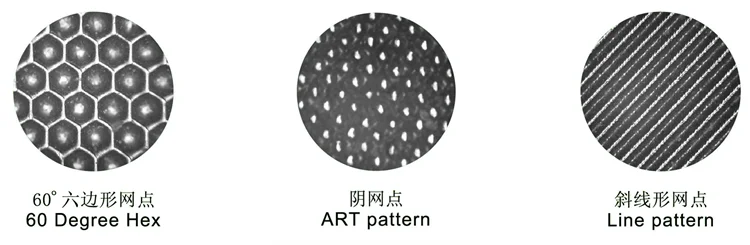

Anilox roller cells


6 angle 60 degrees
Hexagonal 60° is the most common anilox cell engraving shape. JCTPRINT has rich experience in engraving. The inkjet detection
accuracy of JCTPRINT's 60° engraving process is 98%.
JCC
JCC is jctprint's innovative engraving technology with universal high quality performance in all market environments, suitable for
all markets and ideal for ECG printing, UV inks, water-based inks and value-added lacquers.


45 degrees
45° cell, JCTRINT recommends for corrugated paper and coating printing......
 Make the printed product have a higher visual and tactile effect, bringing texture and appeal.
Triple Helix
Used to extend the range of standard engraving or as a technical alternative, the triple helix is ​​developed for a route
engraving to create deep channels, the possibility of creating volume through a solid wall, typically used for paints and large particle inks and liquids.
