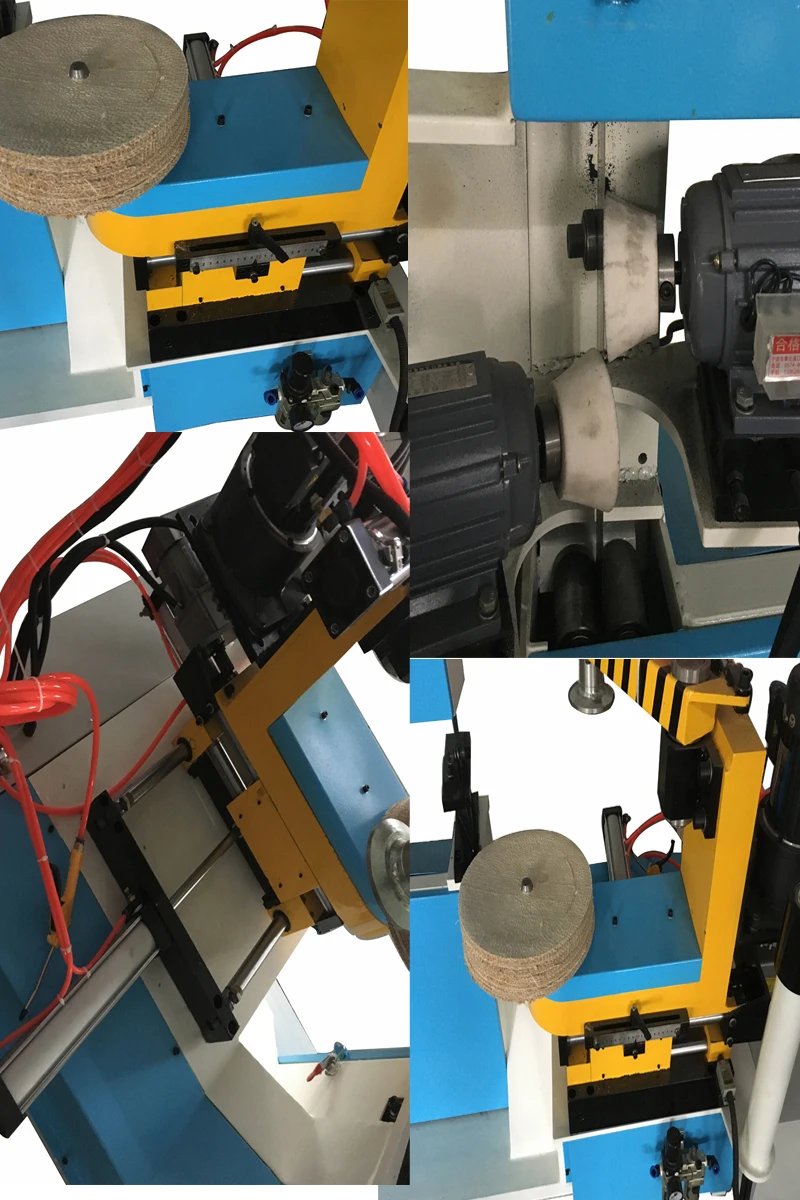

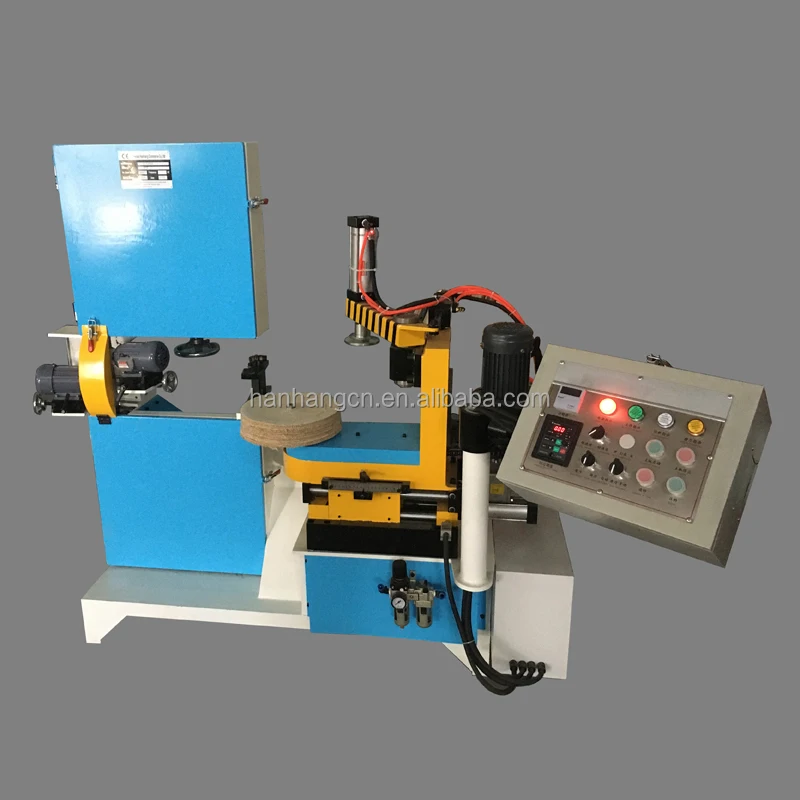

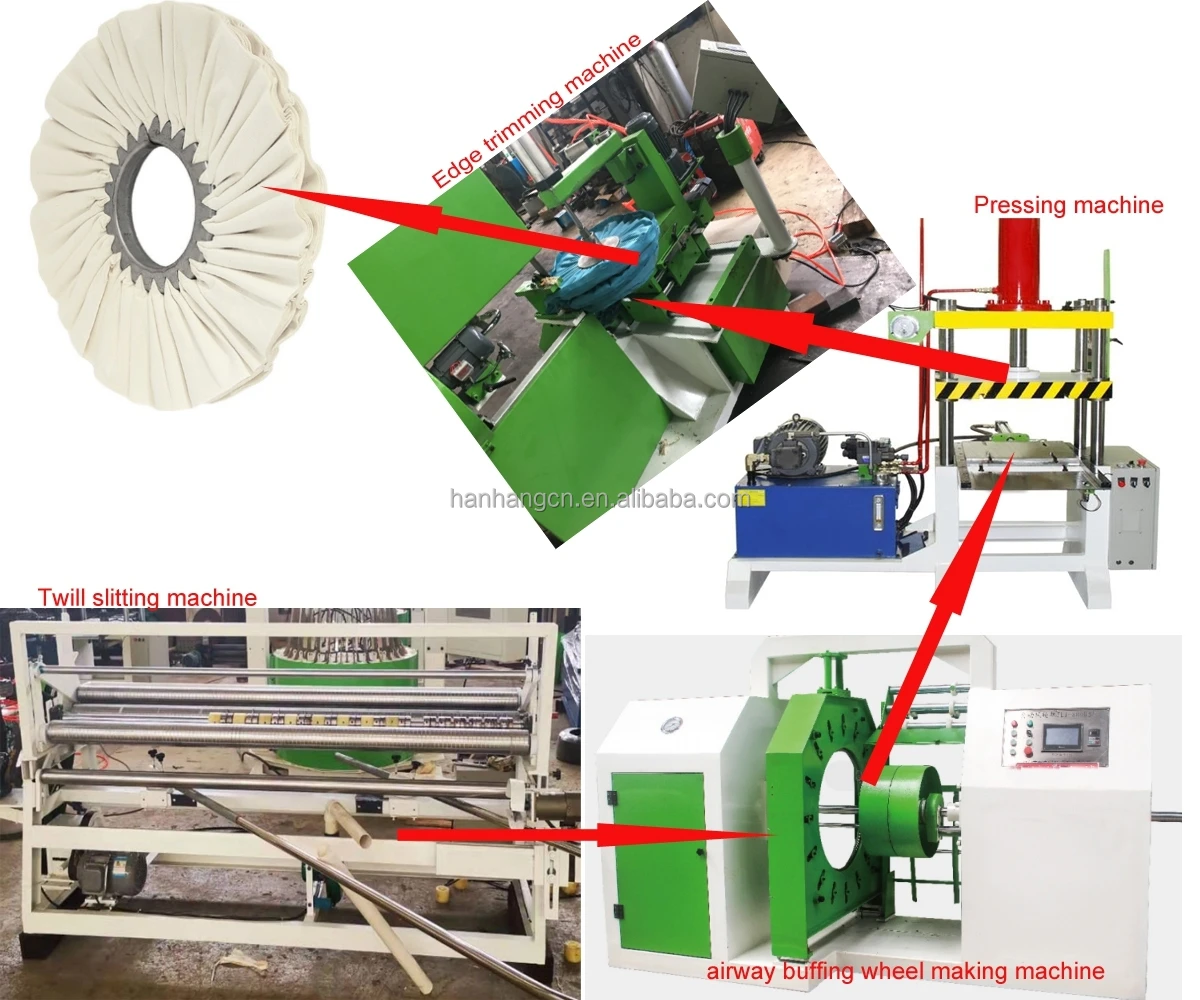

Buffing Polishing Wheel Edge Cutting Machine
This patented machine can be easily operated by one person,by which customers can save man power and unnecessary expenses. With fast cutting speed and excellent cuttin effect. it brings high efficiency and low cost. Machine can be customized according to customer's requirments ofbuffing wheel size.
- Body: made by heavy steel plate, have enough intension and stability, use for fixing the saw and the equipment to tight the saw.
- Belt knife: made by imported materials, length 3150mm.

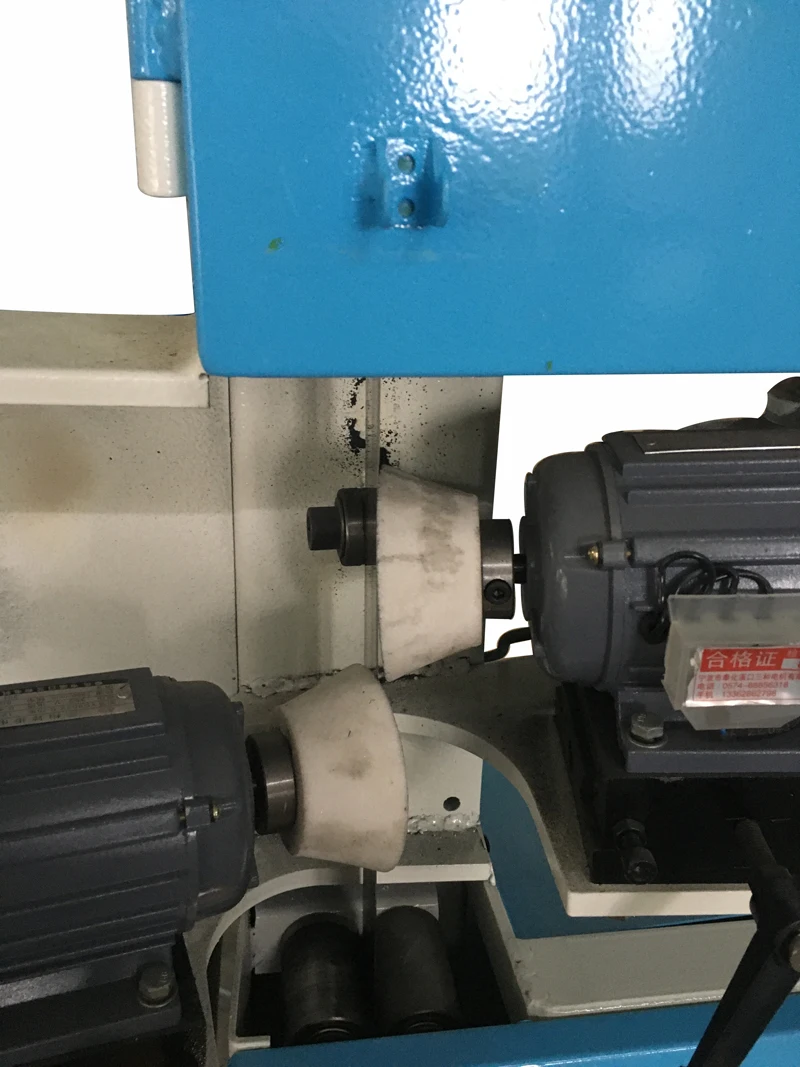

- Knife sharpener: made by 2 motors and adjustment rack, for sharpening the knife.
- Knife rest: made by alloy-steel plate, have enough intension and stability, ensure the verticality of cutting face between belt knife and the buff wheel.

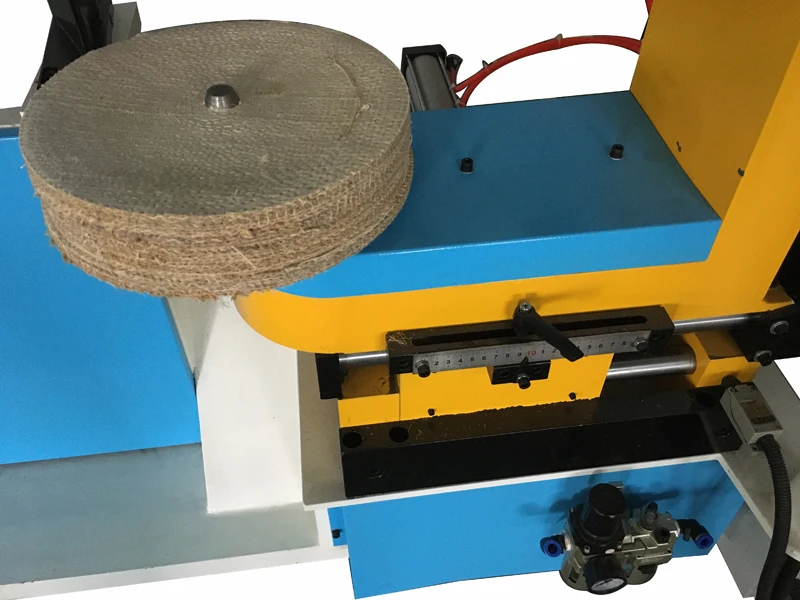

- Working bench: use for automatically feeding, adjustment of sizes of the wheel.
- Mechanical transfer arm.
- Feeder,Pneumatic parts,Motor,Speed controller
Technical Parameter:
| 800 | |
| Dimension(mm) | 1700*1000*1520 |
| AC voltage | 380V 3Phase |
| Power(kw) | 2 |
| Band knife rataional speed (R/m) | 60 |
| work piece ratatianal speed | adjustable |
| air pressure(mpa) | 0.6-0.8 |
| Max processing diameter(mm) | 600 |
| Min processing diameter(mm) | 60 |
| Max processing thickness(mm) | 80 |
Product Description
Packaging & Shipping
1.Wooden Case
Company Information
About us
Hanhang Abrasive is a professional manufacturer of abrasive converting machine with more than 13 year's experience now. Converting machine is to set up sanding belts production line/flap disc making production line/flap wheels productions line / related abrasive products, and our products export to European countries,Middle east country, southeast Asia countries, south&north america countries and other countries.
Workshop
Certificate
Customer
Our Services
1. Warranty
All the products have one year guarantee.
2. Training
We provide training to make sure every customer can install and operate the machines.
3. Spare parts.
We provide all spare parts for all machines in lifetime use.
4. Standby Service
We are always ready to help. Just let us know whenever you have questions or problems.
