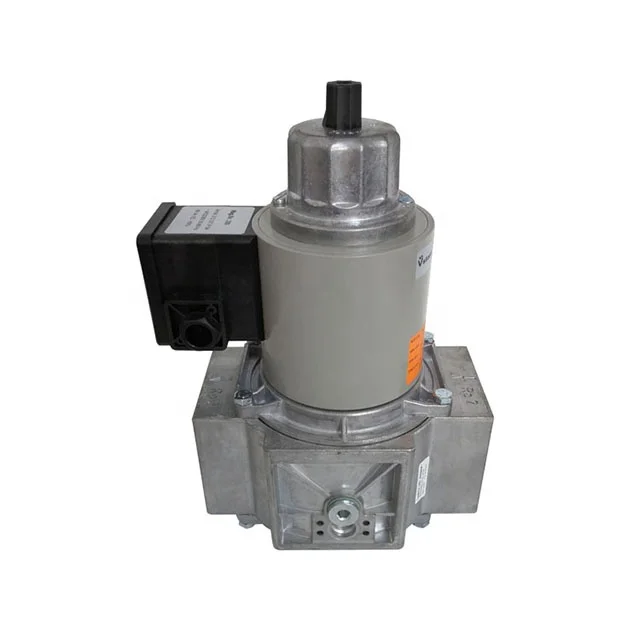

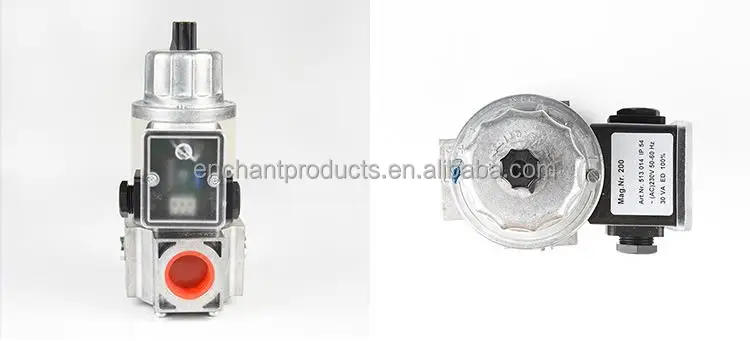

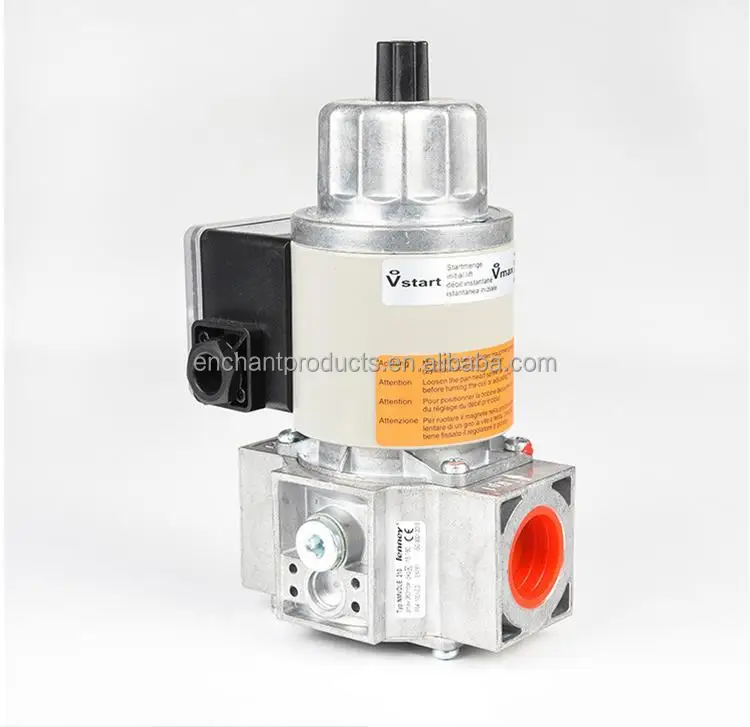

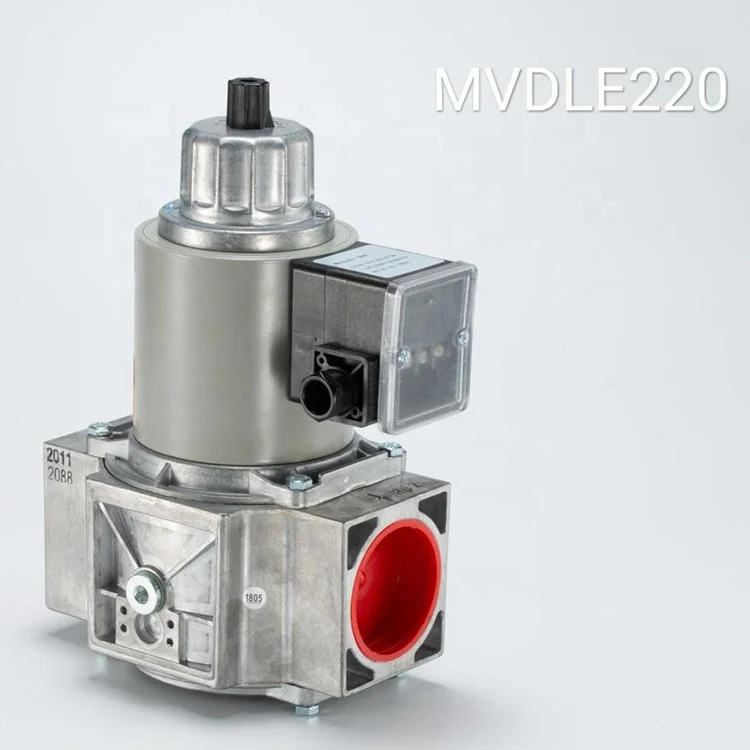

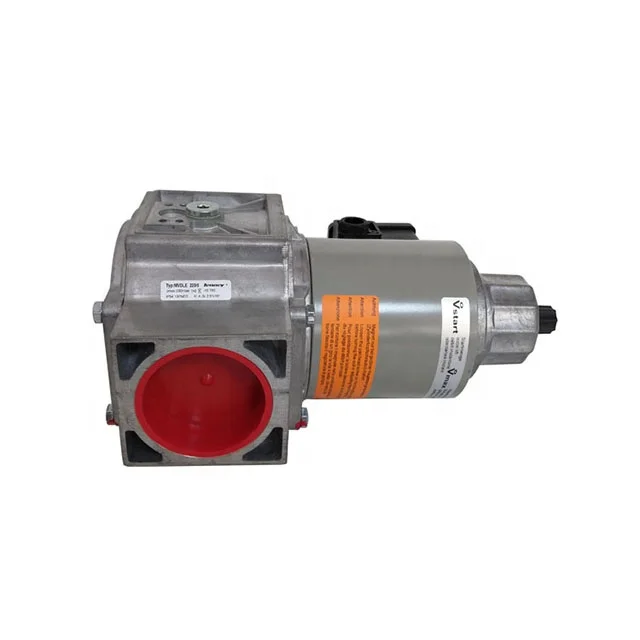

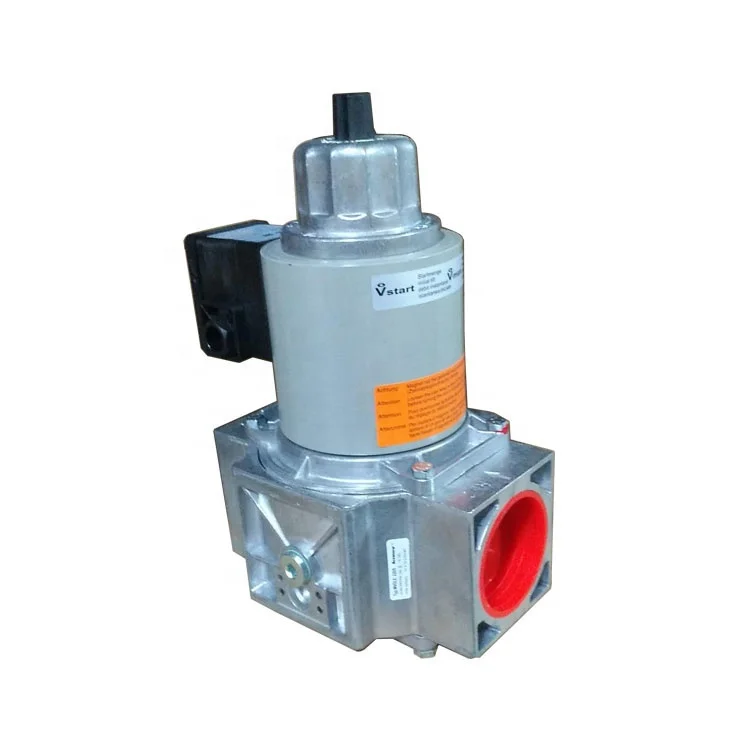

MVDLE 220 max 200mbar slow opening gas solenoid control valve
- Category: >>>
- Supplier: Qingdao Enchantproducts Co. Ltd
Share on (62210602138):
Product Overview
Description
Usage:
Technical parameters:
MV | Single-stage solenoid valve, normally when closed, fast opening, fast closing |
MVD | Single-stage solenoid valve, normally when closed, fast opening, fast closing, manual limitation of flowing gas volume by adjusting main volume. |
MVDLE | One-stage solenoid valve, normally when closed, slow opening, fast closing. Opening time adjust- ment with fast stroke range. Main volume adjustment. |
Medium | 1, 2, 3 and other neutral gaseous media |
Ambient temperature | -15 ° C to +60 ° C |
Nominal diameters | 10 15 20 25 40 50 65 80 100 125 150 |
| RP 3/8 1/2 3/4 1 1-1/2 2 2-1/2 | |
Max. operating pressure | Up to 200 mbar (20 kPa), 360 mbar (36 kPa) or up to 500 mbar (50 kPa) - refer to type overview |
Solenoid valve | Class A, Group 2, single-stage mode |
Closing time | <1S |
Opening time | <1S, for MVDLE approx. 20s at room temperature 20°C and without fast stroke |
Materials of gas-conveying parts | Housing: aluminium, steel, brass |
Rating / power consumption | 230 V AC (+10 % -15 %); 50-60 Hz - other voltages on request, Refer to type overview |
Degree of protection | IP54 |
Electrical connection
| Spring quick wire terminal, screw terminal, solenoid valve special wiring, plug can be offered additionally |
Working status display: LED indicator shows blue as working status | |
Measuring/ignition gas connection | On both sides in inlet section, additionally G 3/4 on input side, from size DN 40 (flange) upwards |
Switching rate
| MV/MVD series:max1000/h |
| MVDLE series:max 100/h | |
| Dirt trap | Sieve installed, mesh width 1 mm |
| Installation position | Solenoid from vertically upright to horizontally lying |
All models:
Payment
For small orders, full payment before shipping.
For bulk orders, 30% T/T in advance down to production, while 70% balance before shipment.
Packaging & Shipping
carton or wooden box
Our Services
1. We put your order into our tight production schedule, ensure you puntual delivery time.
2. Stable supplying ability.
3. Factory price.
4. Do packaging and brand as your requirement.
After-sale Service
1. We deal with your compains within 24 hours.
2. 12 months warranty in proper use.
3. Any quality problem within 7 days since product received (except for damage of misoperation) , please send back the defective goods to us in good condition, replacement for free or full payment return is accepted.
FAQ
Q: How long is your delivery time?
A: 1-2 days for products in stock, products out of stock in 10-15 days after payment.
Q: What is your terms of payment ?
A: T/T .Western Union and Paypal.
If you have another question, please feel free to contact us.
