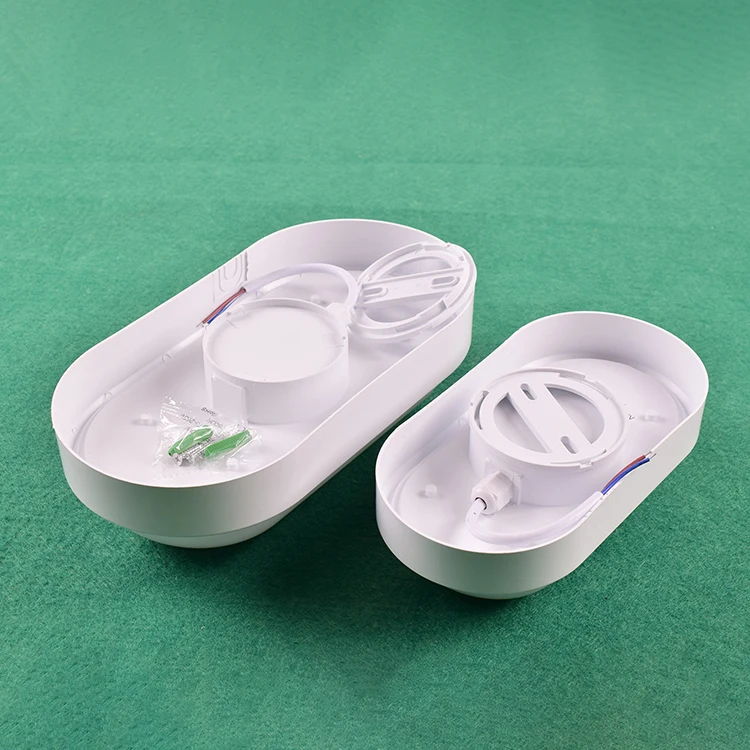

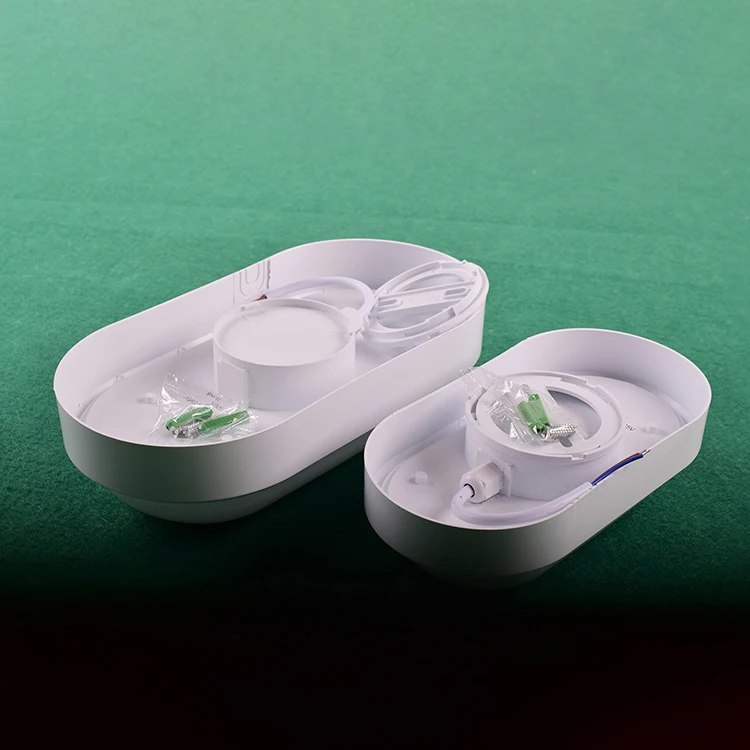

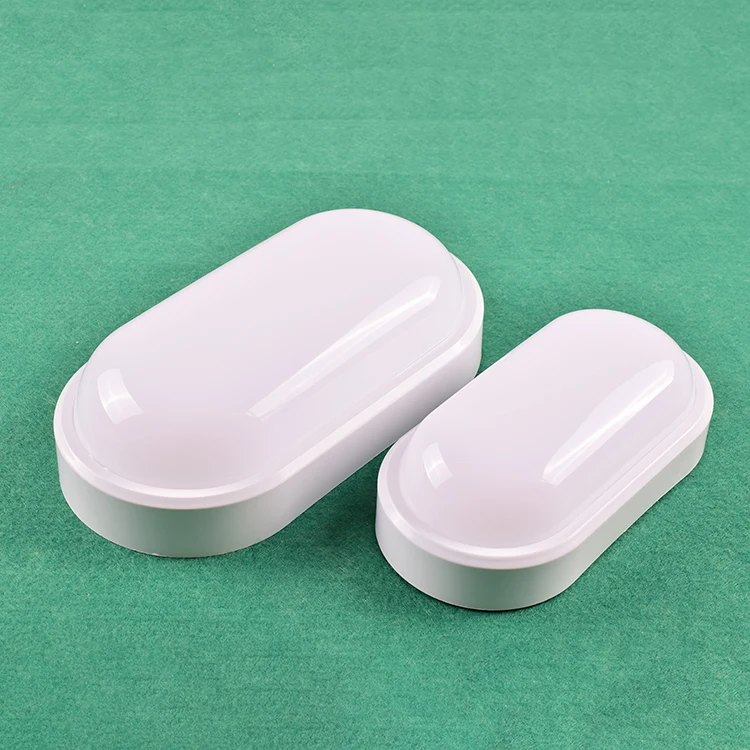

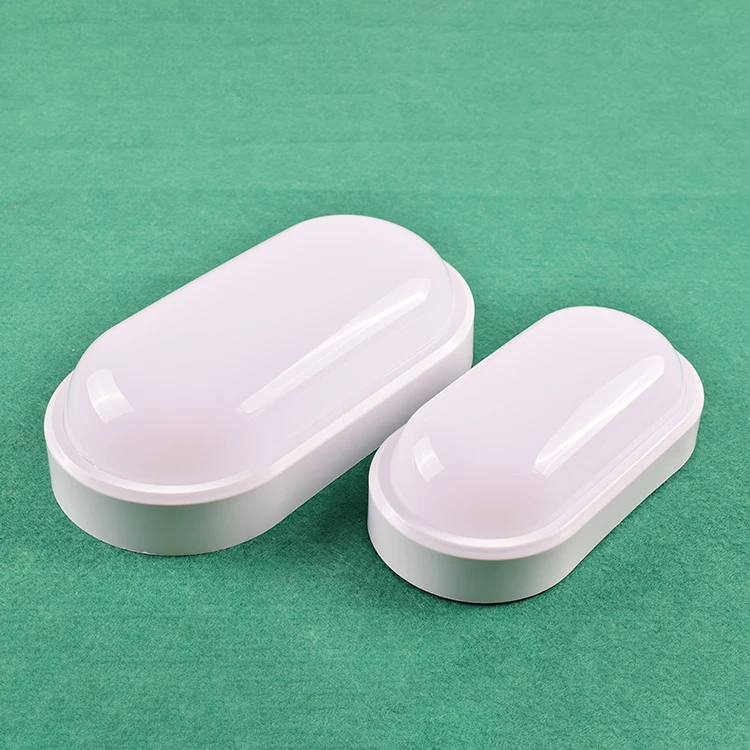

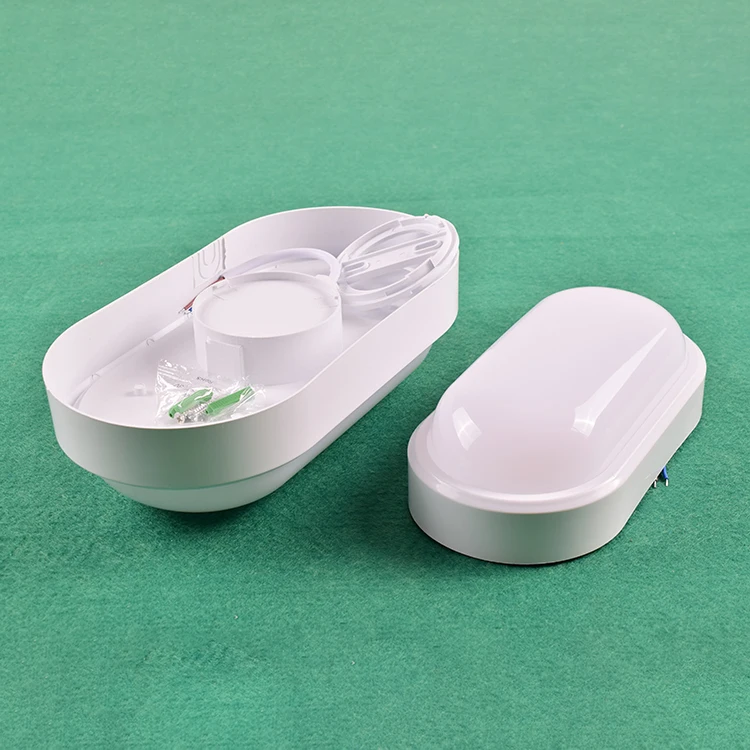

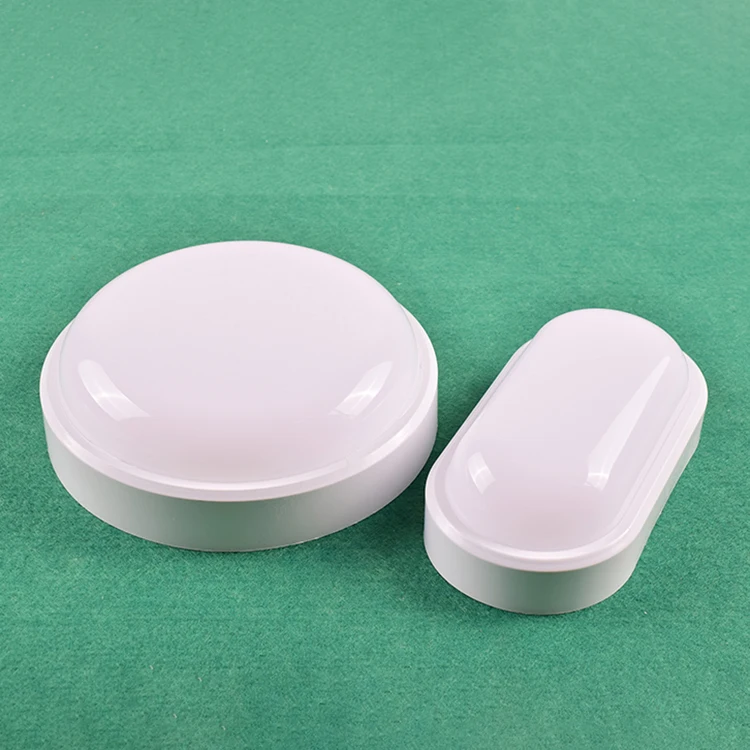

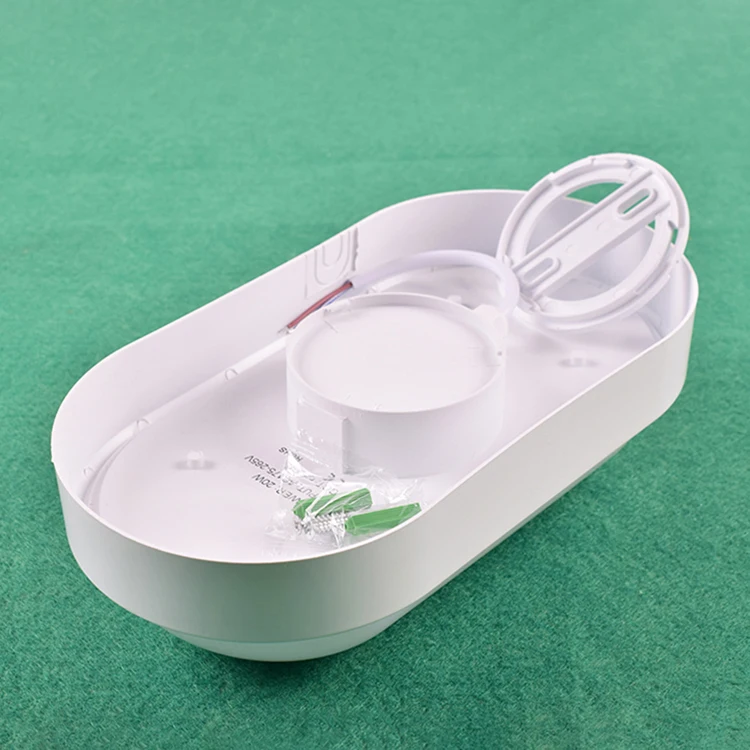

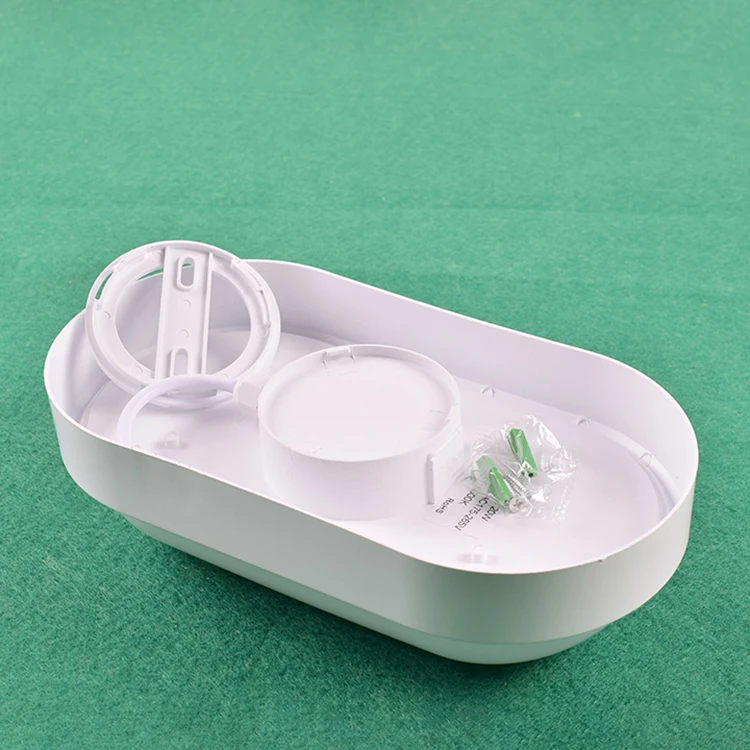

Oval White 110lm/w Outdoor IP65 Waterproof 15w LED Bulkhead Light For Wall
- Category: >>>
- Supplier: Zhongshan Guzhen Boyu Lighting Electronics Factory
Share on (62210633238):
Product Overview
Description

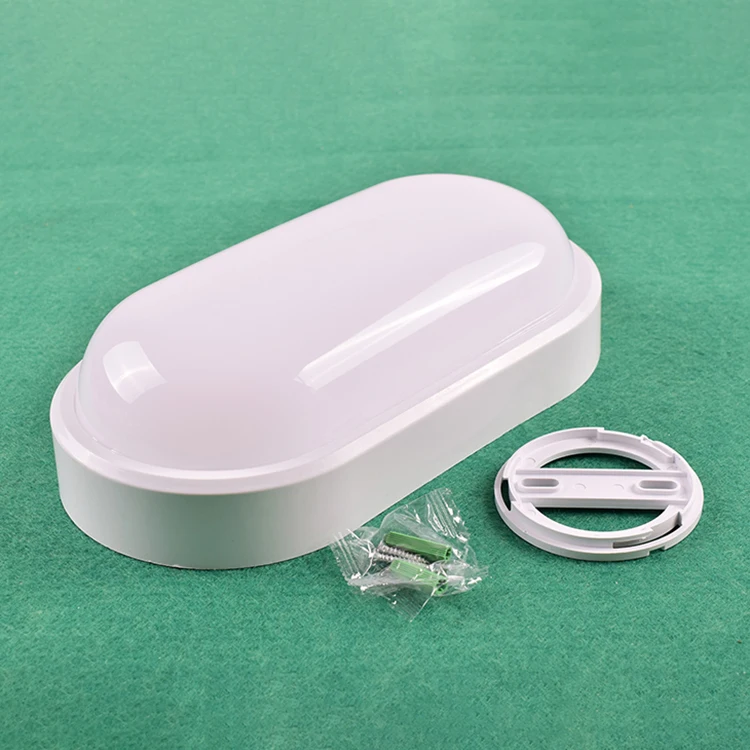

Oval White 110lm/w Outdoor IP65 Waterproof 15w LED Bulkhead Light For Wall
Product Description
| DATASHEET | |||||
| Features | 1.The new design product | ||||
| 2. Detachable modular design, easy to maintain and repaire. | |||||
| 3. High luminous efficacy, great heat dissipation.Up to 110lm/w. | |||||
| 4. Longtime maintain service, up to 3 years warranty. | |||||
| 5. High Luminous efficacy,the choice for Replacing best traditional | |||||
| Application | Warehouses, underpasses, gas stations, freezers, bathrooms | ||||
| General | Name | LED bulkhead light/lamp | |||
| Information | Model No. | BY-FC1-15W | BY-FC1-20W | BY-FC2-15W | BY-FC2-20W |
| Light source | SMD | ||||
| Structure | Detachable modular | ||||
| Chip | 3030-0.5W | ||||
| Warranty | 3 years | ||||
| Electrical Information | Power(W) | 15/20W | |||
| Voltage | AC100-277V 50-60Hz | ||||
| Surge protection | 2.5KV | ||||
| Driver efficiency | >90% | ||||
| Power factor | 0.95 | ||||
| Optical Information | Luminous flux(lm) | BY-FC1-15W | BY-FC1-20W | BY-FC2-15W | BY-FC2-20W |
| 1650 | 2600 | 1650 | 260 | ||
| Luminous efficacy(lm/w) | 110 | 110 | 110 | 110 | |
| CRI | >80 | ||||
| Color temperature | 3000k/4000k/6500k | ||||
| LED quantity(PCS) | 30 | 40 | 30 | 40 | |
| Beam angle | 120° | ||||
| Mechanical Information | Body material | PC | |||
| Lens material | PC | ||||
| Ambient temperature | -40℃~50℃ | ||||
| Working temperature | <60° | ||||
| Storage temperature | -40℃~50℃ | ||||
| IP Rating | IP65 | ||||
| Packaging Information | Product size(MM) | 162*65 | 218*70 | 214*112*65 | 270*143*75 |
| QTY/CTN | 40PCS | 30PCS | 40PCS | 40PCS | |
| Packaging size(CM) | 67.5*37*37.5 | 67.5*66*22.5 | 69.5*42.5*22.5 | 69.5*48.5*23.5 | |
| N.W. about(KG) | 13.5 | 12.6 | 11.1 | 13.9 | |
| G.W. about(KG) | 14.9 | 14.2 | 12.6 | 14.2 | |
