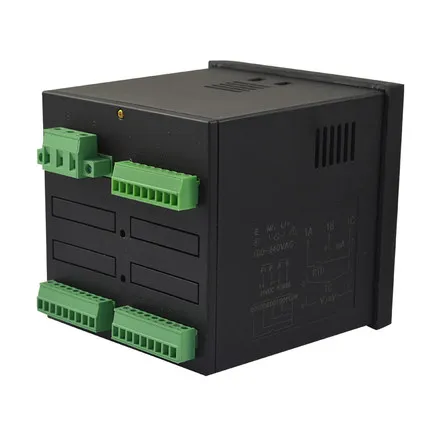

TS-5740 Series Four–circuit Digital Display Controller

TS-5740 four–circuit digital display controller adopts surface mounting technology and automatic placement machine production with strong disturbance resistance capacity. The controller supports input of several kinds of signals and can be used with a variety of sensors and transmitters to realize measurement display of temperature, pressure, liquid level, speed, force and other physical quantity. It can display measurement signals at four channels simultaneously and be equipped with 8–channel separate alarm output or 4–channel separate alarm output, RS485/232 communication and other output functions, thus suitable for systems to carry out inspection of synchronous measurement of multi–points.





II.Technical Parameters
Input
Input signal
Current
Voltage
Resistance
Couple
Input impedance
≤250 Ω
≥500 Ω
Maximum input current
30 mA
Maximum input voltage
<6 V
Output
Output signal
Current
Voltage
Relay
24 V distribution or feed
Allowable output load
≤500 Ω
≥250 KΩ
(Note: Higher load capacity necessitates change of the module)
AC220 V/2A
Voltage
Relay
24 V distribution or feed
DC24 V/2A
≤30 mA
≥250 KΩ
Comprehensive parameters
AC220 V/2A
Measurement accuracy
0.2%FS±1 word
Setting mode
Soft touch panel keys for data setting; set parameter values locked with password; set values eternally saved upon blackout
Display mode
–1999~9999 for display of measurement values, set values and working status of light emitting diode
Operating environment
Ambient temperature: 0~50 °C; relative humidity: ≤85% RH; avoiding strong corrosive gas
Operating power source
AC 100~240 V (switch power supply) (50–60 HZ); DC 20~29 V (switch power supply)
Power consumption
≤4W
Structure
Standard snap–in type
Communication
Adopting standard MODBUS communication protocol, the communication distance of RS–485 able to cover 1km and the same of RS–232 able to cover 15m


Detailed Images

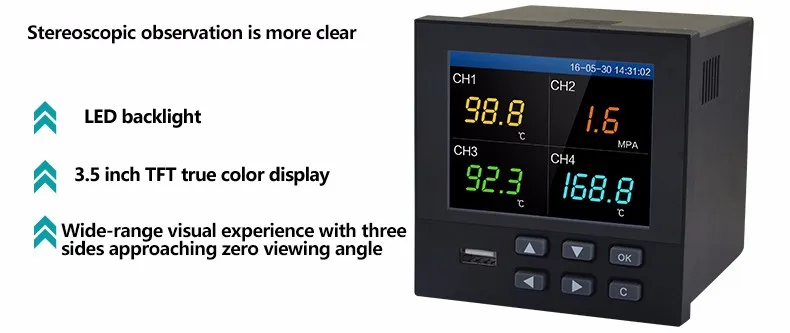

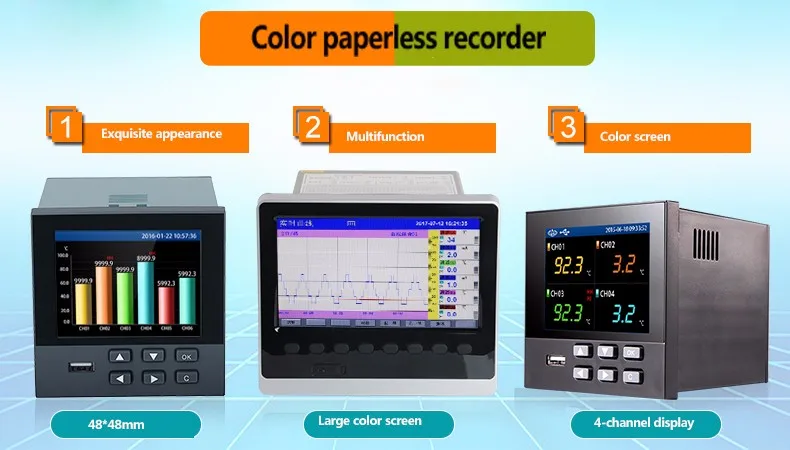

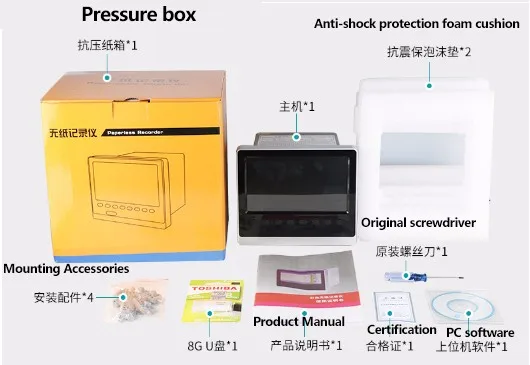

Packing & Delivery

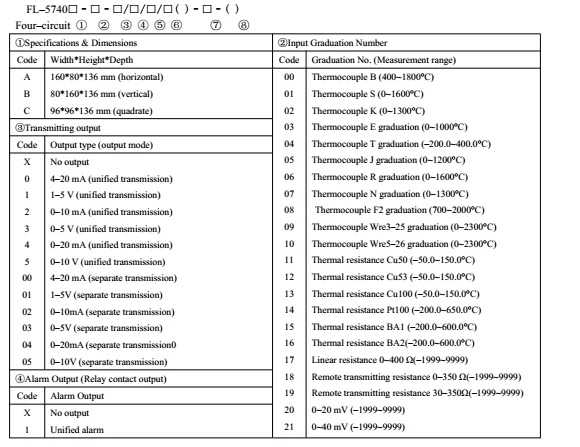

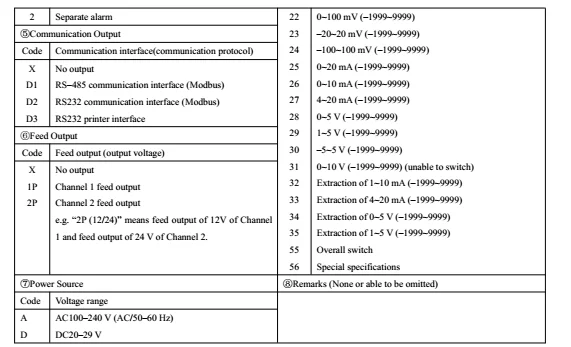

model selection






Notes:

1. For model selection, selection of functions has to depend on the wiring diagram. As a controller of a small size has fewer terminal connectors, comprehensive functions cannot be achieved and sometimes, only one function can be selected for a set of terminal connectors.

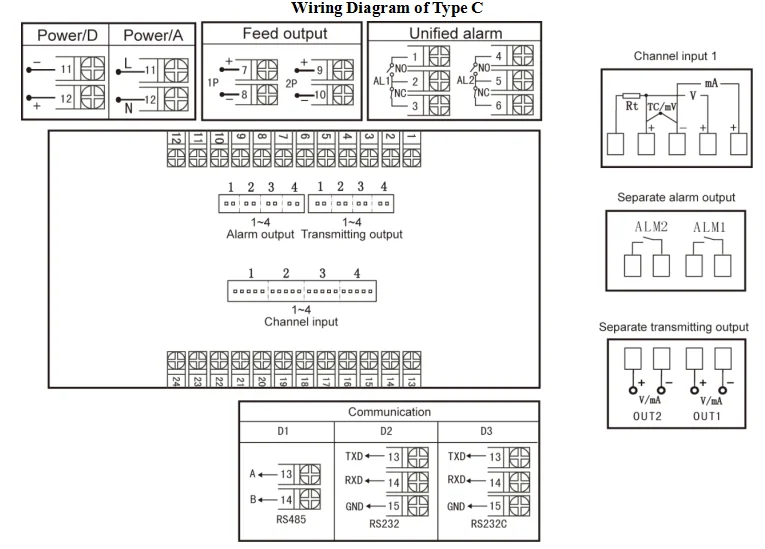

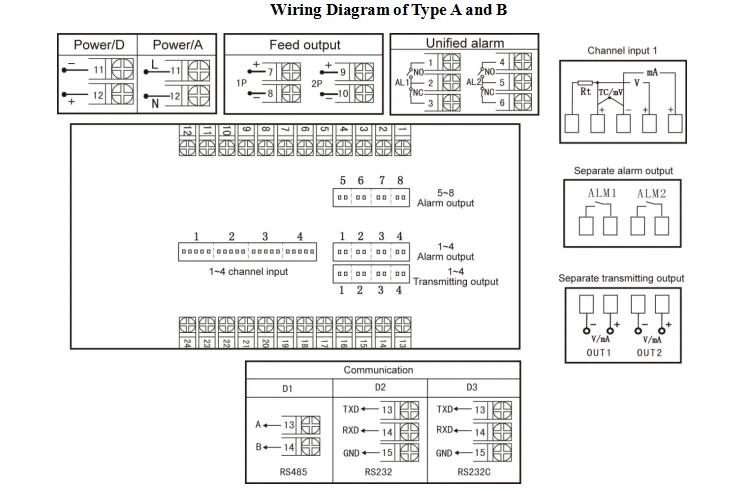

Wiring Diagram










Notes:

1. Although the same set of terminal connectors in the diagram is marked with different functions, only one function can be selected. When RS485 and RS232 are available for a set of terminal connectors, only one of them can be selected.

2. The connection terminal of unified transmitting output is on the number one output terminal.
