Vertical Cnc Stainless Steel Sheet Metal Surface For V Grooving Machine

CNC v grooving slotting cutting machine equipment device manufacturer supplier exporter

The machine is mainly used in aluminum and stainless steel V slot processing before metal bending. The machine makes the work piece not only keep the original rigidity but also overcome the great round and flat surface defects of change in the common bending. The machine is widely used in architectural decoration, shipping, furniture, elevator, the kitchen equipment industry and so on.
1.The equipment adopts the big pitched ball screw and high torque servo motors as the main drive, which makes knives more stable and faster when processing. The worktable of high strong plate as the surface makes the work pieces not easy to wear in machining. A panel with the adjustable fuselage during the work piece activities makes the point to every bit precision in 0.02 mm.
2.Machine interface programming allows the operating personnel easy to understand and locate accurately. Incoming materials use all the pressure pneumatic control; it makes the energy conservation and environmental protection concepts true. Equipments' overall modeling is concise and beautiful, in line with the world people's aesthetic standard.

Thickness range for board to be processed	0.6-4mm
Length for board to be processed	4000mm
width for board to be processed	1300mm
cutting velocity	15-60m/min
single blade cuttin area	2.25mm
feed rate	2-0m/min
Y axis minimum unit set	0.01mm
Y axis minimun positioning accuracy	+-0.05mm
X axis motor power	W=4kw
Y axis motor power	W=4kw
Z axis motor power	W=4kw
pneumatic pressure	0.4Mpa-0.6Mpa

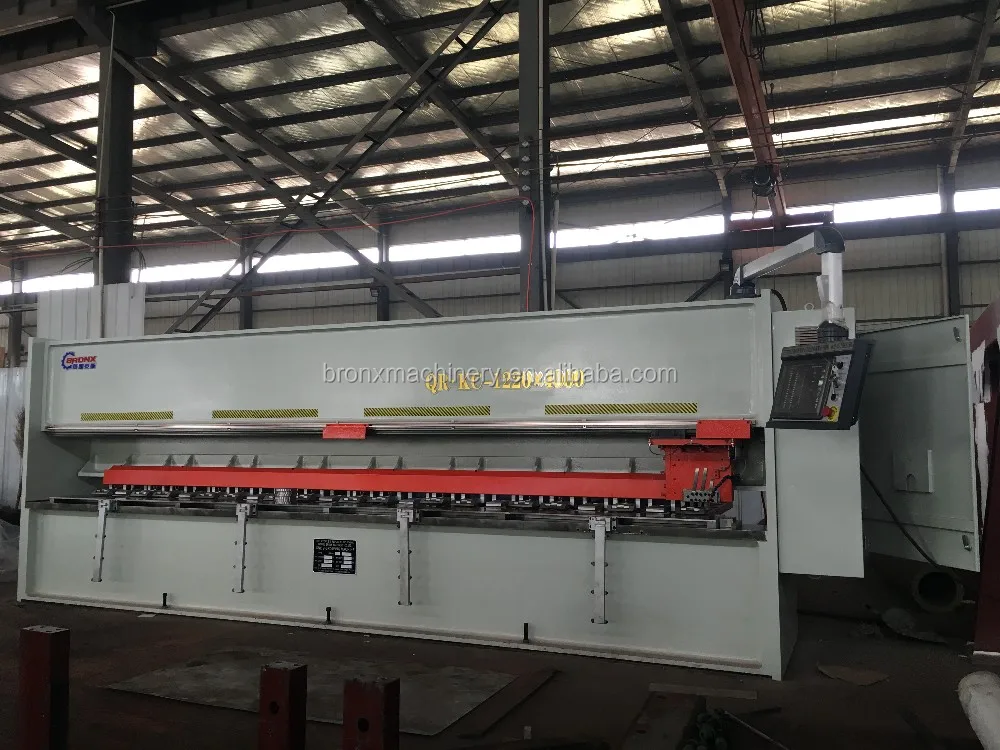

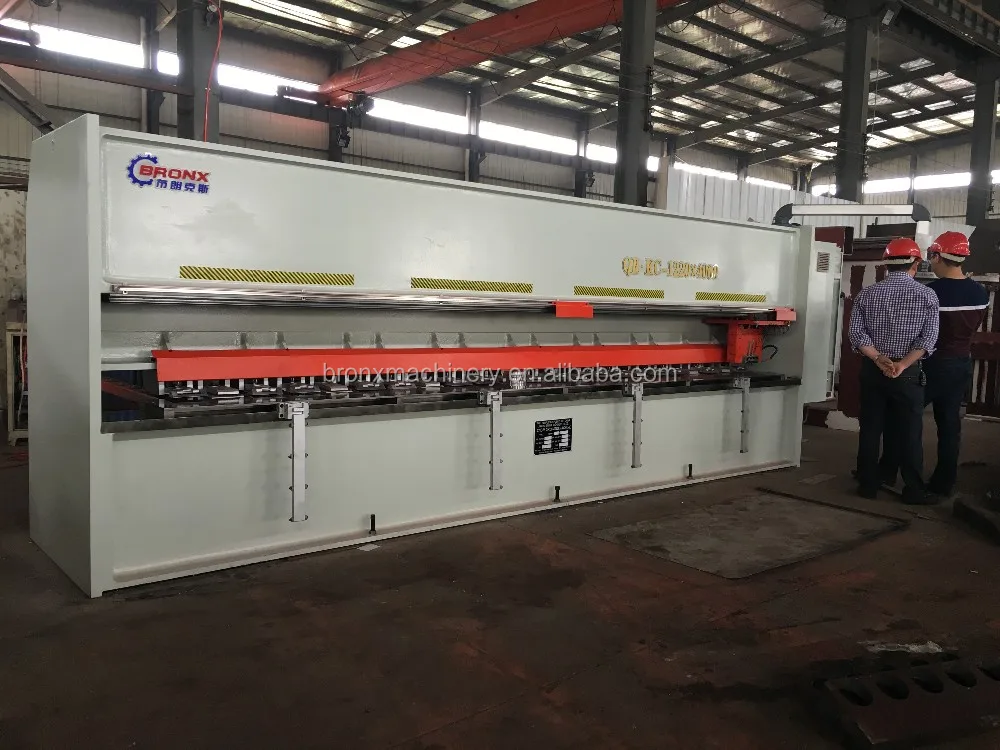

MACHINE FROM FRONT

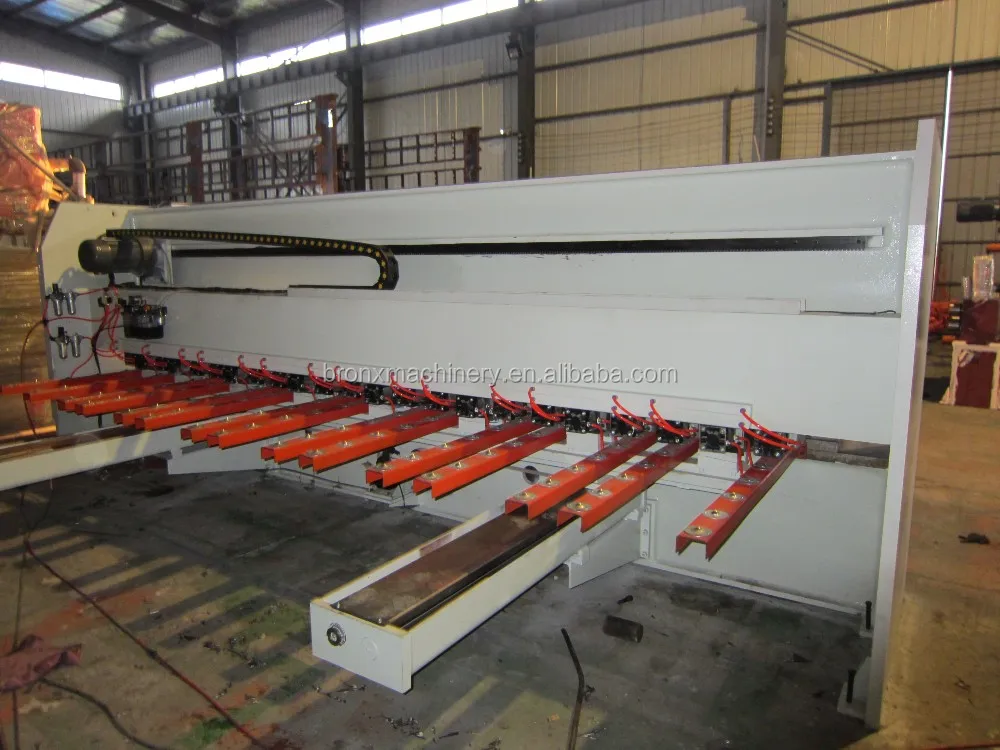

BACKGAUGE

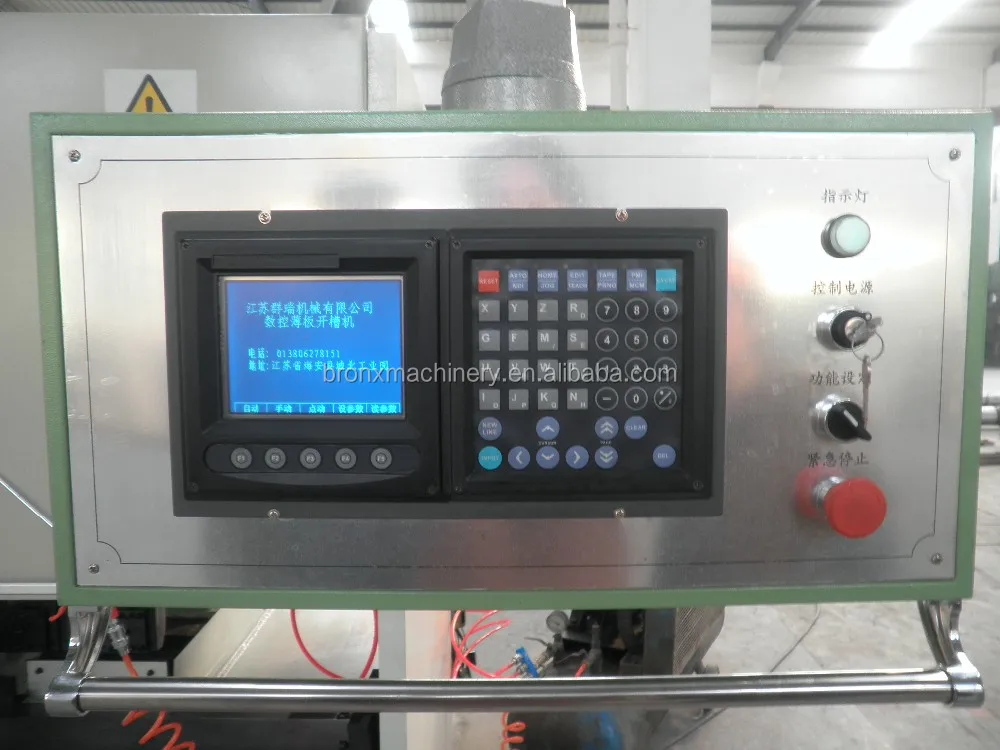

 OPERATOR PANEL

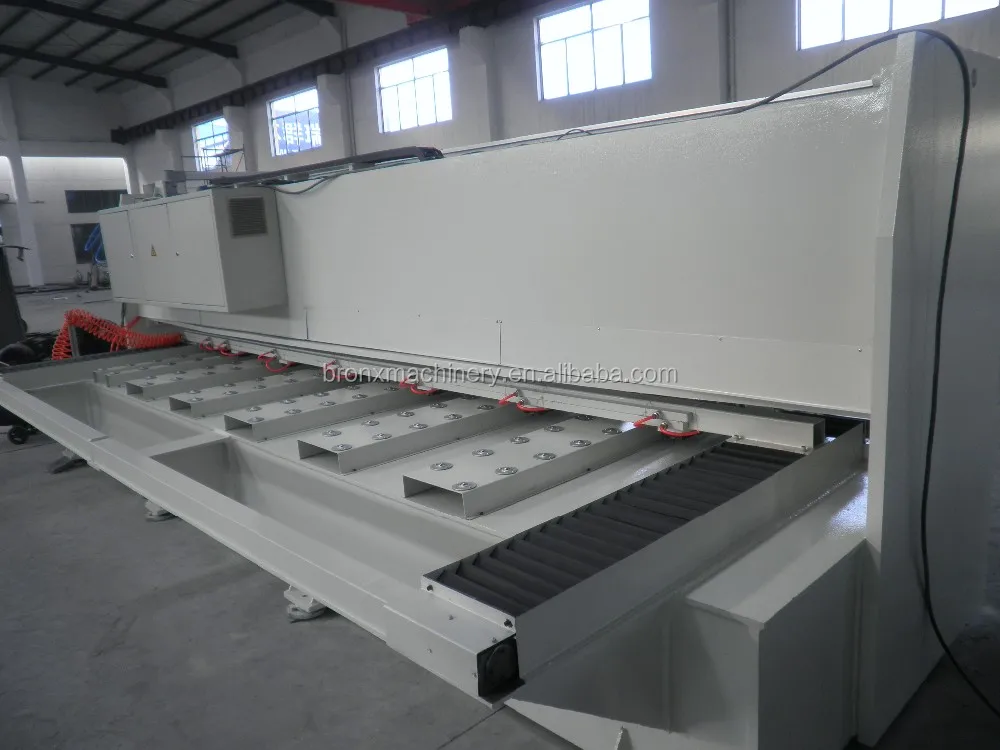

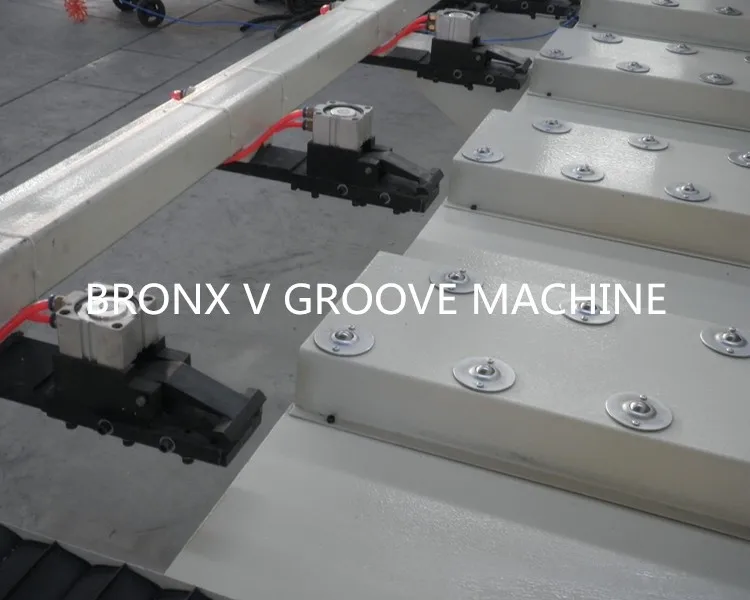

CLAMPING

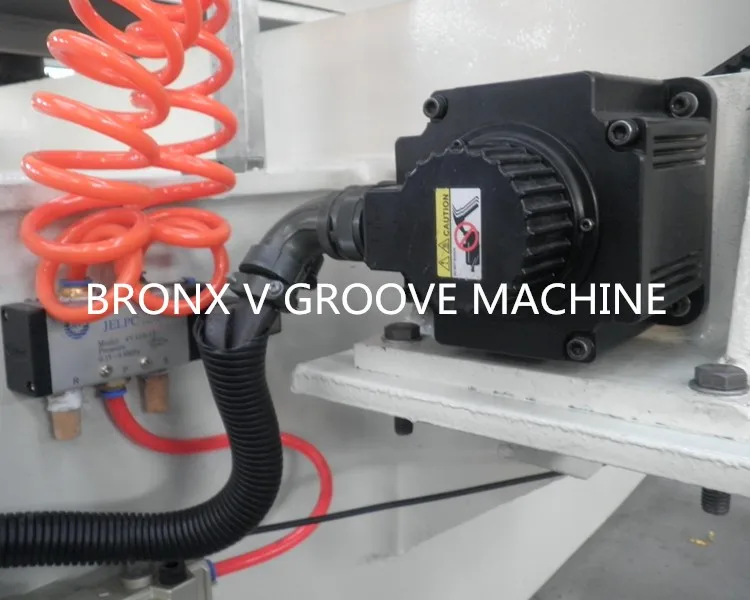

SERVO

company profile

Our Company

Bronx Machinery designs and builds high quality metal plate and coil processing machines with over 20 years manufacturing experience. Our factory has over 10000 square meter area and over 50 employees.

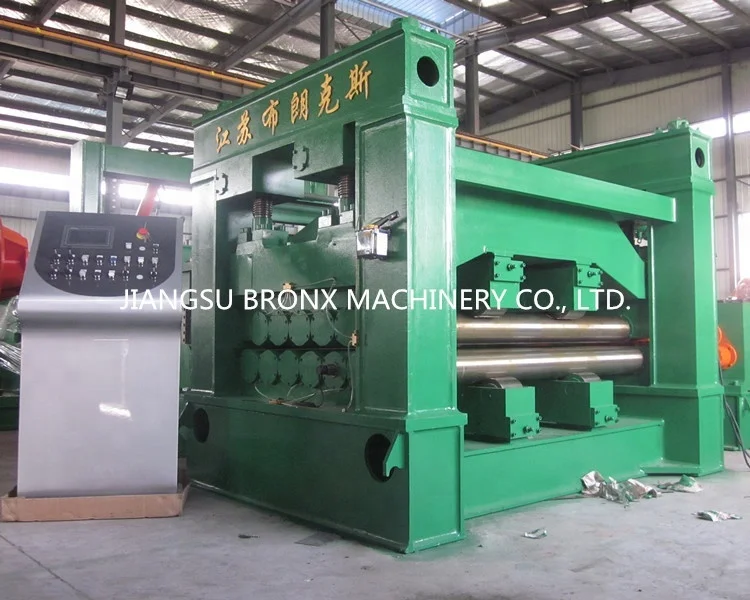

Our main production including production lines such as cut to length line, slitting line, embossing line, rolling mill, corrugating line, tube mill etc.
And machines such as shearing machine, bending machine , press brake, rolling machine, hydraulic press, uncoiler, H beam straightener, leveling machine etc.
We've successfully helped customers build processing center for stainless steel. In the center, the processing machines including SS polishing machine, SS embossing machine of roller structure (thickness below 6mm) and hydraulic structure (thickness below 12mm), SS leveling machine, and 8K oil rewinding line.
Our customers are from various countries like Netherland, Poland, Russia, Kazakhstan, India, Vietnam, Pakistan, Nepal, Qatar, Iran, Mexico, Brazil, Uganda, South Africa etc..

Our processing equipment

Testing equipment

service

Pre-sales

1. collect all requests

2. feedback asap

3. offer proper specifications

4. factory inspection available

After-sales

1.  operator training free of charge

2. 12 months warranty

3.  supplier offer service and units free of charge for not manual caused damage within warranty

4. response within 12 hours by phone or video



certificate

Packing&Delivery

PACKAGE:

DELIVERY TIME:

90-100 days after confirming order,detail delivery date should be decided according to production season and order quantity.

FAQ

(1) What is your advantages?
A1: More than 20 years experience in manufacturing and R&D, we are professional and humanized .
A2: Since we are a manufacturer, not a trading company, we can provide good quality pre and after sales service on time.

A3: production efficiency: 3-4 line per month
(2) Do you have after sales support?
Yes, we have a 15 persons professional installation and testing team. And will provide service for you during the machine life time. Any problem, contact us freely and we will try to solve asap.

(3) How to visit your company?
Our factory is located in Haian city, near Shanghai. From Shanghai to Haian, there are many schedules of direct bus. It will cost only 3 hours by bus.
