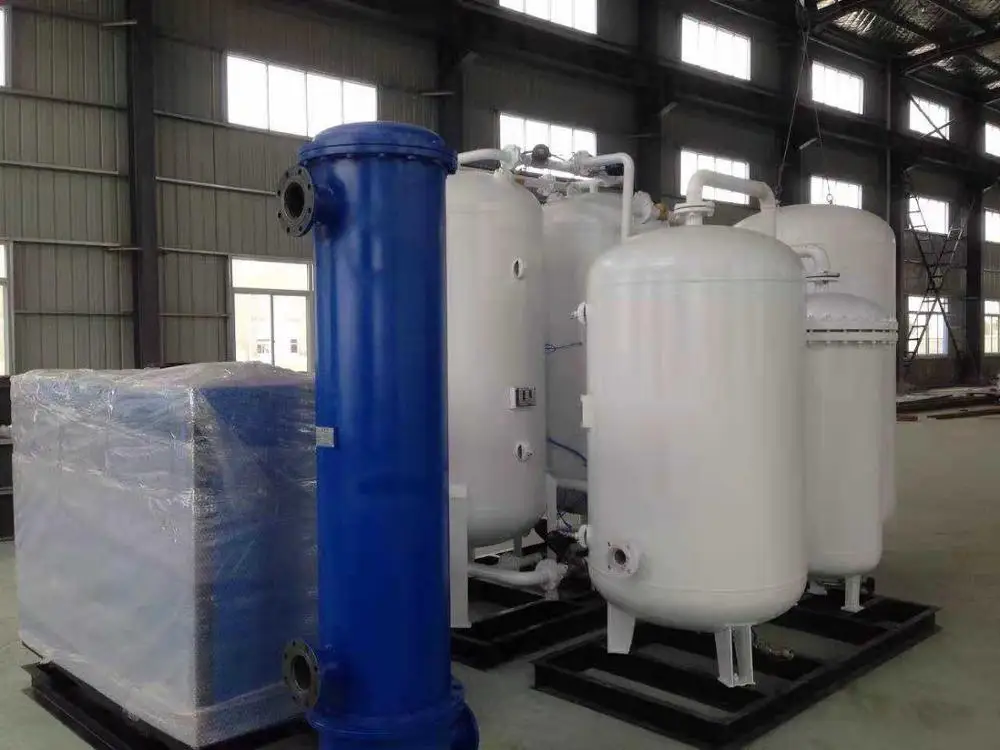

PSA Nitrogen Gas Generator Making Machine
- Category: >>>
- Supplier: Haian Flourishing Machinery Equipment Co. Ltd.
Share on (62210835161):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct details \t\t\t\t\t\t\t

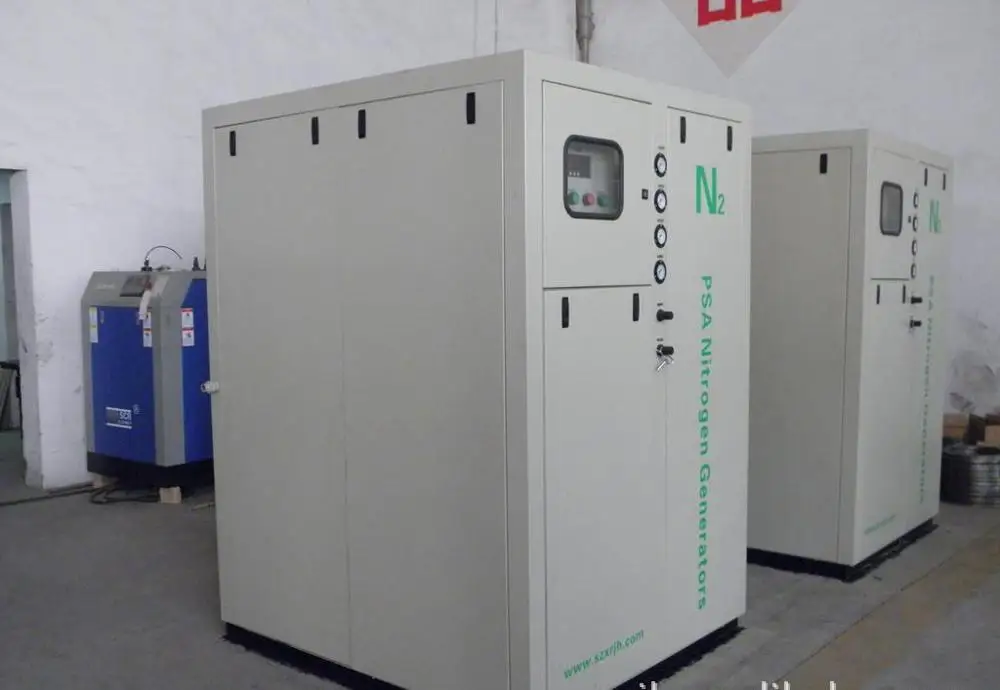

PSA Nitrogen Gas Generator Making Machine
Purity:99.5%~99.9995% high purity nitrogen plant
Working Principle of PSA Nitrogen Generator
Under a certain pressure, using the large difference of the diffusion rate between nitrogen and oxygen from the air
in the carbon molecular sieve, a large number of oxygen is adsorpted by carbon molecular sieve, while nitrogen is
collected in a short time, to achieve separation of oxygen and nitrogen.
The adsorption capacity of carbon molecular sieve is significantly different with different oxygen
pressures, reducing the pressure will release oxygen from carbon molecular sieve, this make carbon molecular
sieve regeneration, then can be used repeatedly.

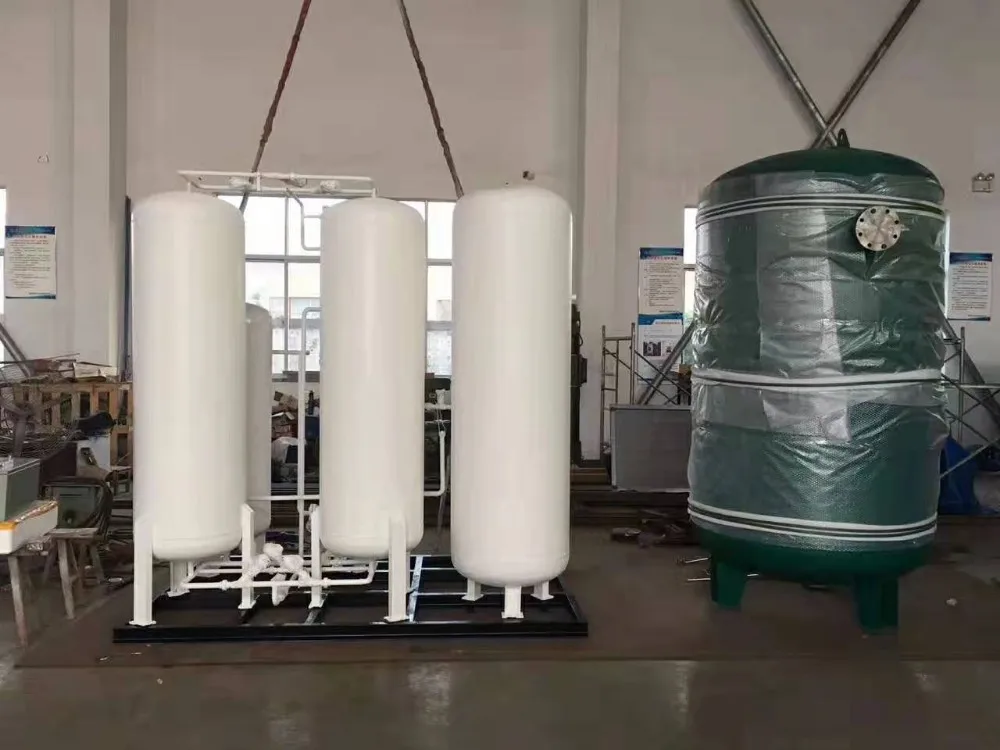

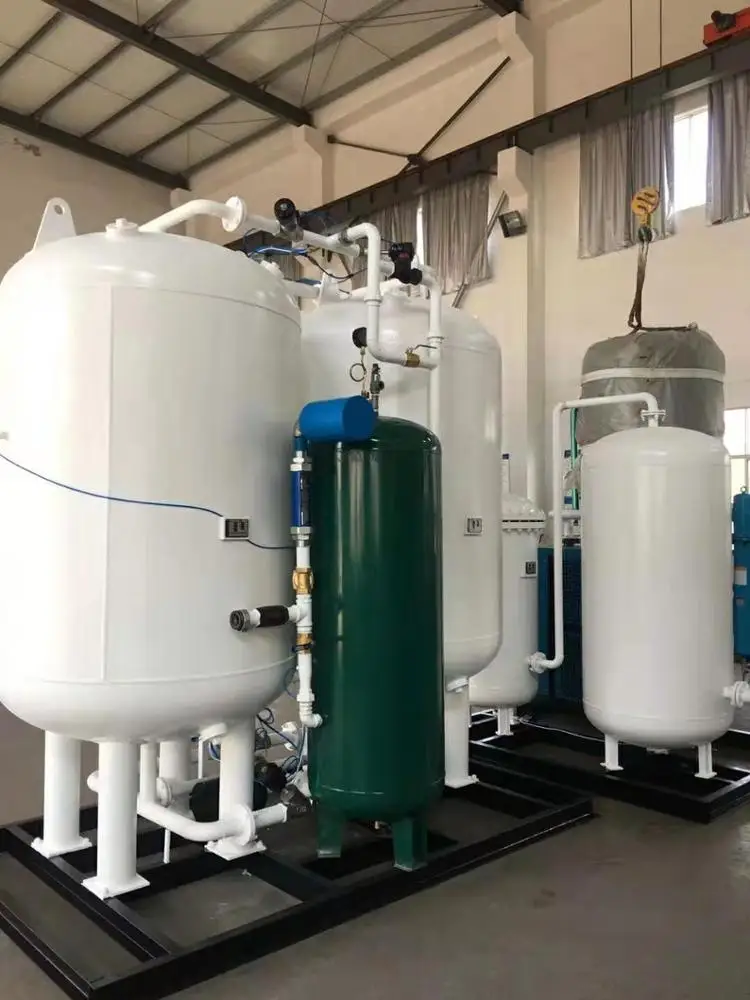

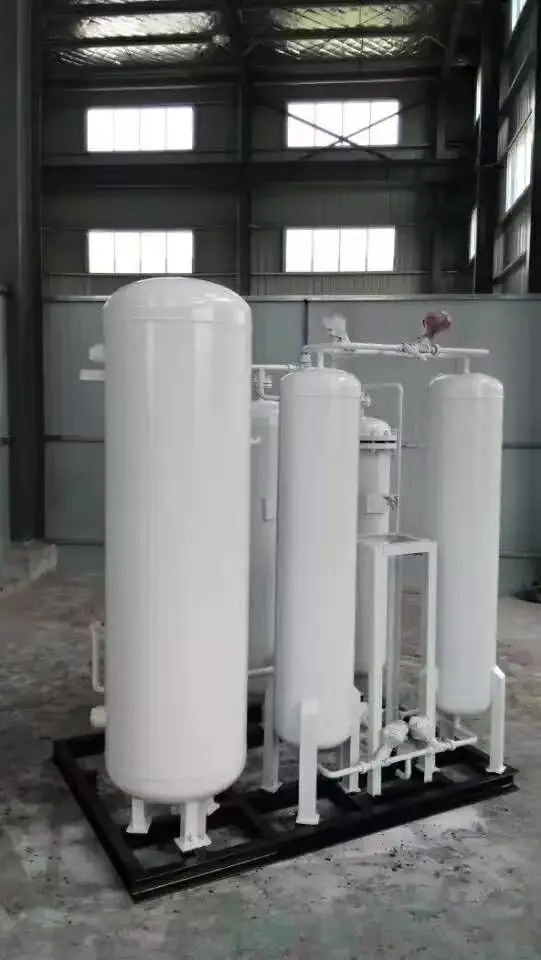

Using two adsorption towers, one for adsorption and nitrogen generator, the other for desorption and recycling.
They switch with each other, thus continuous output of high-quality nitrogen.
Environment condition of equipment
1.nstallation place: ground grading, without foundation, but it is necessary to have a sewage discharge ditch.
2.The reserved area: about 200m2.
3.Ambient temperature: ≤40°C.
4.Relative humidity: ≤80%.
5.Power:440V/ 380V/220V,60/Hz/ 50Hz
How it works:
Pressure Swing Adsorption(PSA) is a popular technology which is used to separate some gas species from a mixture of gases under pressure. This is achieved as per the species' molecular characteristics and affinity for an adsorben material. PSA operats at near-ambient temperatures. It differs from cryogenic distillation techniques of gas separation. Special adsorptive materials(for example: zeolites) are used as a molecular sieve, preferentially adsobing the target gas species at high pressure. The process then swings to low pressure to desorb the adsorbent material.
Features
Low investment, small workload of construction;
Low energy consumption, advanced process system;
High automation, less operators;
Quickly start, and conveniencely open and shut down;
Low costs of maintenance;
Stable operation and highly reliable;
High quality pneumatic control valves, safe, reliable and durable;
High quality special oxygen molecular sieve adsobent, good adsorption properties.
| \t | \t | \t |
| \t | \t | \t |
| \t | \t | \t |
| \t | \t | \t |
| \t | \t | \t |
Application
Oxygen is widely used in metallurgy, glass, paper , medical , cutting, thermal power , water treatment, environmental protection and other industries.

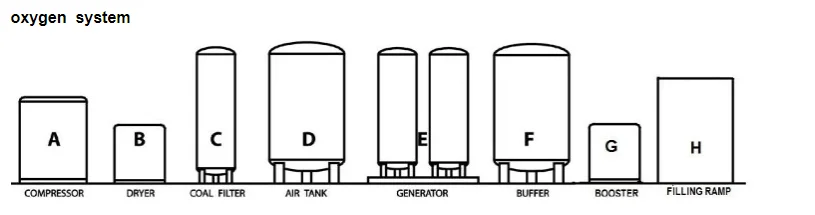

We will test the whole equipment with compresser ,air dryer ,filter and generator in our plant,and adjust all the valve for you,when you get it,easy for your installation.
\t\t\t\t\t\t\t\t\tCompany introduction \t\t\t\t\t\t\t

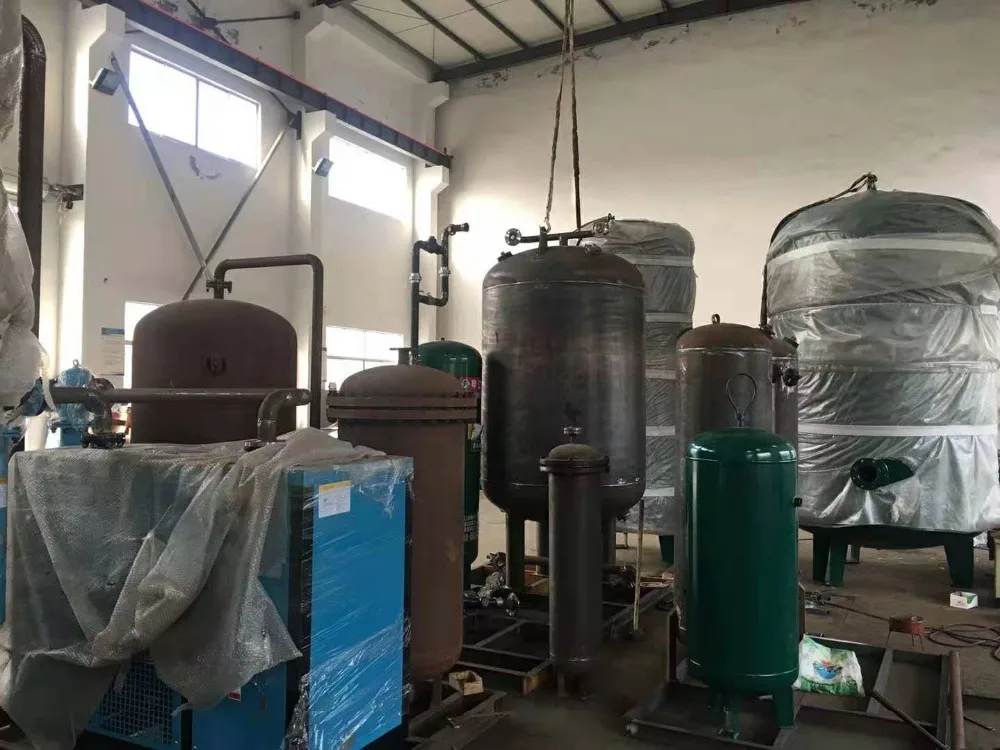

\t\t\t\t\t\t\t\t\tproduction process \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tDelivery and Logisti \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tProduct recommendati \t\t\t\t\t\t\t
GZV Miniature Electromagnetic Vibration Feeder

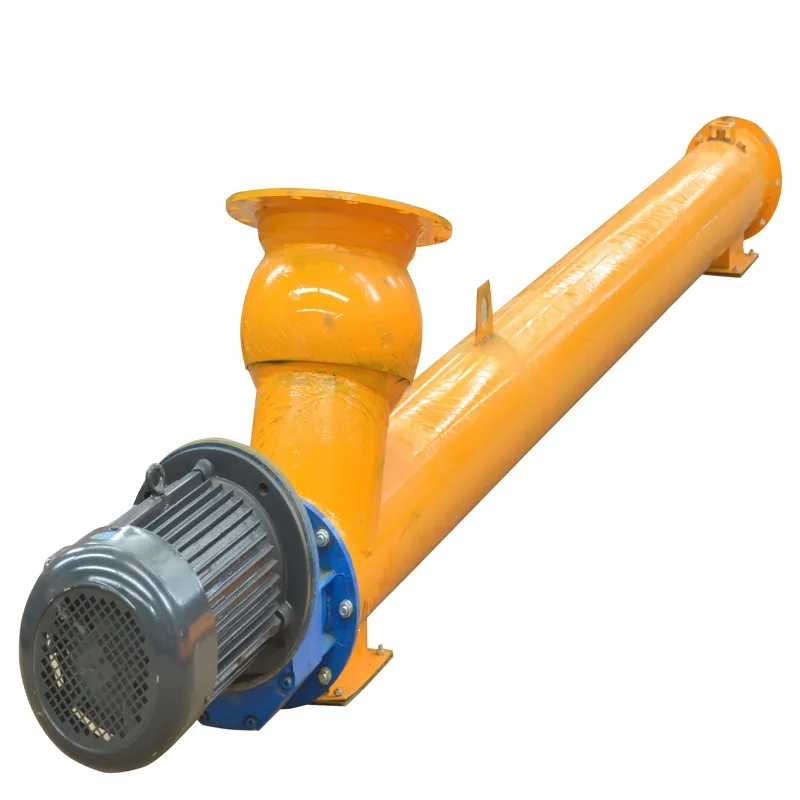

Screw conveyor
Impeller feeder
Vibrating motor
GZ electromagnetic vibration feeder
DMA Vibration Feeder
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q: Are you trading company or factory?
A: We are hydrogen generator factory, founded in 2008. Welcome you visit our company at any time!
Q: What is the terms of payment?
A: T/T, L/C etc.
Q: How long is your delivery time?
A: Generally it is 15-60 working days depending on your order.
Q: How to get a prompt quotation?
A: When you send us inquiry, please kindly tell us the below technical information.
1) H2 Flow rate: ____Nm3/h
2) H2 Purity: ____%
3) H2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Gas application or use for which industry.
