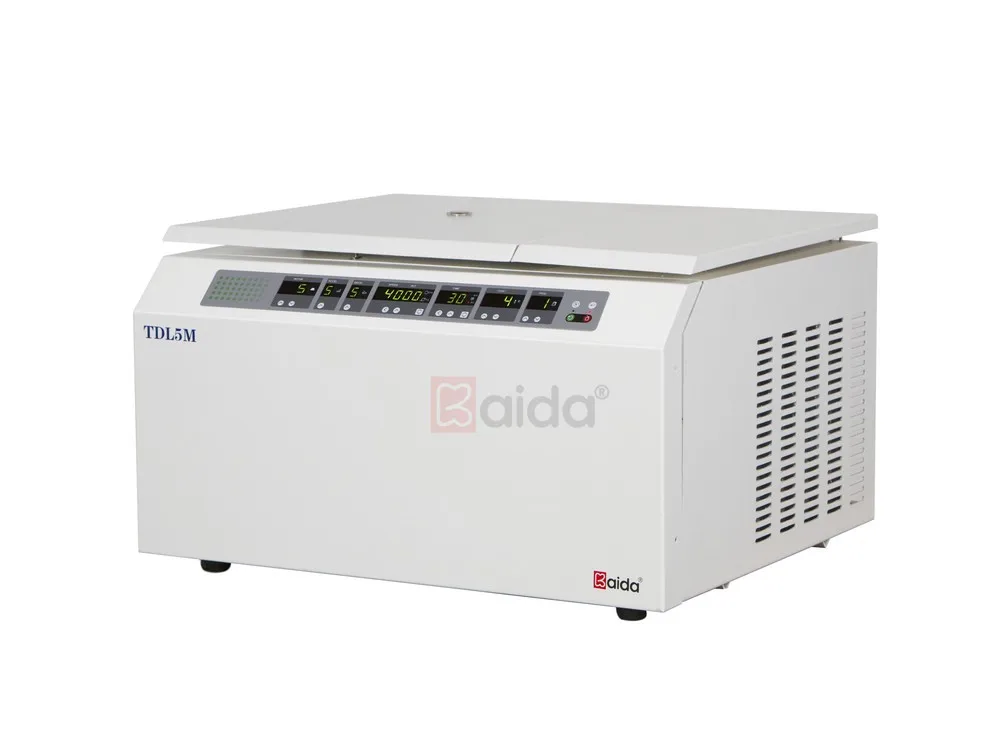

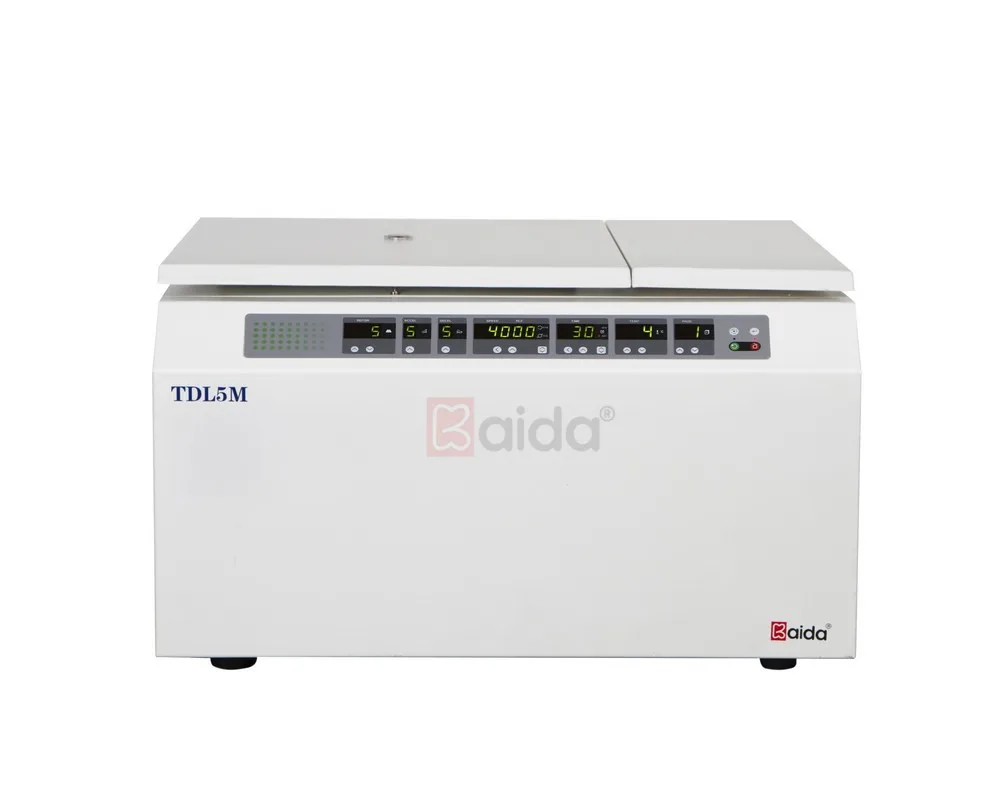

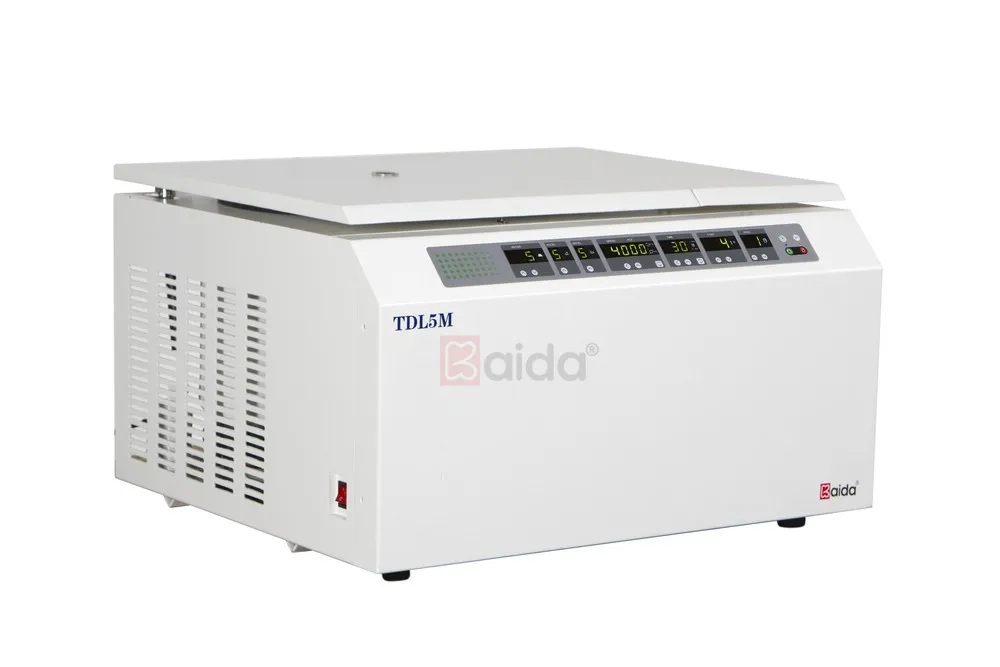

KAIDA TDL5M 4 x 250ml Large Capacity table top low speed refrigerated centrifuge

Product Overview

Description



FEATURES:

1,Microprocessor control, operated by touch panel, visual digital display, operated data can be saved automatically, RCF value can be set directly for working, easy to use.

2,Brushless converter motor which has high torque, Imported super speed bearing from Europe, smooth running and maintenance free.

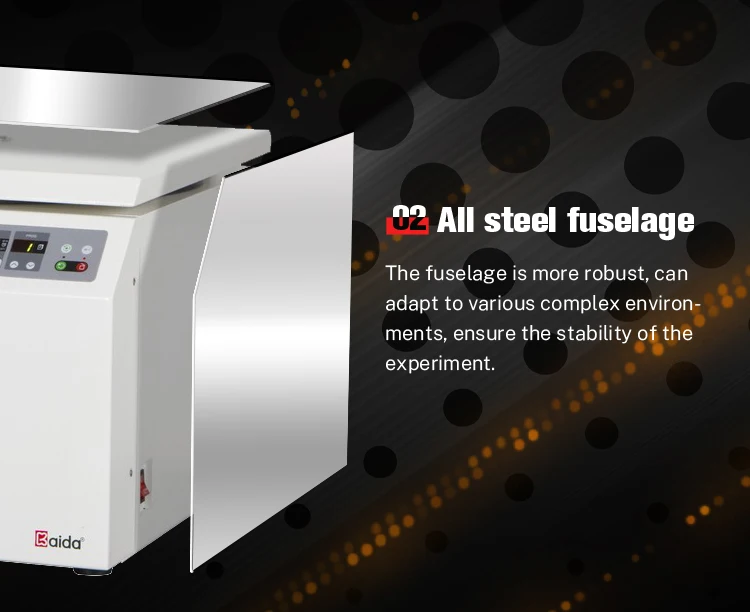

3,Steel body, multistage damping system, low noise and slight vibration, green.

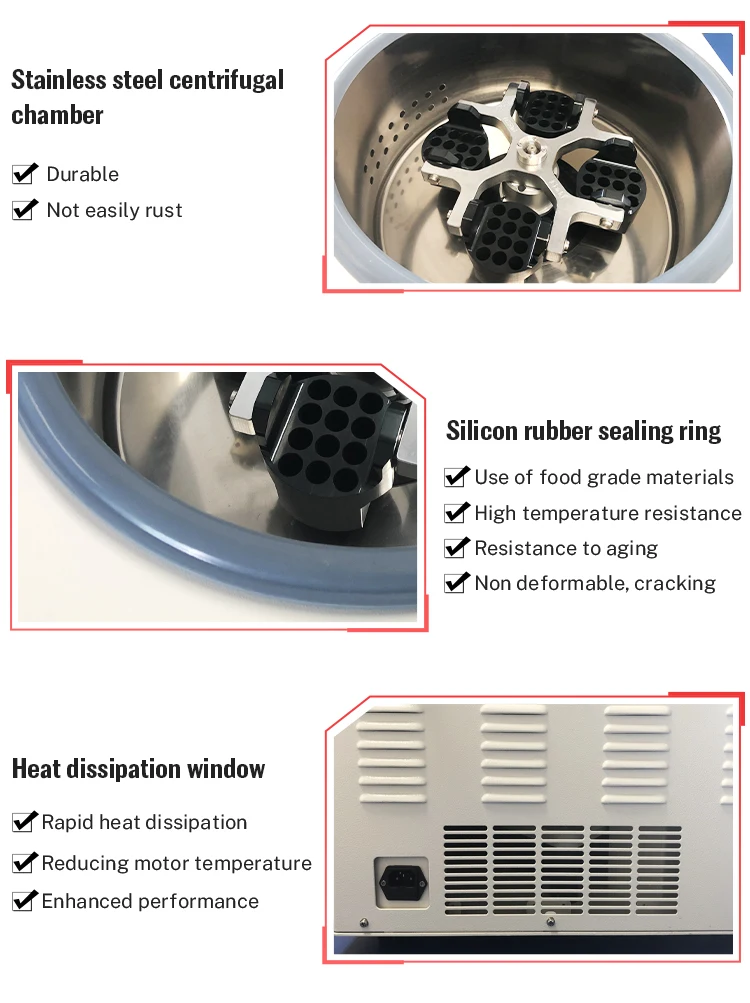

4,The freon-free compressor from Europe, stainless steel centrifugal chamber, fast cooling, pre-cooling design makes high working efficiency.

5,Overspeed, over temperature, door interlock, imbalance protection function, ensure operation safety. The rotor can be high temperature & high pressure sterilization.

6,Can be configured 5ml, 7ml, 10ml, 15ml, 30ml,50ml and several kinds of adapters, to meet the customer's multiple needs.

7,Adjustable acceleration and deceleration from grade 0 to 9 or directly set the time of Accel/Decel, 40 kinds of self-defining operating programs can be stored and recall, to achieve the best centrifugal result.

8,Hold-on and transient centrifuging, easy to diverse centrifugation.



TECHNICAL PARAMETER:



Model	TDL5M
Max Speed	5000r/min
Max RCF	4390×g
Max Capacity	1000ml
Speed Accuracy	±20r/min
Temperature Range	-20℃-+40℃
Temperature Accuracy	±1℃
Time Range	0-999min/sec
Power Supply	AC 220V 50Hz 18A
Noise	≤60dB
Dimension	670×750×440mm
Weight	95kg



ROTOR:



Model	Number	Capacity	Max Speed (r/min)	Max RCF(×g)	Dimension of tube(mm)
Swing Rotor	No.63	4×50/100ml	5000	4390	Φ38×124
	No.70	4×250/8×50/32×10ml	4000	3500	Φ64×113
	No.77	32×10/15ml	4000	2810	Φ16×85-118
	No.78	16×10/15ml	4000	2810	Φ16×85-118
	No.81	8×50/100ml	4000	2810	Φ28×105-115
	No.82	40/48×5ml	4000	3500	Vacumm Blood Collection Tube
	No.85	96×5/7ml	4000	3580	Vacumm Blood Collection Tube
	No.85	80×5/7ml	4000	3580	Vacumm Blood Collection Tube



PRODUCT DISPLAY:
