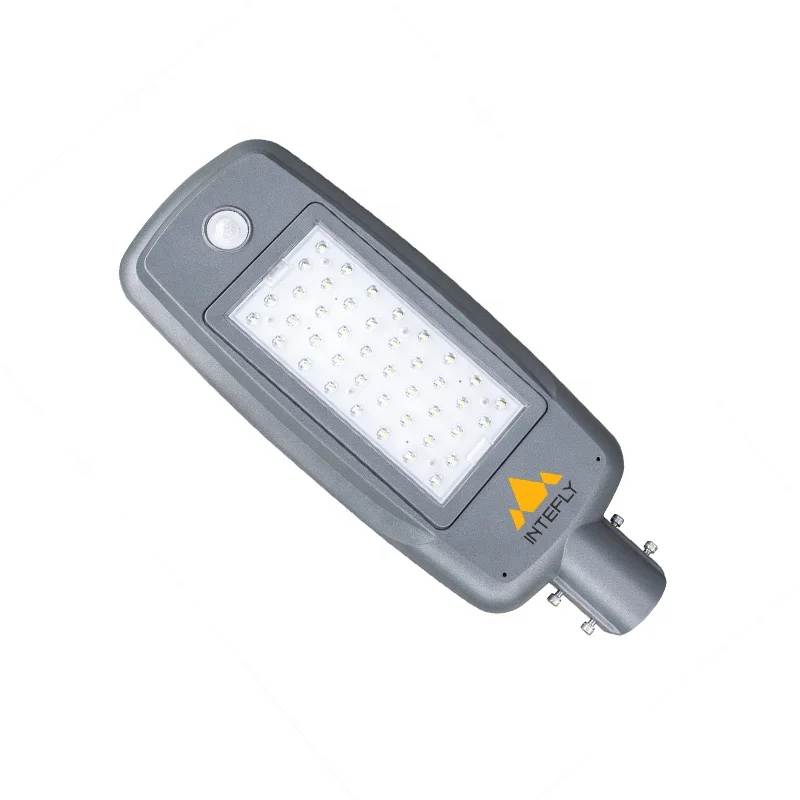

photocell rotatable solar panel led street lamparas solares para alumbrado publico IP66
- Category: >>>
- Supplier: Shenzhen Intefly Electronics Co. Ltd.
Share on (62211045866):
Product Overview
Description
Products Description
photocell rotatable solar panel led street lamparas solares para alumbrado publico IP66
Electrical Characteristic | ||||||||
Rated Power | 30w | 40W | 50W | 60W | ||||

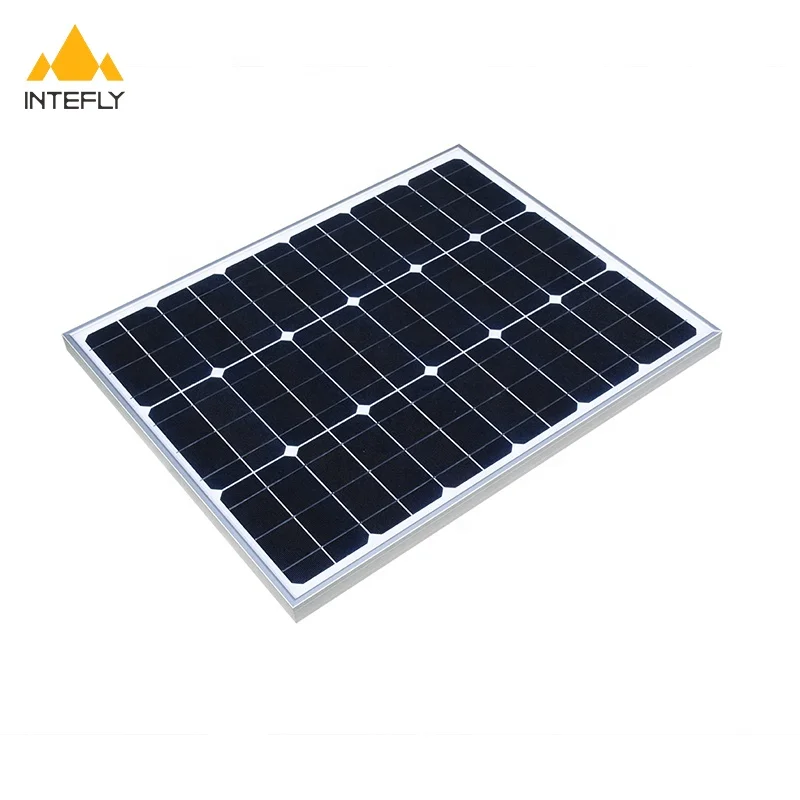

Solar Panel Power | 18V/40W | 18V/50W | 18V/60W | 18V/70W | ||||
Battery Capacity | 12V/21AH | 12V/26AH | 12V/31AH | 12V/36AH | ||||
Charge Time | 6-8H | |||||||
Discharge Time | >36H | |||||||
Operating Temperature | -25℃～+65℃ | |||||||
LED Parameters | ||||||||

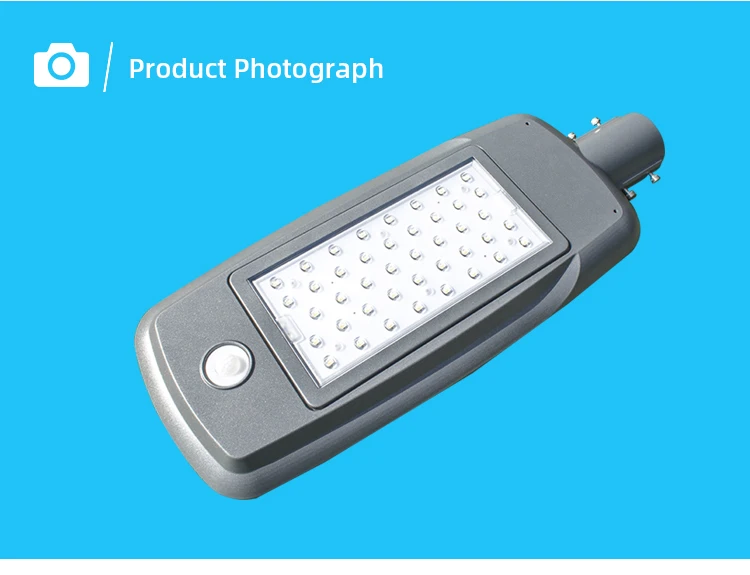

LED Beads | 42Units(5050) | 42Units(5050) | 60Units(5050) | 60Units(5050) | ||||
Lumen Flux（LM) | 3000-4000 | 4000-5000 | 5000-6000 | 6000-7000 | ||||
Light Distrbution | Batwing Type | |||||||
Color Temperature | 2800K-6500K | |||||||
Mechanical Specification | ||||||||
Light Body Size | 633x250x90MM | |||||||
Solar Panel Dimension(MM) | 529x513x25 | 625x513x25 | 780x513x25 | 670x647x25 | ||||
Installation Height(M) | 4-6 | 5-7 | 6-8 | 7-9 | ||||
Pole Install Distance(M) | 12-18 | 15-21 | 18-24 | 21-27 | ||||
High temperature controlling function:
When the controller detects that the battery temperature is too high, will stops charging the battery to avoid high temperature damage to batteries as well avoid danger caused by excessive battery temperature.
Output control function:
When the controller detects the battery pack are not much power left, the controller controls the power output, to extension of the lamp lighting time.
Our Advantages
Application

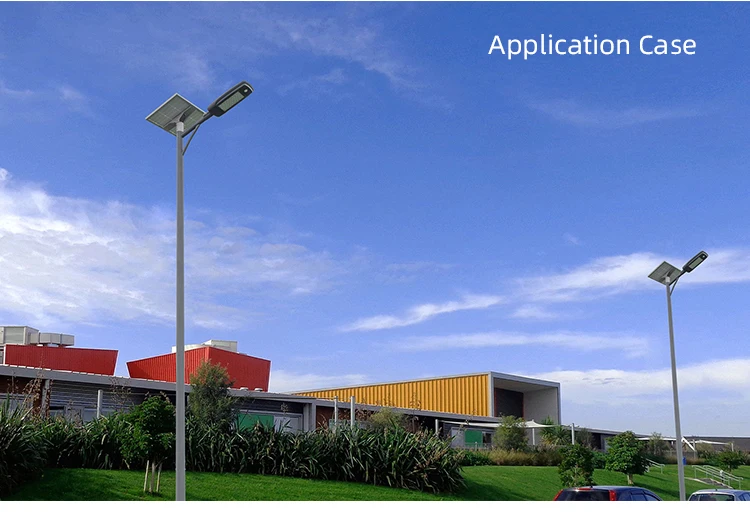

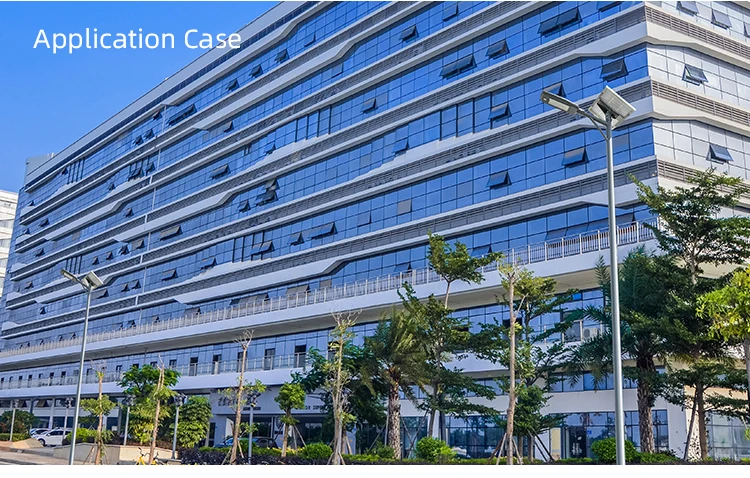

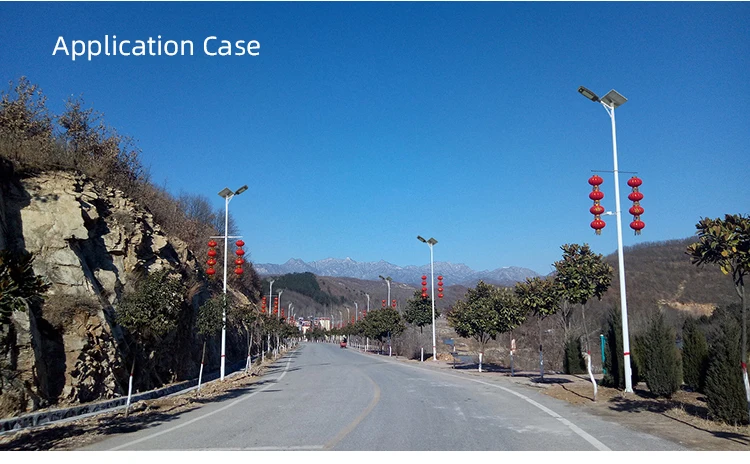

Project Cases
Company Profile
1. Founded in 2010, Shenzhen Intefly Electronics Co, Ltd is a smart manufacturing base of
Solar Applications.
Solar Applications.
2. Our products mainly Integrated Solar LED Street Lights, Garden Lights, Solar Panels,
Charge Controllers and Inverters
3. Our factory area is of total 6, 500 square meters with 200 employees
4. We have the IS09001: 2008 quality management system certification, and all our
products comply with CE, RoHS, IES and IP65 approvals
Charge Controllers and Inverters
3. Our factory area is of total 6, 500 square meters with 200 employees
4. We have the IS09001: 2008 quality management system certification, and all our
products comply with CE, RoHS, IES and IP65 approvals
Certifications
Recommend Products
FAQ
Q1. Can I have a sample order for solar led street light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1 days, mass production time needs 3-7 days for order quantity more than 500pcs
Q3. Do you have any MOQ limit for solar led street light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for solar led street light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on solar led street light?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
