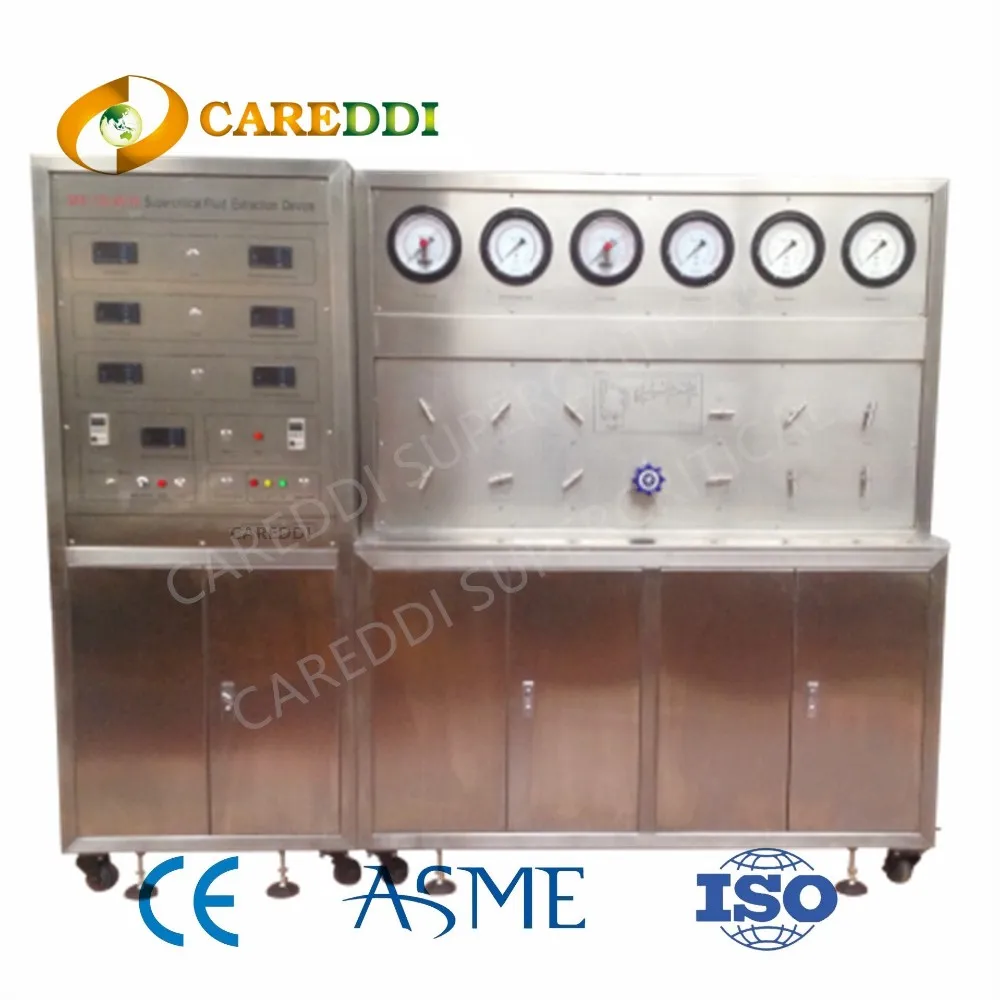

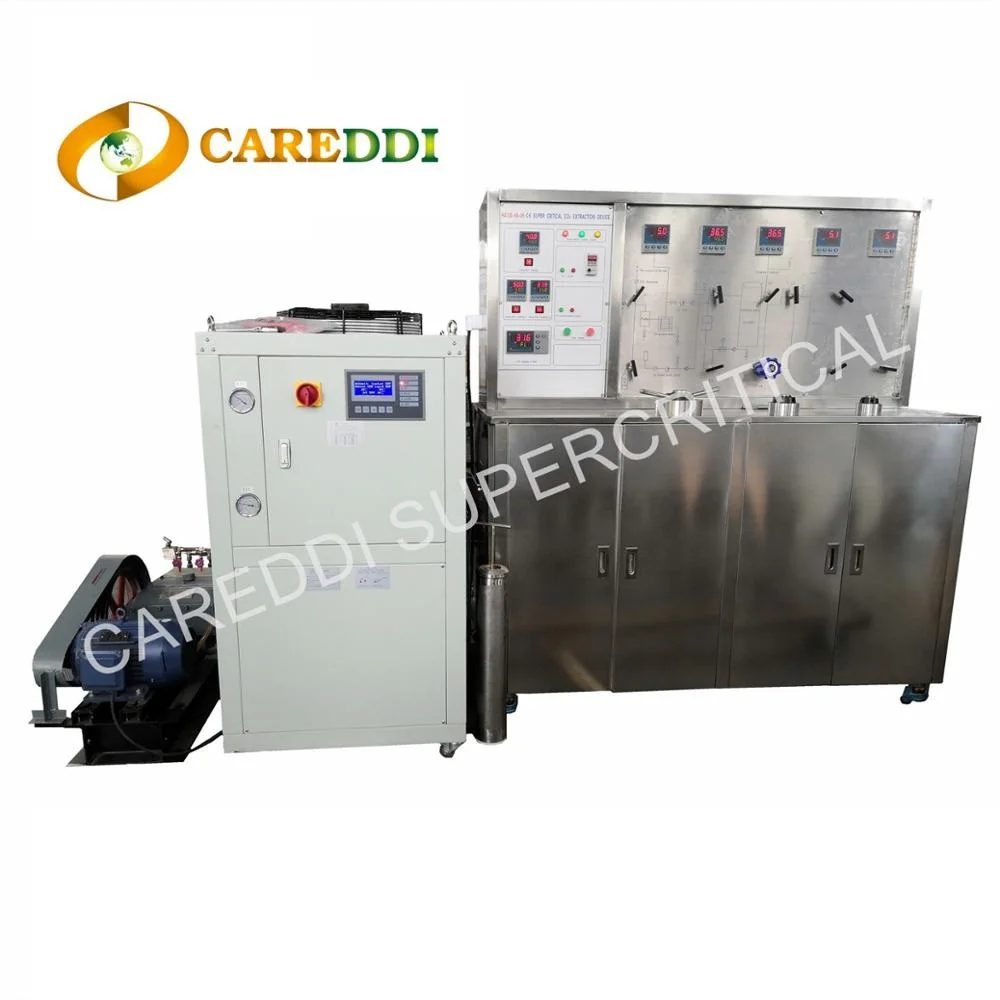

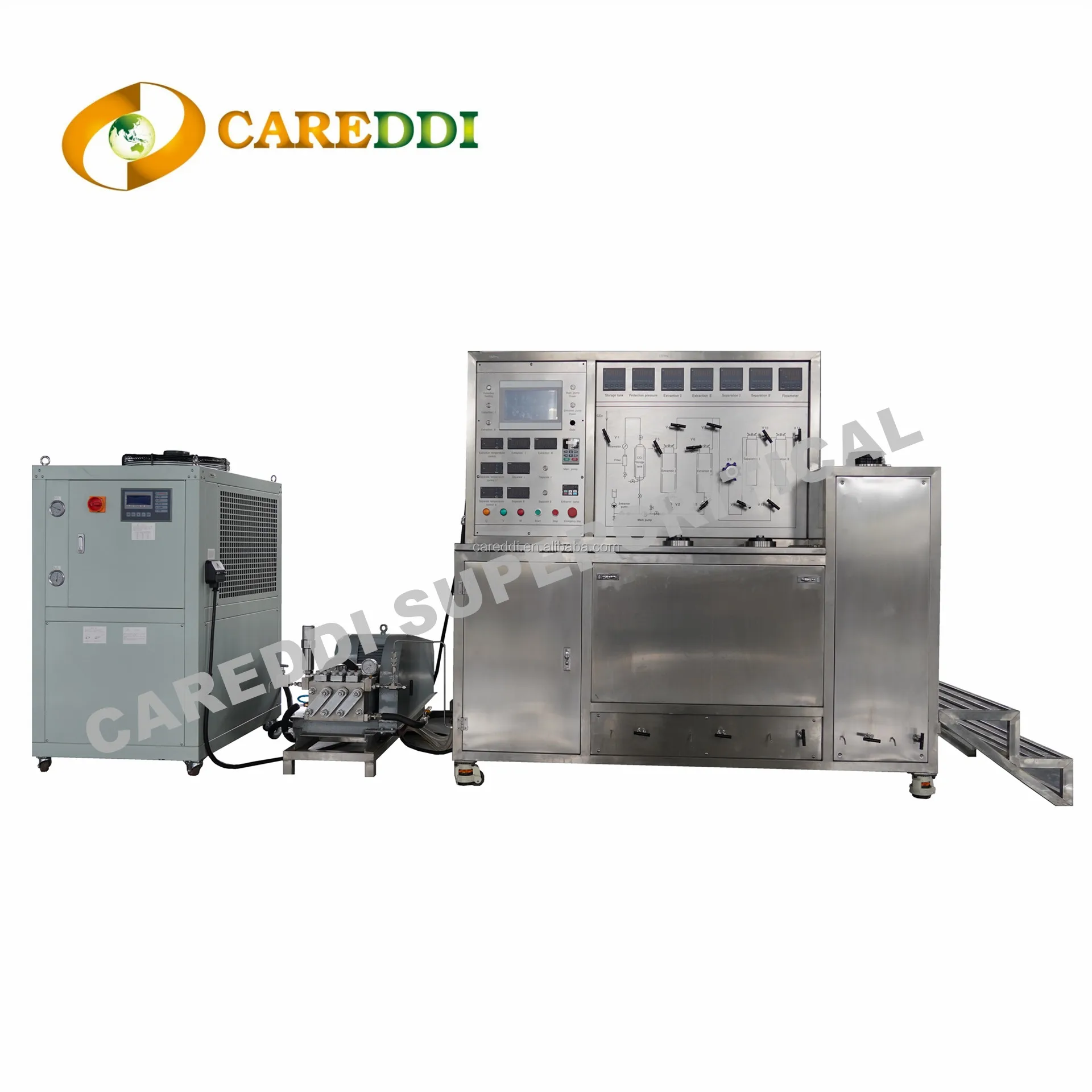

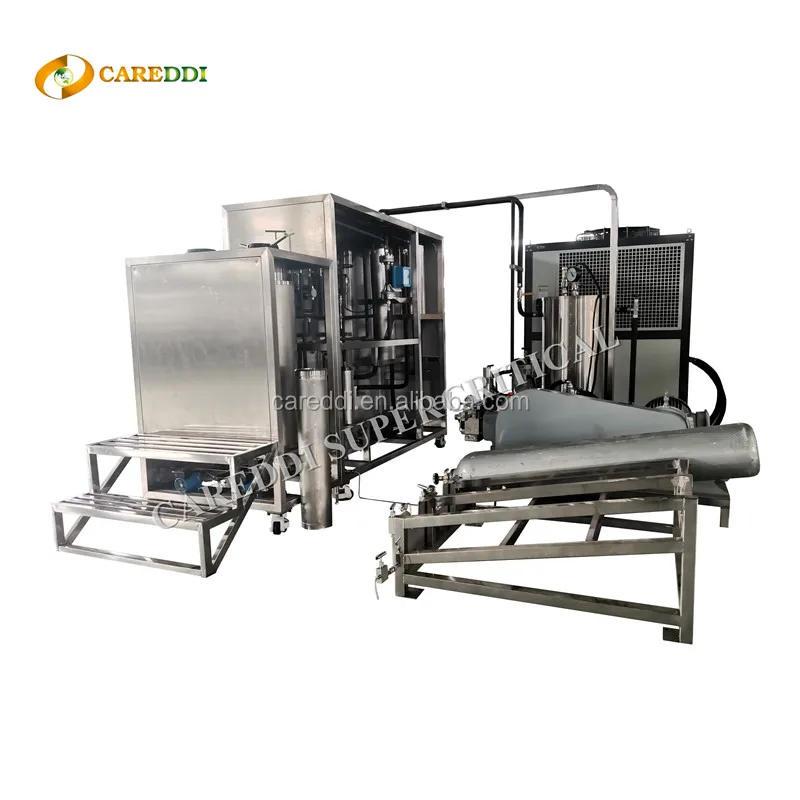

Заводской поставщик сверхкритической системы экстракции CO2 для высокоценной продукции модели 10 л
- Category: Extractor >>>
- Supplier: Careddi Technology Co. Ltd.
Share on (62211213677):
Product Overview
Description
What does Careddi Supercritical CO2 Extraction System consist of ?
Careddi Supercritical CO2 Extraction System (Careddi SCFE) is well designed for effective oil extraction and easily operation. It is a completely configured system consists of extraction vessels (extractors), separation vessels (separators), Operation front panel, High pressure CO2 Pump, Chilling system, heating system, Pressure regulator valve, Co-solvent pump, CO2 Storage tank, CO2
Recovery pump etc. The users can run the machine to produce essential oils only need to provide with electricity and CO2.
Careddi Supercritical CO2 Extraction System (Careddi SCFE) is well designed for effective oil extraction and easily operation. It is a completely configured system consists of extraction vessels (extractors), separation vessels (separators), Operation front panel, High pressure CO2 Pump, Chilling system, heating system, Pressure regulator valve, Co-solvent pump, CO2 Storage tank, CO2
Recovery pump etc. The users can run the machine to produce essential oils only need to provide with electricity and CO2.
Product Specifications
Careddi Supercritical CO2 Extraction Machine - 30Liter Techinical Parameters | ||||||||
SN | Part Name | Specifications | ||||||
1 | Extraction Vessel | 10liter * 4, Max working pressure: 50MPa, SS304/316 material | ||||||
2 | Separation Vessel | 2Liter +4Liter, Max working pressure: 25MPa, SS304/316 material | ||||||
3 | CO2 High Pressure Pump | Flowrate: 50L/h, Max working pressure: 50MPa | ||||||
4 | CO-Solvent pump | Flowrate: 0.25-4L/h, Max working pressure: 20MPa (Mechanical adjustable) | ||||||
5 | Cooling system | Cooling capacity: 20000Kcal/h (air cooling), Temperature: -5℃～+5℃ | ||||||
6 | Heat exchange system | Φ14/40MPa, Φ18/40MPa, circulating water jacket heating system, adjustable temperature. | ||||||
7 | Purification system | 5Liter, Max working pressure: 16MPa | ||||||
8 | CO2 Storage tank | 10Liter * 1, Max working pressure: 16MPa | ||||||
9 | Levelmeter | 1200L/16mpa, indicate both instant flow rate and accumulation | ||||||
10 | Temperature control system | Room temperature~85℃ adjustable, Accuracy: ±1℃ | ||||||
11 | Safety devices and other components | Pressure gauge at high pressure pump outlet, overpressure protection.Safety valve at extraction tank, separation tank, distillation column, Overpressure automatic relief. | ||||||
12 | Pipe lines | Valves, fittings: DW14, DW18 All parts connected with fluid material are made by 1Cr18Ni9Ti Stainless steel. | ||||||
13 | Total power | 3 Phase, 15.00kw | ||||||
Customer Self-provided Items
3 Phase Electricity Power: 15.00KW
Installation dimension: 3200×2500×2000mm, plus operation space.
CO2 gas: Food grade≥99.5%, single bottle net weight ≥22Kg
Food grade alcohol ≥99.5%
3 Phase Electricity Power: 15.00KW
Installation dimension: 3200×2500×2000mm, plus operation space.
CO2 gas: Food grade≥99.5%, single bottle net weight ≥22Kg
Food grade alcohol ≥99.5%
Sn | Model | Specifications | Maximum Working Pressure | Capacity |
1 | 1L | 2 extractors 2 separators | 480bar | 3lbs-10lbs |
2 | 2L | 2 extractors 2 separators | 480bar | 6lbs-13lbs |
3 | 5L | 2 extractors 2 separators | 480bar | 18lbs-30lbs |
4 | 5Lx2 | 2 extractors 2 separators | 480bar | 33lbs-55lbs |
5 | 10Lx2 | 2 extractors 2 separators | 380bar | 66lbs-110lbs |
6 | 15Lx2 | 2 extractors 2 separators | 380bar | 90lbs-160lbs |
7 | 24Lx2 | 2 extractors 2 separators | 380bar | 120lbs-220lbs |
8 | 25Lx2 | 2 extractors 2 separators | 380bar | 125lbs-230lbs |
9 | 24Lx 4 | 4 extractors 2 separators | 380bar | 240lbs-440lbs |
10 | 50Lx2 | 2 extractors 2 separators | 380bar | 400lbs-500lbs |
11 | 50Lx4 | 4 extractors 2 separators | 380bar | 800lbs-1000lbs |
12 | 50Lx6 | 6 extractors 2 separators | 380bar | 1200lbs-1600lbs |
13 | 150Lx2 | 2 extractors 2 separators | 380bar | 1200lbs-1700lbs |
14 | 150Lx4 | 4 extractors 2 separators | 380bar | 2000lbs-3200lbs |
15 | 200Lx2 | 2 extractors 2 separators | 380bar | 1800lbs-2400lbs |
16 | 200Lx4 | 4 extractors 2 separators | 380bar | 3600lbs-4800lbs |
17 | 700Lx3 | 3 extractors 2 separators | 380bar | 8800lbs-12000lbs |
18 | 1000Lx3 | 3 extractors 2 separators | 380bar | 10000lbs-18000lbs |
Model 5L Model 10L Model 20L
Model 50L Model 100L Model 300L
Vacuum Filter Rotary Evaporator Short Path Distillation
Applications
Careddi supercritical co2 machines are widely used to extract industrial hemp or cannabis to CBD oil for the pharmaceutical industry. It is also widely used in food industry: it can be used to make the extraction of various flavoring agents, such as various spices commonly eaten in southeast Asian countries. Extract ginger oil, lycopene, chilli oil, etc., which often made in India and Sri Lanka. In addition, also dabbled in the cosmetics industry and health products industry , can be extracted from a
variety of essential oil products.
variety of essential oil products.
Q:Is caffeine soluble in liquid co2?
Q:Why is co2 better than ethanol?
Q:Does co2 extraction remove terpenes?
A:CO2 extraction is good for preserving terpenes because it is a cold separation process that can protect delicate plant compounds.Some methods may also use ethanol to help remove terpenes before fully extracting cannabis buds.
Q:Is co2 extraction better?
A:CO2 extraction is also much better for the environment. CO2 gas is natural, so if it escapes into the air during extraction it won't do any harm. It can also be recycled, making this method much more sustainable. Since the solvent isn't toxic, people working with this extraction method don't face any health risks.
Q:Does supercritical co2 extraction kill mold?
A:A major benefit of supercritical co2 extraction is that the process kills any microbial bacteria, mold or mildew on the plant which guarantees the extract will be healthier for consumption. Supercritical co2 extraction is a gold standard when it comes to concentrating cannabinoids and terpenes.
Q:How does supercritical co2 extraction work?
A:To perform an extraction, the plant material must be ground and placed into an extraction vessel. CO2 gas undergoes high temperature and pressure. A pump then forces supercritical co2 into the extraction vessel where it meets the plant and breaks the trichomes allowing it to dissolve part of the plant material.
Q:How will you pack my order, can you provide installation services?
A:The package is Plywood box. We will assemble and test the machine before packaging.
Installation: We will send the English manual after you purchase. If the customer needs, we will send an engineer to assemble and train the workers. For $80 per person per day, food, accommodation.
Q:Can we conduct an extraction test before buying?
A:Yes, sure, we can do extraction test with your raw material and send you videos and pictures for your reference.
Q:Can the CO2 be reused?
Q:Can your machine meet our exactly need?
We have over30 years manufacturing experience in this line.Our strong technical support can generally operate stably for more than twenty years.Stable performance of our machine, used customers with a renewal rate of 95% or more.High cost performance of the machine, lower price for the same configuration, same performance.After-sales service can be done 7*24 hours, customer service+technical service, timely service in place, users will be assured.
Q:What's the Shipping Time if I place an order?
A:Generally it's 20-25 working days for order reaches 1 x 20' Container.
Q:How can I control the Quality of the goods?
A:Our QC term is professional to ensure our quality product and continuous marketing, your satisfaction is our power for development. You can arrange the 3rd party inspection company for inspection, after production finished.
Q:Warranty of supercritical co2 extraction machine?
A:3 year warranty period for whole machine except of tubes and human factors etc, and 36-month of after-sale service from the date when you receive machine or 36 months when installation finished.
A:Supercritical CO2 helps act as a solvent to give the coffee bean solvent-like properties to dissolve the caffeine and extract it out of the coffee bean. Because it has a lower viscosity than liquid CO2, allowing it to move through and around the coffee bean more efficiently without too much pressure.
Q:Is co2 extraction organic?
A:CO2 Botanical Extracts are completely natural and exceptionally pure. These highly concentrated plant extracts are free of solvent residues and impurities such as heavy metals. All CO2 Extracts are oil soluble.
Q:Why is co2 better than ethanol?
A:CO2 is highly tunable. With CO2 you can vary factors such as time, temperature, and pressure to create different products. Ethanol products need to go into more stages of refinement to be turned into various products such as distillate.
Q:Does co2 extraction remove terpenes?
A:CO2 extraction is good for preserving terpenes because it is a cold separation process that can protect delicate plant compounds.Some methods may also use ethanol to help remove terpenes before fully extracting cannabis buds.
Q:Is co2 extraction better?
A:CO2 extraction is also much better for the environment. CO2 gas is natural, so if it escapes into the air during extraction it won't do any harm. It can also be recycled, making this method much more sustainable. Since the solvent isn't toxic, people working with this extraction method don't face any health risks.
Q:Does supercritical co2 extraction kill mold?
A:A major benefit of supercritical co2 extraction is that the process kills any microbial bacteria, mold or mildew on the plant which guarantees the extract will be healthier for consumption. Supercritical co2 extraction is a gold standard when it comes to concentrating cannabinoids and terpenes.
Q:How does supercritical co2 extraction work?
A:To perform an extraction, the plant material must be ground and placed into an extraction vessel. CO2 gas undergoes high temperature and pressure. A pump then forces supercritical co2 into the extraction vessel where it meets the plant and breaks the trichomes allowing it to dissolve part of the plant material.
Q:How will you pack my order, can you provide installation services?
A:The package is Plywood box. We will assemble and test the machine before packaging.
Installation: We will send the English manual after you purchase. If the customer needs, we will send an engineer to assemble and train the workers. For $80 per person per day, food, accommodation.
Q:Can we conduct an extraction test before buying?
A:Yes, sure, we can do extraction test with your raw material and send you videos and pictures for your reference.
Q:Can the CO2 be reused?
A:YES. CO2 can be used in circulation.
Q:Can your machine meet our exactly need?
We have over30 years manufacturing experience in this line.Our strong technical support can generally operate stably for more than twenty years.Stable performance of our machine, used customers with a renewal rate of 95% or more.High cost performance of the machine, lower price for the same configuration, same performance.After-sales service can be done 7*24 hours, customer service+technical service, timely service in place, users will be assured.
Q:What's the Shipping Time if I place an order?
A:Generally it's 20-25 working days for order reaches 1 x 20' Container.
Q:How can I control the Quality of the goods?
A:Our QC term is professional to ensure our quality product and continuous marketing, your satisfaction is our power for development. You can arrange the 3rd party inspection company for inspection, after production finished.
Q:Warranty of supercritical co2 extraction machine?
A:3 year warranty period for whole machine except of tubes and human factors etc, and 36-month of after-sale service from the date when you receive machine or 36 months when installation finished.
