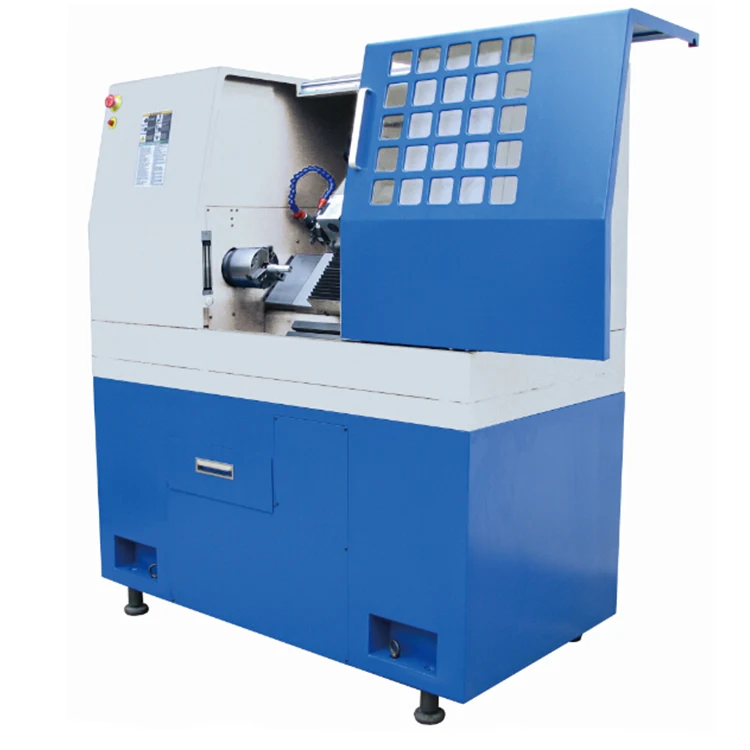

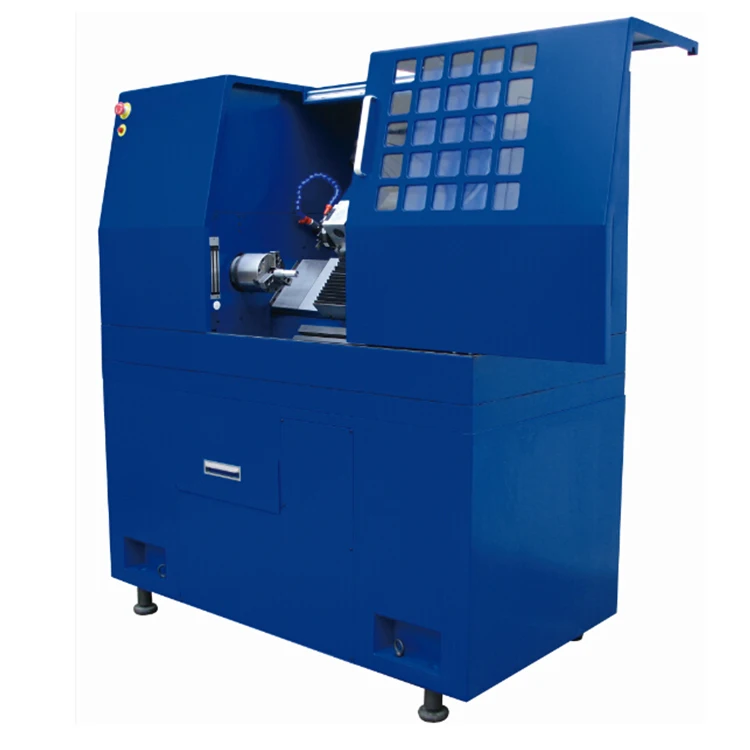

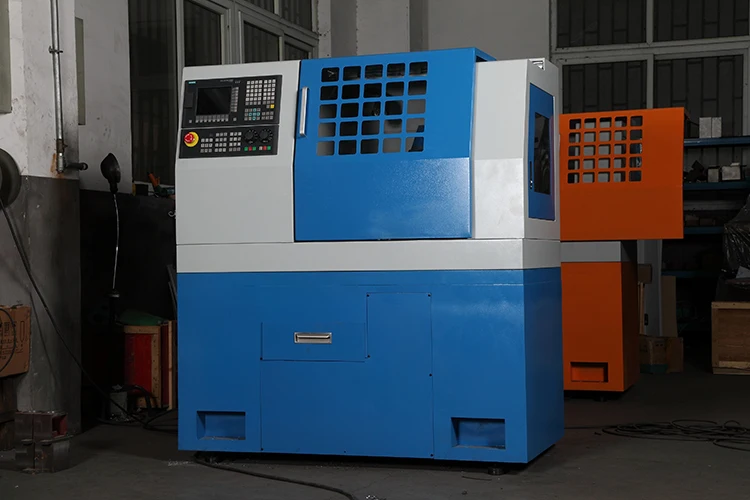

iKC6 SIEG CNC Turning Horizontal Automatic cnc lathe machine
- Category: >>>
- Supplier: Liuzhou Gluck Imp& Exp Co. Ltd.
Share on (62211228430):
Product Overview
Description
Product Description
iKC6 Automatic horizontal metal cnc lathe machine
WORKING AREA | Turning diameter over bed(max) | 300mm | ||
travel across slide | 100mm | |||
Center width | 400mm | |||

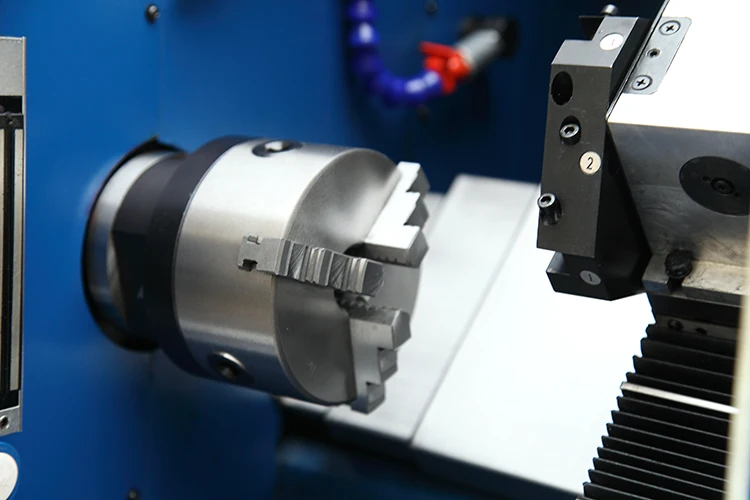

SPINDLE | Chuck diameter | 125mm | ||
Spindle speed | 100-3000r/min | |||
Spindle through-hole | 20mm | |||
Spindle mount | MT3 | |||
Spindle motor power | 1500W | |||
FEED | X travel | 120mm | ||
Z travel | 320mm | |||
The max moving speed | 3000mm/min | |||
Motor | 400w | |||
TOOL REST | Tool position | 8 | ||
Tool dimension 4 external | 12×12mm | |||
4 internal | φ12mm | |||

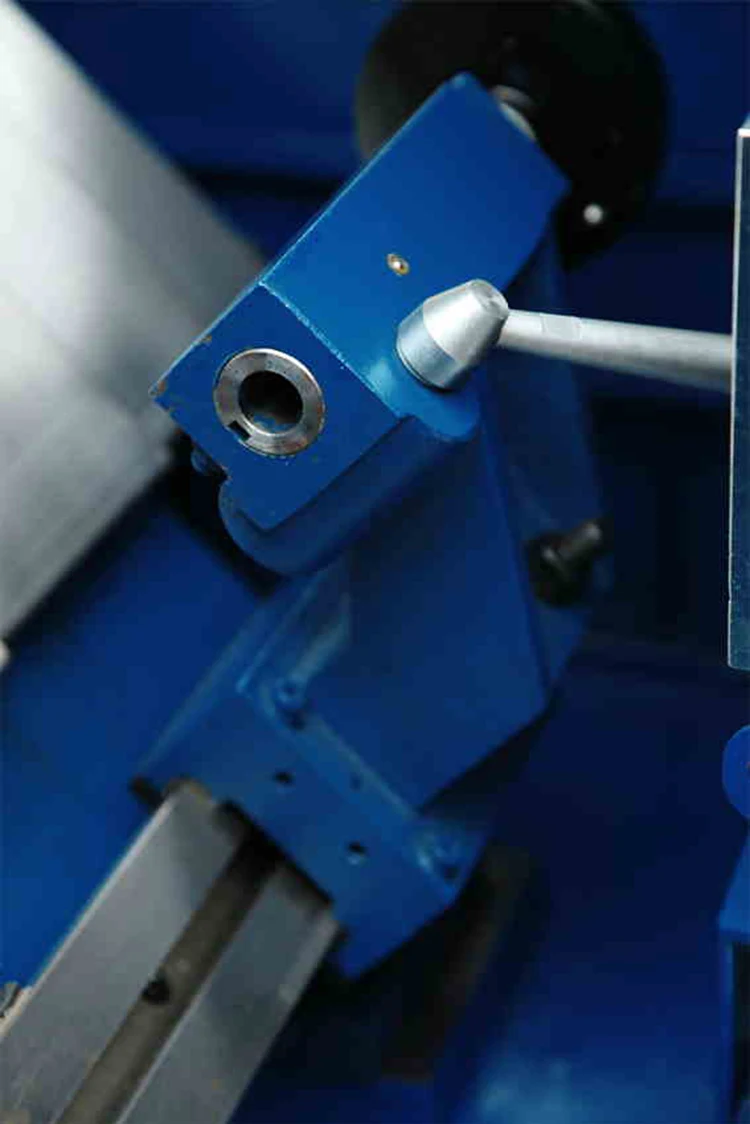

TAILSTOCK | Tailstock taper | MT2 | ||
Tailstock sleeve diameter | 30mm | |||
Travel of tailstock | 50mm | |||
ACCURACY | Positioning accuracy | ±0.010mm | ||
Repeatability accuracy | ±0.005mm | |||
OTHERS | Power | 230/120V | ||
Weight（NW/GW） | 620kg/700kg | |||
Overall dimension | 1400×770×1600mm | |||
Packing size | 1650×1090×1920mm | |||

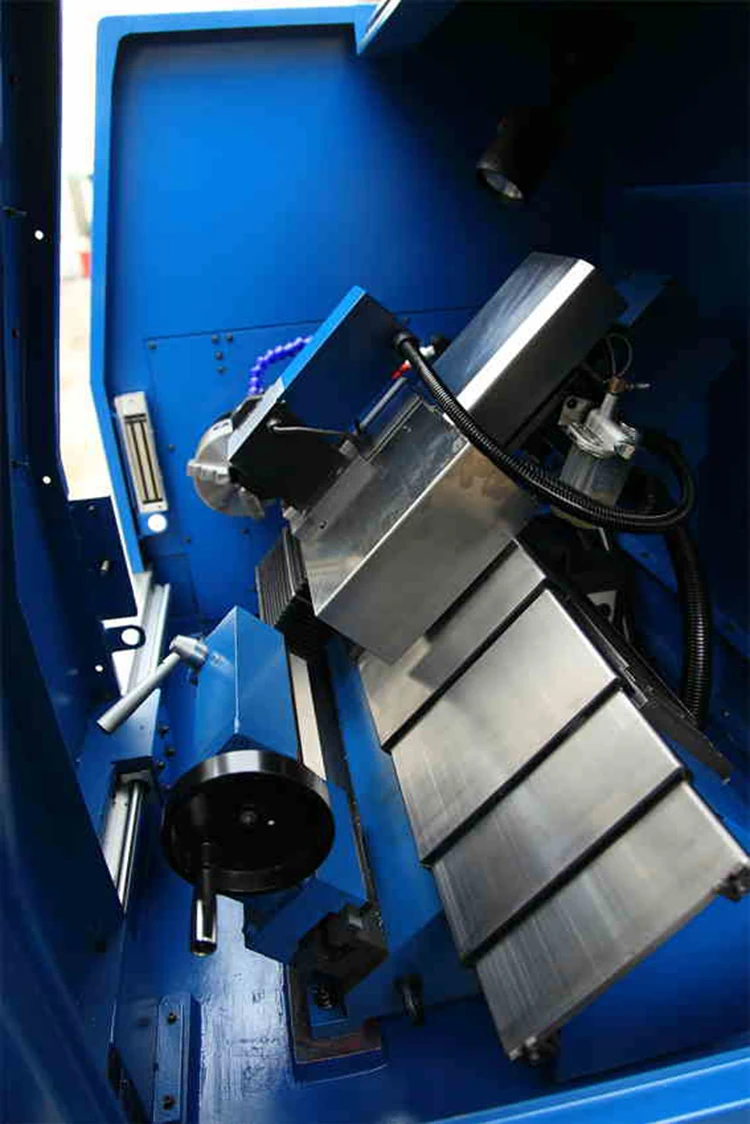

Slant bed lathe, which are popular in the world now.

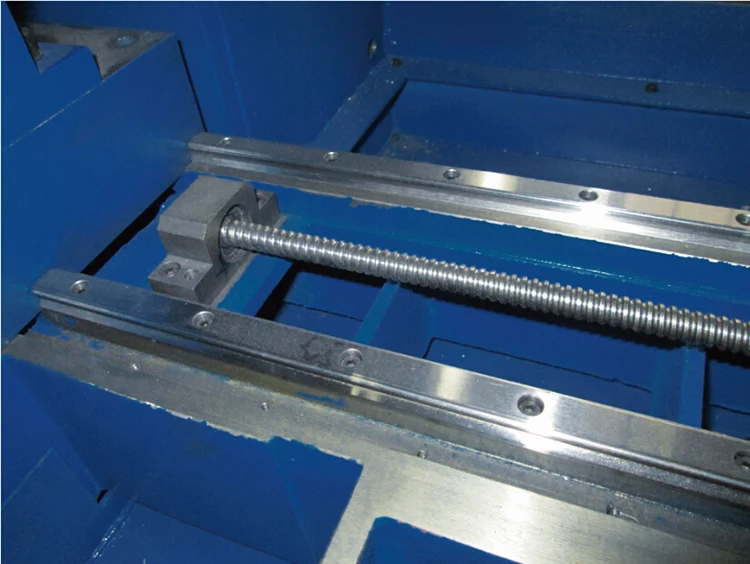

Servo motor and linear guide will make the machine more fast and accuracy.

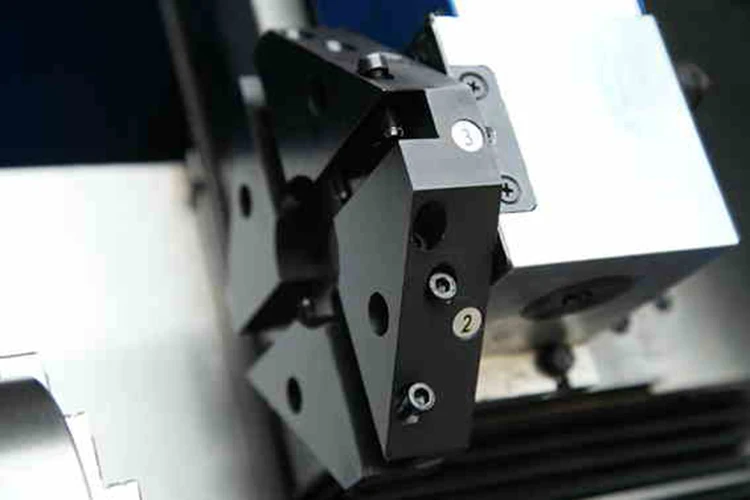

8 ATC will make the tool changing more conveniently.
OPTIONAL ACCESSORIES
1.Cutter set
2.Rolling center
3.Computer stand
1.Cutter set
2.Rolling center
3.Computer stand
SIEG syetem
A PC-based control system. A software (in CD) was supplied with machine, loaded into your computer, connecting PC to machine via LAN.

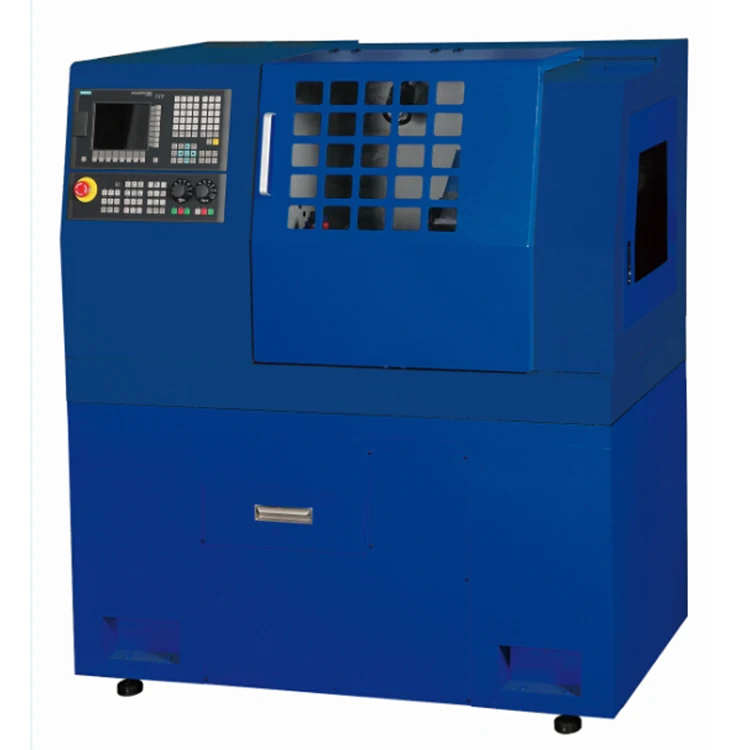

SIEMENS system
SIEMENS system is popular in the world, and it's closer to the industrial use. There is a cost-effective version SIEMENS 808D ADVANCE, not only with practical function, but also could save more money for you
Detailed Images

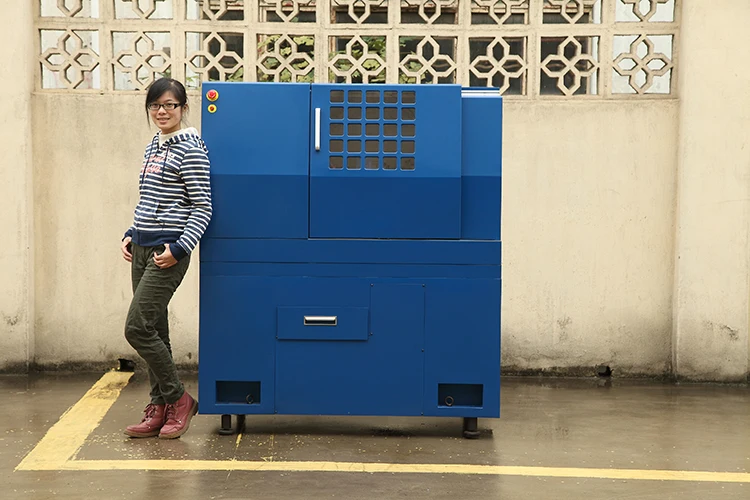

iKC6 is very suitable for training, DIY, and light manufacturing.
