Cathode Material NMC532 or NCM523 Ni:Co:Mn=5:2:3 Lithium Nickel Manganese Cobalt Oxide for lithium ion battery
- Category: >>>
- Supplier: Jiangmen Kanhoo Industry Co. Ltd.
Share on (62211271640):
Product Overview
Description
Product Description
This model TE510 of NCM523 is cathode material for li-ion battery mainly used in digital products.
Specification:
1. Material Type and Model
1.1. Material Type:Lithium Nickel Cobalt Manganese Oxide(Chemical Formula:LiNi0.5Co0.2Mn0.3O2)
1.2. Model No.:TE510(Digital type NCM 523)
2. Particle Morphology and Crystal Structure

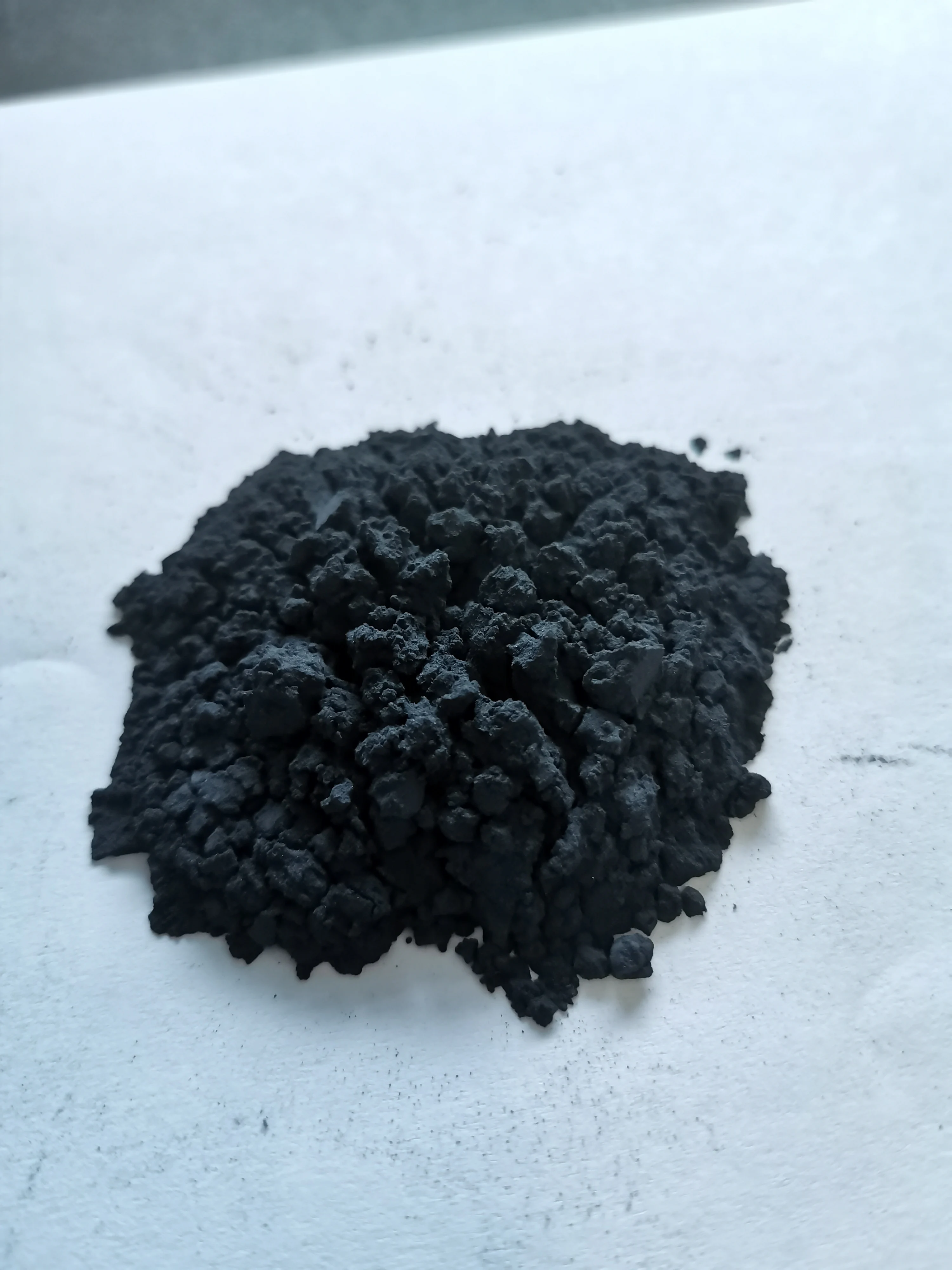

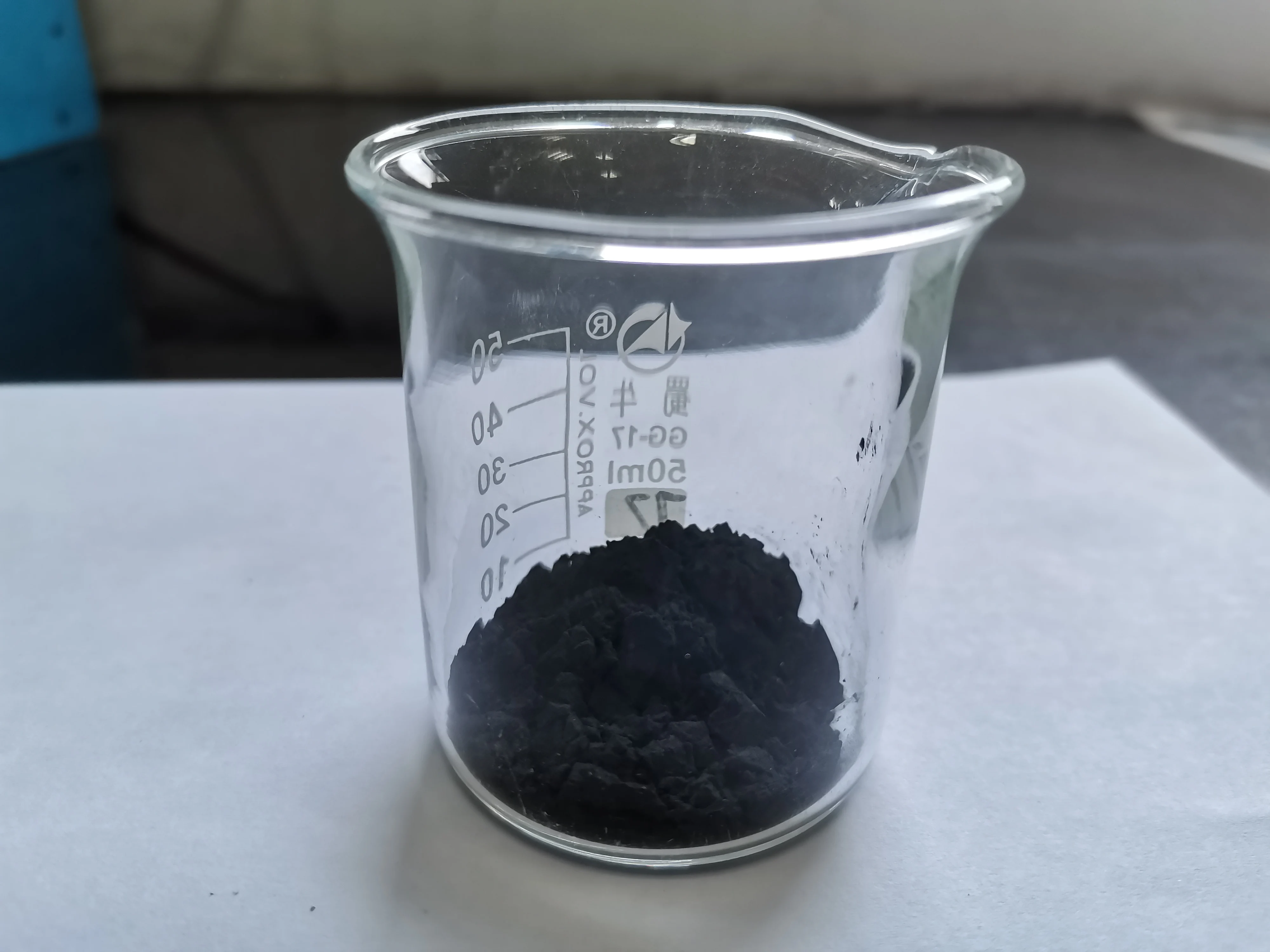

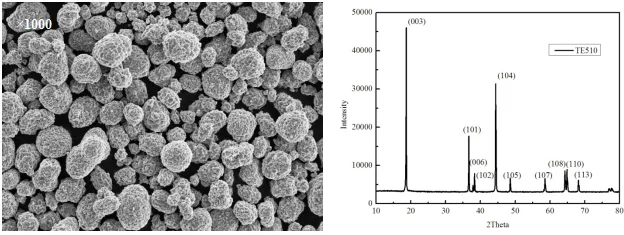

This product is grey-black powder and without aggregation. SEM picture and XRD are as below:
3.Physical Performance
Item | Unit | Standard | Reference Value | Test Method |

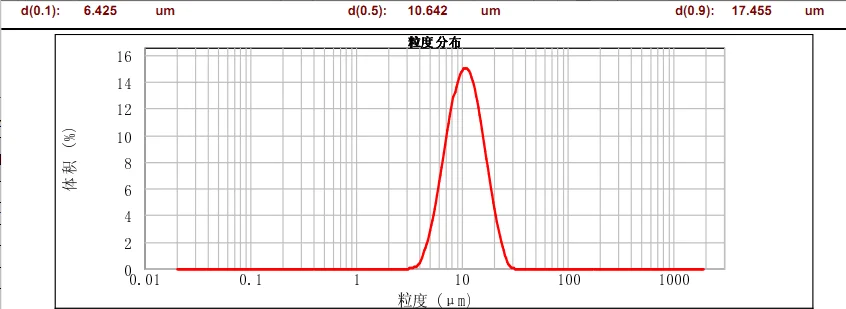

D10 | μm | ≥5.0 | 6.4 | MS2000 particle size analyzer |
D50 | μm | 8.0~12.0 | 10.6 | |
D90 | μm | ≤25.0 | 17.5 | |
Moisture | % | ≤0.10 | 0.07 | Moisture Meter |
pH | - | ≤11.6 | 11.35 | Mettler-Toledo PH Meter |
SSA | m2/g | 0.20~0.60 | 0.27 | BET |
Tap Density | g/cm3 | ≥2.0 | 2.20 | ZS-203 TD TESTER |
4. Chemical Performance
Item | Unit | Standard | Reference Value | Test Method |
Li | % | 7.0~8.0 | 7.1 | ICP |
Ni+Co+Mn | % | 57.0~62.0 | 59.2 | ICP |
Ca | % | ≤0.0200 | 0.0035 | ICP |
Cu | % | ≤0.0050 | 0.0002 | ICP |
Fe | % | ≤0.0100 | 0.0030 | ICP |
Na | % | ≤0.0300 | 0.0188 | ICP |
5. Coin Cell Performance
Item | Unit | Standard | Reference Value | Test Method |
Coin Cell Capacity at 0.5C | mAh/g | ≥158 | 160.1 | vs.Li,0.5C,2.75V-4.3V |
Coin Cell Capacity at 1C | mAh/g | ≥153 | 155.2 | vs.Li,1C,2.75V-4.3V |
Coin Cell Initial Efficiency | % | ≥83.0 | 84.5 | vs.Li,0.5C,2.75V-4.3V |
Packing and Shipping
Package : 25 KGS/bag, 1 bag/barrel, 18 barrels/pallet. The package can also be customized as per clients' requirements.
Delivery time: within 7 days after T/T payment or within 30 days after L/C issue
