Noack B Automated non Woods Metal Noack Evaporative Apparatus for Lubricating Oils

Product Overview

Description

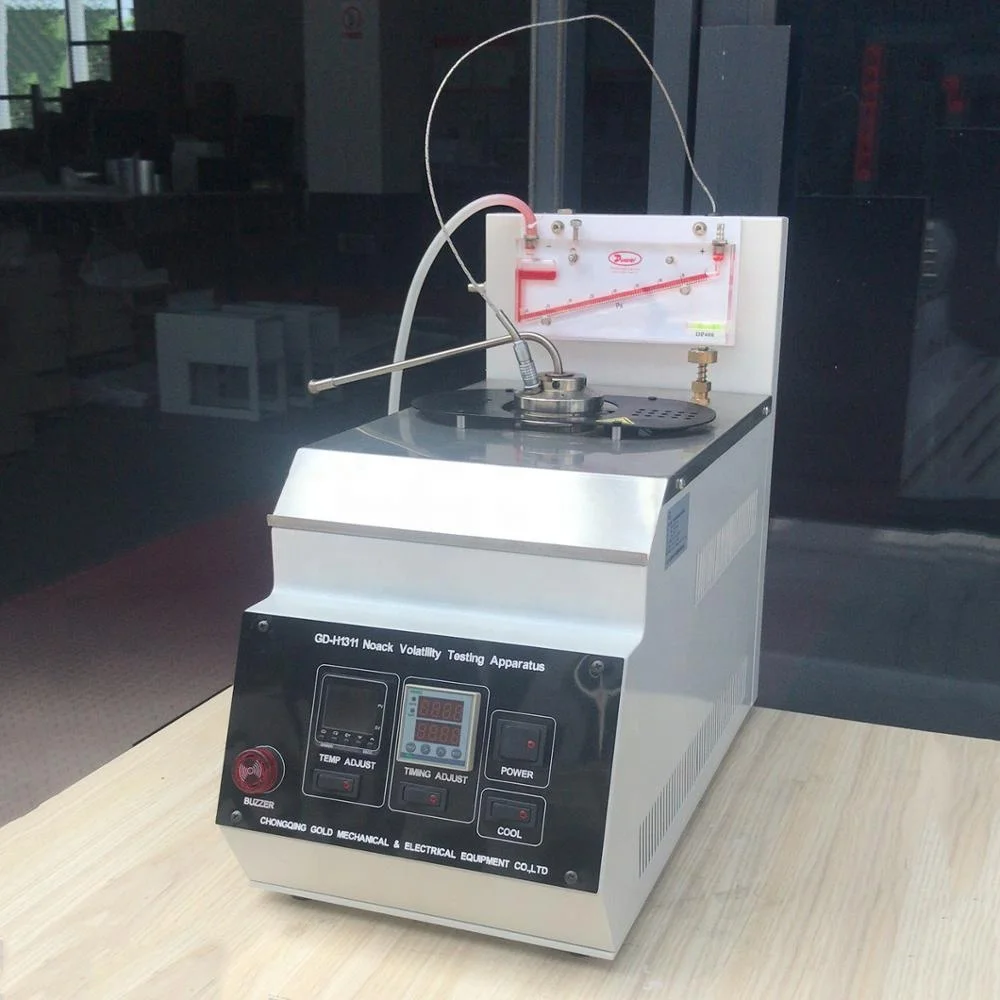

GD-H1311 Noack B Automated non-Woods Metal Noack Evaporative Apparatus for Lubricating Oils





Introduction of Noack B Automated non-Woods Metal Noack Evaporative Apparatus

• Put the sample in the evaporation loss apparatus when operate the machine, heat for 1 hours under certain condition, the evaporative oil will be carried out by air. According to the sample’s mass difference fore and after heating, then determine the sample’s evaporation loss.


• The Automatic Lubricating Oil Noack Evaporative Apparatus is suitable to lubricating oil and lube base oils.



Features of Noack B Automated non-Woods Metal Noack Evaporative Apparatus

1. Metal bath heating device,safe and environmental protection

2. Imported inclined manometer,which ensure the accurate pressure

3. No need to add Wood's metal

4. Equipped with specialized vacuum suction system

5. Digital timer to record the test time

6. The evaporator crucible meets the requirements of ASTM Standard

7. Double pressure regulation system, one is coarse regulating valve, and the other one is fine regulating valve

8. There’s a gas buffer bottle inside

9. High-power solid state relay to control power



Specs of Noack B Automated non-Woods Metal Noack Evaporative Apparatus

• Reference Standards:ASTM D5800, DIN51581, NFT60616, CECC40A9S, H/T0059


• Temp Control Mode:Digital PID temperature control


• Temperature control range:Room temperature~250±0.5℃


• Heating Mode:Metal bath heating


• Pressure regulation:High-precision needle valve


• Suction Mode:Vacuum pump


• Differential pressure gauge:Imported precision inclined manometer
