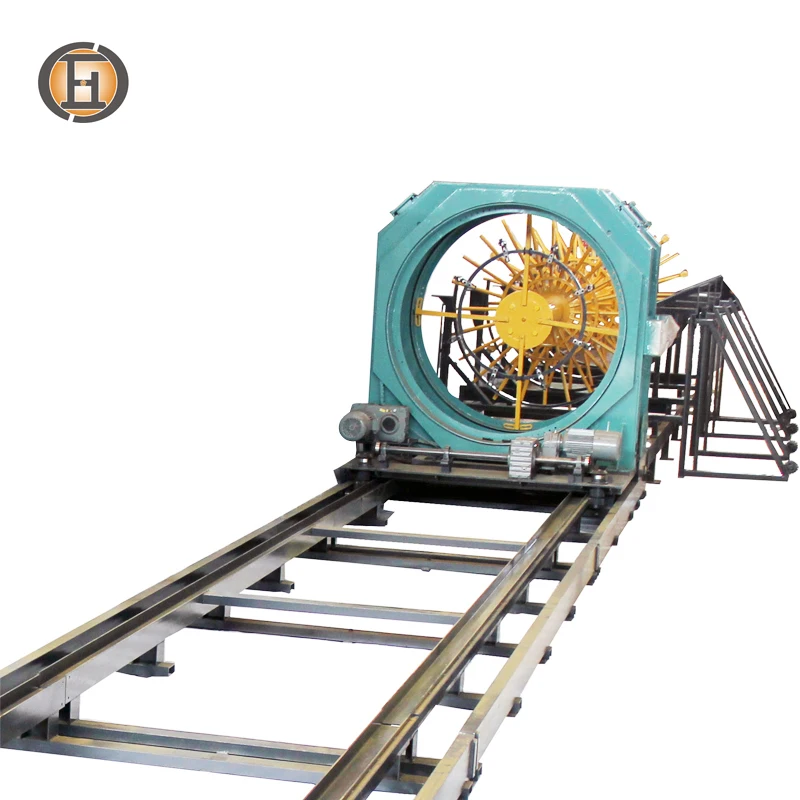

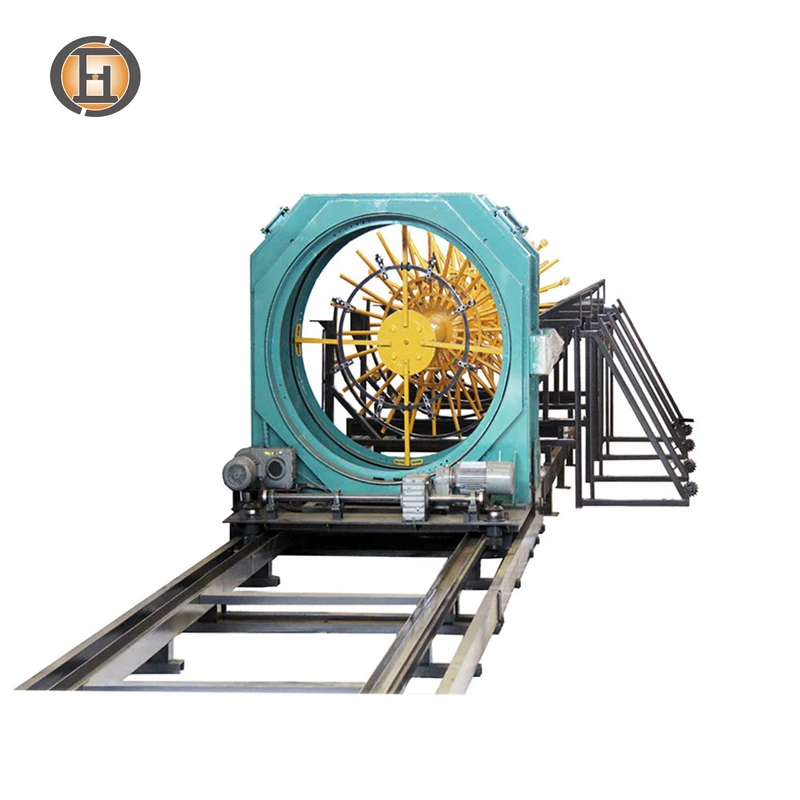

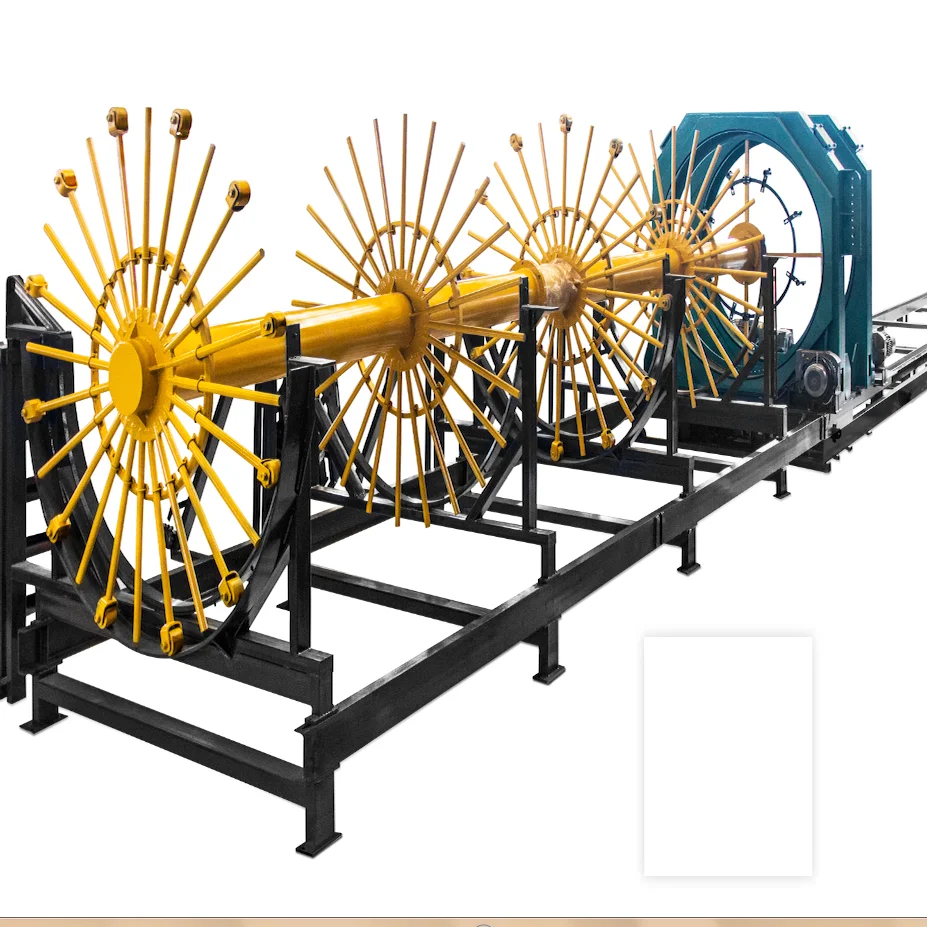

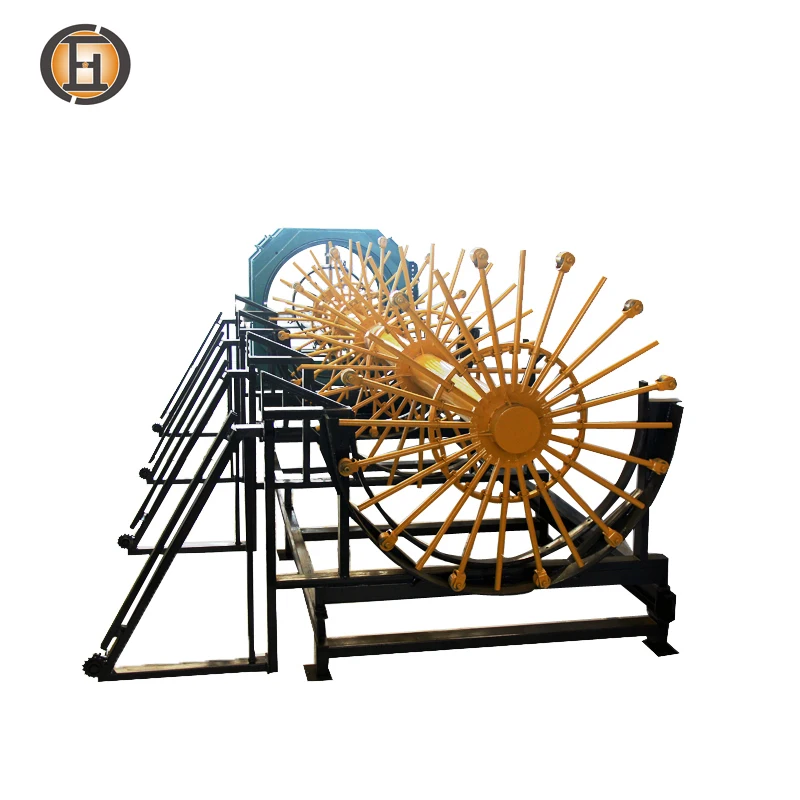

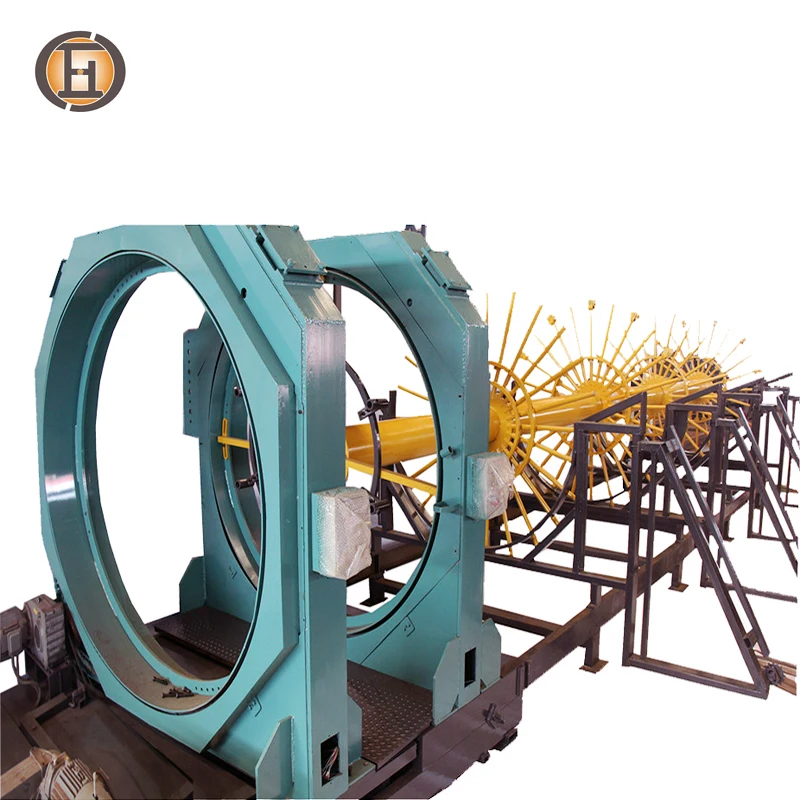

Construction Equipment Fully automatic cylindrical pile cage making / welding/assembling machine with variable pitch welded spir

Product Overview

Description

    Product Description

CNC rebar cage making machine is used to overcome the constraints which appear in the field of construction. mainly used in Railway construction ,construction under bridge, highway,high-speed railway, steel plants in the field of building construction and so on, it was been the most efficient and intelligent rebar cage processing equipment which most suitable for the construction site environment.It is designed as unit construction systems which enables our customers to be flexible in considering the individual interests and requirements. A special version of the Automatic Cage Welding Machine producing polygonal reinforcement cages also sells very well. With this machine, reinforcement cages for pillars and supporting beams can be manufactured as well as reinforced concrete elements, foundation piles etc.

TECHNOLOGY PARAMETER:
Modle No.	DFH-2000--12
Cage diameter	800mm-2000mm
Max cage	13.5m
Spiral wire diameter	5.0mm~16mm
Longitudinal rebar diameter	Φ 12 ~32mm
The pitch of spiral wire	Φ50 ~ 500mm
Overall dimension	28m(L)x6m(W)x2.5(H)
Hydraulic system pressure	10Mpa
Max power supply	23KW ;380V/50Hz/3Phase
Working temperature	-20 ~50℃
Welding	CO2     shielded arc welding

    Main Features

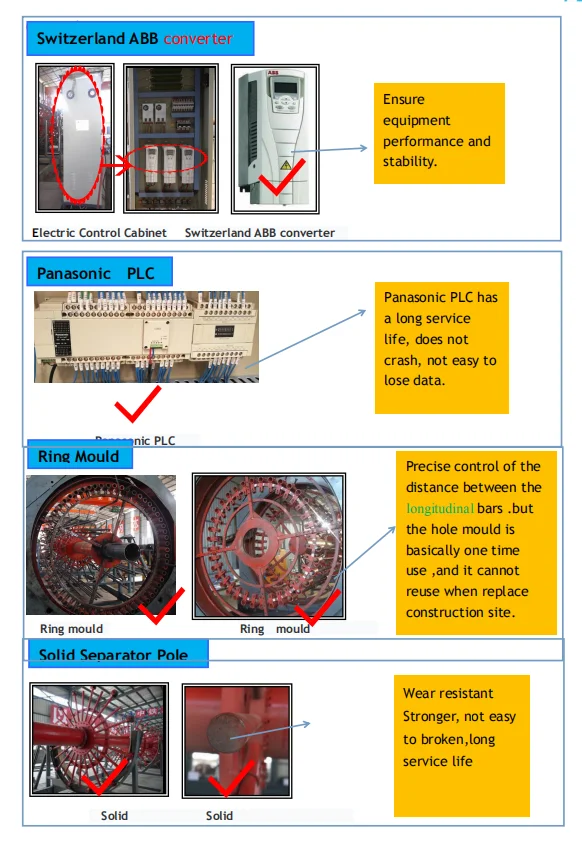

1 Adopt advanced ABB converter , Panasonic PLC and touchable screen to ensure the stable operation of the equipment

2 With the high precision of rebar cage diameter , the longitudinal bar space error can be controlled within 1 cm,and 1 M spiral wire pitch error within 5mm.

3 It can produce double longitudinal bar with double spiral wire cages

4 The self-weight of the machine is 10% heavier than those in the same industry,which can make machine more stable.

5 With the large load capacity ,it can produce 5 to 6 tons cages perfectly.

6 Power source:It adopts three domestic top brand main geared motors with large torque and low failure rate.

7 The support capability is 20% higher with the diameter 100mm hydraulic cylinder than those with diameter 80mm in the same industry.

8 Optional automatic welding robot.

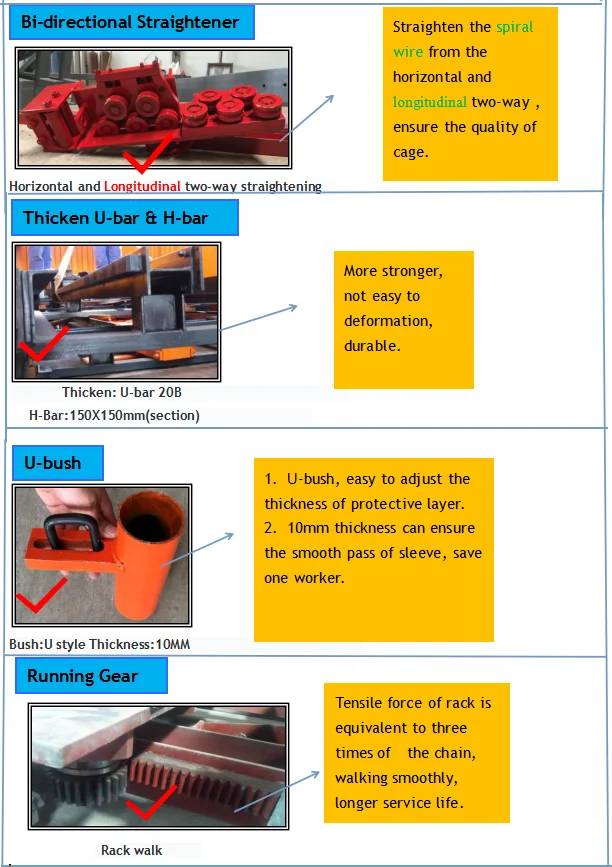

    Details of product





    Certifications



    Applications of product



    Packaging of products



    Exhibitions and customers

    Company Information

Qingdao Dongfeihong Intelligent Technology co.,LTD is a professional rebar processing manufacturer engaged in the research, development, production, sale and service of CNC rebar cage welding machine, CNC rebar bending machine,CNC Stirrup Bender ,CNC wire straightening and cutting machine, CNC wire mesh welding machine ,CNC rebar shearing machine,CNC rear Sawing and Threading machine and so on. We are located in Jining China with convenient transportation access. we are dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We have obtained certificates such as ISO 9 0 0 1 , ISO 1 4 0 0 1, CE,etc.As a qualified supplier of excellent construction units of many leading construction groups in China,our products also sells well in many countries in the world like Russia, Kuwait, Saudi Arabia, Iraq, Ethiopia, Kenya, India, Sri Lanka and so on. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Feihong believed that through unremitting efforts, we will become the most respected service provider of the integral steel processing solutions.

    Our team



    Our service

Pre-sale Service
1. According to your requirements to help you design a reasonable solution, choose a reasonable equipment .
2. In-depth explanation of customer service scheme by design experts.
Sale Service.
1. Provide the video to help you to learn about how the device works.
2. Help you to know the details of the Key parts and our advantage.
After-sales Service.
1. Guarantee for One year.
2. Quality problem, we will send you the accessories.
3. Free repair whole using life (without the freight and accessories charge)
4.24 hours maintenance response: timely feedback within 24 hours after acceptance of maintenance service.
5. Customer can enjoy lifelong value maintenance.
6. Professional and international experienced after-sales service team
