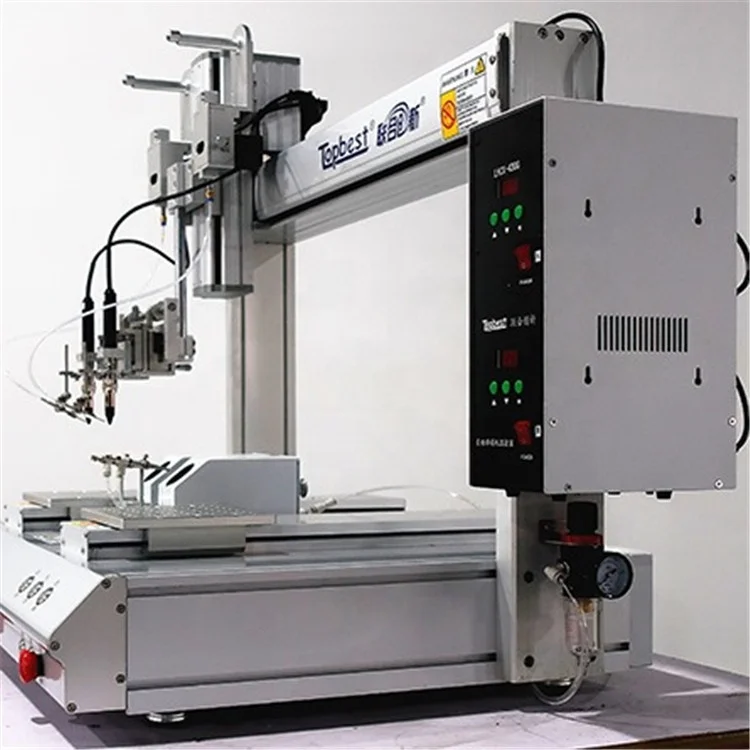

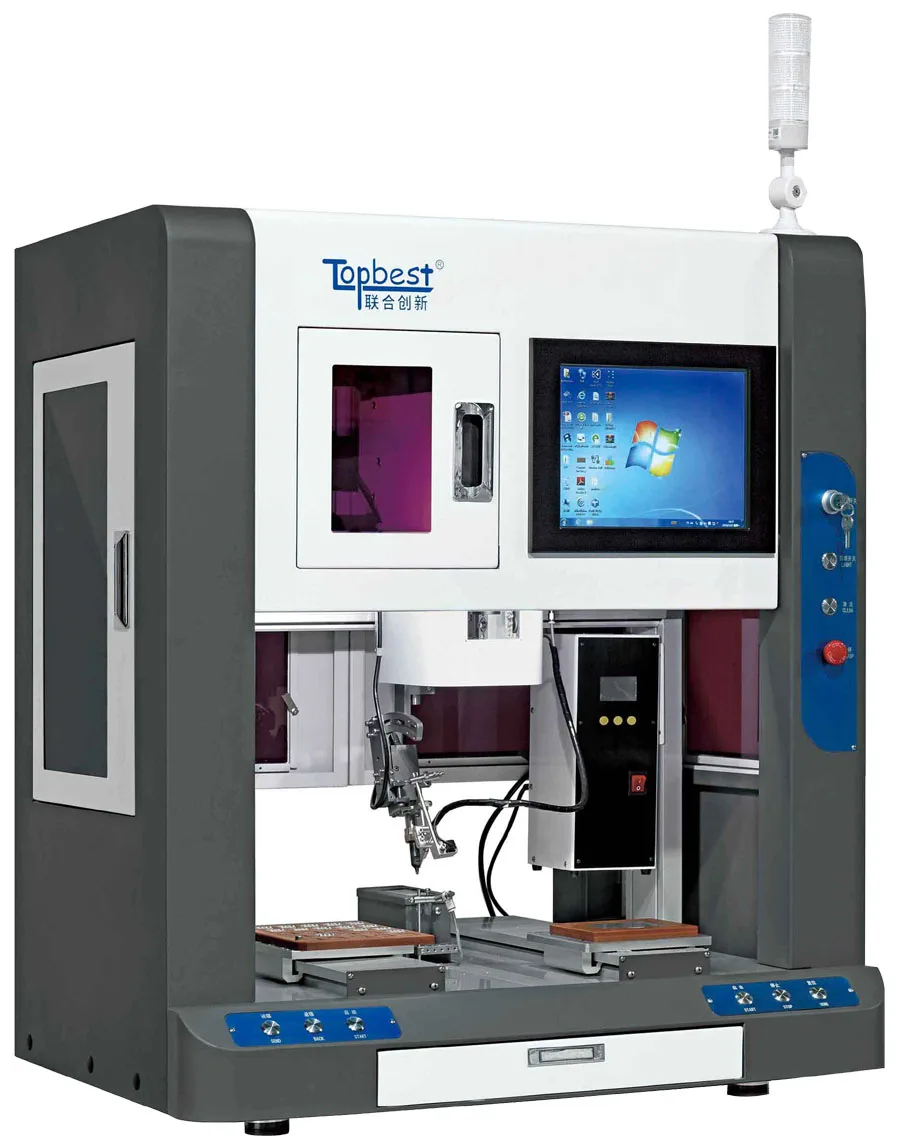

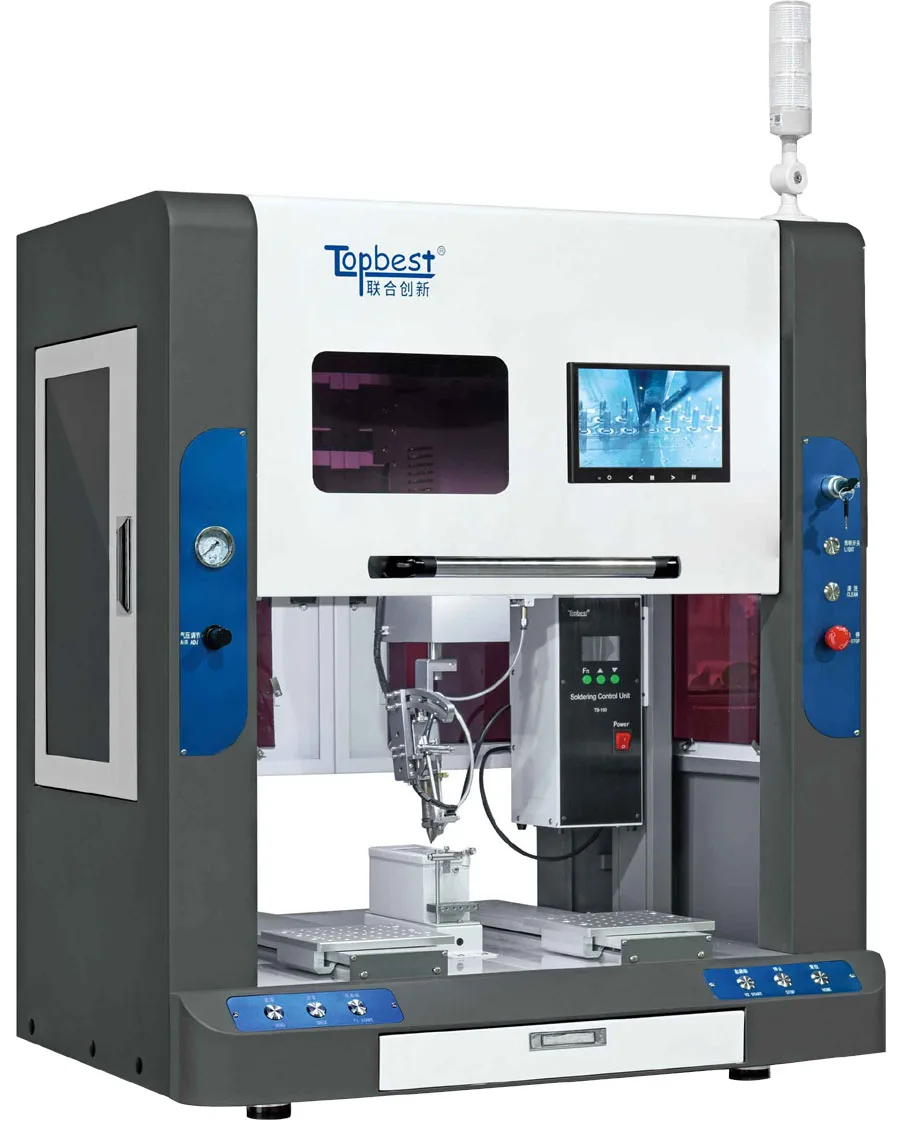

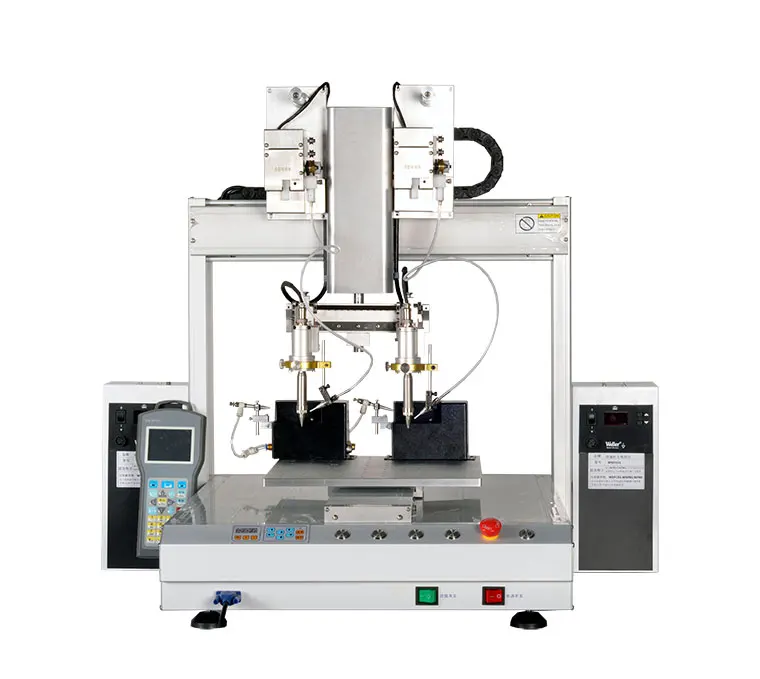

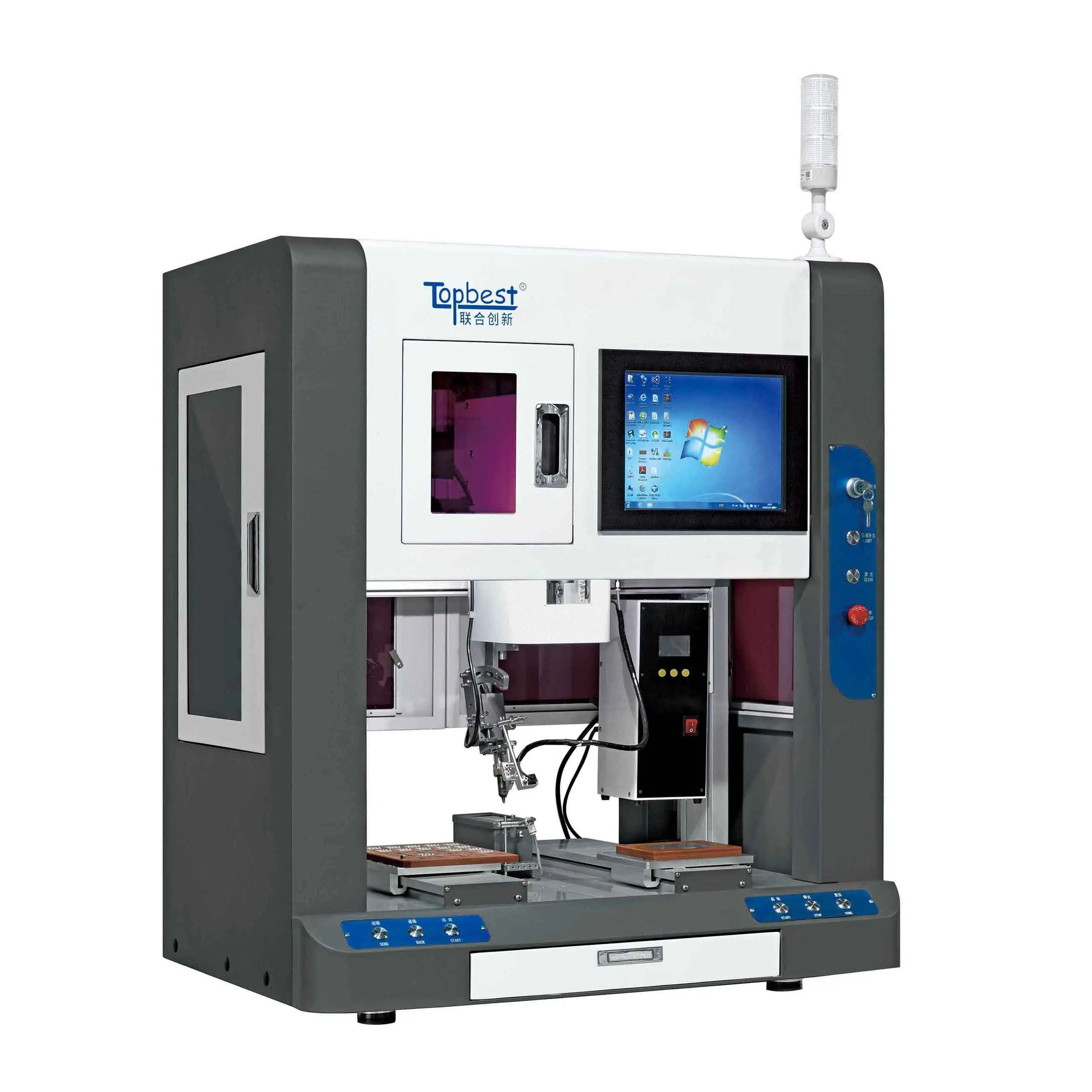

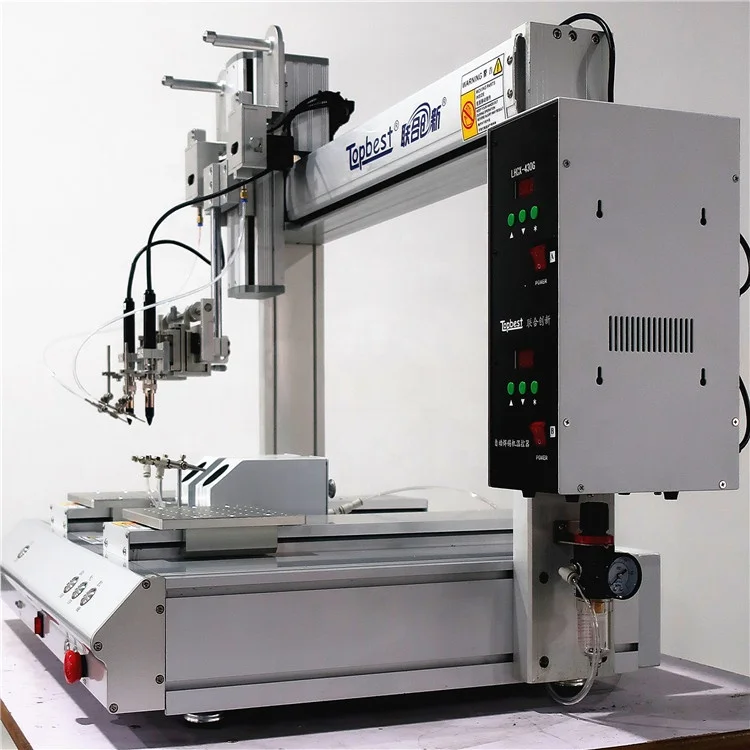

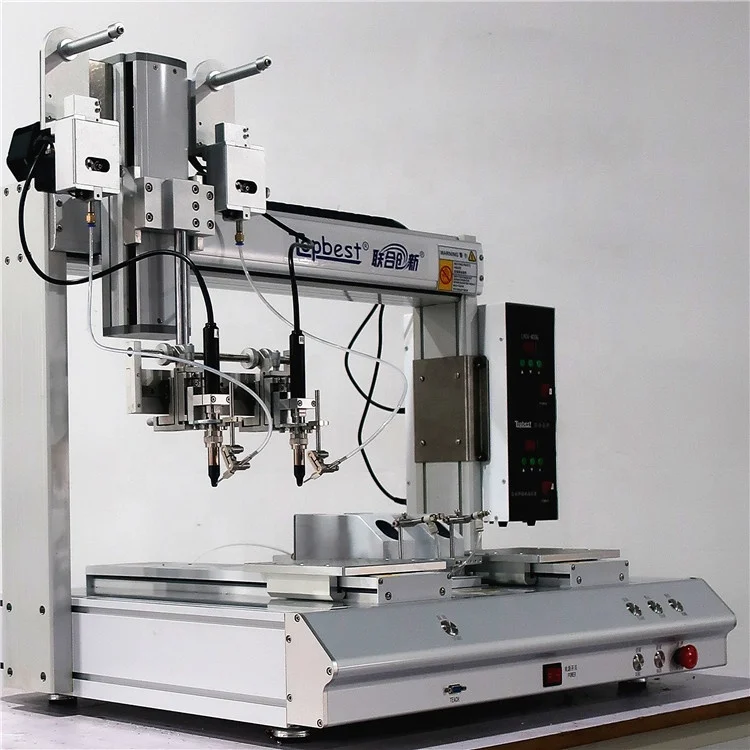

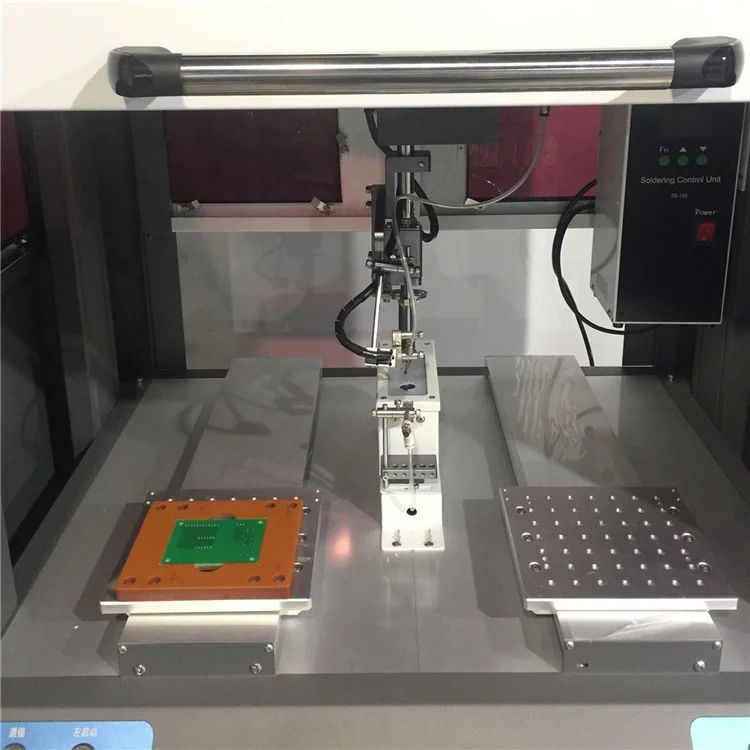

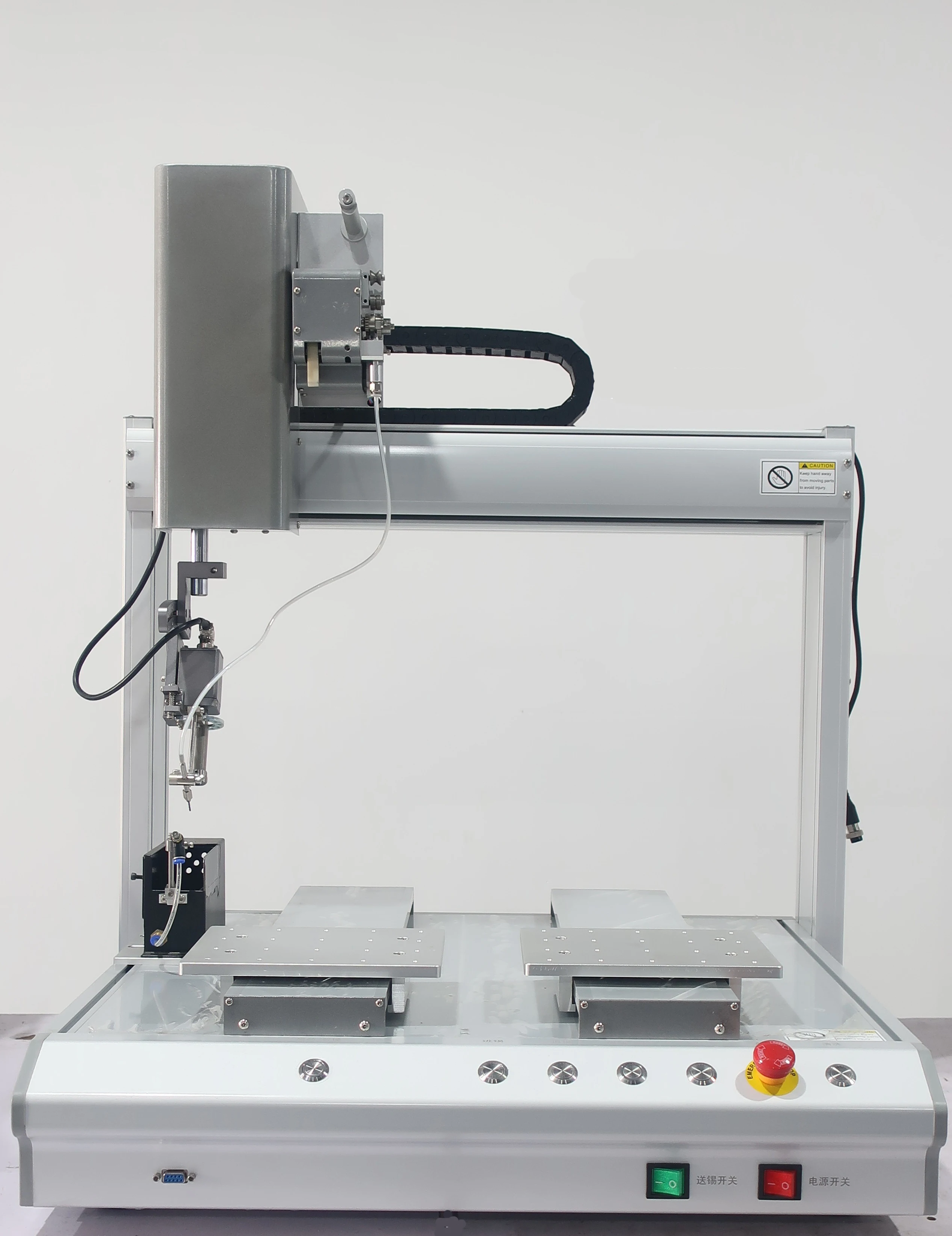

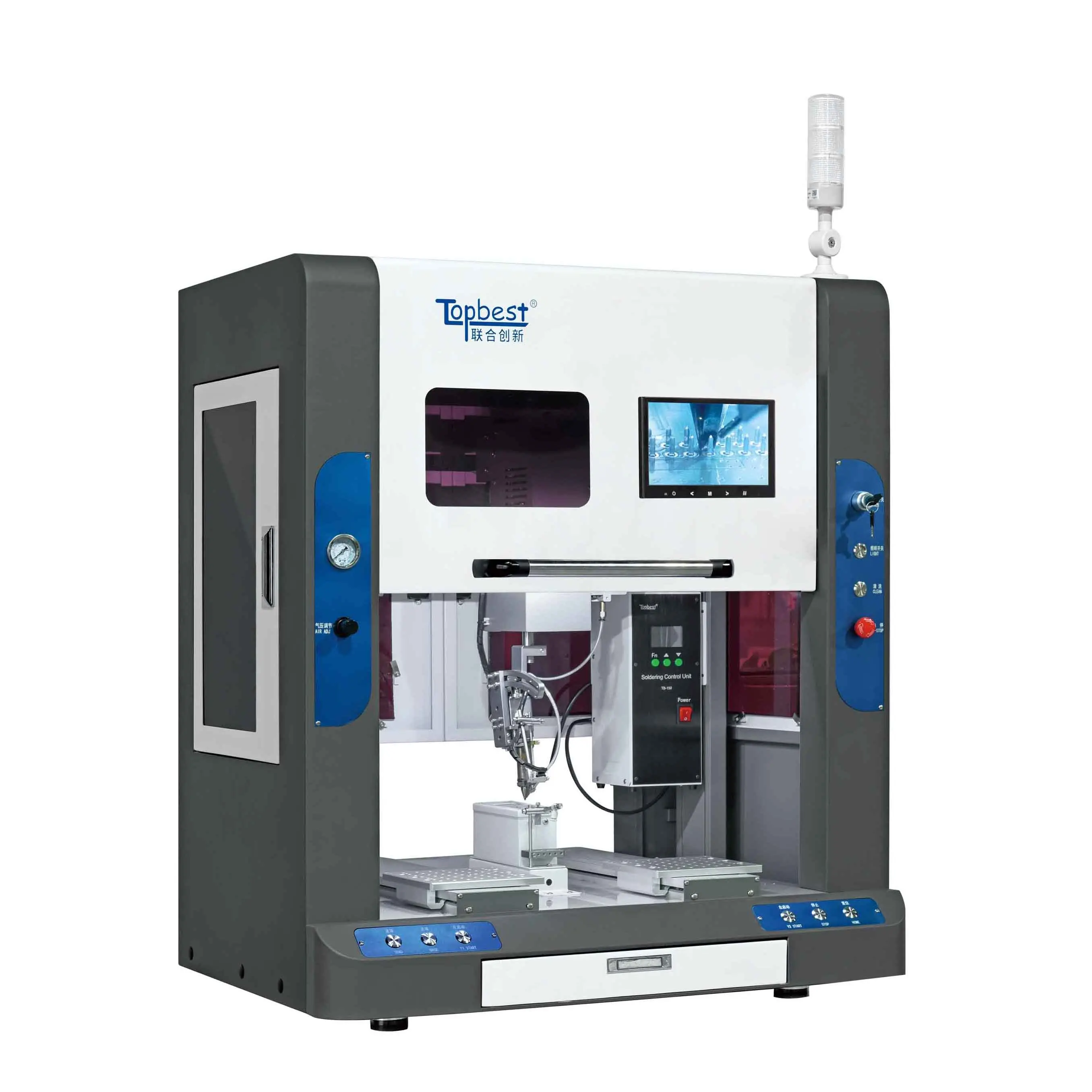

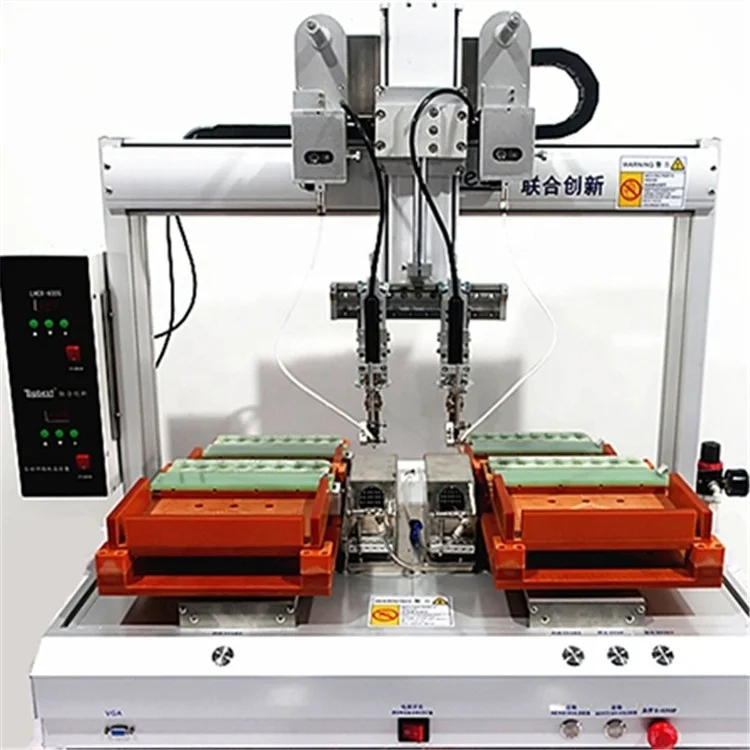

Automatic USB Connector Soldering Machine for kinds of solder welding multi-axis customized soldering robot for producing line
Brief introduction:
Automatic Soldering robot can Solve many businesses artificially shortages, production efficiency, low labor and material consum accounts cost increase, management and so on many substantive issues.

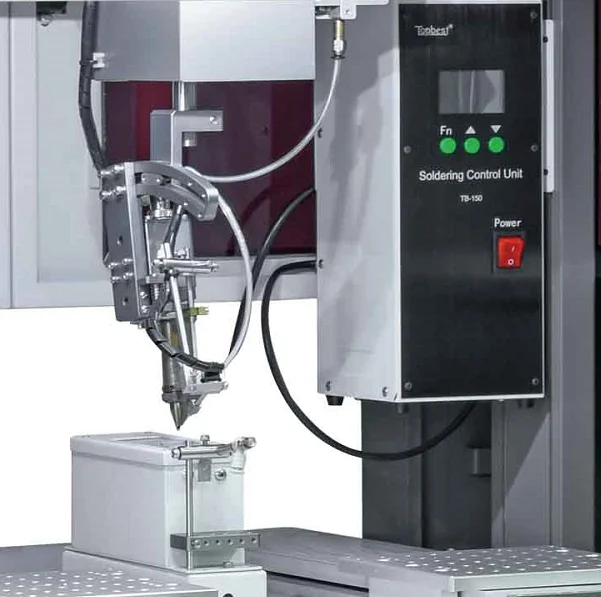

Soldering theory Run mode: By application of multi-axis driving manipulator, software controling to achieve precise positioning of the soldering head. Soldering method: Thermostatically heating by solder iron under high-frequency eddy current. Working theory: Fixing solder iron at the manipulator, moving to the appointed soldering coordinate, feeding solder wire automatically at head of solder iron; solder wire solders under high temperature and coming into joint with the target.
Functions Spot soldering,drag soldering,automatic cleaning and multi-angle soldering; Position calibration, soldering dot array, parameter copy, automatic location and skiping; Teaching programming enables customers to implement all types of handheld soldering upon their requirement; Program calibration achieves workpiece integrally, coordinates position compensation; Program insertion and deletion makes program revised easily and rapidly; Intelligent controling system achieves accurate feeding of solder, speed/time/temperature/quantity for solder can be adjusted and controlled accurately.
Advantages Cost saving: High-efficiency operation is achieved by only one person.one person's efficiency is higher than 3-5 persons' efficiency; Good quality: Good soldering uniformity achieved high yield; High efficiency: Multiple soldering tips work together at the same time to reach higher efficiency ; More simple: One worker can operate 2-3 robots. what this worker does is only pick and place fixture; Customization: Robot is customized strictly, based on customers' requirements on products and soldering production,in line with requirements of producing lines; Good image: Intelligent automatic equipment presents a new appearance of production line in factories, which helps enterprises establish a better image of high technology.

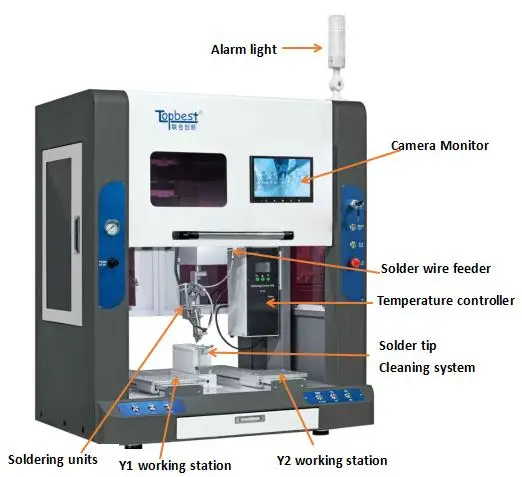

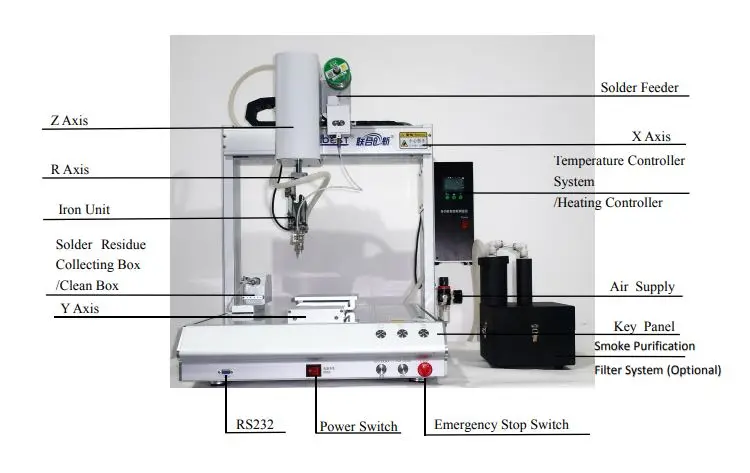

Soldering machine's structure:
Product parameters
Working Temperature
5-40C
Working Humidity
20-90% RH
Power Voltage
AC220V 50Hz
Maximum Power
300W
X / Y / Z axis move speed (mm / sec)
Max X, Y 600-800MM / S, Z 400MM / S
Repetitive Positioning Accuracy
+/- 0.02 mm / Axis
Control Panel
PC ,Touch Screen or teach pendant (optional)
Driving mode
precision stepping motor+synchronous belt / Servo motor + precision guide rail (optional)
Solder feeding speed
1-50MM/S
Soldering feeding resolusion
0.1MM
Repeated precision
+/-0.02MM
Temperature range
0-550C
Diameter of applicable solder wire
Φ0.4~1.6mm
Soldering Method
Point Soldering/Drag Soldering
Temperature Control Accuracy
+/-1C°
Heating Power
200W
Iron Tip Cleaning
Air cleaning
Applications
Suitable for automotive electronics, digital electronics, electronic, LCD, circuit boards and other production industries, connectors, RJ/network transformer, platoon line, FPCB welding, COF package for welding, computer motherboards, CABLE, speaker, and motor high-frequency head, photoelectric products and all high quality welding.
Company Information
We have our own factory, skilful workers, rich-experienced designing team, good after service. We have a professional sales team with high efficiency, we try oue best to provide most satisfactory services to our customers all the time. Overseas customers come to visite our factory nearly every day, we arrange our technicians to show the machine operation every time, Warmly welcome to visit our factory!
Certifications
FAQ
1.Are you manufacture or trading company?
We are manufacture, we have our own designing team and own workshop.
2.What kind of payment methods do you accept? We accept payment methods: Bank transfer, WesterUnion, Moneygram, Paypal, etc.
3.How to calculate the freight? The freight depends on the quantity, weight, size, also the destination port.
4.How many years can the machine be used? Our machine can be used for more than 5 years.
5.How can I trust your company and ensure to get the goods if order from you? We are Alibaba legitimate certification company(VIP).
6.How about the package? Are they safe during the delivery? All machines are packed by standard strong wooden carton with foam inside.
7.What is the delivery way? How many days does it take for the machine to reach us? We can ship the machine by DHL, FedEx, UPS, etc. (Door to Door Service), around 5 days to arrive. Or by Air to your airport (Door to Airport Service), around 3 days to arrive. Or by Sea to the seaport. Minimum CBM requirement: 1 CBM, around 30 days to arrive. Of course, you can also choose it yourself. We can ship the machine to your designated location.
8.Is this machine easy to use? If I have no experience, can I also operate it well? Do you provide the user manual and operating videos to support us? Yes, our machine is designed to use easily, normally it will take you 2-3 hours to learn how to operate, if you are a technician, you will much faster to learn.We always provide the English user manual, and the operation video is available. If you still have problems, we will arrange our engineers go to your place for installation guiding.
9.If we come to your factory, will you provide the free training? Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
10. Do you provide the Warranty? How about the after sales service? 1 year warranty free for spare parts, whole life technical support. We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
