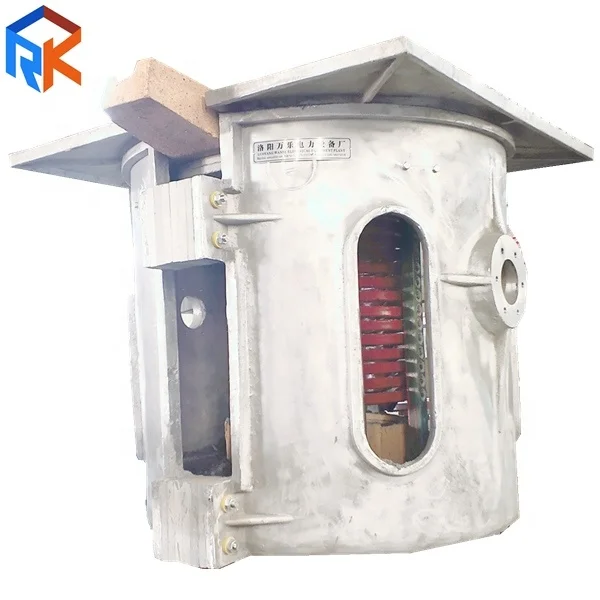

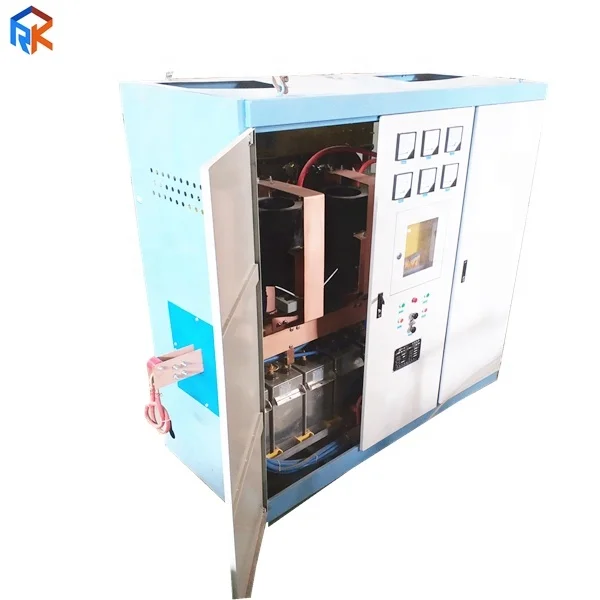

0.35T medium frequency induction furnace oven for melt aluminum

Our factory promises to offer the advanced aluminium melting furnace technologies to ensure deliver to customer the most technologically system for aluminium. The procudure is energy intensive that convert Alumina to pure aluminium and ultimatedly to useful aluminium alloy.That's the reason why the induction furnace produced by our factory has been proved the value in the large group aluminium foundry factory.

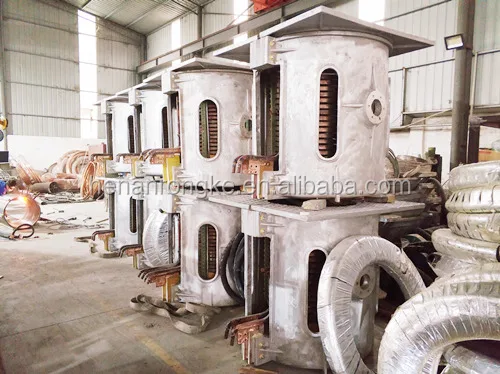

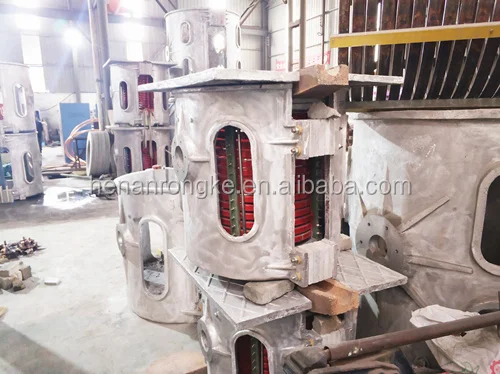

 aluminium shell induction furnace:
our factory also have less cost aluminium shell induction furnace, this type furnace with aluminium shell have same melting speed compared to steel frame furnace.

The following are the main components of the aluminium shell induction furnace:

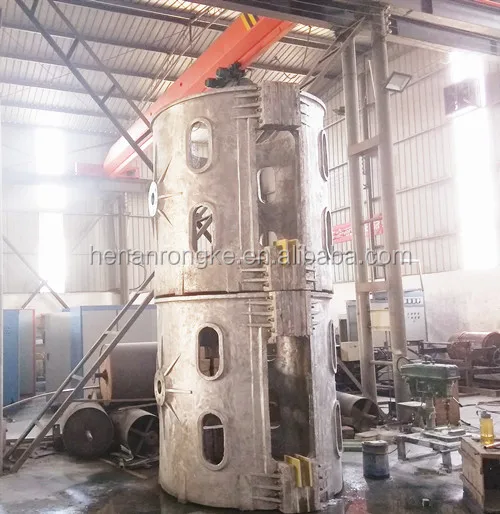

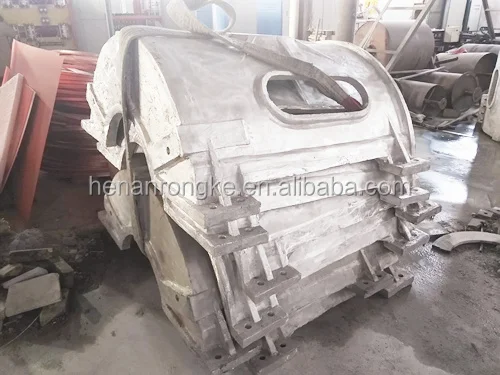

a. High quality aluminium shell cover, looks magnificient and beautiful, the aluminium shell cover has small weight and can be easily installlation and operate, maintenance.

b. easy installation and maintenance for aluminium shell induction furnace set.


c. less cost and same efficiency than steel frame induciton furnace.

d. reducer control automated pouring furnace body.

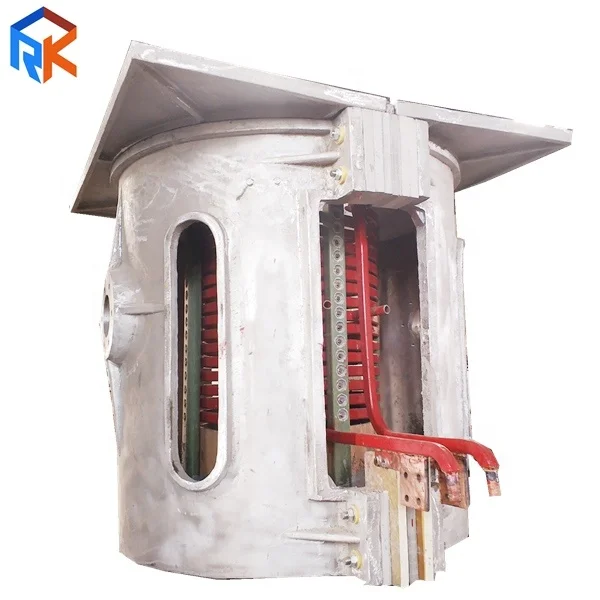

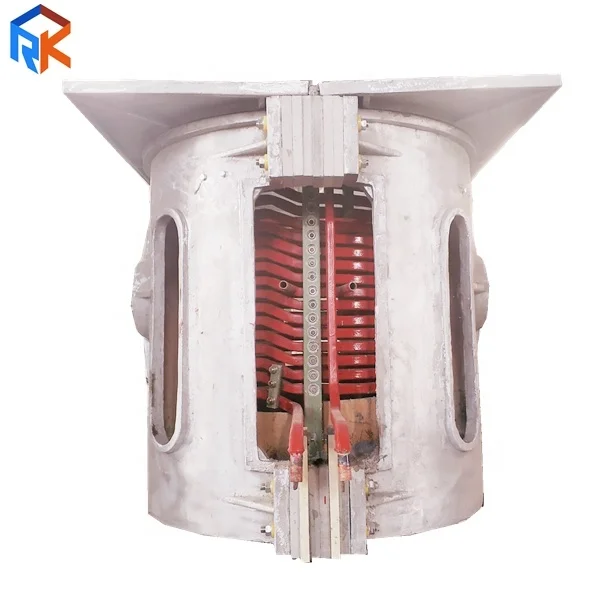

e. Induction copper coil  It is assembled from a solid, durable and highly conductive T2 copper tube. The copper tube is a Chinalco Luoyang Copper Co., Ltd brand product. The water-cooled coil and the effective coil are integrally formed by a copper tube without segmentation. The two adjacent copper tubes of the induction coil are strictly insulated and adopt advanced segmentation technology. An insulating sheet is implanted between adjacent induction coils. After the insulating varnish is sprayed, it becomes a complete structure, and is pressed by the upper and lower steel structures in the furnace body, and the overall structure is firm and has no deformation problem. The coil turns are appropriate to achieve maximum electrical efficiency. The coil is supplied with cooling water from a plurality of water paths and evenly distributed. The outside of the coil is tightly wound with an insulating material. The inter-turn arc-shaped insulating spacers ensure uniform coil spacing and facilitate moisture removal.

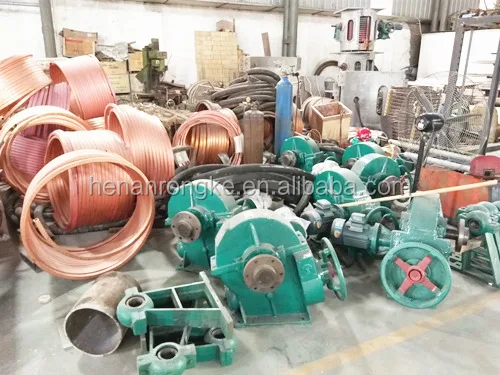

f. Reducer

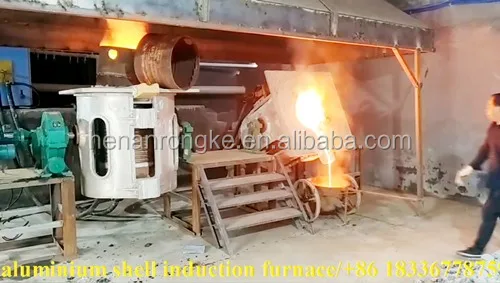

aluminium shell induction melting furnace adopt to use reducer automated pouring furnace body, also can insure totally empty the metal liquid,

Product Items: (Supplied from Luoyang Wanle Electrical Equipment)

Supplier system:
The aluminium shell and furnace parts produced by renowned groups in China.

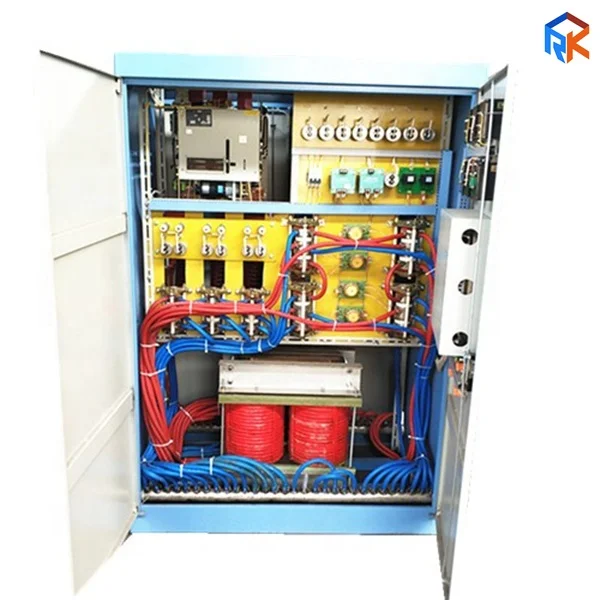

 Attachment 1:Power cabinet main components suppliers and some equipment manufacturers.

Produce control system:
There are Four departments in this manufacturer, one of them charges for assembling furnace body, other charges for KGPS power supply,the third for aluminium shell furnace and fourth for induction heating furnace. All the technical workers have technical certificates who welding and cutting steel plates for furnace body.Mr. Wang is actual president,he knows the technology of intermediate frequency melting furnace and heating furnace, established this company in 1992,and start to research and produce since that year.Every Steel Frame Furnace is designed for its structural strength with the help of experience engineers and specilized workers,so our factory have competitive price induction furnace. And our factory also have less cost aluminium shell induction furnace, this type furnace with aluminium shell have same melting speed compared to steel frame furnace. Our factory have many specilized workers and engineers to make induction furnace rather than only use computer software, so the price is really competitive.

QC System:
The technical person must test the furnace material and parts to ensure its quality.All the melting and heating equipment accordance with national standard strictly in the products produce procedure:
JB4086-85 <Technical Specifications For Electronic Controlled Heating Equipment For Medium Frequency Induction Heating>
GB10067.1-88 <General Part Of Basic Technical Conditions For Electric Heating Equipment>
GB 10067.3-88 <Basic Equipment For Electric Heating Equipment -- Induction Heating Equipment>
GB, 5959.3-88 <Safety Of Electric Heating Equipment, Third Parts, Induction And Conductive Heating Equipment, Induction Melting Special Requirements For Equipment>
GB 5959.1-86 < Safety Of Electric Heating Equipment - Part 1 General Conditions> Environmetal protection standard promised, Melting and heating efficiency of metal confirmed, worker protection mechanism designed.When the melting metal material with no problem,if the foundry efficiency is not the standard as we said,the problem will be in charged and resolved by our side.

Storage system:
The material enough supplied for producing melting and heating equipment, storaged in the place where is dry and normal atmospheric temperature.

Testing system before delivery:
To test the melting and heating function of equipment,or delivery after customers checked the quality.

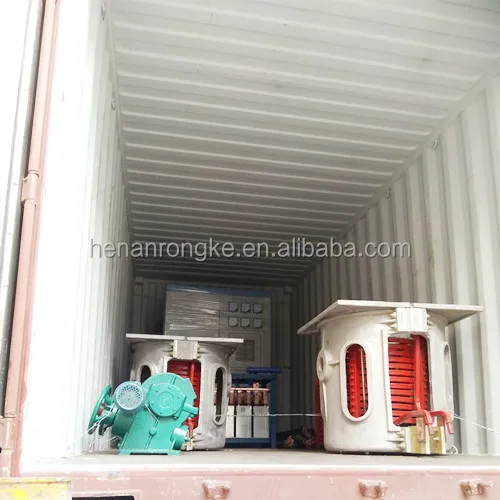

 Packaging System:
The whole equipment finished full and completely covered by container to delivery. The equipment will fixed by our factory in container to prevent damaged by crash in the delivery process.
Small capacity furnace packaged by Plywood Case or as customers's request.

 After sales service system:

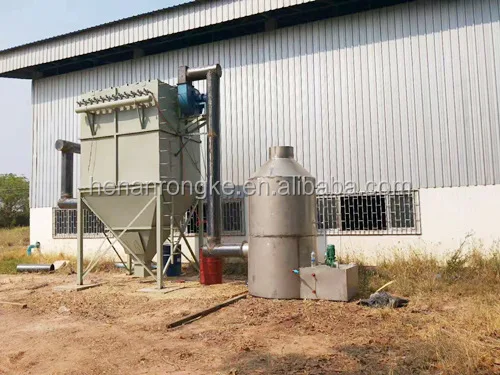

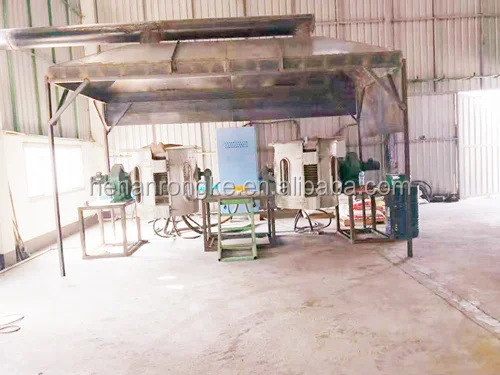

The engineers overseas service available, the infrastructure prepared by buyers based on drawings supplied by our factory, our engineer will teach the workers to install the equipment and make the equipment works successfully. The training exist in the whole procedure of installing and testing,introduce correct,safe operate and personal protection actions after the equipment operate without any problem.

 Our factory is induction stirring furnace manufacturer.
Series inverter steel melting 550KWH per ton.
Furnace shells working simultaneously highest efficiency and have patent of Mixed Hertz induction stirring melting furnace for alloy casting.
New design billet induction heating equipment less than 300KWH per ton.
Graphene new materials manufacturing furnace with technology can be supplied.
After 30 years exists, upgraded to new factory more than 7000 square meters.

Factory in year of 1992                                       New Factory
