iKX3 SIEG Shanghai OEM drilling tool cnc wood round rod milling machine 3 axis
- Category: >>>
- Supplier: Liuzhou Gluck Imp& Exp Co. Ltd.
Share on (62211523731):
Product Overview
Description
Product Description

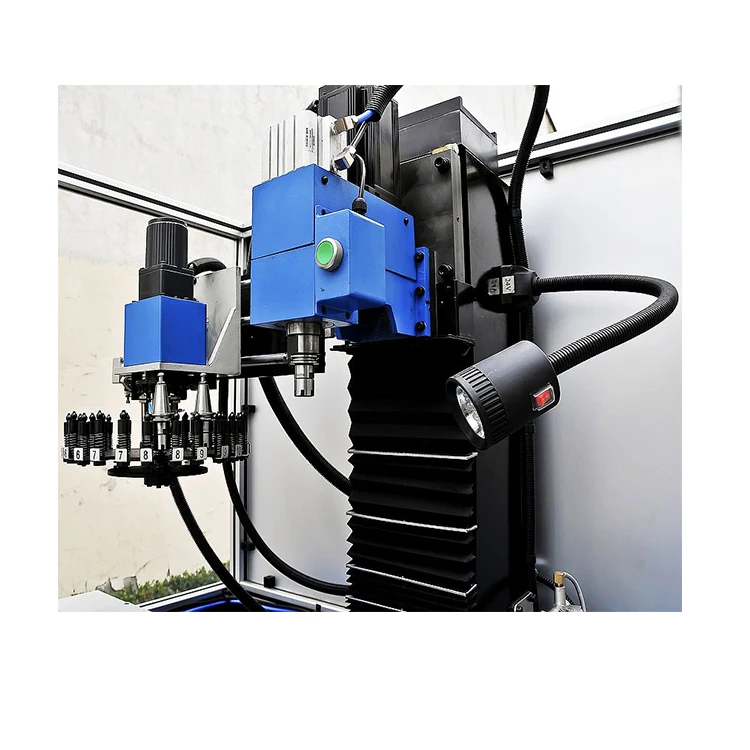

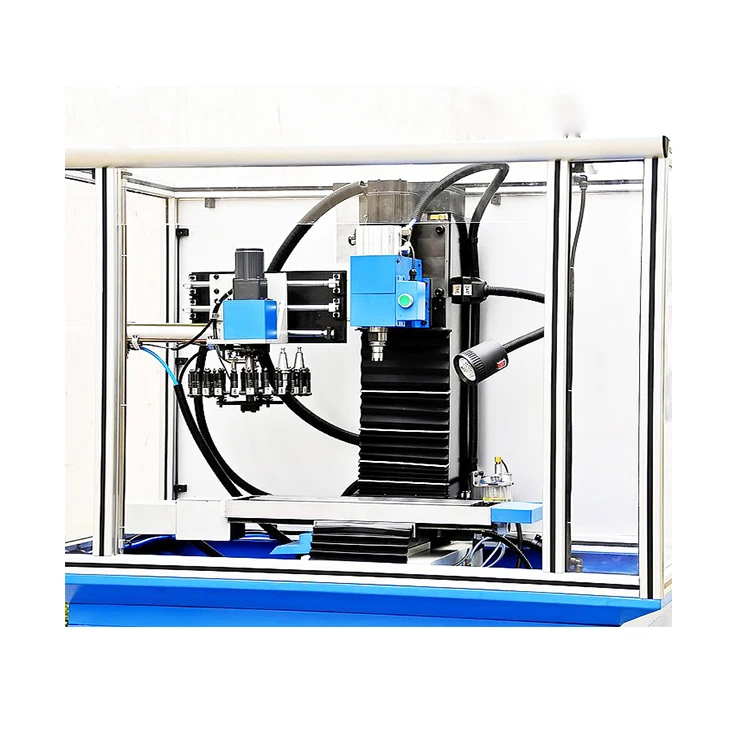

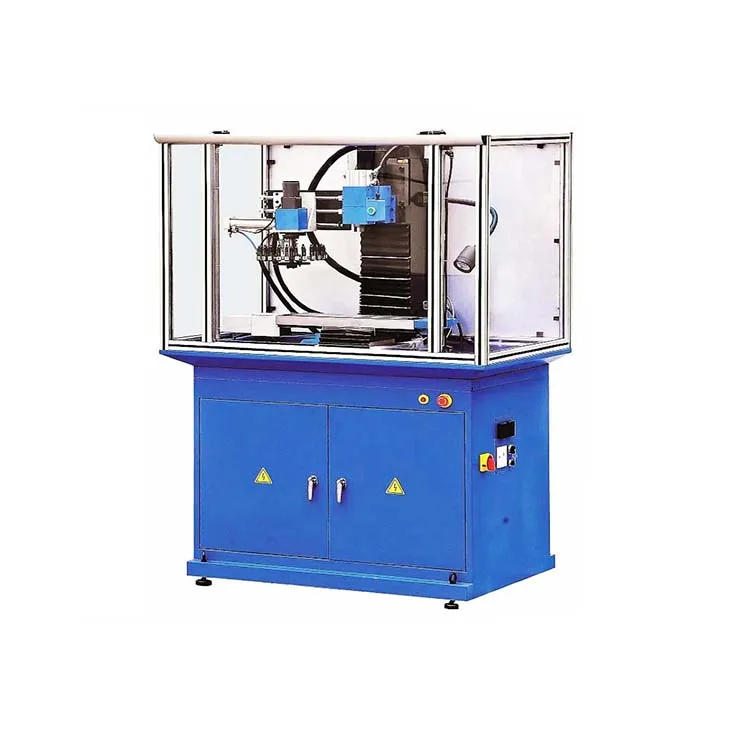

iKX3-SIEG Shanghai OEM drilling tool cnc wood round rod milling machine 3 axis
CNC machine parameters of iKX3 | ||
TABLE
| Table size | 550×160mm |
T slot (amount×width×distance) | 3×12mm×43mm | |
Max. load | 30kg | |
TRAVEL
| X travel | 280mm |
Y travel | 152mm | |
Z travel | 270mm | |
Spindle nose to table | 80-350mm | |
Spindle center to column | 215mm | |
SPINDLE

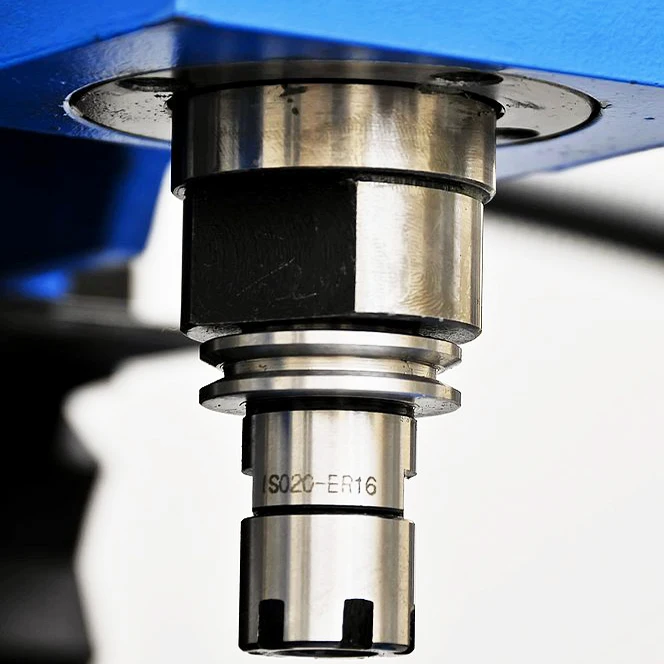

| Spindle taper | ISO20 |
Spindle motor | 1000W | |
Spindle speed | 100-5000r/min | |
FEED(SERVO)
| Rapid feed | 5000mm/min |
Cutting speed | 1000mm/min | |
Power of X/Y | 400W | |
Power of Z | 750W | |
FEED(STEPPER)
| The max moving speed | 2000mm/min |
The max feeding speed | 500mm/min | |
Power of X/Y | 4Nm | |
Power of Z | 6Nm | |

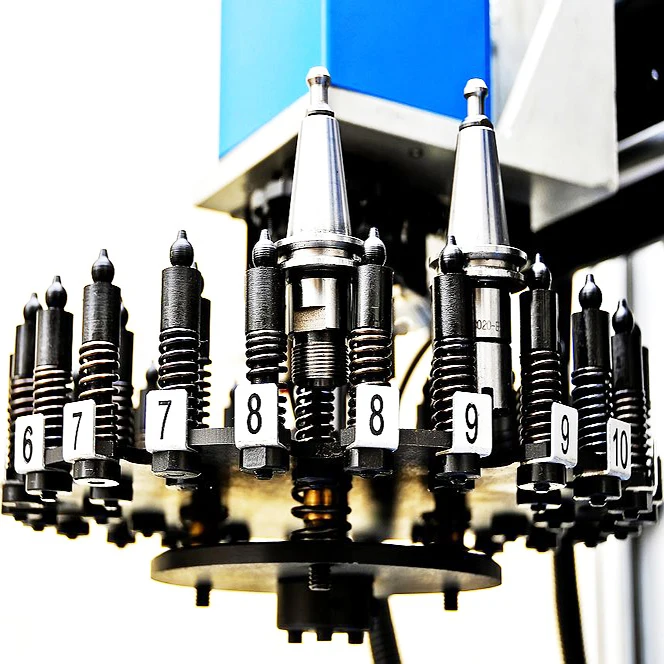

TOOL CHANGER
| Tool number | 12 |
Max.tool diameter | 10mm | |
Max.tool length | 110mm | |
Max.tool weight | 0.5kg | |
Time of tool changing | 8s | |
ACCURACY
| Positioning accuracy | 0.01mm |
Repeatability accuracy | 0.01mm | |
OTHERS

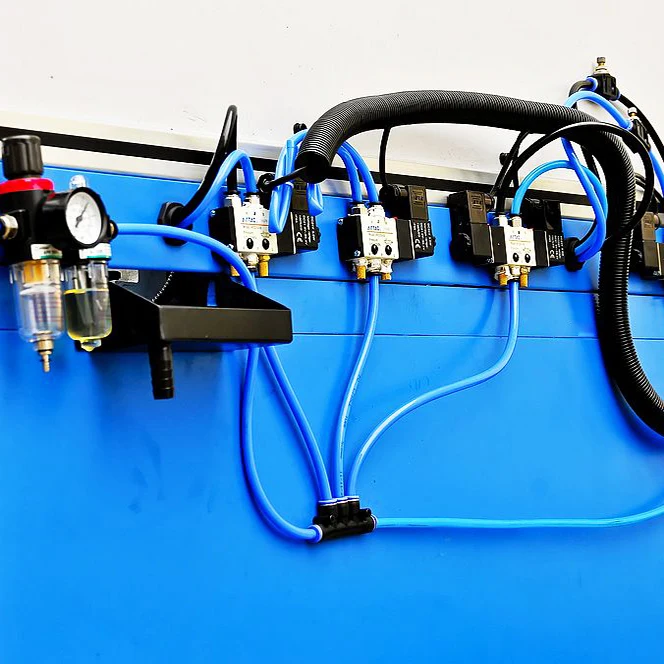

| Pneumatic supply | 0.6 MPa |
Power | 230V/120V | |
Weight(NW/GW) | 390×470kg | |
Overall dimension | 1280×895×1845mm | |
Packing size | 1420×1060×2035mm | |
 | iKX3-SIEG( Independent R &D) iKX3-SIEMENS Spindle speed: 100-5000r/min Weight(NW/GW): 390/450KGS Overall size: 1280*895*1845mm Packing size: 1420*1060*2035mm |
iKX3-SIEG Universal automatic Educational metal cnc micro milling machine 3 axis 12 station ATC Variety of tools for your choice Quick tool changer ISO 20/ER16 SPINDLE TAPER Optional accessory |  |
 |  |
Related product
Company Information
Liuzhou Gluck Imp.&Exp.Co.Ltd ,Specializing in CNC Milling Machine /CNC Lathe machine with 30 years ,We have a team of well qualified technicians and service personnel, who are well geared to produce some of the world's hottest machines. We also provide an extensive range of accessories ideally matched for use with our machines
#5 axis vertical cnc milling machine
There are many activities in every year, Such as New year's Day party,Appreciation Annual Meeting,fun sports meeting,Spring Festival Evening Show,BIRTHDAY CELEBRATION,Annual travel!!!which can enrich employee life, increase the affection between the colleague, make the job more passionate, make good products, good services to our clients......
iKX3-SIEG Shanghai OEM drilling tool cnc wood round rod milling machine 3 axis
#cnc milling machine with price #skyfire cnc milling machine #cnc 3 axis milling machine #second hand cnc milling machine #jewelry cnc milling machine #cnc milling machine frame #5 axis mini cnc milling machine #5 axis vertical cnc milling machine
Our Services
Why chosse us ?
1) 2 hours online reply in working daytime
2) 12 hours quote confirm
3) 30-45 workdays of delivery
4) 100% quality strictly checked
5) Secure logistics forwarder
6) One year warranty and life time maintenance
#5axiscncminimillingmachine #cncrouterengravermillingmachine #cncmillingmachinemini #millingmachinecnc5axis #5axiscncdentalmillingmachine
Our Exhibition
FAQ
Q1: Is your company a factory or trading company?
A1: We are factory and have more than 12 years production experience. And have an office in Liuzhou City,Guangxi province,China.
Q2: Where is the factory located? How can I visit there?
A2: Our factory is located in Shanghai City,China.And warmly welcome you to visit us.
Q3: Do you have CE certification?
A3: Yes, we have CE certification,machine quality is guaranteed.
Q4: What's your payment terms?
A4: Our payment term is 30% T/T in advance,70% T/T before shipment.
Q5: What is your delivery time?
A5: Machines order takes 40-45days after deposit payment received. Please inquiry sales.
