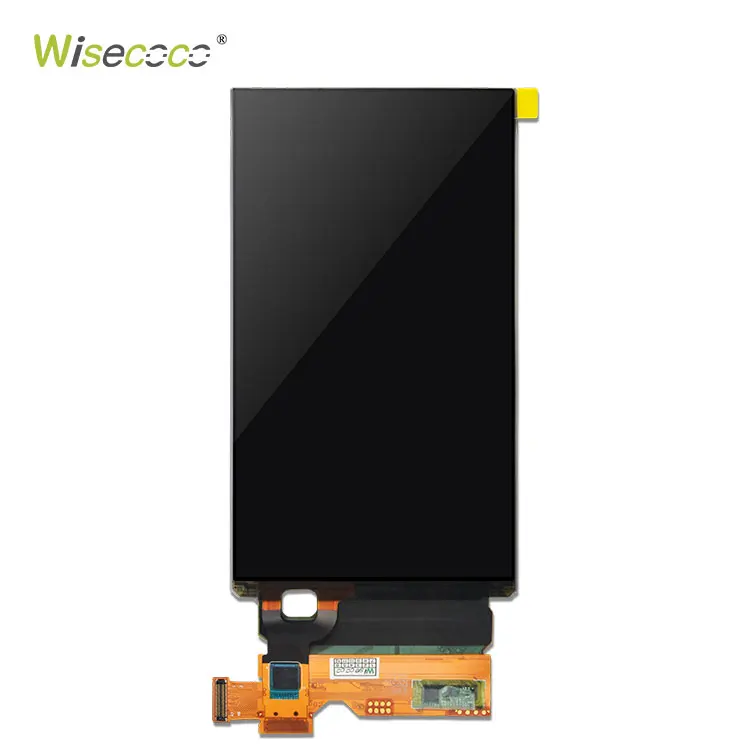

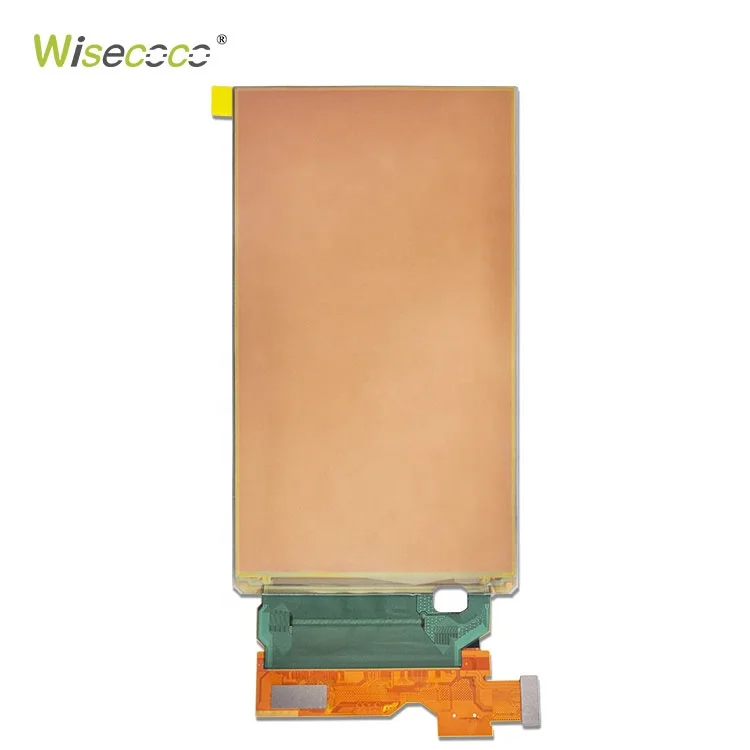

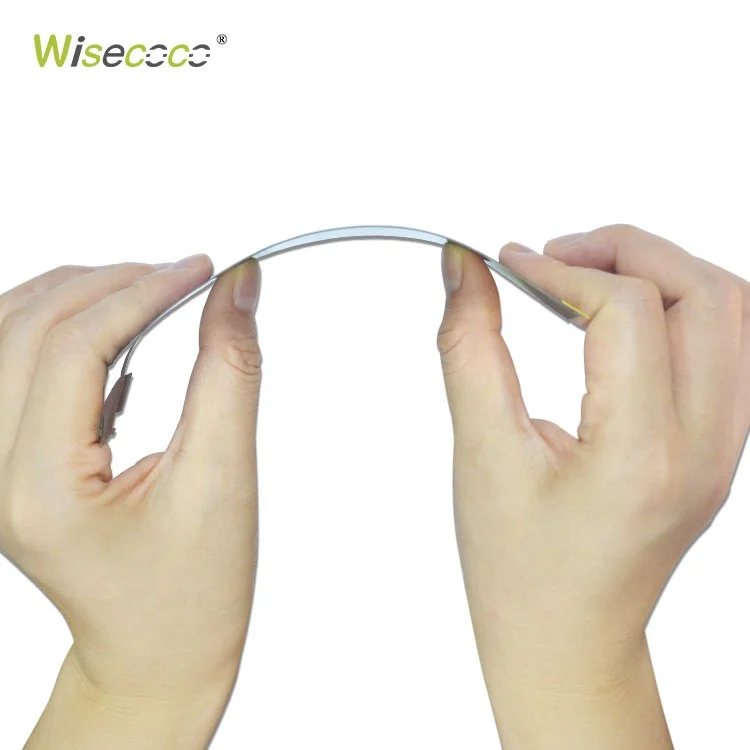

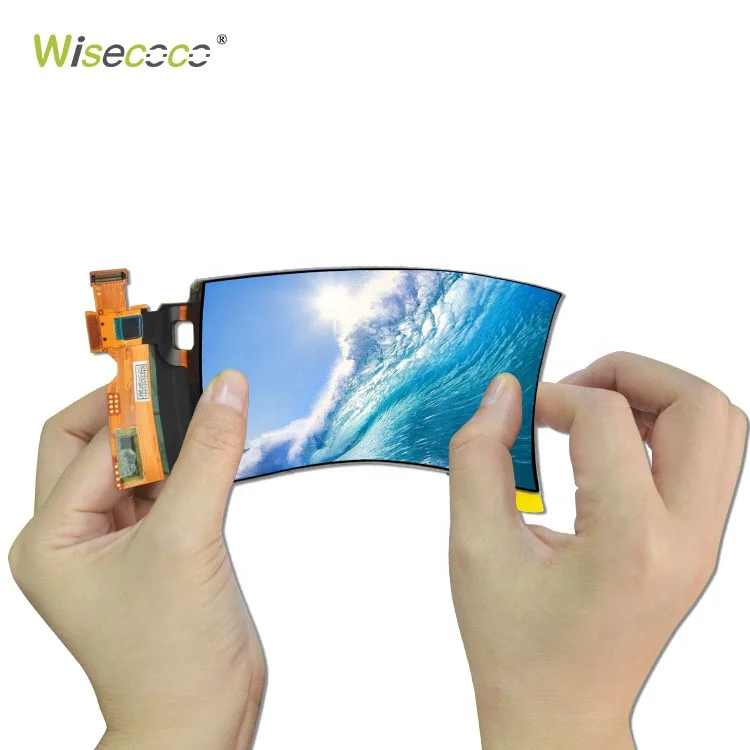

mipi 48 pin 2K 400cd/m2 sunlight readable high luminance foldable slim thin 5.5 inch 1440x2560 flexible oled screen displays
- Category: >>>
- Supplier: Shenzhen Xinyi Technology Co. Limited
Share on (62211538386):
Product Overview
Description
Product Description
mipi 48 pin 2K 400cd/m2 sunlight readable high luminance foldable slim thin 5.5 inch 1440x2560 flexible oled screen displays
General Features | |||
Diagonal Size | 5.5 inch | Type | AM-OLED, OLED |
Pixel Format | 1440(RG/BG)×2560 | Configuration | RG/BG PenTile |
Active Area | 68.04(H)×120.96(V) mm | Outline Dim. | 71.38(H)×128.33(V) mm |
Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 60000:1 (Typ.) (TM) |
View Direction | Symmetry | Response Time | - |
Viewing Angle | 85/85/85/85 (Min.)(CR≥10) | Operating Mode | - |
Support Color | 16.7M 97% (CIE1931) | Light Source | Self |
| Frame Rate | 60Hz | Touch Panel | No driver for touch |
Interface Type | 48 pins MIPI (4 data lanes) , Connector | ||
Power Supply | 1.8/3.0/6.7/4.6/-2.4V (Typ.)(VDDIO/VCI/AVDD/ELVDD/ELVSS) | ||
Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C | ||
