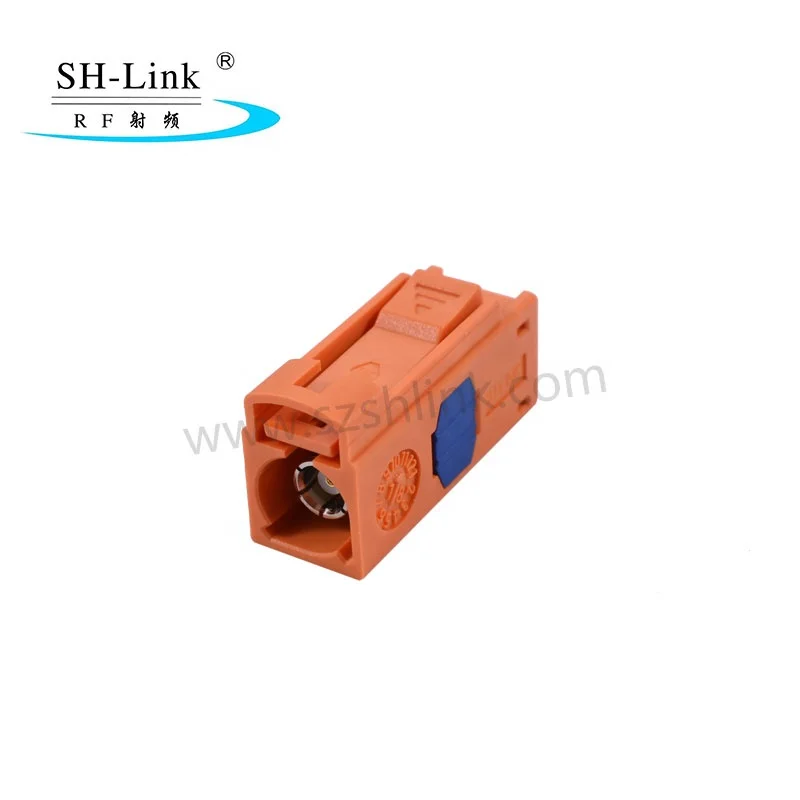

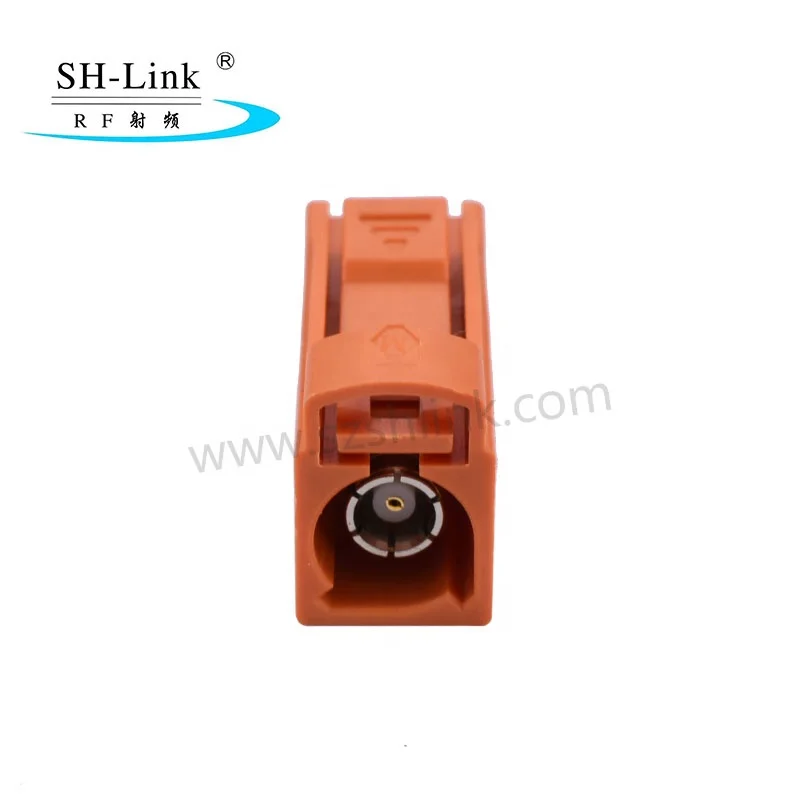

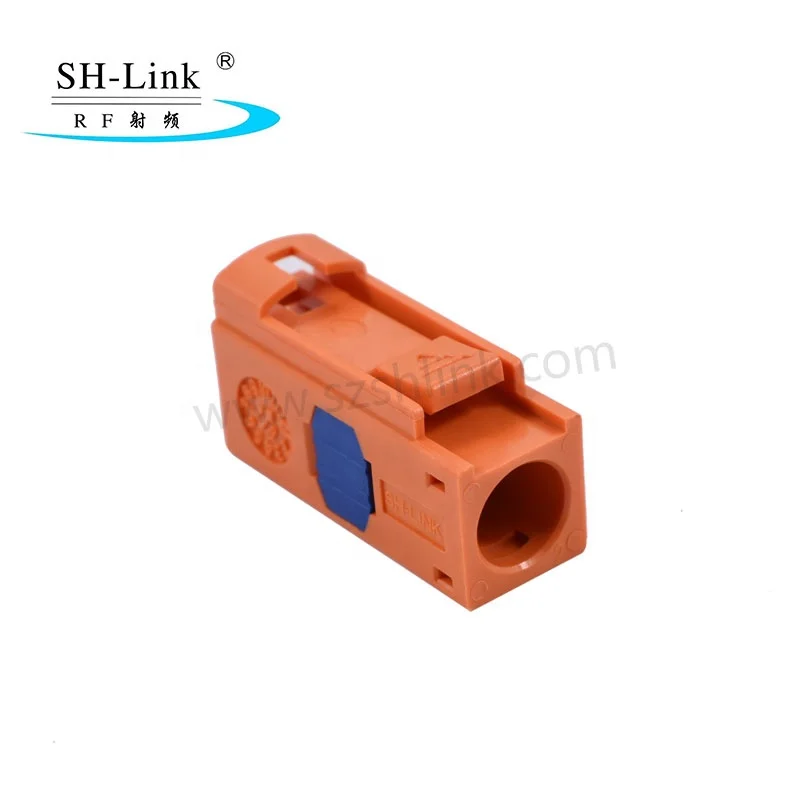

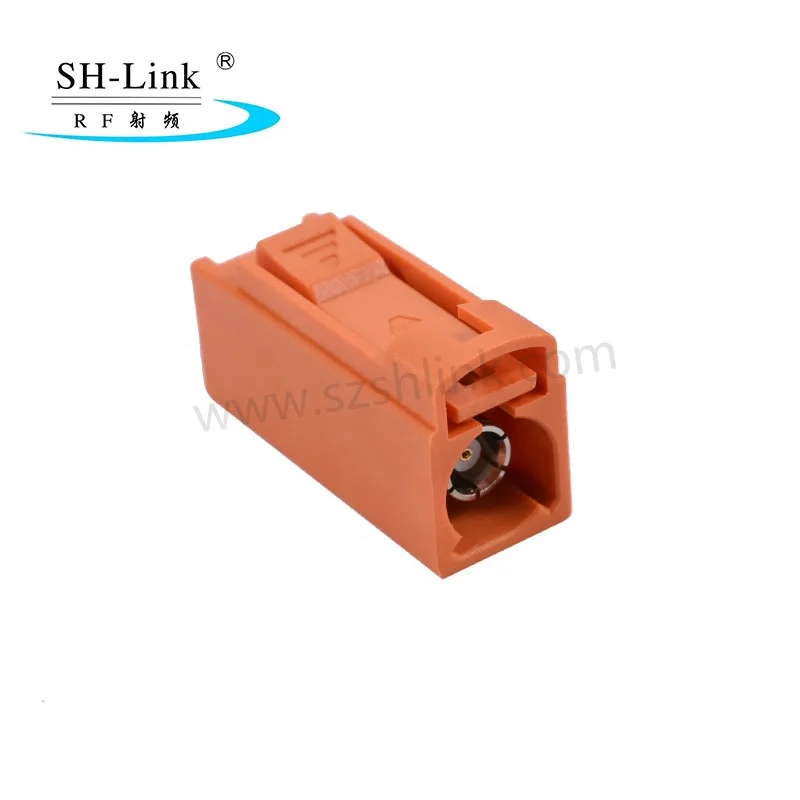

Fakra long female head connector with code M is a patented product with excellent quality, beautiful appearance and easy to use

Product Overview

Description

Fakra long female head connector with code M is a patented product with excellent quality, beautiful appearance and easy to use



Description:
FAKRA connector is one of the auto parts. They are widely used in GPS, Remote control, car phone, car TV, hi-fi equipment, antennas, etc. It is mate with the same colors or connector and socket, and the structure is to be double-locked and fool-proofing for them.



Major characteristics:
Double-locked, fool-proofing assembly with the color and the structure
The connector is be protected by the cap .
Easy to assembly
Many difference between the connector and the cap.
The product technical characteristics:
Body		Brass, Ni-plated
Socket		beryllium-copper, Gold-plated
Pin contact		Brass
Insulator		PTFE
Crimp ferrule		brass, Ni-plated
O-ring		beryllium-copper
Shell		PA66+30%GF
Technical characteristics:
Impedance		50Ω
Frequency Range		4GHz
Withstanding Voltage		1000V(RMS)
Contact resistance:
Center contact		≤ 20m
Outer contact		≤10m
Insulation		≥1,000MΩ
VSWR		DC - 2GHz<1.2
Mechanical characteristics:
Assembly		locked
Durability		≥ 500 cycles
Temperature		-40 ~ +85°C
