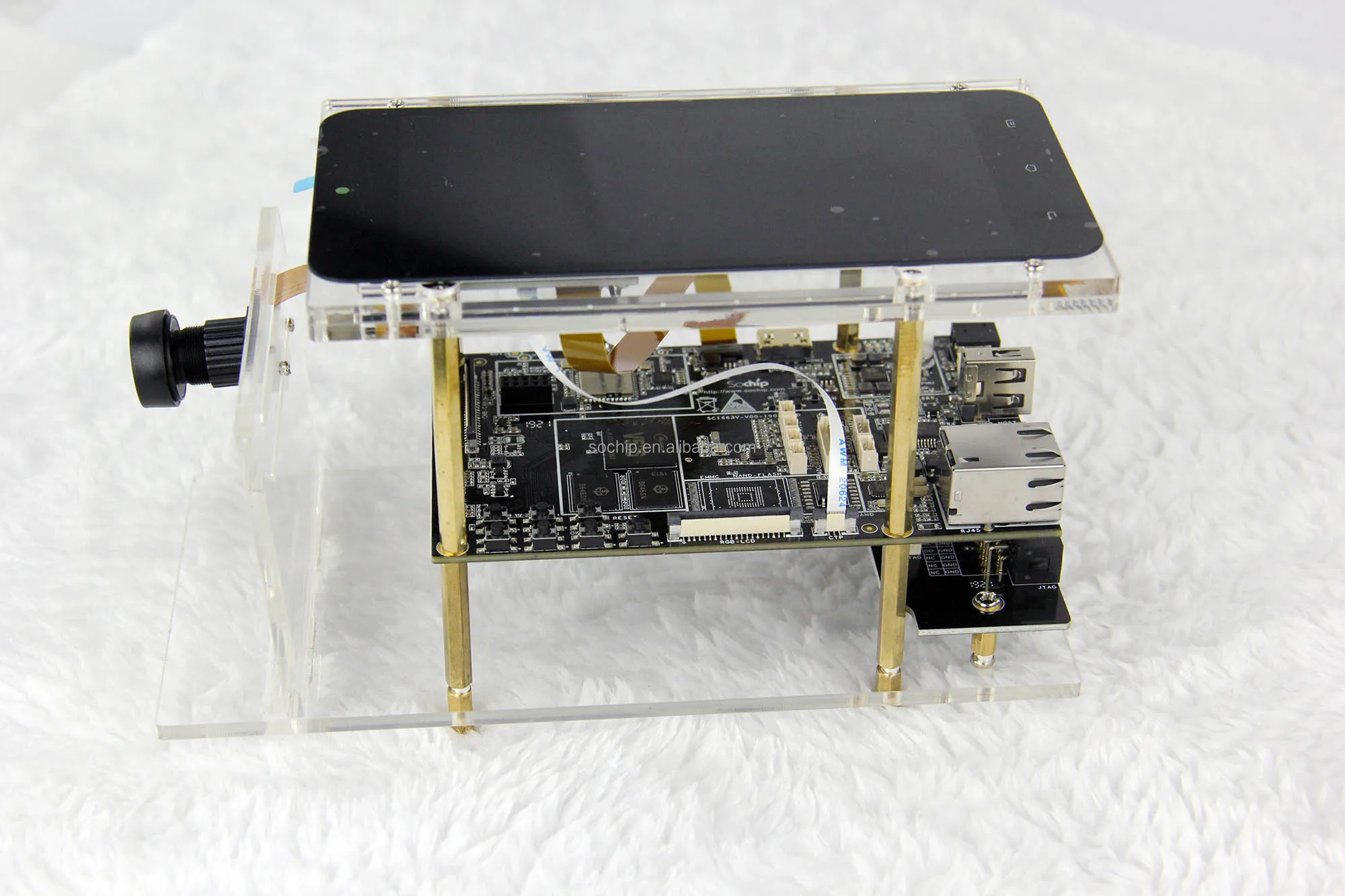

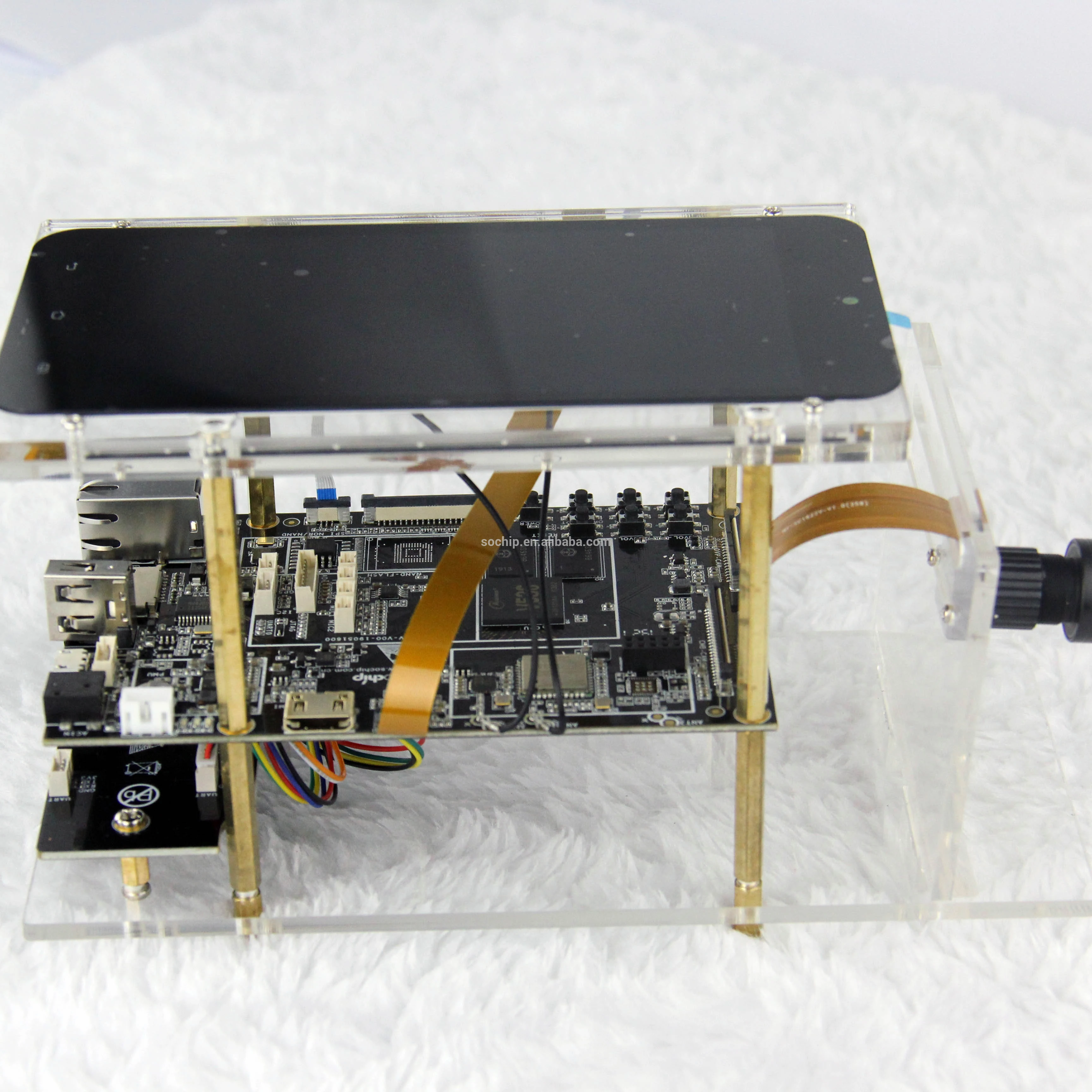

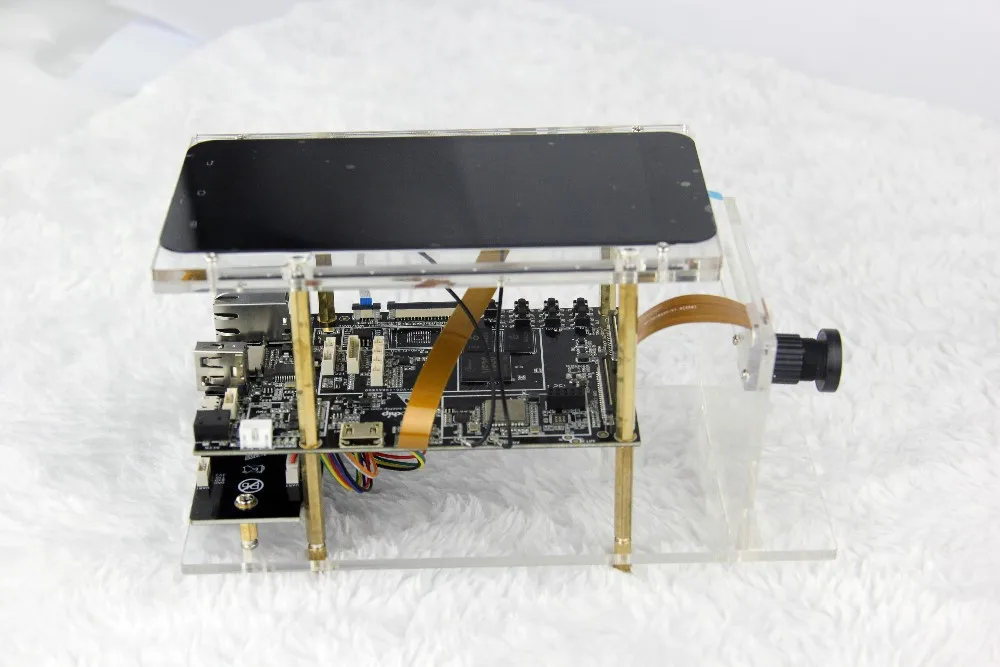

development board for Allwinner V536 PCB board design support 4k FHD PCBA service available

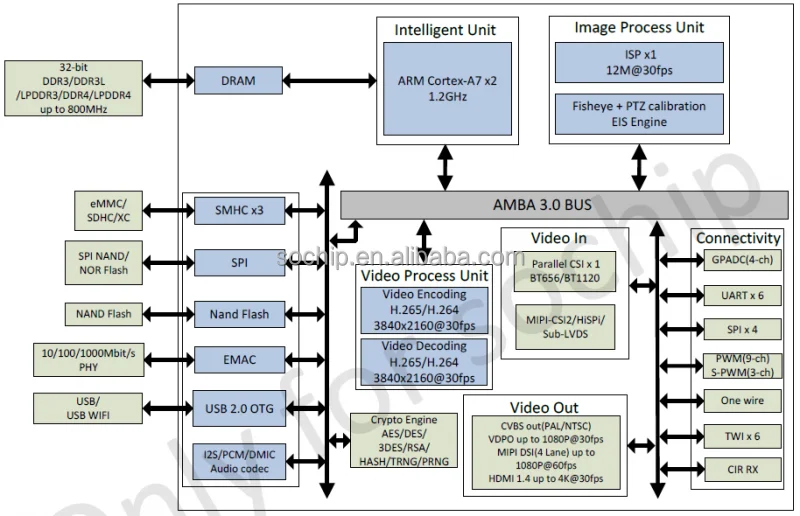

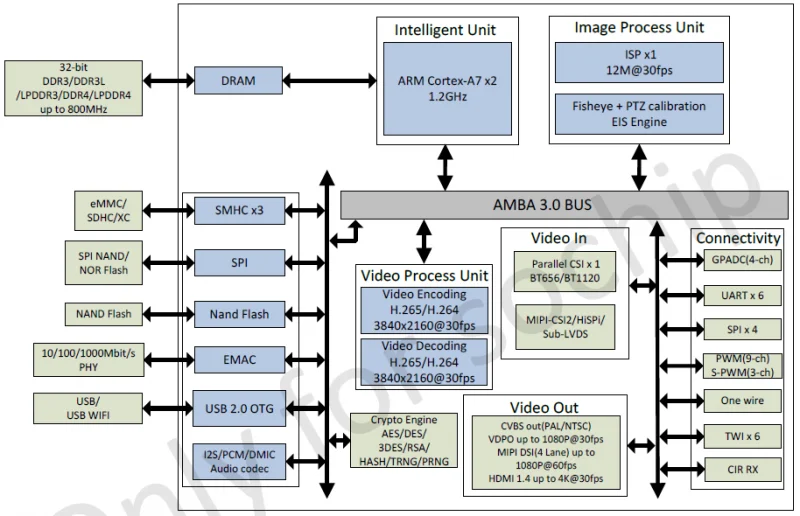

The V536 is a high performance and low-power 4K Ultra HD SoC for the video encoding industry that can be widely used in security monitor, SDV, driving recorder, Police BODY-WORN CAMERA, etc. The V536 supports frequency up to 1.2GHz. Integrated H.264/H.265 video encoding processor that supports encoding of multiple streams, the performance of video encoding/decoding up to 4K@30fps + VGA30fps, The V536 integrates the latest generation of ISP image processor, which supports 3A/3DNR/multi-framewidth dynamic and other image enhancement algorithms, supports EISE, Wide-angle distortion correction, fisheye and PTZ calibration and other image correction algorithms to achieve professional image effects. The V536 supports multiple video input interface, such as HiSPi/Sub-LVDS/MIPI-CSI/Combophy, and also supports multiple video output interface, such as RGB/MIPI/HDMI/CVBS. The V536 adopts advanced low-power technology and low-power consumption architecture design, which significantly reduces the BOM cost. The Allwinner SDK features high stability and ease of use, supports driving recoder and 4K action cameras for rapid mass production.
