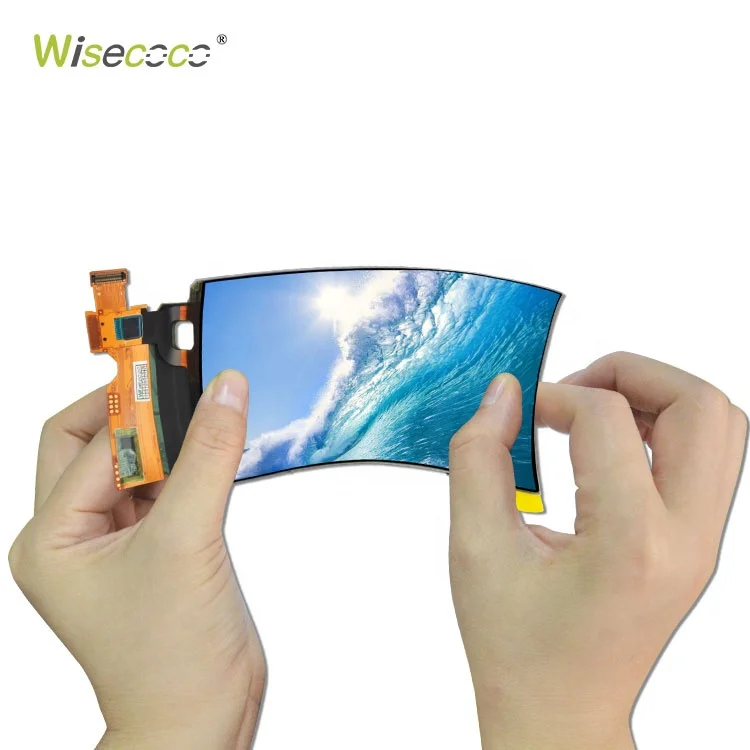

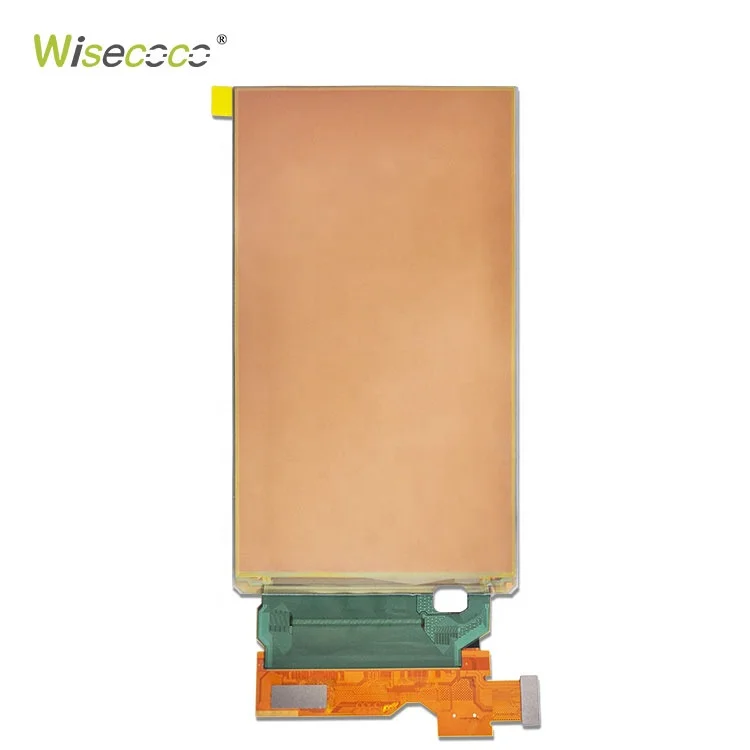

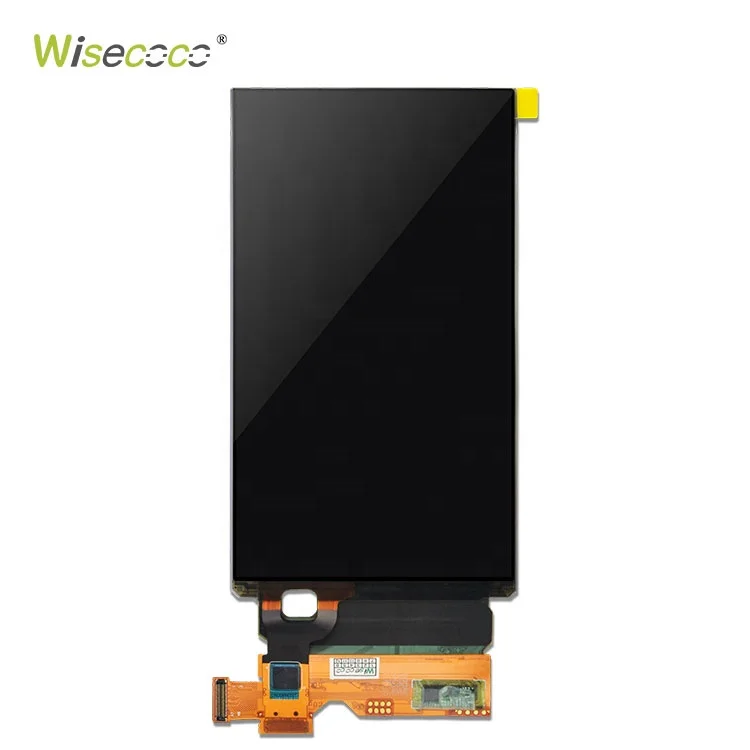

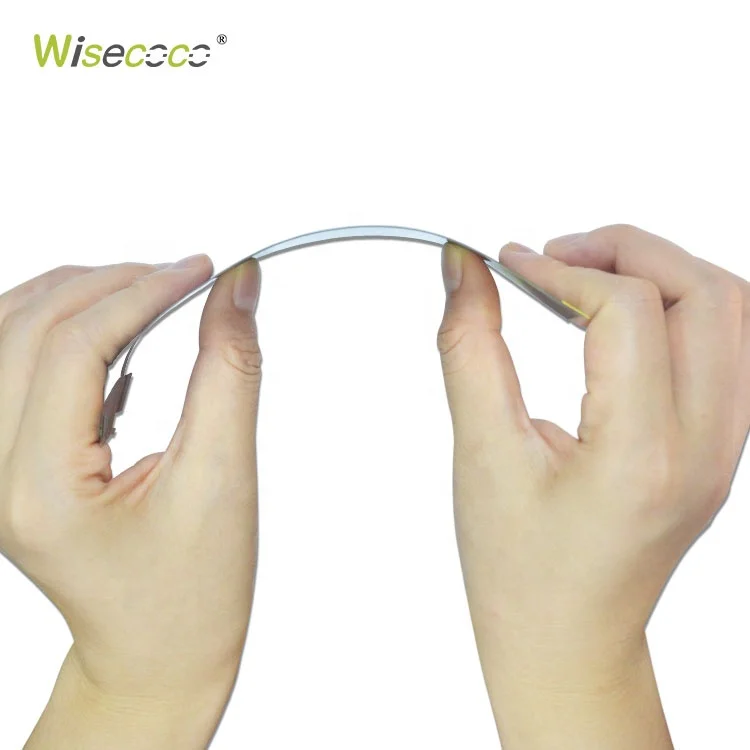

2K 5.5 Inch 48 Pin 1440*2560 Flexible Oled Sunlight Readable High Brightness 400 nits Foldable Slim Mipi Screen
- Category: >>>
- Supplier: Shenzhen Huaizhi Technology Co. Ltd.
Share on (62211667967):
Product Overview
Description
Product Description
mipi 48 pin 2K 400cd/m2 sunlight readable high luminance foldable slim thin 5.5 inch 1440x2560 flexible oled screen displays
General Features | |||
Diagonal Size | 5.5 inch | Type | AM-OLED, OLED |
Pixel Format | 1440(RG/BG)*2560 | Configuration | RG/BG PenTile |
Active Area | 68.04(H)*120.96(V)mm | Outline Dim. | 71.38(H)*128.33(V)mm |

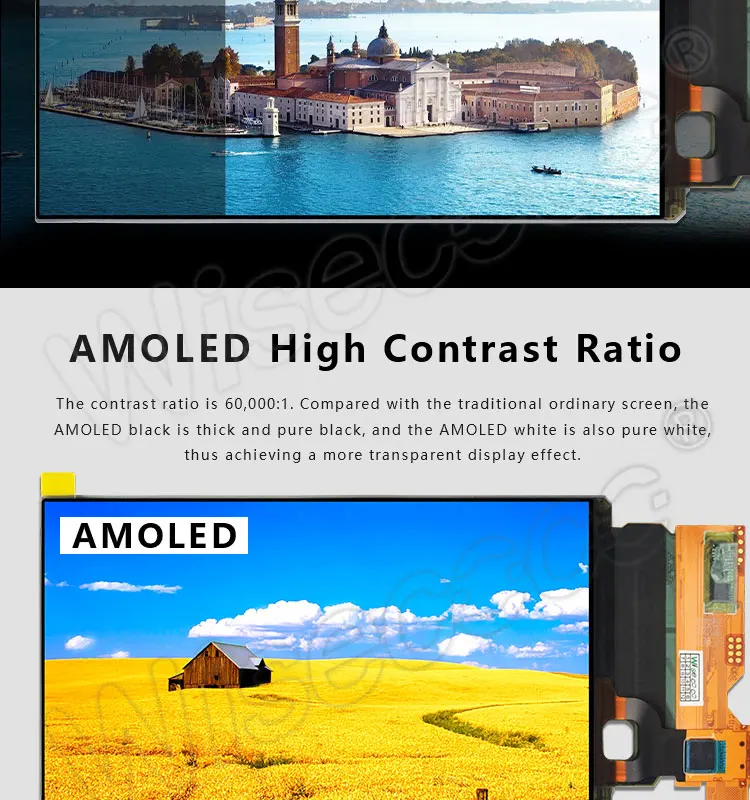

Luminance | 400 Cd/m² (Typ.) | Contrast Ratio | 60000:1 (Typ.) (TM) |
View Direction | Symmetry | Response Time | - |
Viewing Angle | 85/85/85/85 (Min.)(CR≥10) | Operating Mode | - |
Support Color | 16.7M 97% (CIE1931) | Light Source | Self |
| Frame Rate | 60Hz | Touch Panel | No driver for touch |
Interface Type | 48 pins MIPI (4 data lanes) , Connector | ||
Power Supply | 1.8/3.0/6.7/4.6/-2.4V (Typ.)(VDDIO/VCI/AVDD/ELVDD/ELVSS) | ||
Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C | ||
