High Transparency self adhesive low haze pdlc film Switchable Smart Glass Walls pdlc Switchable Smart Glass Privacy Glass Walls

Product Overview

Description

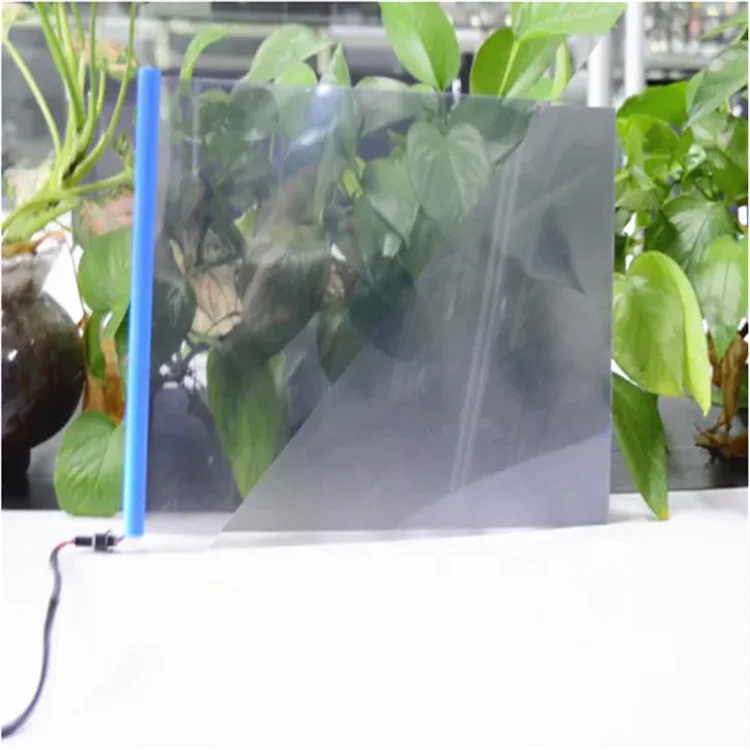

High Transparency self-adhesive low haze pdlc film smart tint pdlc switchable film

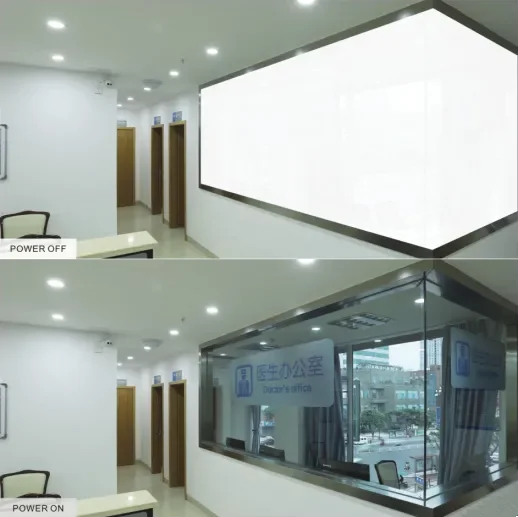

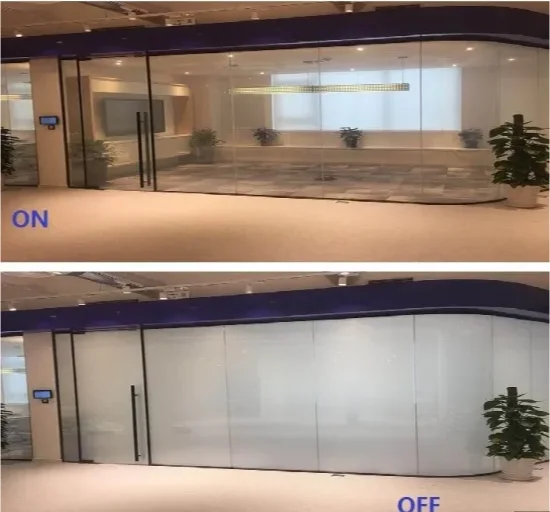

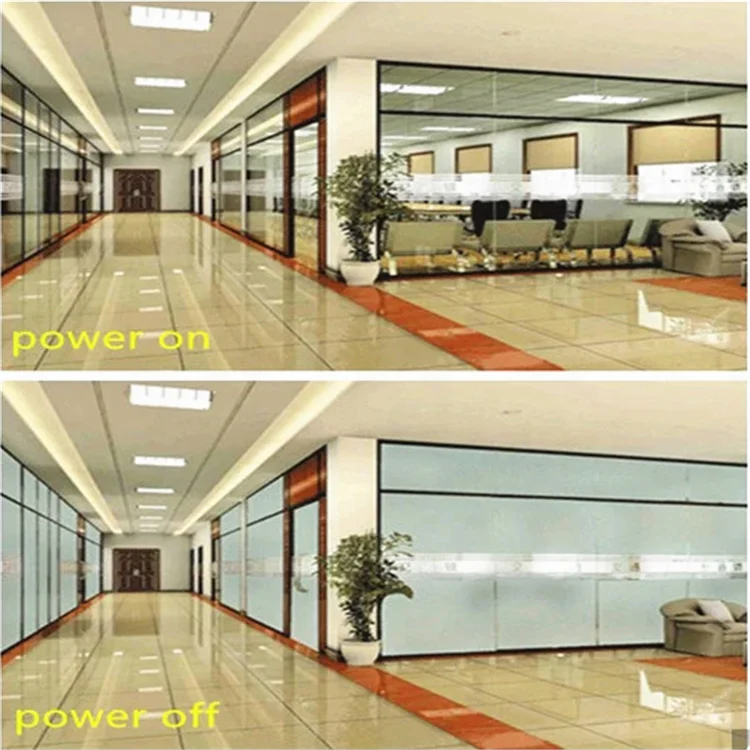

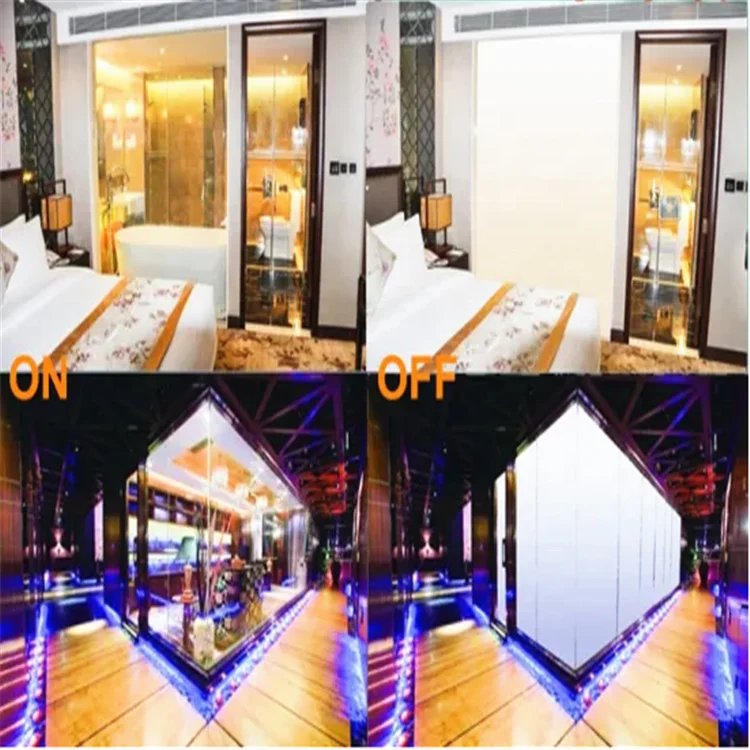

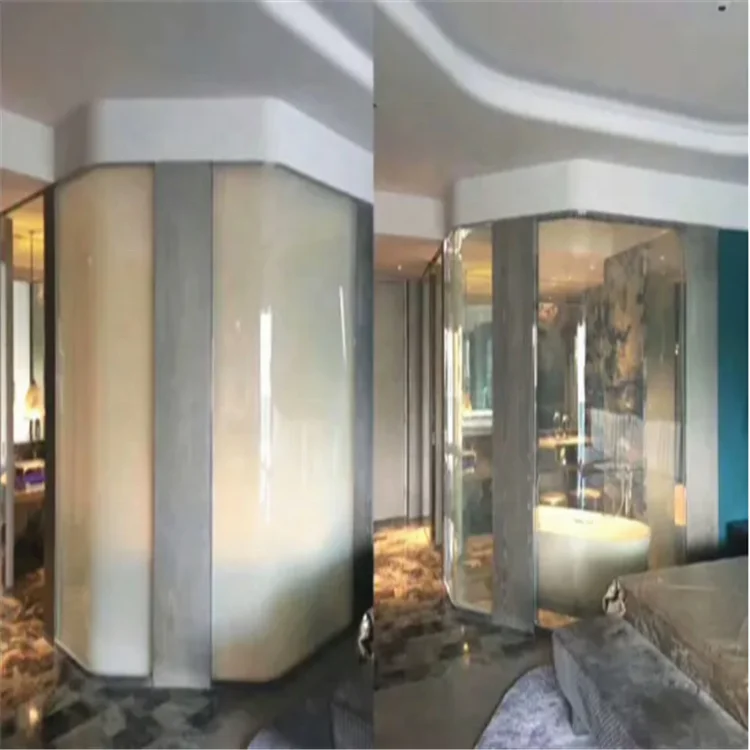

Switchable Glass-- is a laminated glass product consisting of a Polymer Dispersed Liquid Crystal pdlc switchable film between two layers of glass and two layers of conductive interlayers. This pdlc switchable film is what allows you to change the visual appearance of the glass from opaque (translucent) to clear (transparent).

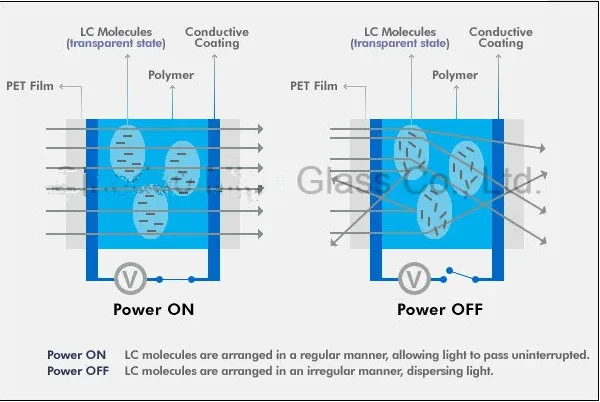

When electricity is applied to the pdlc switchable film the liquid crystals line up, changing the pdlc switchable film from opaque to clear. Conversely when electricity is removed, the liquid crystals return to their normal scattered positions changing the glass back to opaque.



San Jing Smart Glass Feature

1) Transparent switchable smart glass

2) Anti-UV: smart glass can block over 90% ultraviolet radiation

3) Soundproof: Smart glass can decrease the noise level reach 35dB

4) Security: Smart glass will not hurt people if it were broken, because the broken glass shards still stick on the PDLC film.

5) Customized smart glass is available.

Technical Specifications

Optical Properties	Parallel Light Transmission	ON	>81%
		OFF	<10%
	Visible Light Transmission	ON	>80%
		OFF	< 5%
	Visual Angle	ON	150 degree
	UV Blocking	ON/OFF	>97%
Electrical Properties	Operating Voltage	ON	48 volts A.C.
	Frequency	ON	50~60HZ
	Current	ON	2 mA/sqm
	Power Consumption	ON	8 W/sqm
	Switching Time	ON==>OFF	Tr.2ms
		OFF==>ON	Td.10ms
Specification	Glass Type	Clear glass/ultra clear glass/low-e glass/tinted glass/patterned glass/ar glass
	Thickness	3-10mm
	Max Size	1600mm x 3660mm
	Color	White/yellow/brown/gray/Blue,etc
Other index	Working Temperature	-30~80 °C
	Life time	> 50000 hr



How it Works



San Jing Glass provides complete pdlc switchable film already with bus bar, customers just directly install to where they wanted. Pdlc switchable film has longer life than Self-adhesive smart film, since the pdlc switchable film is well protected by glass on both sides. Our pdlc switchable film is laminated with tempered glass, finished product more security and safety.



Related Product

    Tempered Glass         Insulated Glass          Laminated Glass

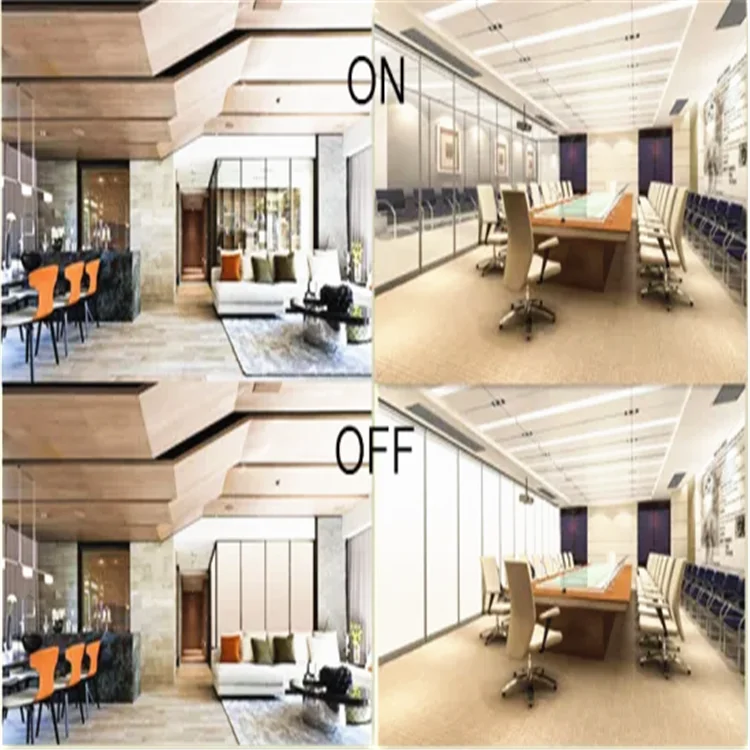

Our Project Case

Our projects are all over the world.

Our Company



San-Jing Glass Co., Ltd. is located in No.821 Huang Shan Road, East Area, Lin Qu County, Shandong, China. From a small-scale company of glass sheet wholesaler at beginning , after 25 years ‘unremitting efforts in glass industry, the company has grown to a high and new tech enterprises with 10,000,000 m2 capacity of varies of glass deep- processing products every year. The company covers an area of 30,000 m2, has 20,000 m2 warehouse and production workshop. The company owns 2 tempered glass production lines, 3 insulating glass production lines, 1 laminated glass production line, and some other high-tech glass deep-processing equipment.
