Product Overview
Description
Product Description
HYL-100V Automatic MCU Vacuum Compression Molding Machine is suitable for vulcanization molding of Natural Rubber, Acrylonitrile Rubber, EPDM Rubber, Chloroprene Rubber and Silicone, and some rubber products produced by vulcanization molding, such as frame oil seal, seal ring, organ sets ect. It is also be used to the forming and shallow tensile technique of bakelite thermosetting materials,magnetic material and powder metallurgy products.
This vacuum compression molding machine collects vacuum and vulcanization molding technology in one machine. It is not only high automatically and efficient, but also improves quality of the products efficiently. It is your ideal one for the rubber material products.
Specifications | HYL-100V |
Clamping Force(kN) | 1000 |
Platen Size(mm)(Width*Length) | 450*450 |
Dimension btwn Tiebar(mm) | 610*225 |
Space of Platens(mm) | 350 |
Max. Clamping Stroke(mm) | 300 |
Min. Mold Thickness(mm) | 60 |
Heating Power(KW) | 24 |
Total Power(KW) | 38 |
Dimensions(m)(L*W*H) | 4.12*2.12*2.36 |
Reference Weight(Ton) | 11 |

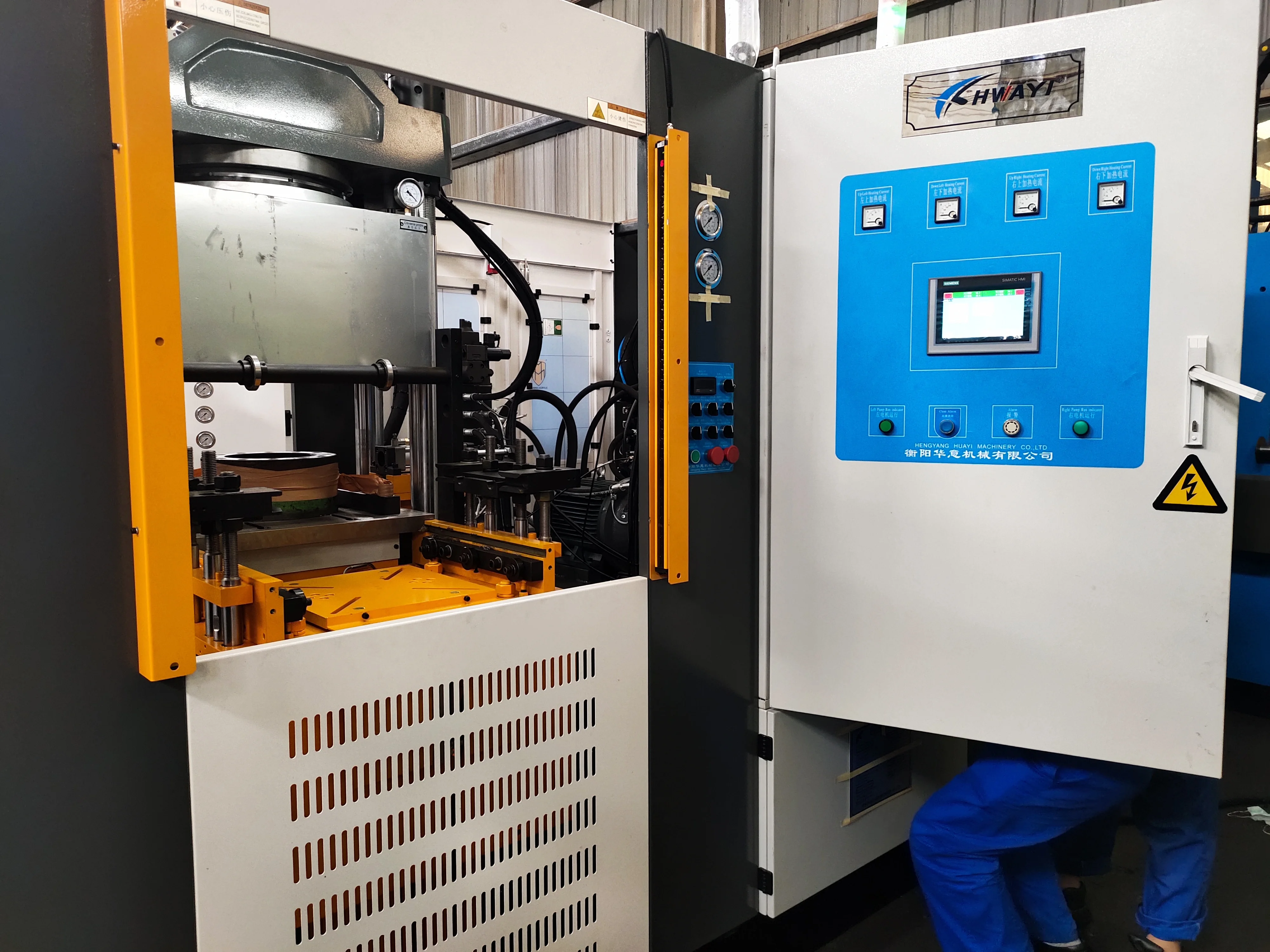

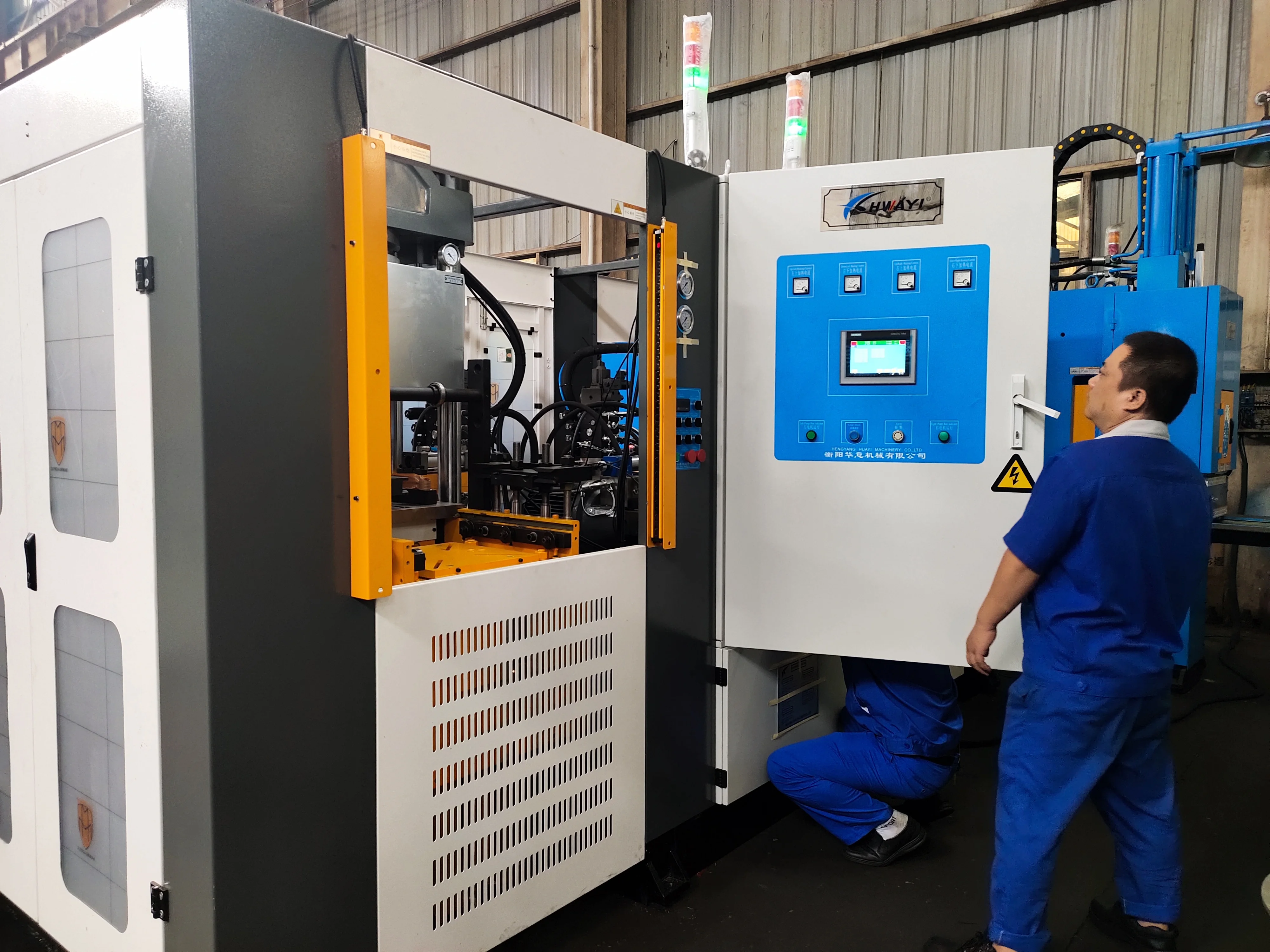

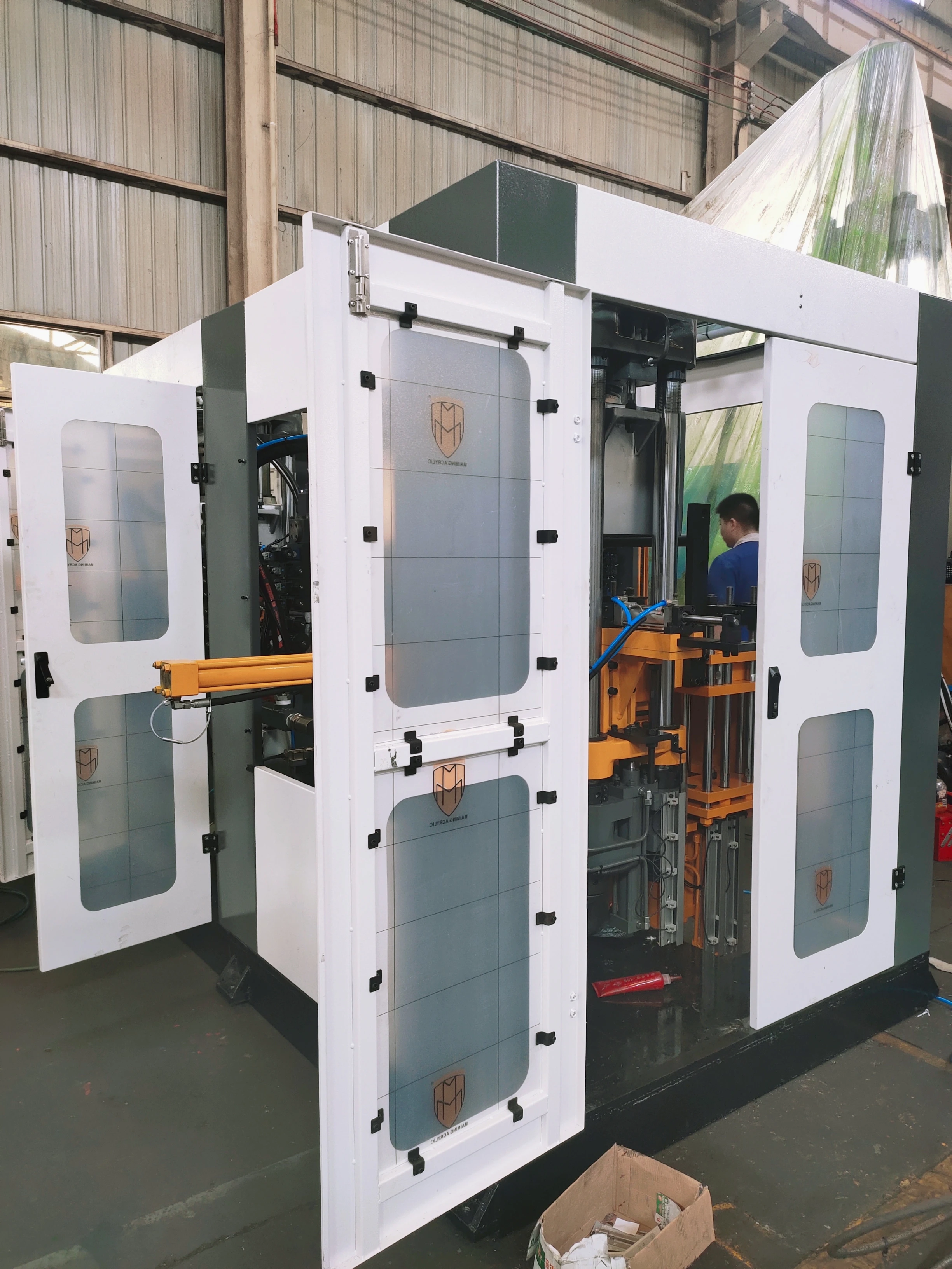

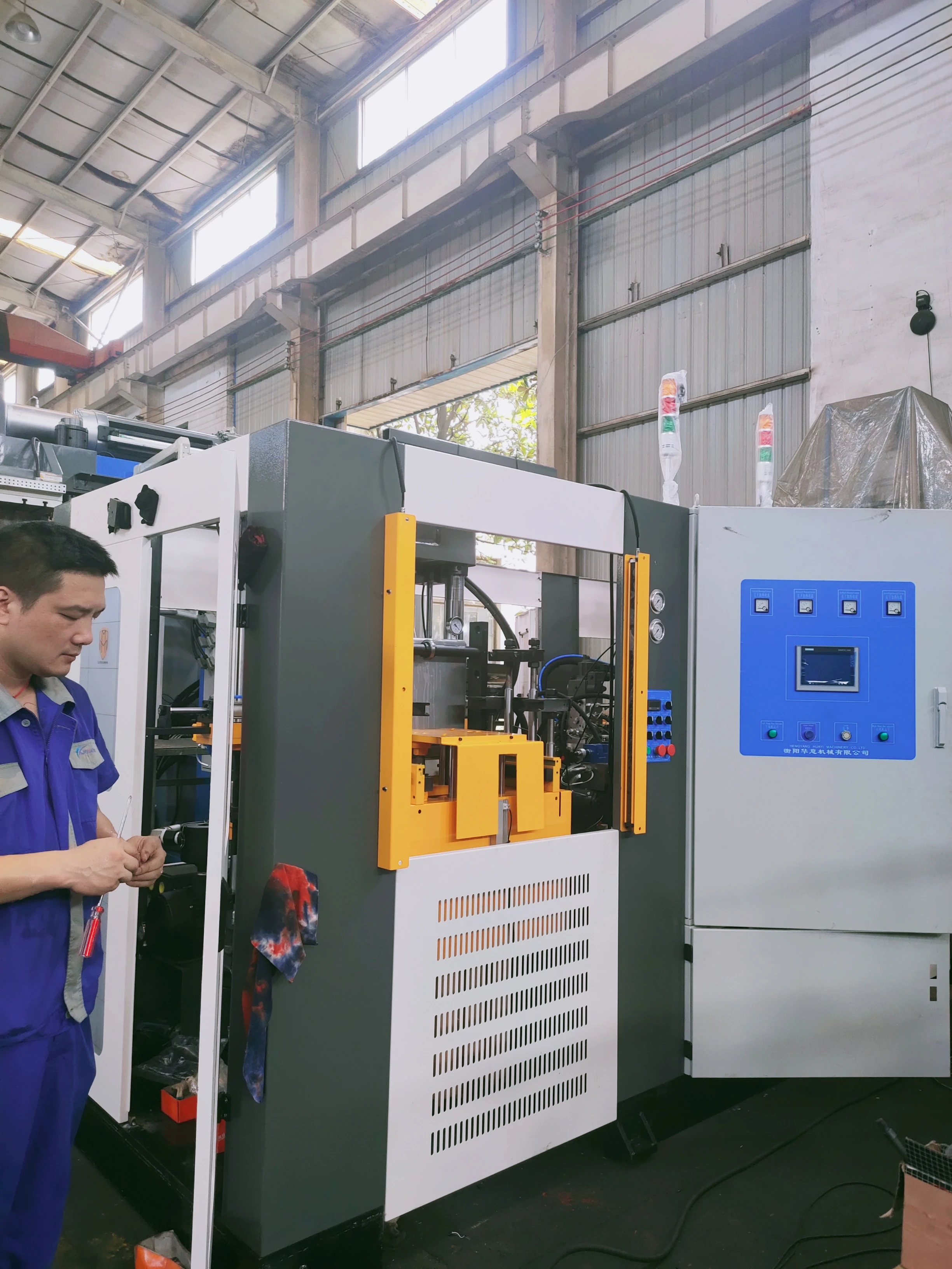

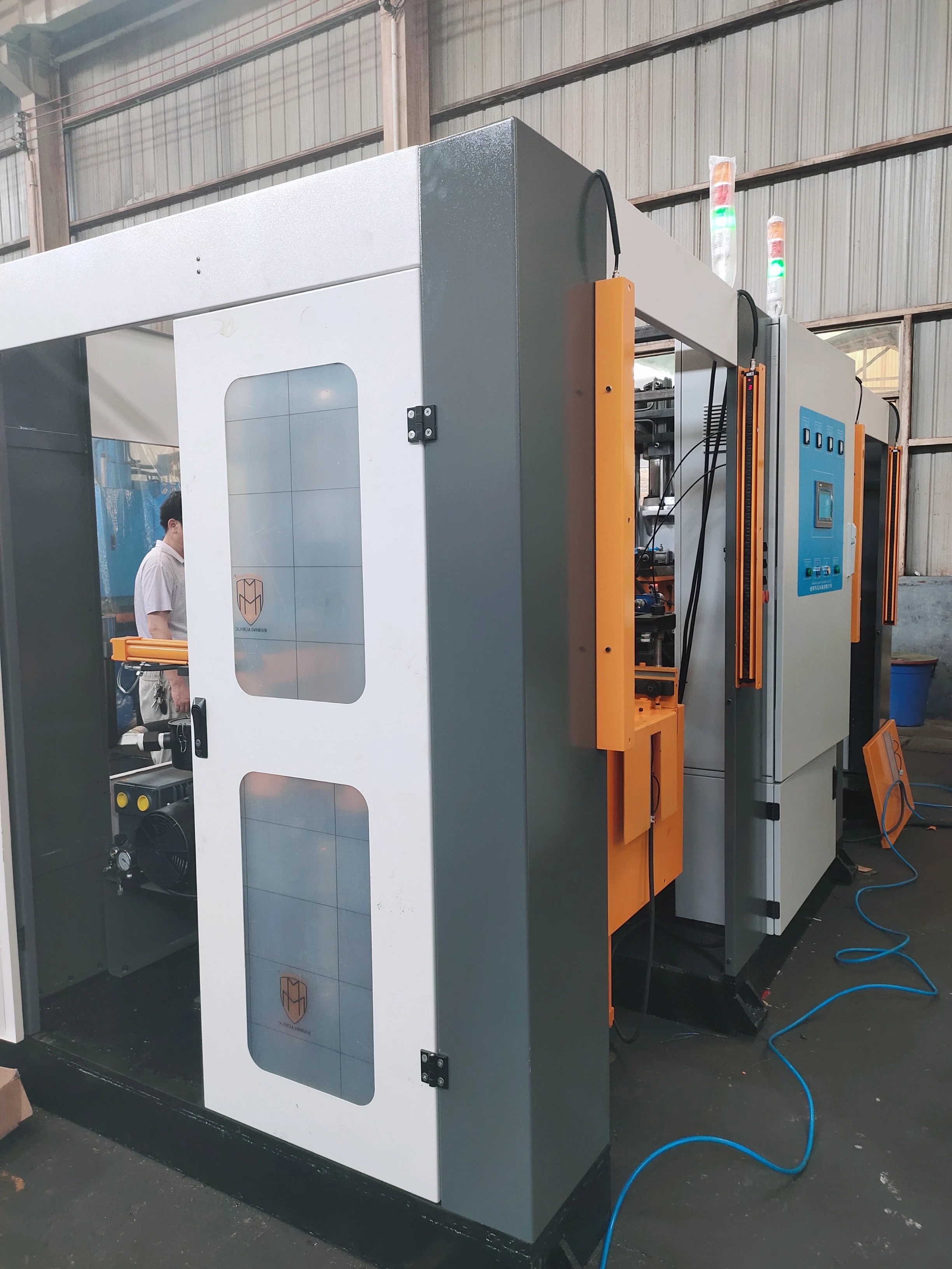

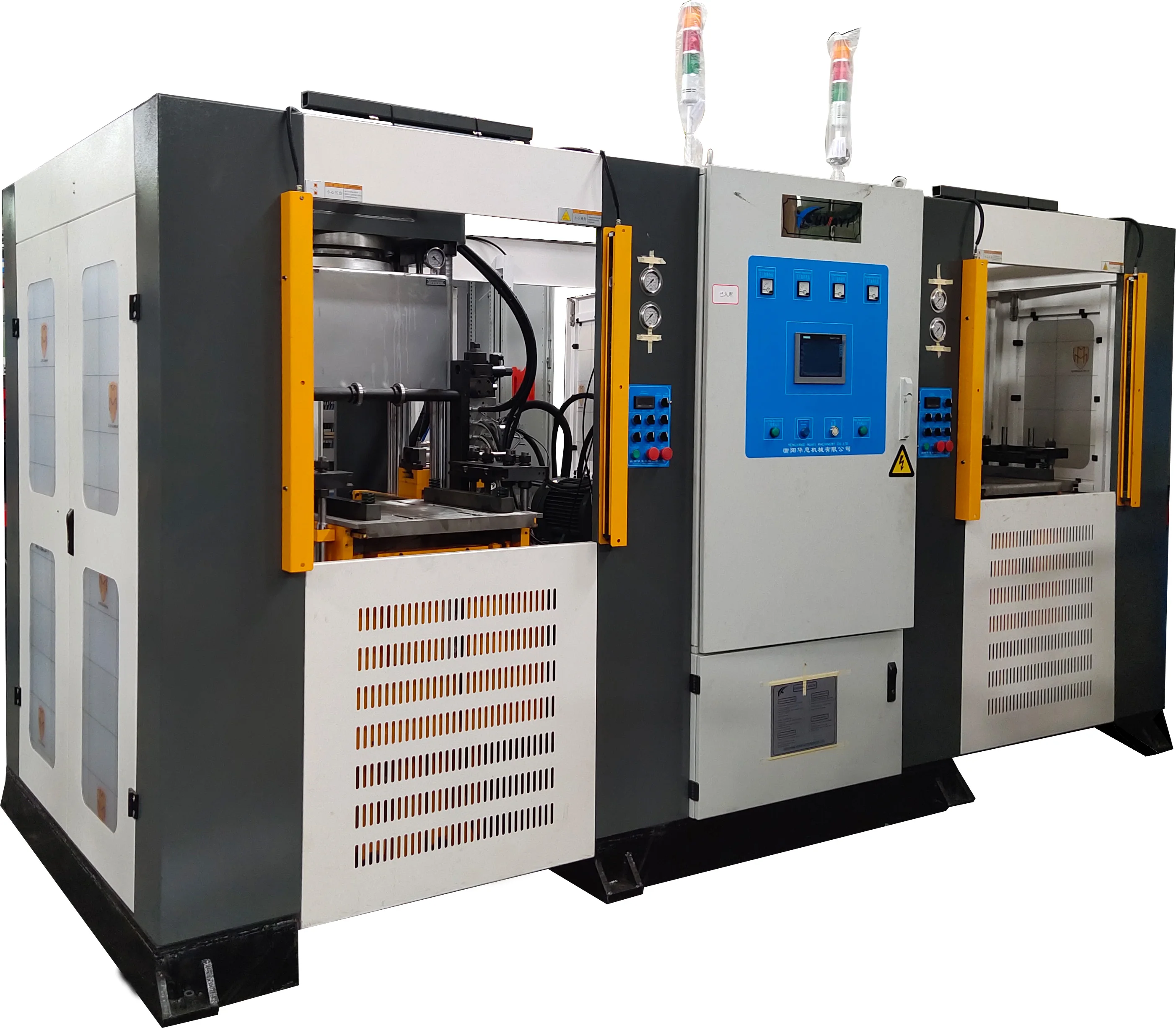

Detailed Images
