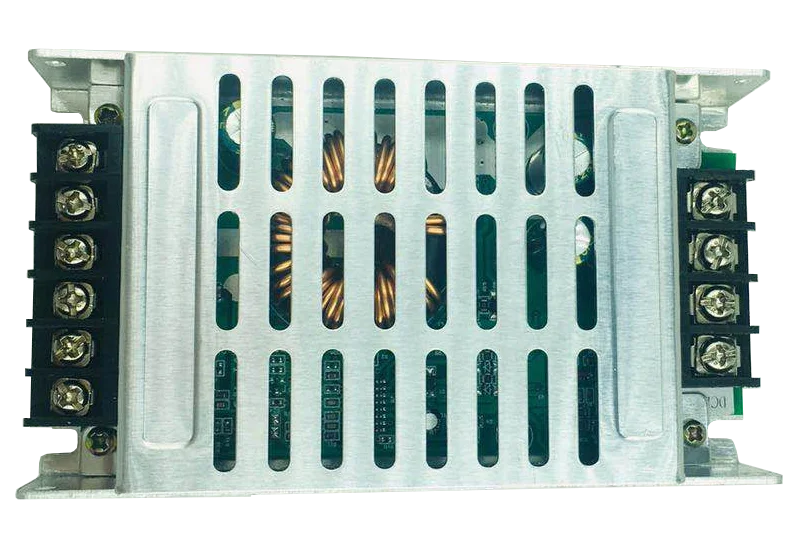

Преобразователь питания WS1224T0530, IP 68, заводская цена, 12 В/24 В постоянного тока в 5 В, 30 А, 150 Вт

Product Overview

Description



 DC 12/24V to DC 5V 30A Power Converters 150W



Features



1. 100% full power & stable current output



2. 100% Imported components



3. Wide input voltage from 10-30Vdc



4. Ultra compact size, light weight

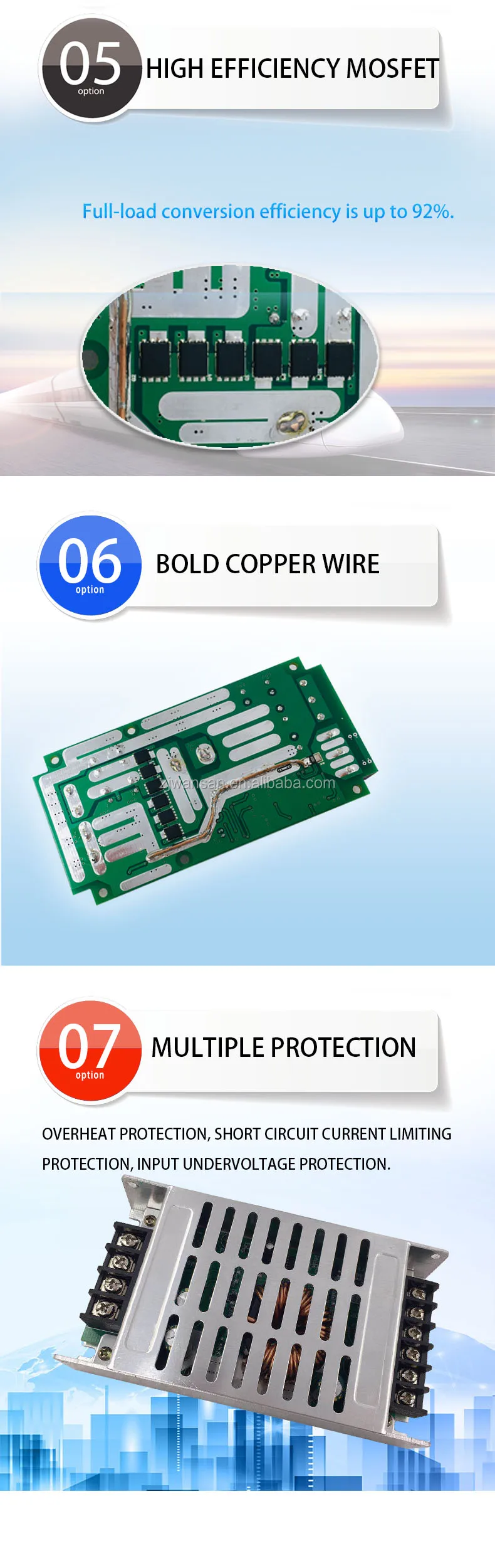

5. Industry grade DC12V/24V to DC5V step-down converter, efficiency up to 92%



6. Plastic shell, epoxy potting, Cooling by free air convection



7. Protections: Over-current, Over-voltage, Over-temperature, Over-load and short-circuit, Auto-recovery when device is back to normal operating.



8.   Non-Isolated Module



9.1-year warranty, lifetime up to 100,000 hours.







Specifications

PARAMETER NAME	CONDITION	MIN	RATED	MAX
POWER	INPUT VOLTAGE 12V OUTPUT VOLTAGE 5V		150		W
INPUT VOLTAGE RANGE	--	10	12	30	V
OUTPUT VOLTAGE PRECISION	INPUT VOLTAGE 10~30V	4.9	5	5.1	V
MAX OUTPUT CURRENT	INPUT VOLTAGE10~30V	30	32	-	A
INPUT VOLTAGE ADJUSTMENT RATE	INPUT VOLTAGE 10~30V			0.5%
LOAD ADJUSTMENT RATE	OUTPUT CURRENT 0-40A			1%
FULL-LOAD OUTPUT RIPPLE	INPUT 12V OUTPUT 30A		100		mV
HALF-LOAD OUTPUT RIPPLE	INPUT 12V OUTPUT 15A		100		mV
NON-LOAD OUTPUT RIPPLE	INPUT 12V OUTPUT NON-LOAD		20		mV
FUL-LOAD EFFICIENCY	INPUT VOLTAGE 12V OUTPUT VOLTAGE 5V 30A		92%
MAX EFFICIENCY			99%
OPERATING TEMPERATURE	HALF-LOAD	-35		75	℃
OPERATING TEMPERATURE	FULL-LOAD	-35		55	℃
STORAGE TEMPERATURE		-40		120	℃



















COMPANY INFORMATION





FAQ:

1. Are you a manufacturer?

100% yes, if you have a chance, you can visit our factory anytime.

2. Do you have any MOQ limit?

One piece is possible, you can buy one sample for testing first.

3. What about the lead-time?

Normally 1-2 working days after receive the payment.

4. How to pay for the sample fee?

Please send the payment to our PayPal account or from alibaba directly.

5. How do you ship the goods?

We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.

6. Do you offer guarantee for the products?

Yes, we offer 1-year warranty for all DC DC converter.

7. I cannot find the suitable model, can I ask for a special model I need?

Sure. We are professional DC DC converter designer and manufacturer in China, please advising the detail specification you need, we will make it according to your request.
