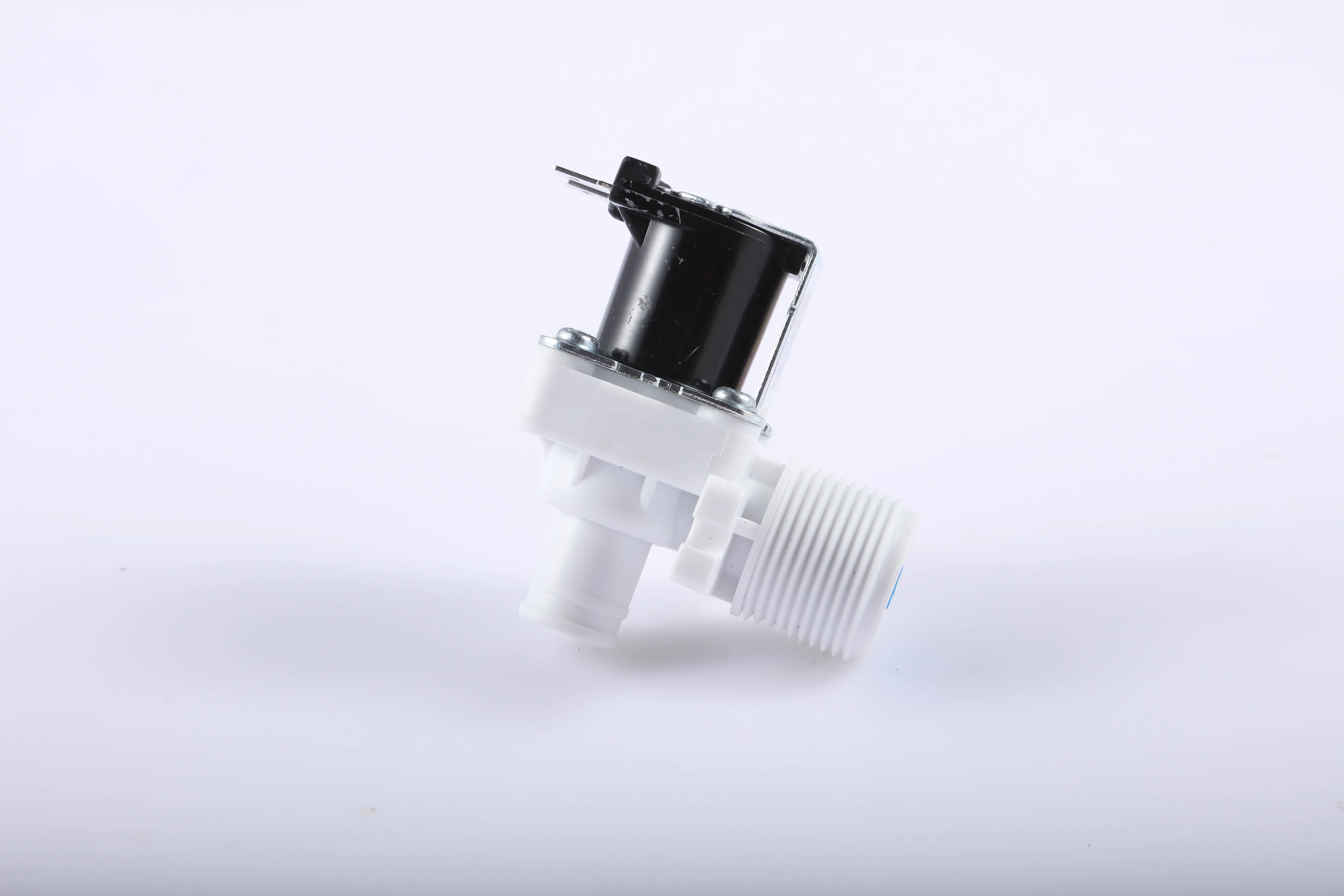

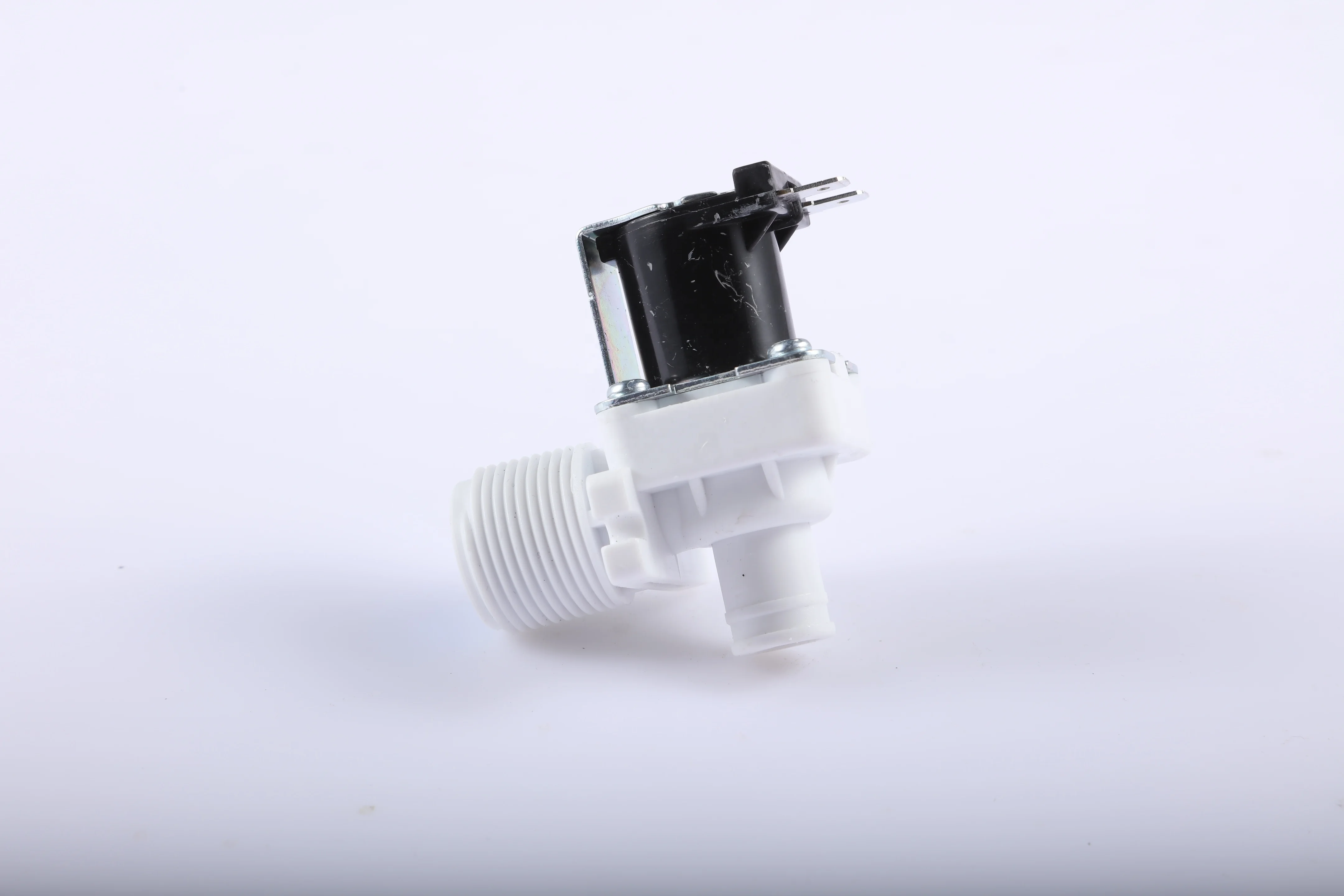

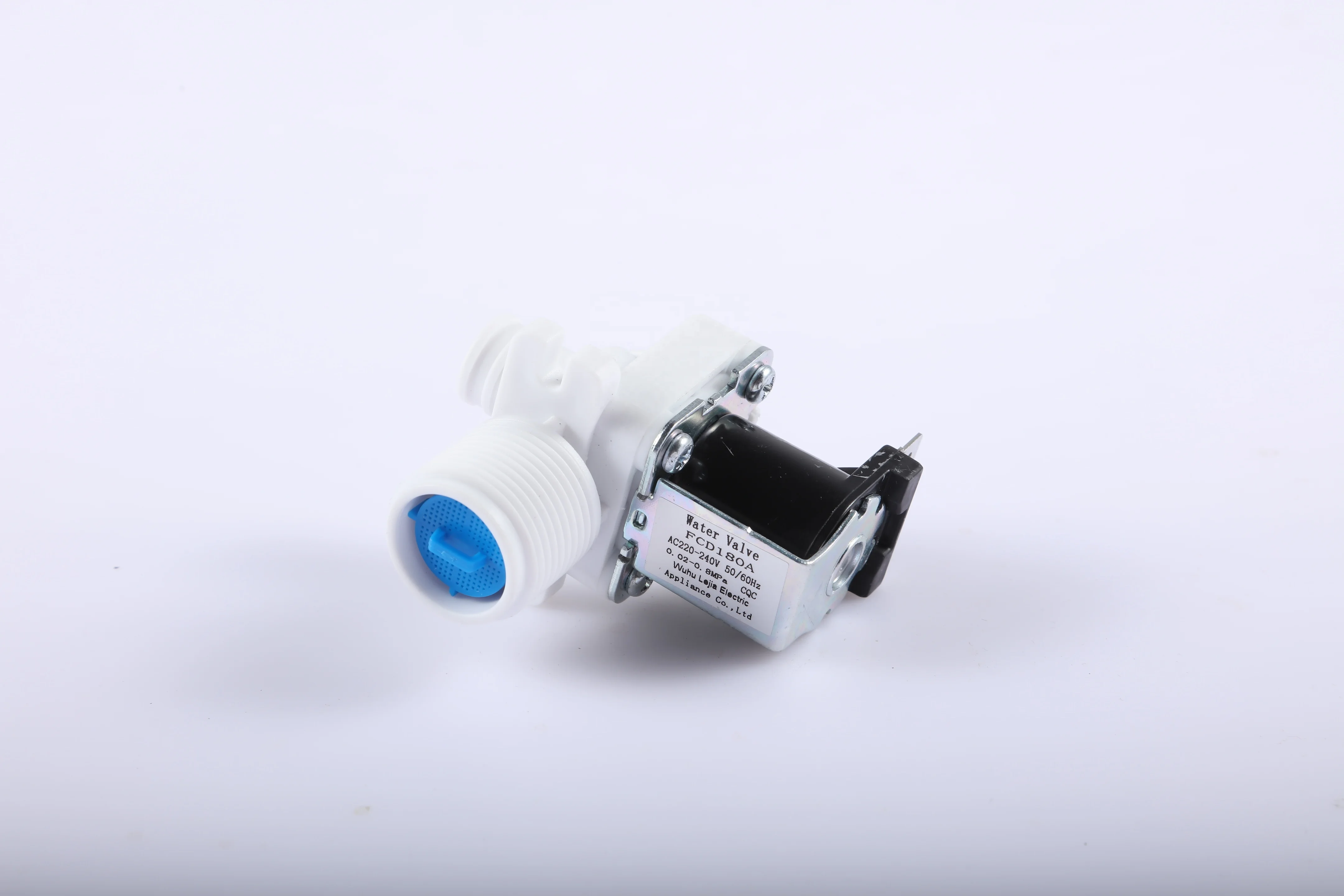

White Plastic Water Solenoid Valve, Small Automatic Valve For Washing Machine
- Category: >>>
- Supplier: WUHU LEJIA ELECTRICAL CO LTD
Share on (62211890906):
Product Overview
Description
Company Information
Well-known white goods supplier in China
♦We are a company specializing in the development and manufacture of automatic washing machine water level sensors, water level switches,Electromagnetic valves and intelligent water control systems.
♦The company was established in 1996 with a total investment of more than 20 million yuan, with an annual output of 18 million water level sensors and 15 millionElectromagnetic valves.
♦The company has 8 invention patents, 14 utility model patents and 8 design patents. It strives to create a national leading brand in the next five years by virtue of its technology and product advantages.
Product Description
Rated voltage
| DC12V | DC24V | AC110V | AC220V |
Coil resistance | 36Ω±2Ω (20℃) | 130Ω±5Ω (20℃) | 1.7KΩ±0.1KΩ (20℃) | 4.75KΩ±0.25KΩ (20℃) |
Min current | 300mA | 166mA | 36mA | 18mA |
Switch mode | AC and DC continnuous (normal closed type) | |||
Operating pressure
| 0.02Mpa-0.8Mpa(2.9psi-116psi) | |||
Media temperature
| 1℃-85℃ | |||
Service life | ≥100000 cycles(CJ/T 194-2004) | |||
Performance
The strength test | Static pressure 1.6Mpa | Withstand voltage pressure | 1.2Mpa/5min | |
No-load test | Voltage V*0.9
| Permissible limiting voltage | V*1.15 | |
Leakage upon high water pressure | 1.2Mpa zero leakage | |||
Leakage upon low water pressure | 0.02Mpa leakage≤0.1ml/min | |||
Electric strength | Among the conductive part, mounting hole and nonconductive metal, it can withstand 1500V/50Hz, leakage current 0.75mA for 1min without the breakdown | |||
Insluation resistance | The resistance between the charged part and nonconductive metallic part teated by the megohmmeter of 500V≥100Ω | |||
Sealing test |
Static pressure
| Air | High pressure | 1Mpa |
Low pressure | 0.02Mpa | |||
Cold water | High pressure | 1.2Mpa | ||
Low pressure | 0.02Mpa | |||
Hot water | High pressure | 0.8Mpa | ||
Low pressure | 0.02Mpa | |||
Technical parameters
1. Smooth appearance, uniform color, fastness
2. Nominal voltage :220V 50Hz :Customizable
4. Insulation grade : E grade
5. Apply pressure : 0.02-1.0MPa
6. Maximum resistance to water pressure: Less than 2.0MPa, no leakage after 10min
7. Flow requirements : ( Customizable )
Water pressure (MPa) | 0.02 | 0.5 | 0.8 | Max |
Flow (L/min) | >3 | >12 | >21 | <25 |
8. Coil resistance : 4.7±0.3KΩ
9. The service life not less than 30000 times, at room temperature, power on for 5 seconds at rated voltage, and power off for another 5 seconds is one cycle :(1) at 0.02MPa, 50000 times;(2) at 0.3mpa, 20000 times;(3) at 0.8mpa, 5000 times
10. The coil should not be burnt out after 8 hours of continuous electrification.
