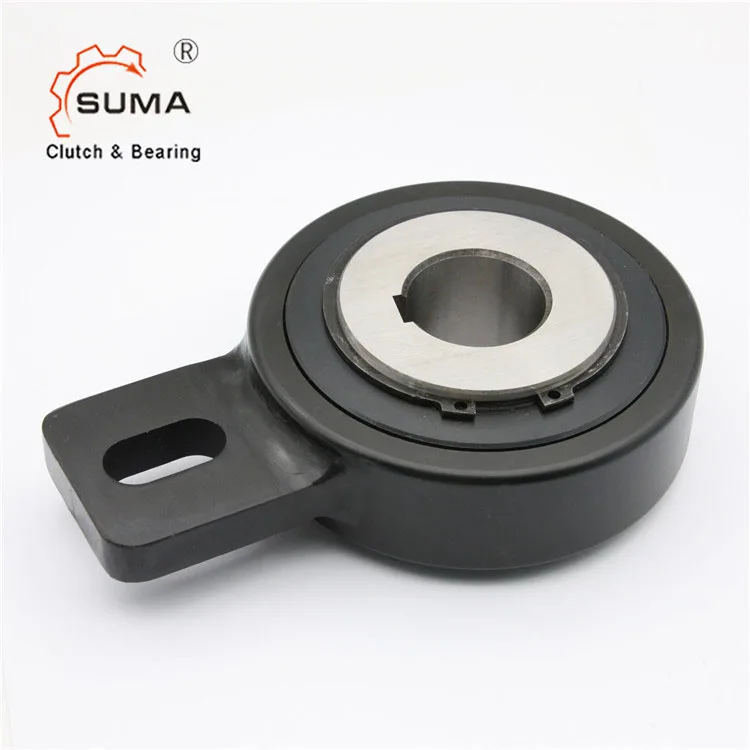

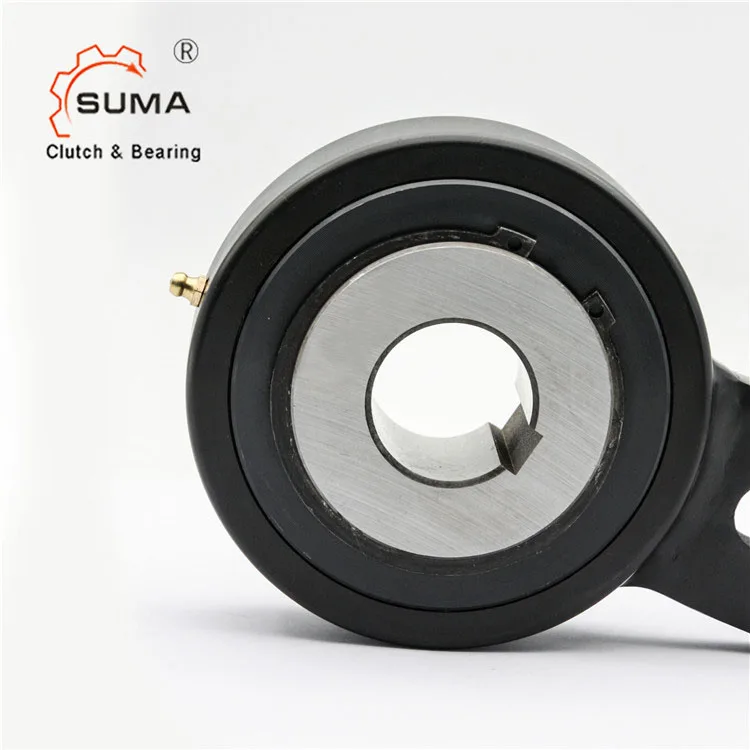

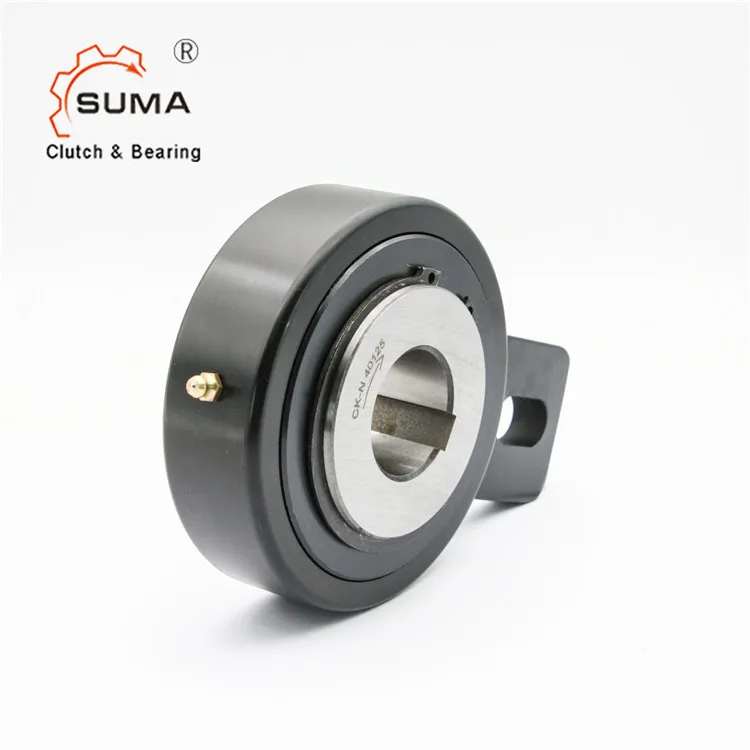

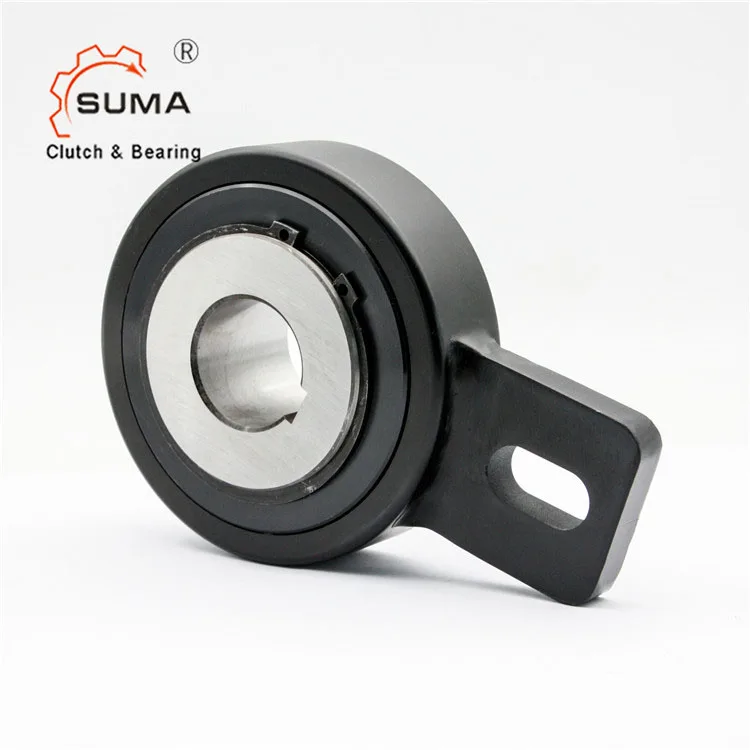

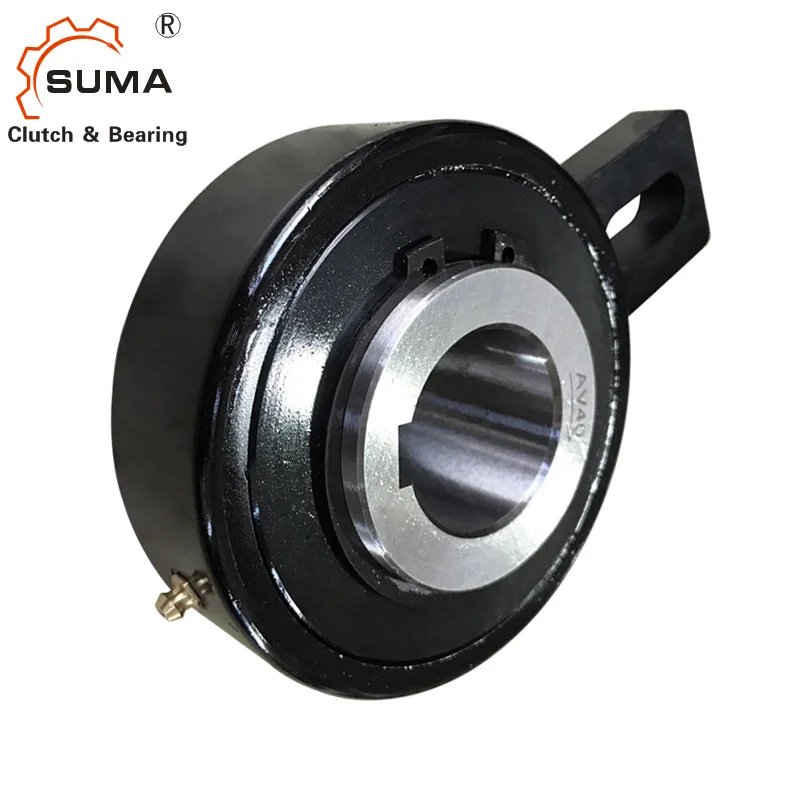

AV 25 Freewheel Backstop Clutch One Way Rotation Bearings AV25
- Category: Other Bearings >>>
- Supplier: Changzhou Suma Precision Machinery Co. Ltd.
Share on (62212224339):
Product Overview
Description
Freewheel Backstop One-Way Rotation Bearings AV25
Product Description
Features of av one-way rotation bearings
| SPECIFICATION | |
| Model | AV25 |
| Bore diameter | 25mm |
| Outer diameter | 83mm |
| Thickness | 35mm |
| Torque capacity | 265Nm |
| Overrunning speed | 450r/min |
| Weight | 1.3kg |
| Package | Industrial package |
| Delivery time | 10-15 days |
| Payment terms | TT, L/C, D/P, D/A, Western Union, Paypal |

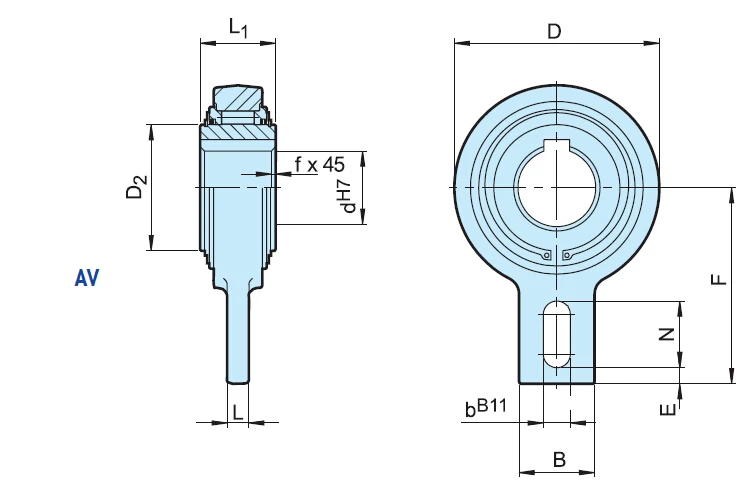

Catalogue of av one way rotation bearings for your choice
| Type | Size | Overrunning Speeds | Weight | ||||||||||
| AV | dH7 | TKN1) | nimax | D | D2 | L1 | L | B | N | E | bB11 | f | |
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| 20 | 265 | 450 | 83 | 42 | 35 | 12 | 40 | 35 | 5 | 15 | 0.8 | 1.3 | |
| 25 | 365 | 450 | 83 | 42 | 35 | 12 | 40 | 35 | 5 | 15 | 0.8 | 1.3 | |
| 30 | 1200 | 320 | 118 | 60 | 54 | 15 | 40 | 35 | 8 | 15 | 1 | 3.5 | |
| 35 | 1200 | 320 | 118 | 60 | 54 | 15 | 40 | 35 | 8 | 15 | 1 | 3.4 | |
| 40 | 1200 | 320 | 118 | 60 | 54 | 15 | 40 | 35 | 8 | 15 | 1 | 3.3 | |
| 45 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 47 | 10 | 18 | 1 | 5.5 | |
| 50 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 47 | 10 | 18 | 1 | 5.4 | |
| 55 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 47 | 10 | 18 | 1 | 5.3 | |
| 60 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 47 | 10 | 18 | 1 | 5.2 | |
| 70 | 2150 | 280 | 155 | 90 | 54 | 20 | 80 | 47 | 10 | 18 | 1 | 5 | |
| 80 | 2900 | 200 | 190 | 110 | 64 | 20 | 80 | 40 | 10 | 20 | 1.5 | 8.7 | |
| 90* | 7125 | 150 | 260 | 160 | 90 | 25 | 120 | - | - | - | 3 | 24.5 | |
| 100* | 7125 | 150 | 260 | 160 | 90 | 25 | 120 | - | - | - | 3 | 23.5 | |
| 110* | 7125 | 150 | 260 | 160 | 90 | 25 | 120 | - | - | - | 3 | 22.5 | |
| 120* | 11000 | 130 | 300 | 180 | 110 | 30 | 140 | - | - | - | 3 | 42 | |
Detailed Images
Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Production flow
Certifications
Clients Visit
FAQ
Q: How do you pack the goods?
- Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
- Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
