Product Overview
Description

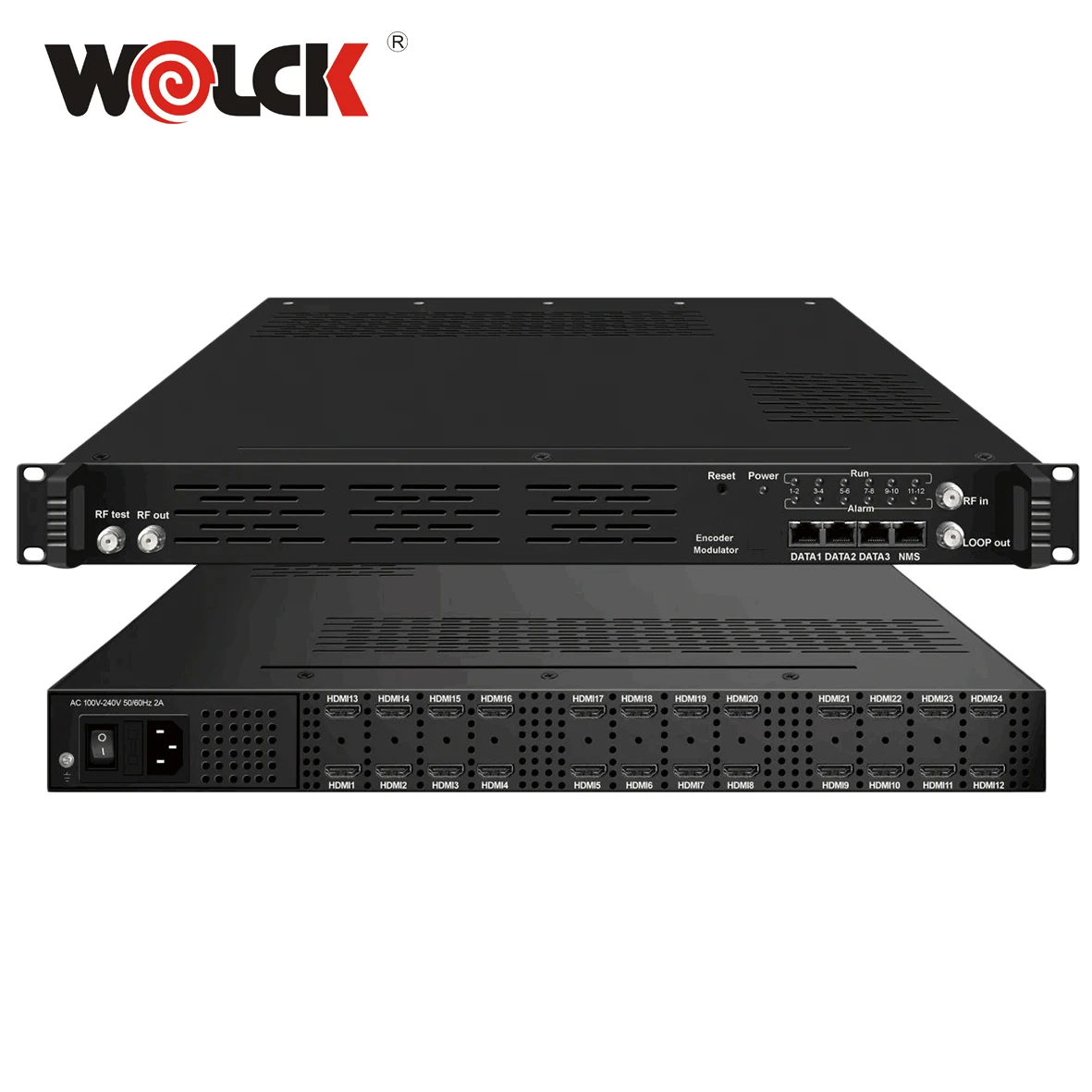

WK-3536S HD Encoder Modulator
WK-3536S is a professional high integration device which includes encoding, multiplexing, and modulation. It supports 8/16/24 HDMI inputs, 1 ASI input, 1 USB payer input and 128 IP inputs via the GE port. It also supports DVB-C RF out with 12 non-adjacent carries or DVB-T/ATSC RF out with 8 non-adjacent carriers, or ISDB-T RF out with 6/16 non-adjacent carriers, and supports 12/8/6/16 MPTS as mirror of 12/8/6/16 carriers through the GE port and 1 ASI out as mirror of one of the carriers. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
* 8/16/24 HDMI inputs, MPEG-4 AVC/H.264 Video encoding
* 1ASI input for re-mux
* 1 USB Player (Insert the USB Flash drive with “ts”videos in WK-3536S and play back the content in an easy way; file system FAT 32. )
* 128IP input over UDP and RTP via GE port
* Each carrier out channel process maximum 32 IP from the GEport(UDP&RTP protocol)
* MPEG1 Layer II, LC-AAC and HE-AACAudio encoding, AC3 Pass Through and audio gain adjustment
* Support 12groups multiplexing/DVB-C modulating
* Support8 groups multiplexing/DVB-T/ATSC modulating---Optional
* Support6 (or 16) groups multiplexing/ISDB-T modulating---Optional
* Support 1 ASI out as mirror of one of RF output carriers---Optional
* Support12 MPTS IP output over UDP, RTP/RTSP –DVB-C RF out
* Support8 MPTS IP output over UDP, RTP/RTSP-- DVB-T/ATSC RF out
* Support6 (or 16) MPTS IP output over UDP, RTP/RTSP-- ISDB-T RF out
* Support LOGO, Caption andQR code insertion(Language Supported: 中文, English, العربية, русский, اردو, for more languages please consult us…)
* Support PIDremapping/ accurate PCR adjusting/PSI/SI editing and inserting
* Controlvia web management, and easy updates via web
* 1ASI input for re-mux
* 1 USB Player (Insert the USB Flash drive with “ts”videos in WK-3536S and play back the content in an easy way; file system FAT 32. )
* 128IP input over UDP and RTP via GE port
* Each carrier out channel process maximum 32 IP from the GEport(UDP&RTP protocol)
* MPEG1 Layer II, LC-AAC and HE-AACAudio encoding, AC3 Pass Through and audio gain adjustment
* Support 12groups multiplexing/DVB-C modulating
* Support8 groups multiplexing/DVB-T/ATSC modulating---Optional
* Support6 (or 16) groups multiplexing/ISDB-T modulating---Optional
* Support 1 ASI out as mirror of one of RF output carriers---Optional
* Support12 MPTS IP output over UDP, RTP/RTSP –DVB-C RF out
* Support8 MPTS IP output over UDP, RTP/RTSP-- DVB-T/ATSC RF out
* Support6 (or 16) MPTS IP output over UDP, RTP/RTSP-- ISDB-T RF out
* Support LOGO, Caption andQR code insertion(Language Supported: 中文, English, العربية, русский, اردو, for more languages please consult us…)
* Support PIDremapping/ accurate PCR adjusting/PSI/SI editing and inserting
* Controlvia web management, and easy updates via web
Production
Our company is a high-tech enterprise specializing in the development of technology and equipment for CATV & EPON/GPON.
Production can be online show, and all our equipment will
Production can be online show, and all our equipment will
be passed the test before shipment.
Technical Support
Our company not only offer equipment, but also offer technical support. Any time you purchase our this model tuner to ip gateway, any configuration doubts you have, we will be online offer help all the time.
8/16/24 HDMI inputs for option 1 ASI in for re-mux 1 USB Player input for re-mux 128 IP input over UDP and RTP, GE port, RJ45—DVB-C RF out 128 IP input over UDP and RTP, GE port, RJ45—DVB-T/ATSC RF out 128 IP input over UDP and RTP, GE port, RJ45—ISDBT RF out | |||||
Resolution | Input | 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, | |||
Output | 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, | ||||
Encoding | MPEG-4 AVC/H.264 | ||||
Bit-rate | 1Mbps~13Mbps each channel | ||||
Rate Control | CBR/VBR | ||||
GOP Structure | IP…P (P Frame adjustment, without B Frame ) | ||||
Audio | Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through | |||
Sampling rate | 48KHz | ||||
Resolution | 24-bit | ||||
Audio Gain | 0-255 Adjustable | ||||
MPEG-1 Layer 2 Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | ||||
LC-AAC Bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | ||||
HE-AAC Bit-rate | 48/56/64/80/96/112/128 kbps | ||||
1 ASI output as mirror of one of RF output carriers(Optional) 12 MPTS output over UDP and RTP/RTSP as mirror of 12 DVB-C carriers, 8 MPTS output over UDP and RTP/RTSP as mirror of 8 DVB-T/ATSC carriers(Optional) 6 MPTS output over UDP and RTP/RTSP as mirror of 6 ISDB-T carriers(Optional) 16 MPTS output over UDP and RTP/RTSP as mirror of 16 ISDB-T carriers(Optional) 1*1000M Base-T Ethernet interface, GE port | |||||
Network management (WEB) | |||||
Chinese and English language | |||||
Ethernet software upgrade | |||||
Dimension (W×L×H) | 482mm×328mm×44mm | ||||
Environment | 0~45℃(work)；-20~80℃（Storage） | ||||
Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz | ||||
24 hdmi modulator
package can be customized
1pcs in one cartoncarton size: 59*51*29cm
GW: 11kgs
Shenzhen Wolck Network Porducts Co.,Ltd. is located in Shenzhen city which is one of the first-tier cities in China. Wolck company is a high-tech enterprise specializing in the development of technology and equipment for EPON/GPON/CATV equipments.Production and equipments detailed can be shown online, and all products will be passed the test before shipment.
Wolck company not only offer equipments but also offer technical support and best service for after-sales. Wolck company also is Quality Guarantee Enterprise, got the ISO9000 cetificate, and offer cetificates such as CE, CO, FORM-E/F/M etc.
