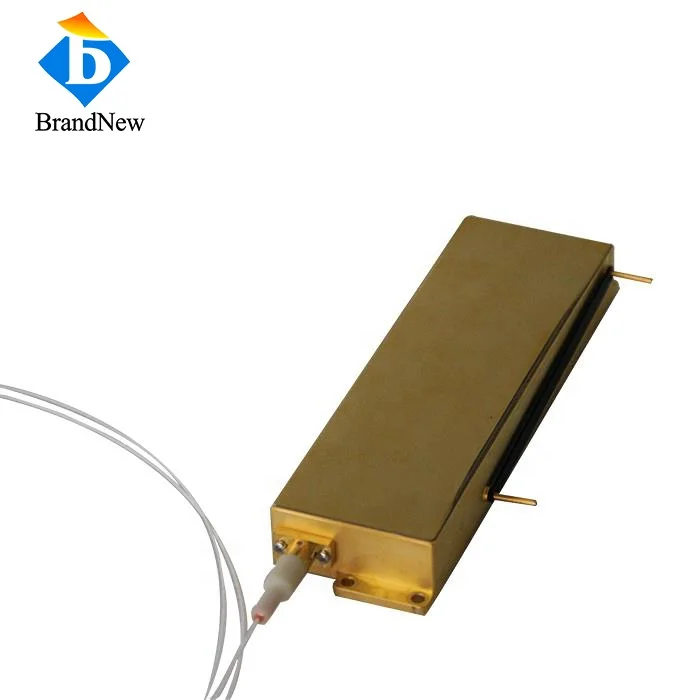

300W 915nm Fiber Coupled Laser Diode for Laser Marking
- Category: Laser Equipment Parts >>>
- Supplier: Hangzhou Brandnew Technology Co. Ltd.
Share on (62213239299):
Product Overview
Description
Hot product! 300W 915nm Fiber Coupled Laser Diode
Advantages:
laser chip from Jenoptik Germany
substrate/shell from Tecnisco Japan
fiber from Nufern Germany
lifetime: over 10000hours
Wide application such as Laser Marking, Laser Engraving, Laser Cutting, Fiber Laser Pumping Source

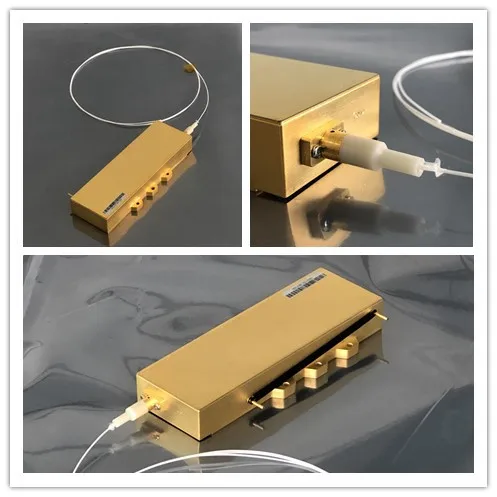

Detailed Images
Specification
Optical | |
Center Wavelength | 915±10nm |
Output Power | 300W |
Working Mode | CW |
Spectral Width FWHM | <5nm |
Slope Efficiency | >13W/A |
Fiber | |
Fiber Bend Radius | >60mm |
Fiber Length/Fiber Jacket Diameter | 1.5m/0.9mm |
Fiber Core | 200um |
Fiber Numerical Aperture | 0.22NA |
Fiber Connector | Bare |
Electrical | |
Operating Current Iop | 20~22A |
Threshold Current Ith | 1A |
Operating Voltage Vop | 31.5V |
Power Conversion Efficiency | ~45% |
Thermal | |
Operating Temperature | 15~55℃ |
Storage Temperature | -30-70℃ |
Packing & Delivery
Certification
