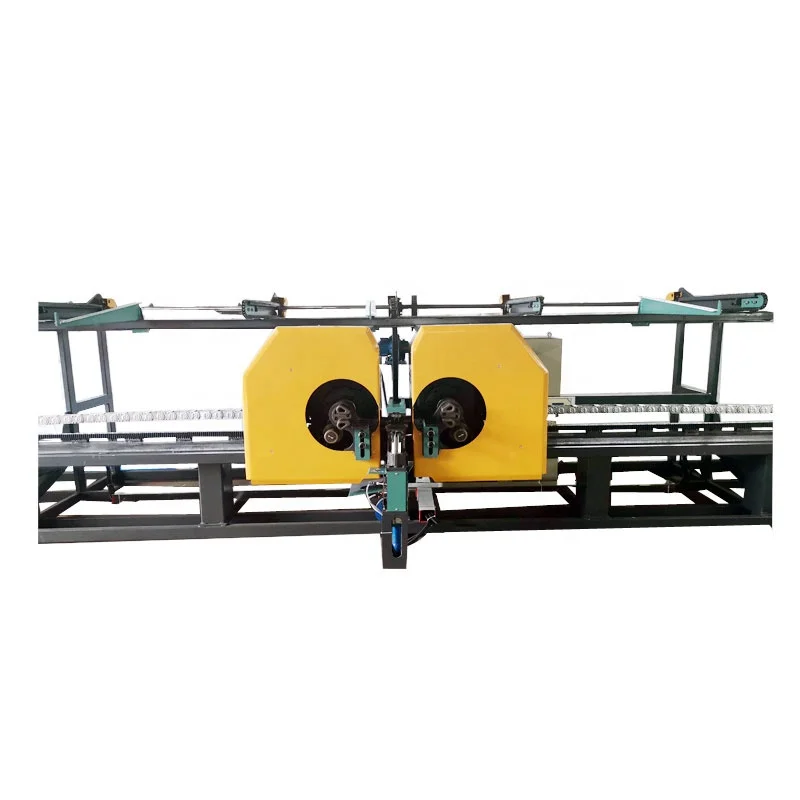

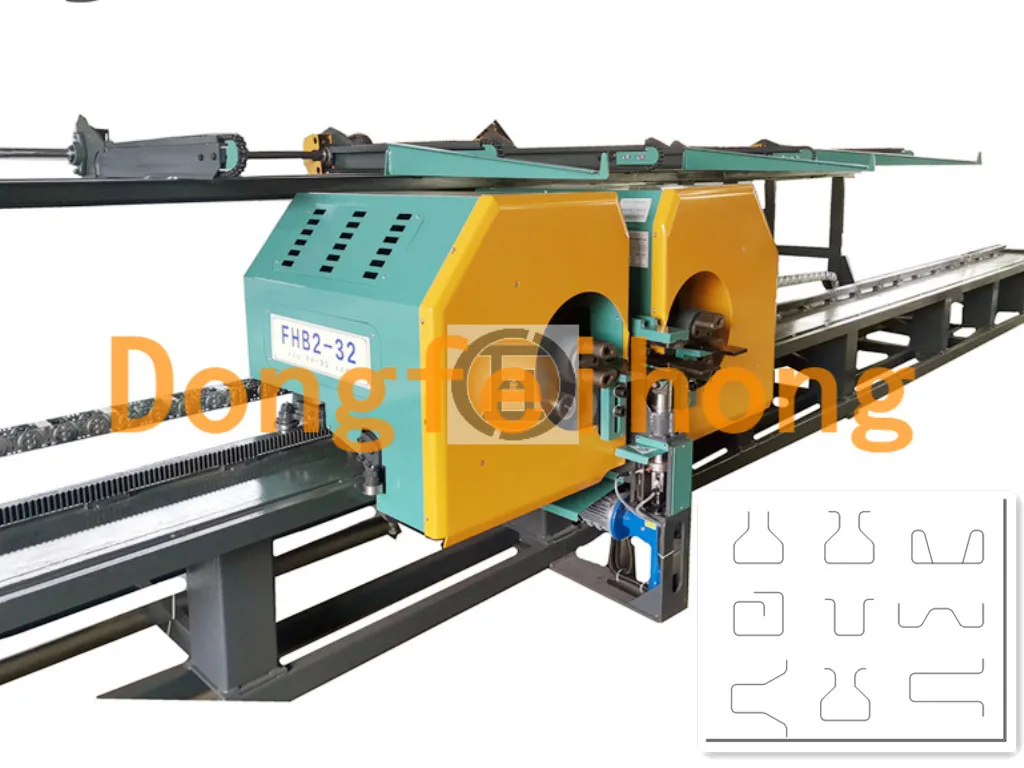

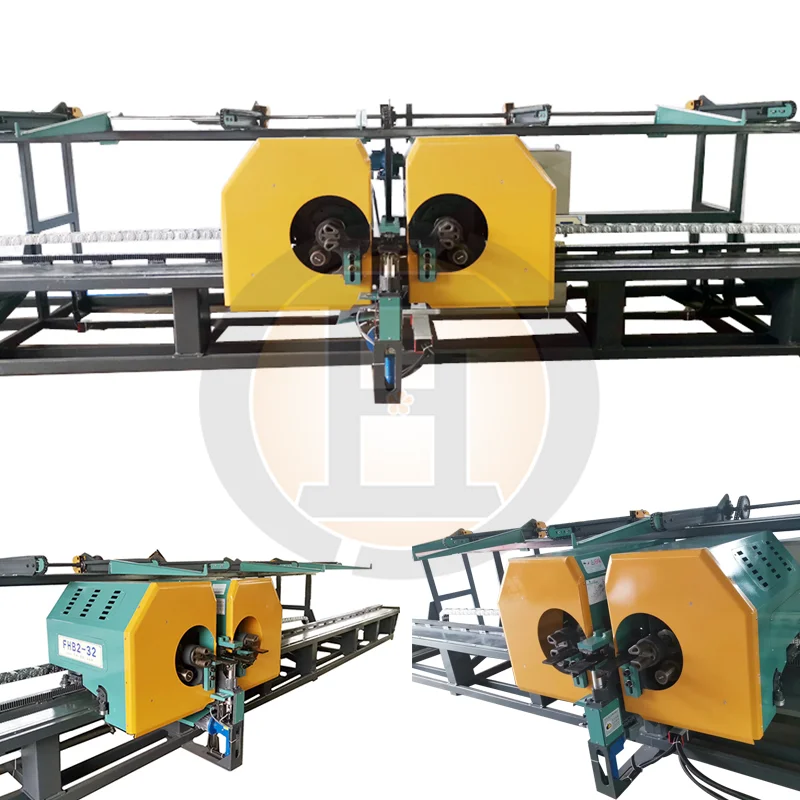

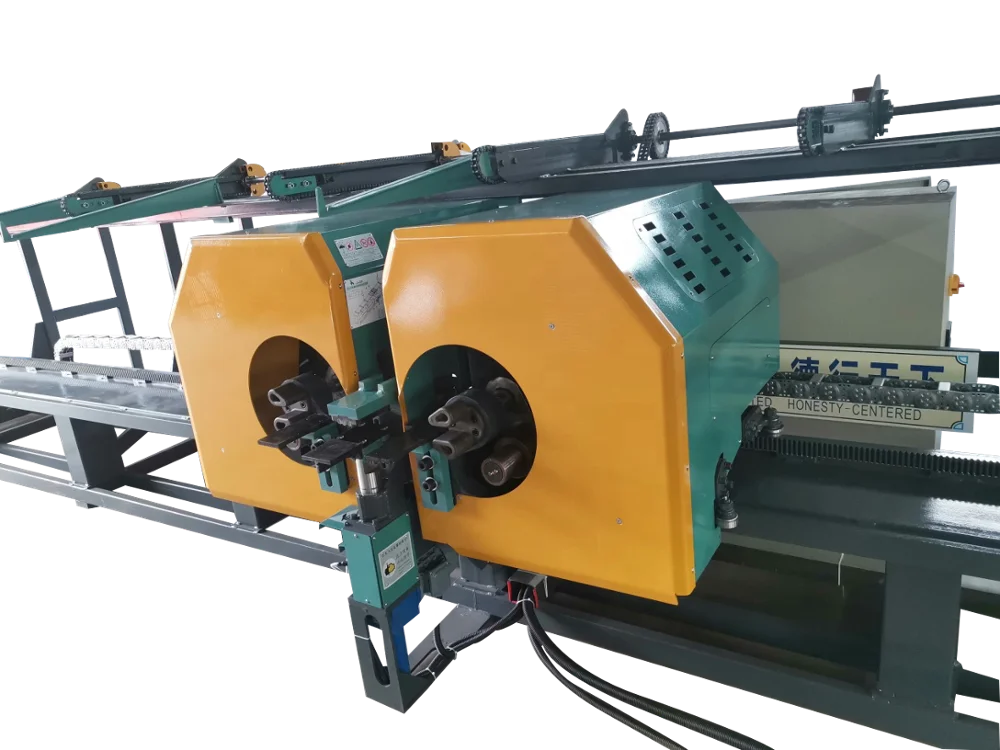

    CNC Rebar bending machine Description



CNC Rebar bending machine is for bar processing equipment, mainly used for bending straight bar Φ10-32mm, adopt PLC control system, very easy to operate. It ensures the processing accuracy and production efficiency. Meanwhile, reduce the manual use, and improve the management level on the on-site construction.

 Bending centers are widely used in various types of construction and construction projects. Major customers are involved in key national construction projects such as highways, railways, water conservancy, and port bridges, and are highly praised by customers domestic and abroad. The entire machine’s operation is very simple. It can store up to hundreds of graphics; and once set to repeat use by touch-screen control panel, the operation is very handy. The two-head vertical bending center has realized the high-precision two-way bending work in one working unit at the same time. In order to guarantee the processing efficiency and controllable precision of the equipment, a bending host specially equipped with a dual CNC servo positioning system can move at the same time and achieve higher efficiency. The two bending hosts work simultaneously and can simultaneously bend the working requirements of multiple reinforcing bars. Mobile bending host, bending length can be freely fixed, servo control, flexible steel locking mechanism, to ensure accuracy. The integrated high-strength moving track design has a high degree of automation and greatly reduces labor intensity.

Model				DFHB2-32A
Overall Size				12000*2155*1690(L*W*H)
Working Voltage				380V customizable
Installed Power				15.5KW(working power 5KW),50-60Hz
Bender moving speed				0.1-0.5m/s
Bending Speed				30°-48°/S(5-8r/min)
Overall Weight				4.5tons
Min Length scope of the stirrup side				70mm
Max bending angle				Upward bending  0-220° Downward bending 0-120°
Bi-directional bending (up or down bend)				Φ10mm-Φ28mm
Unidirectional bending (upward bending)				Φ28mm-Φ32mm
Min. Space between stirrup side				¢10 560mm ¢32 620mm
Max bending length				10.8m
Feeding speed of storage convey table				0.6m/s
Load capacity of storage convey table				3T
Working Temperature				-10℃—+50℃
Processing ability	Bar diameter ( mm)	Φ10	Φ12	Φ14	Φ16	Φ18	Φ20	Φ22	Φ25	Φ28	Φ32
	Bars Quantity (pcs)	6	5	4	3	2	2	2	1	1	1



    Main Features

1) Using the PLC control system, the two-way bending machine can realize the continuous bi-directional bending of the same work surface, and it can meet the bar bending in many fields which is convenient for manual operation, such as high-speed, bridges, nuclear water conservancy, and civil buildings, etc.

2)A moving mechanism with a servo motor is mounted on the side of the main body & head frame to provide moving force to the head.

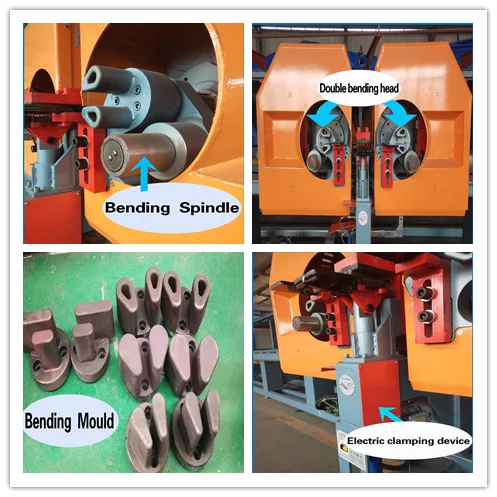

3)The bending spindle adopts spline design. The spindle itself is made of high-quality alloy steel which is made by special technology, featuring high strength, wear resistance and long service life, providing sufficient torque output for rebar processing.

4)The telescopic rod-type telescopic mechanism uses a telescopic motor as a power source to drive the flexing of the main shaft. It uses a pure electric drive to replace the existing external air source and the way the air cylinder drives the bending mechanism can overcome the natural weather, objective external conditions to normal and efficient use. The structure has simple structure, convenient installation and adjustment, high stability, small starting impact, smooth transmission, low noise, high safety production coefficient, clean and environmental protection advantages.

5)It can process Φ10-32mm rebar. The device is integrated with the bending machine. The moving is controlled by the CNC servo control system, and the precision is accurate which can be bent in both positive and negative directions.

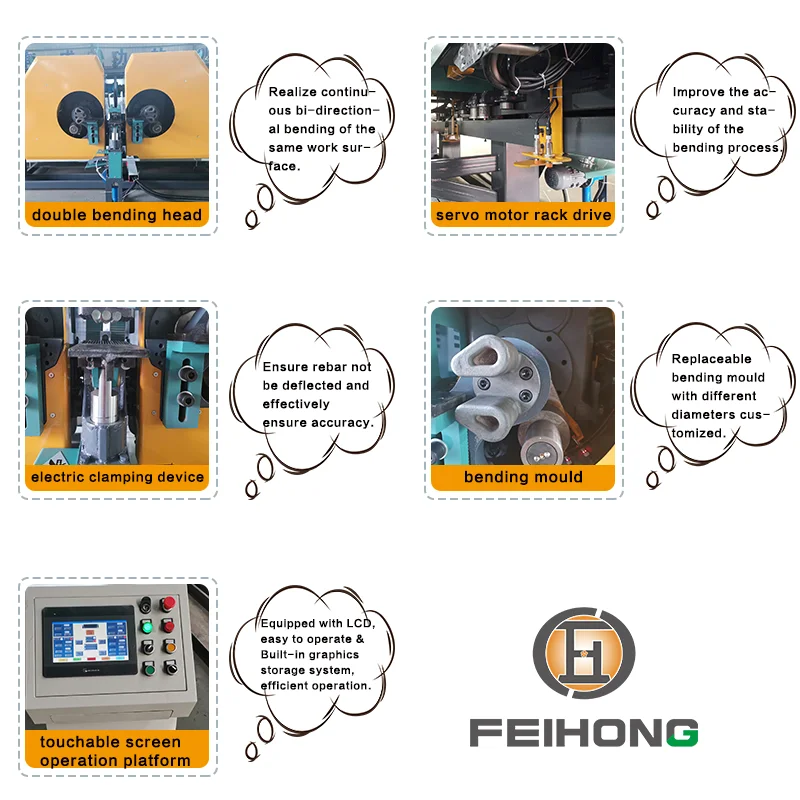

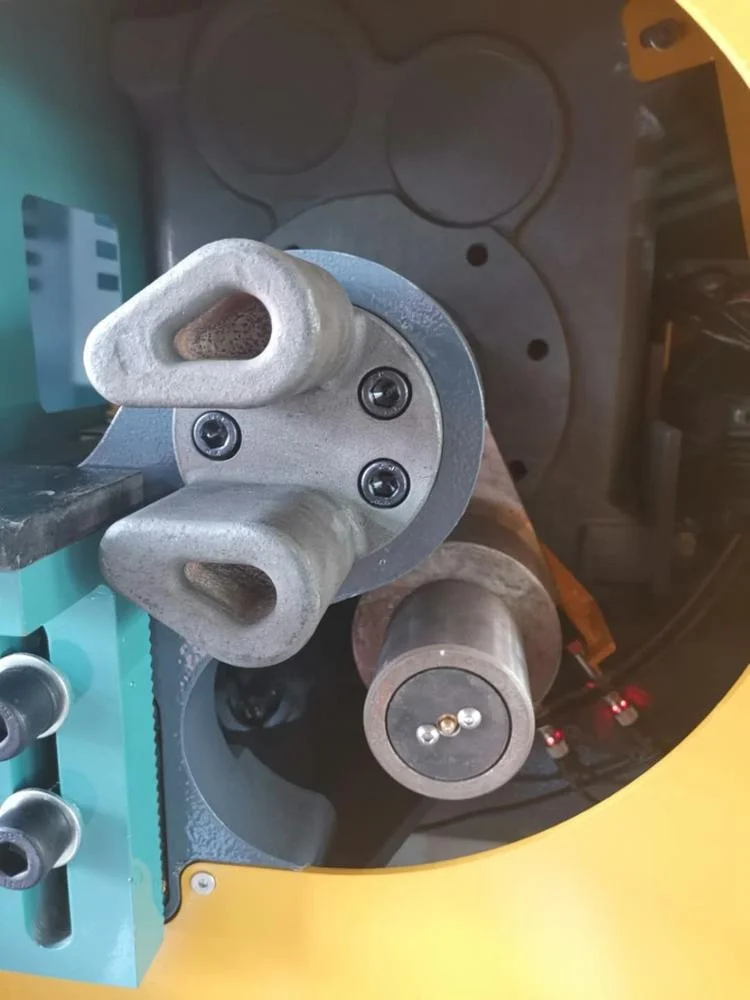

    Details of product
