1.4.3 inch Large full touch screen for your easier operation
2.APP control through WiFi connection,more advanced
3.Work offline with USB flash
4.1000g big cutting force optional
5.AAS automatic contour cutting optional
Product Name
24" Touch Screen Camera Contour Cutting Plotter for Car Wrap materials WiFi Optional
Media way
Optional Floor Stand
Mainboard
32-bit ARM7 CPU ,128Mb,high-speed cache memory
Driver
High speed,big power step motor,micro-step driver
Control panel
4.3" Full Touch Screen
Max paper feed width
750mm
Max cutting width
650mm
Max cutting speed
800 mm/s
Cutting force
10-500g(digital adjustment)
Mechanical precision
0.025 mm
Repeatable precision
<±0.025 mm
Type of plotter pen
All types diameter 11.4mm plotter pen
Plotter instruction
Compatible DM/PL,HP/GL
Interface
U disk / USB / serial port / WiFi / Bluetooth
Power supply
AC220V/110V,50Hz
Power consumption
<80W
Knife
Teneth Imported blade
Operating enviroment
Temperature:5-35℃,Relative humidity:30%-70%
Package size
1060*340*400mm
Gross weight
22kg

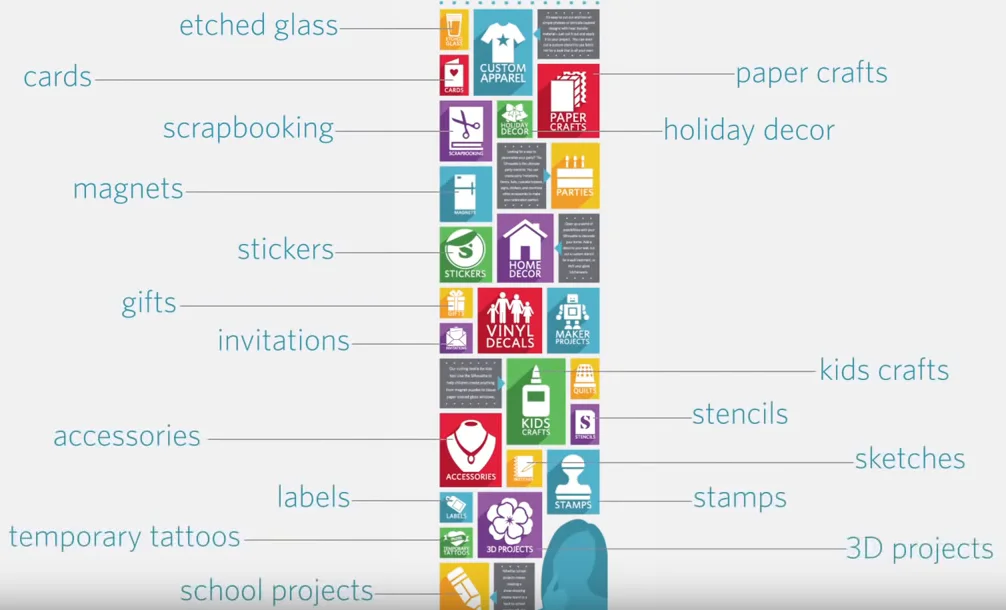

Main Application
Our Company
Warehouse
Our Warehouse
Team
Our Team
Packing & Delivery
Our Certifications
Exhibition Photos
Dubai exhibition in 2018
Guangzhou DPES exhibition in 2019
Shanghai APPPEXPO exhibition in 2018
Our Services
1.12 months warranty on whole machine/parts.
2.All extra parts for the machine can be purchased with agent price from Teneth.
3.Life-long support for the software and machine maintenance.
4.Free and Professional Training at our Factory under the relaxed condition.
Teneth is professional cutting plotter manufacturer in China, and we have been in this line over 8 years. The main products is cutting plotter.
No matter our sellers, workman or our technicians , after-sales service people, we all devoted all of our best to serve every customer. Teneth products focused on mid-high level customer, but our machine quality still improving.
We offer high quality machine and good price to our dealer to enter big market.
We are looking for global dirtributor ! Welcome to join one of us !
Address: No. 161, Pinghu street , Longgang district, Shenzhen city, Guangdong province, China. Nearest Railway station: Pinghu station Nearest Metra station: Dan zhutou (Line 3)
Welcome to visit us ! No matter machine or technical training !
