Seaweed fine powder pulverizer mill

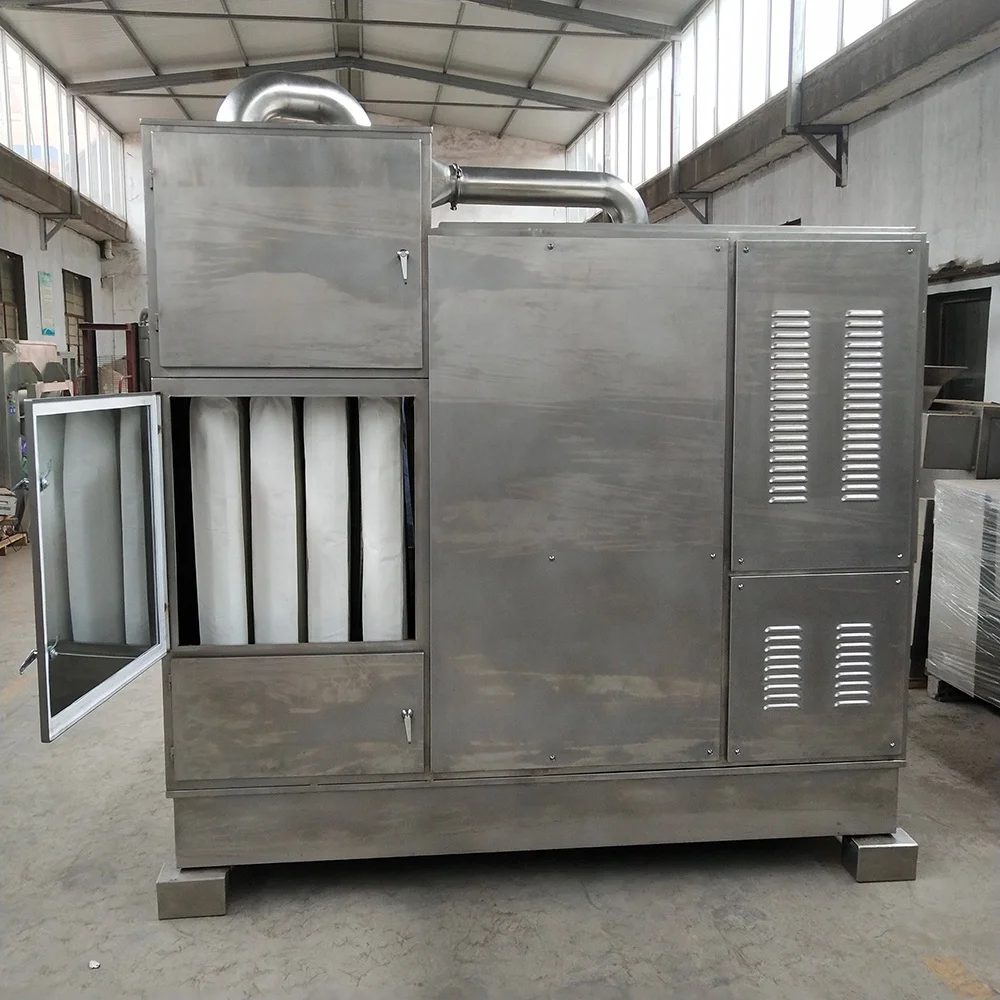

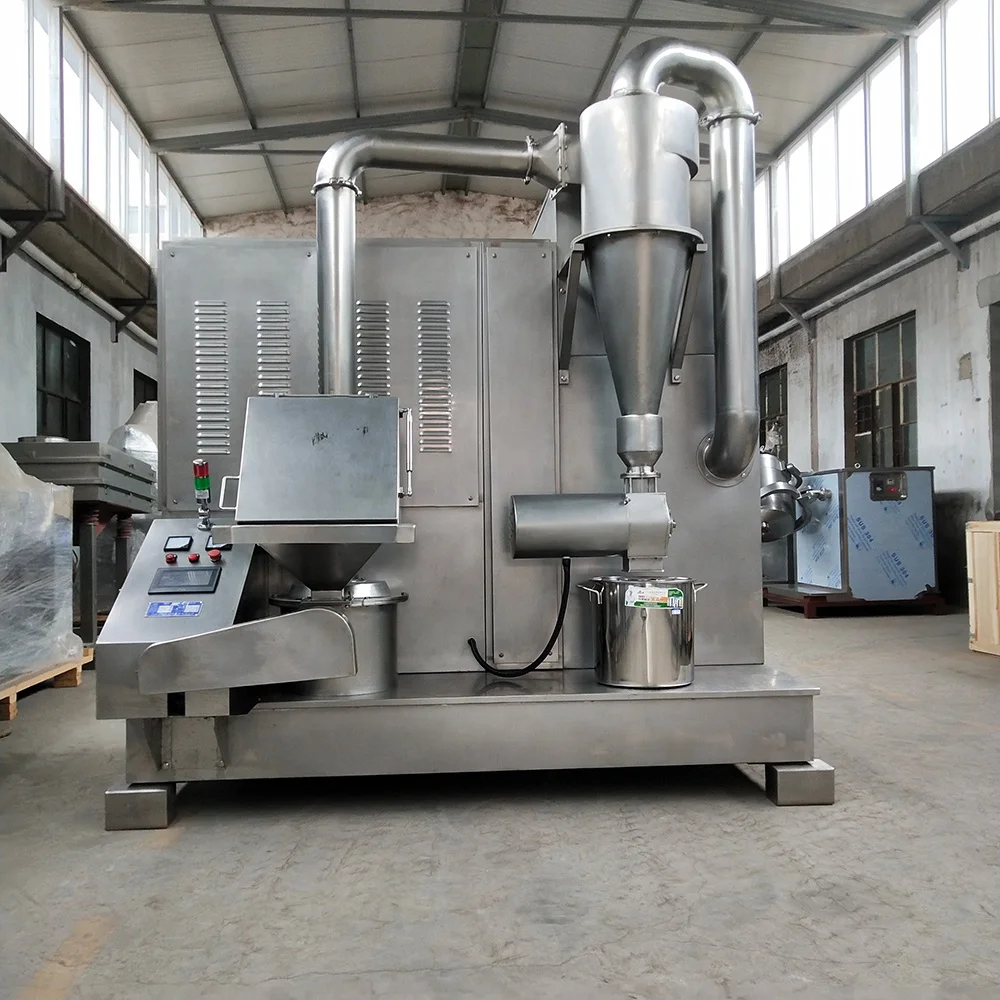

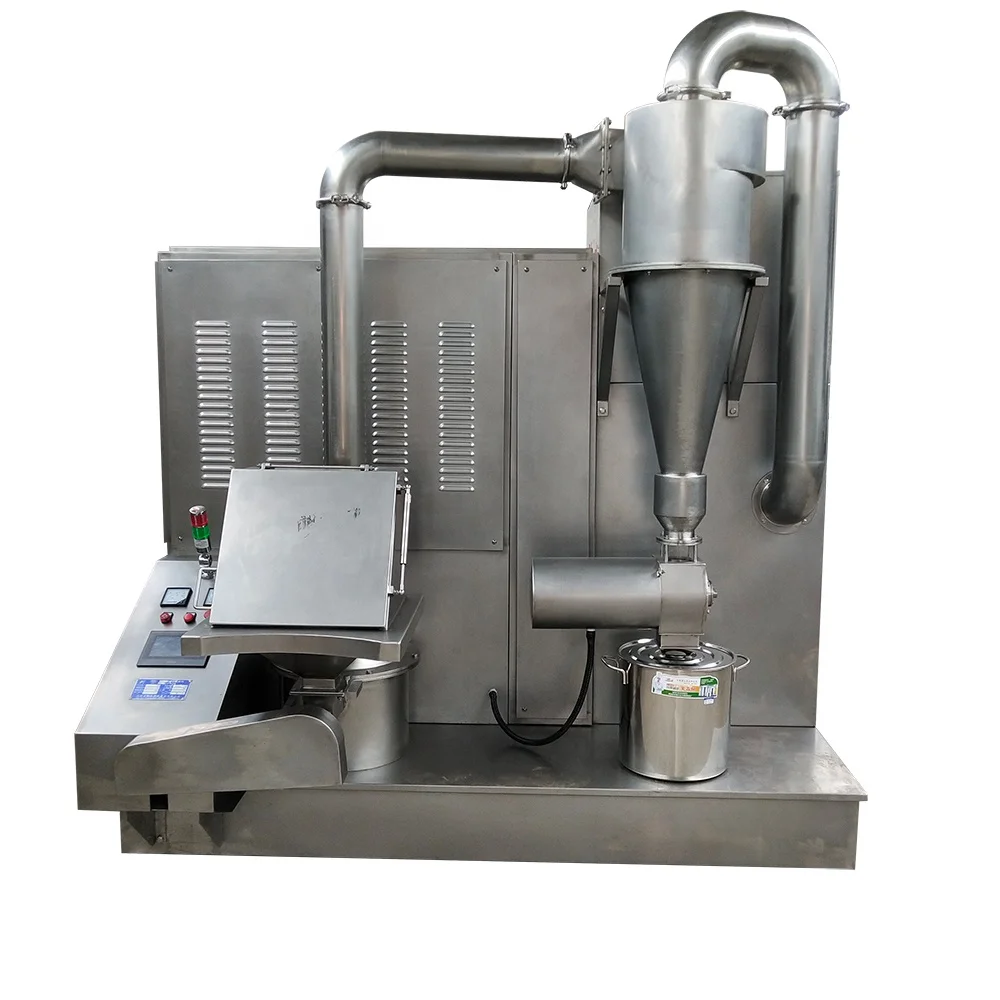

  Model WFJ-15/20 Micronizer consists of main motor, auxiliary motor, and electrical control cabinet with the capabilities of winnowing, non-sieve or mesh, equality of granule size, and continuous processing etc.

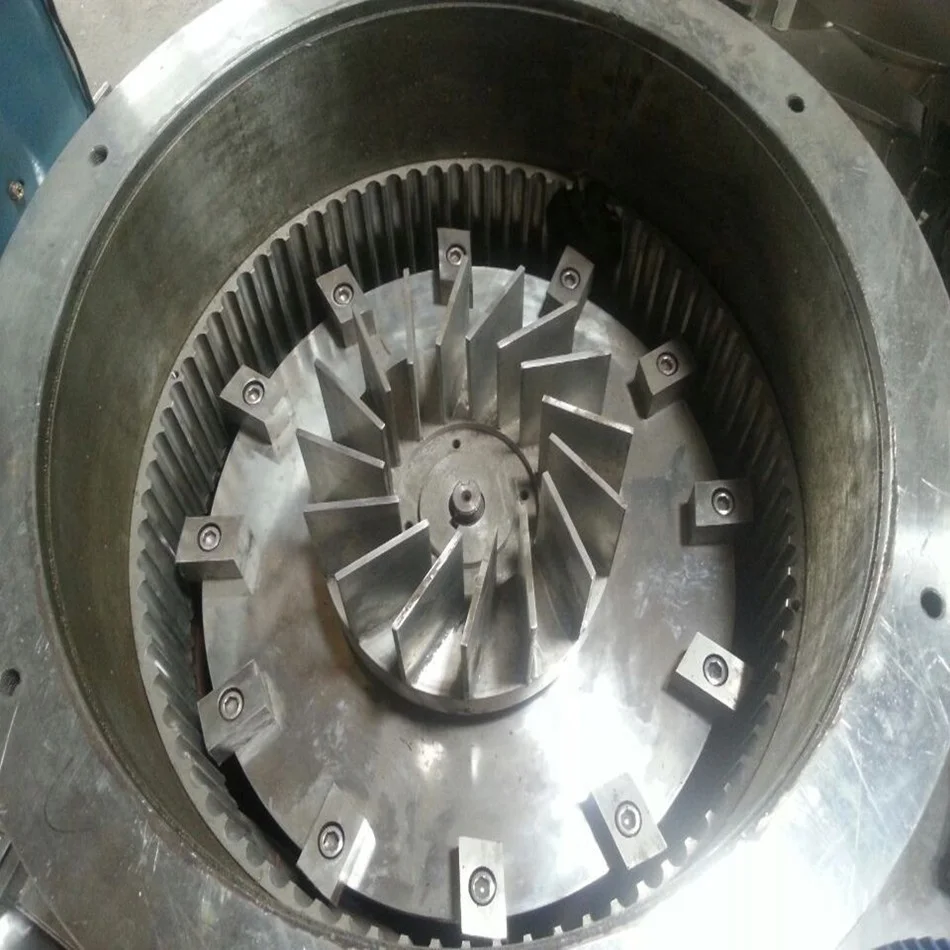

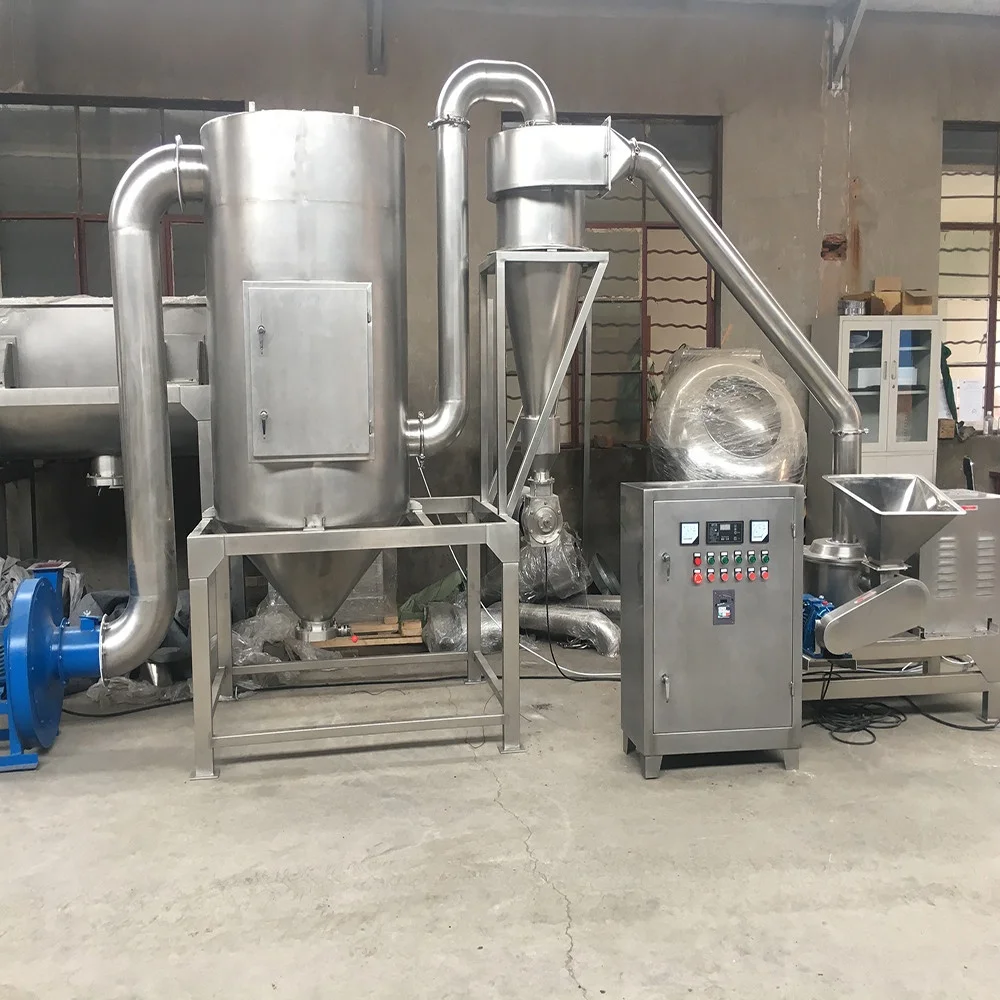

  By means of relative motion between flexible and fixed fluted discs, material is crushed through impact and friction of the teeth and impact among the material.  The crushed material flows into the cyclone separator by the gravitation of blower and rotating centrifugal force, then discharges through gate blower. Dust comes into the pulse dust evacuator box, filtered and recycled by the filter cylinder. The crushing size can be adjusted by the screen.

  Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise.

One year guarantee for whole machine

24 hour technical support by email

Calling Service

User manual and detailed video/CD

If you want to send inquriy to me about our powder grinding machine , could you please tell me?

1) What material you want to grind, is it dry? what is the size of feed material ?

2) What capacity you expect by powder grinding machine? (kg/h)

3) What mesh or mm or micron(size) of the powder you want?

4 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V... (We only provide 3P, because our machines are all for industrial use,not for family.)

5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.

Then our communication will be more efficient.
