Hayear FHD 34MP 2K 60FPS HDMI Compatible USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring
- Category: >>>
- Supplier: Shenzhen Hayear Electronics Co. Ltd.
Share on (62213829867):
Product Overview
Description
Noting:
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)
Product Description
Features | |
Model | Camera with HDMI USB2.0 two output |
Image format | jpg |
Image resolution | 34 MegaPixel |
Video format | MP4(for TF card) |
Video recorder | 2K@30FPS, 1080P@60FPS |
HDMI Video resolution | 1920*1080 @ 60FPS |
USB Video resolution | 1920*1080@30FPS; 1280*720@30FPS; 640*480@30FPS; 320*240@30FPS |
White Balance | Auto/Manual |
Light | Auto/Manual |
Exposure | Auto/Manual, value adjustable |
Color | Color |
Morror | Left/right,Up/Down |
Freeze | Support |
OSD | English/Chinese/French/Spanish/Japanese/German |
Line | different color,5 horizontal line , 5 vertical line,any positions |
Specification | |
Image sensor | 34, 21, 16, 14 megapixel Panasonic CMOS sensor 1/2.33 inch |
Effective pixel | 34 megapixel |
Pixel size | 1.335μm × 1.335μm |
Frame rate | 60fps |
Definition | FULL HD |
Housing | metal |
Lens | C/CS |
Video format | MOV |
Digital Zoom | Support |
Brightness control | Auto/manual |
Color | R/G/B adjustable |
Film and record | Support |
Cross cursor | Support multi-color, size adjustable |
Transverse and vertical line | Support multi-color, 5 pcs of transverse lines/vertical lines, moveable Different color,5 horizontal line , 5 vertical line,any positions |
TF card interface | Max 64G |
HDMI interface | Standard HDMI output (Type A) |
USB interface | Standard usb2.0 interface (Type B) |
Input Voltage | DC 12V |
This microscope camera is a 0.5x Reducing lens, which expands the camera's field of view. It can be used with C-Mount or CS-Mount camera in any pixel and placed in a binocular or trinocular microscope to expand its field of view. Can be installed directly in the biological or stereo eyepiece camera.
Specification
Magnification: 0.5X
Mounting Size: 23.2mm, 30mm ,30.5mm
C-mount Thread: 32TPI-UN-2A
Suit Microscope: biological microscope and stereo microscope
Feature
0.5X magnification to get a more wide view of microscope
C-MOUNT adapter to connect CCD camera or Digital eyepiece to microscope
Including two adapters from 23.2mm to 30mm and 30.5mm

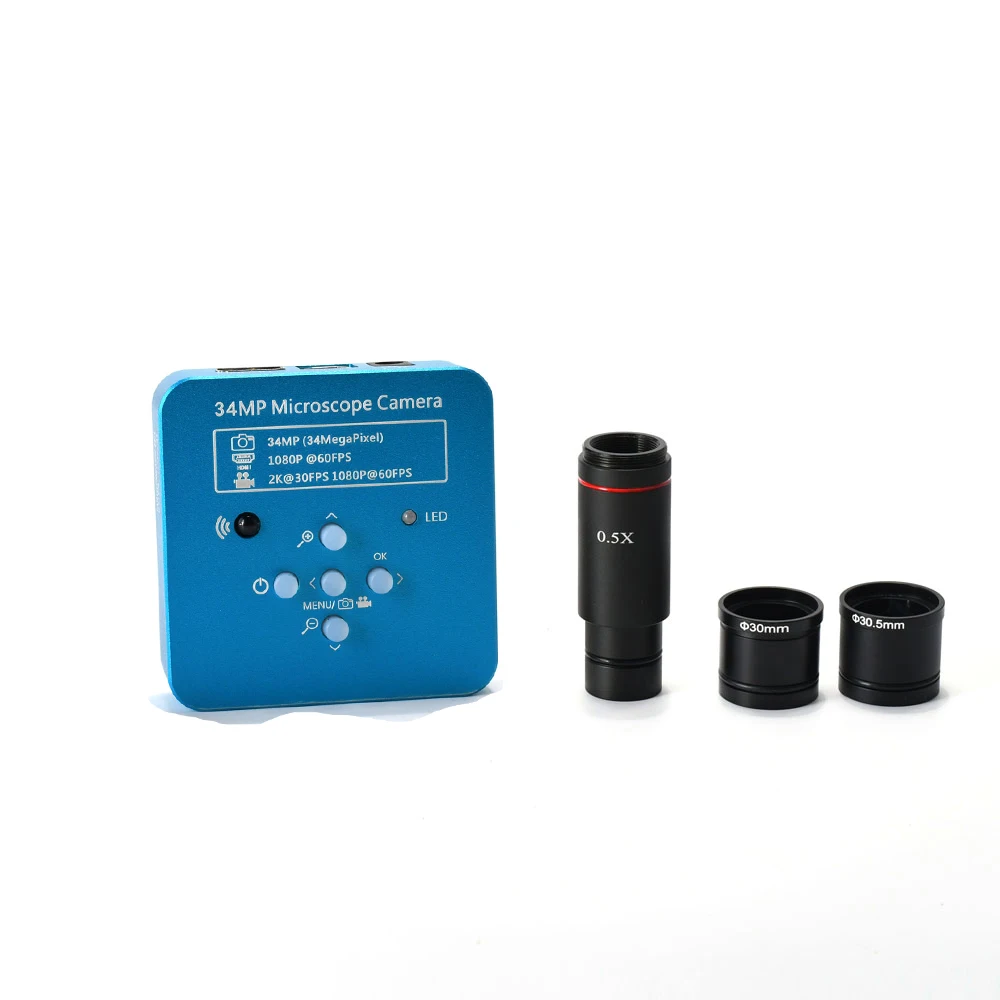

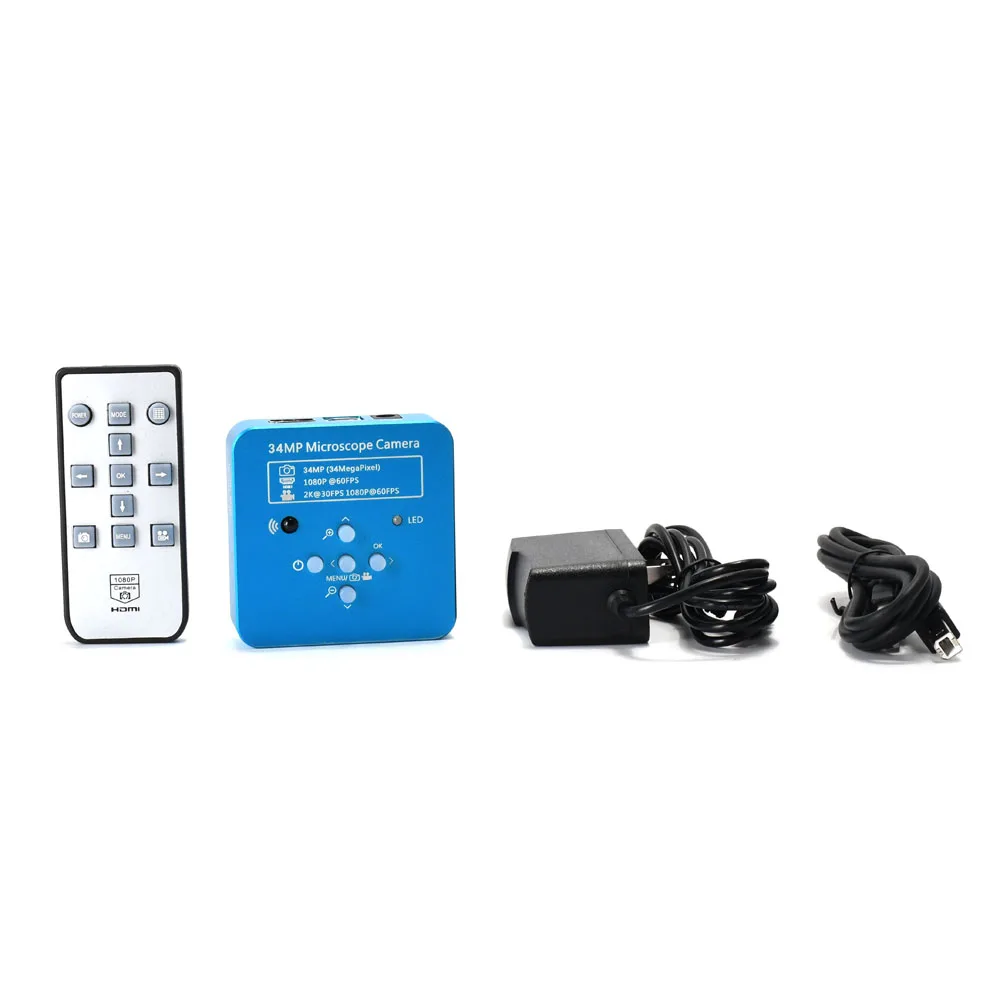

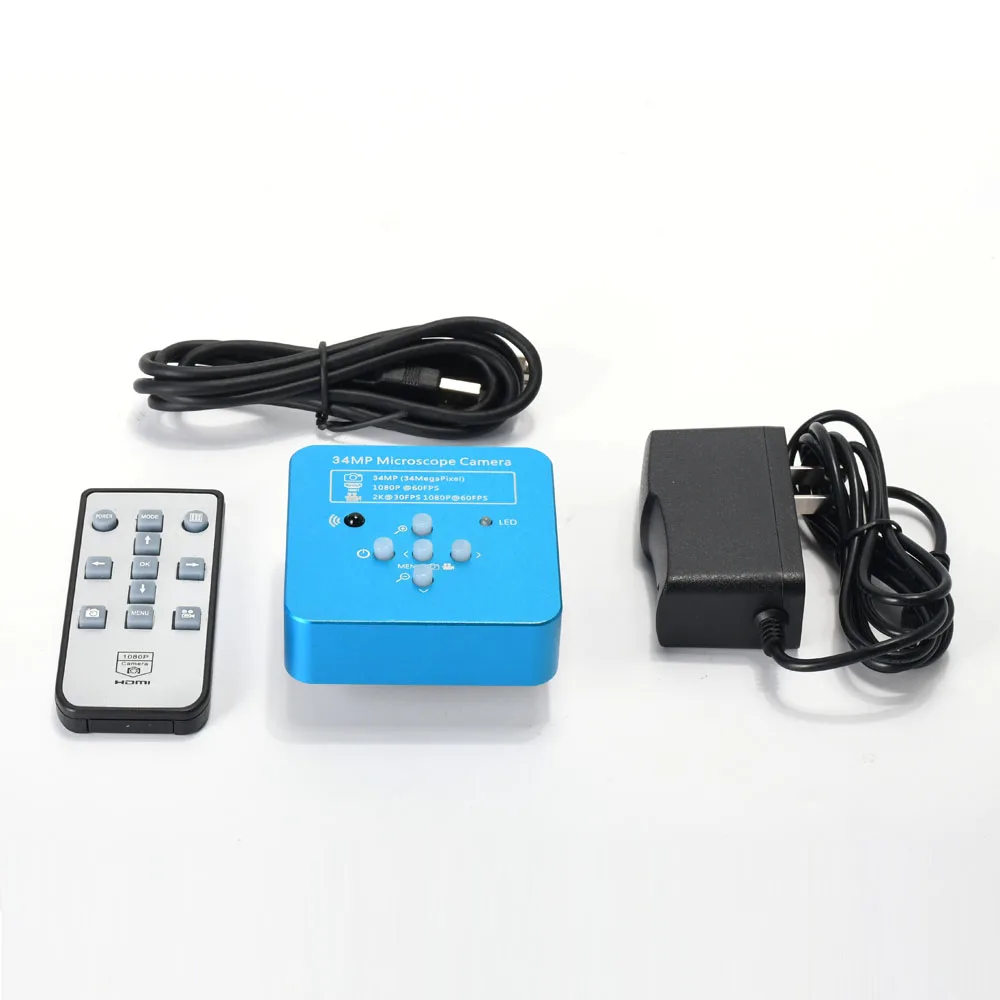

Package including:
1 x 34MP Microscope Camera
1 x Power supply
1 x USB line
1 x Software DISC
1 x Remote Control
1 x 0.5X C-MOUNT adapter
1 x 23.2mm to 30mm adapter ring
1 x 23.2mm to 30.5mm adapter ring
Detail Images:
