Product Overview
Description
Thick Film Water Heater Tube Element Custom Made Heating Elements
to get 95℃ Boiling Water 480ml per minute
Descriptiom

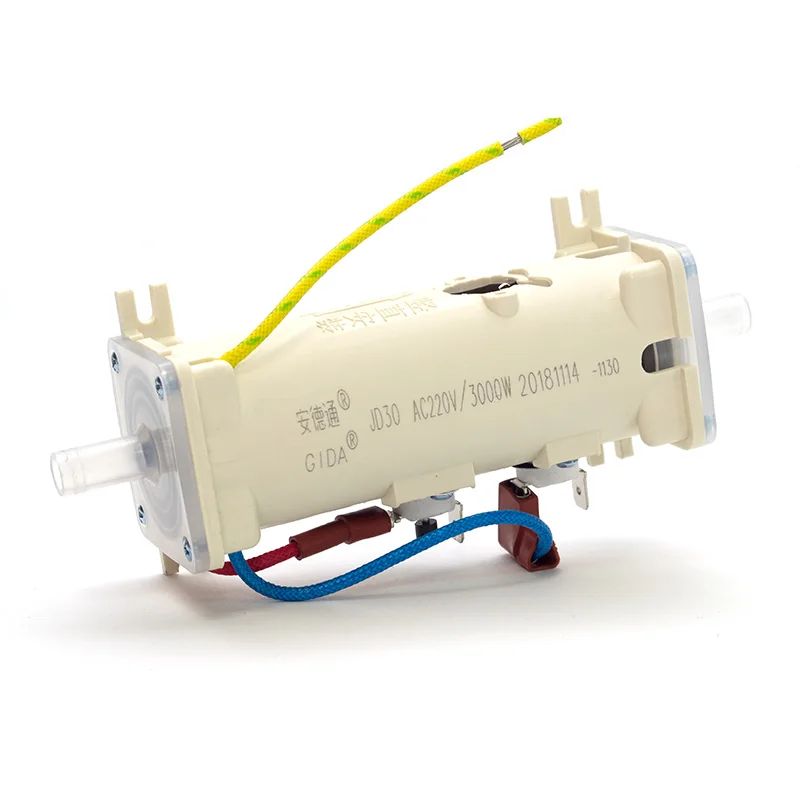

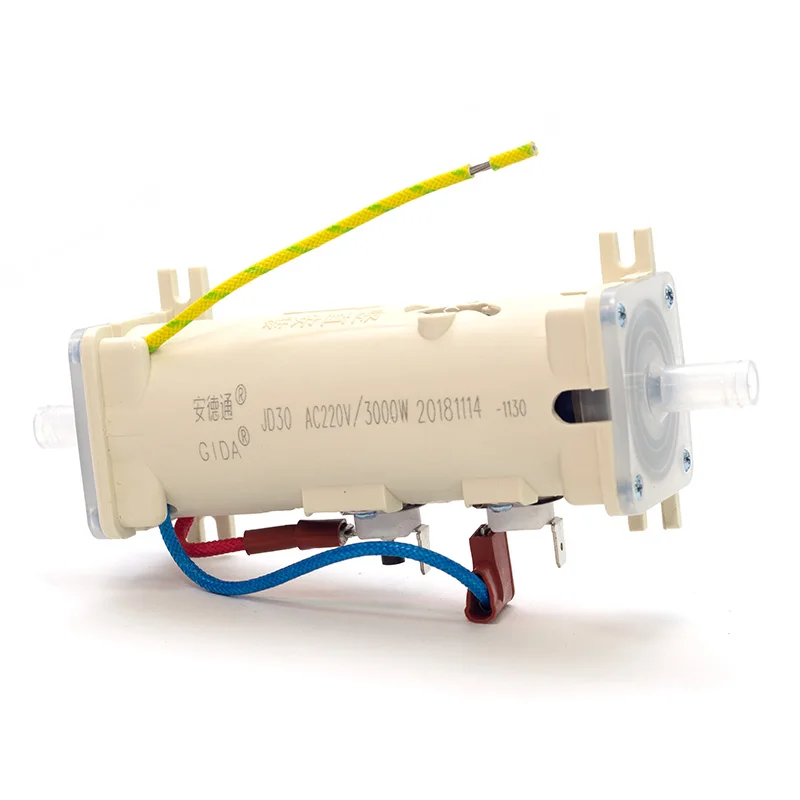

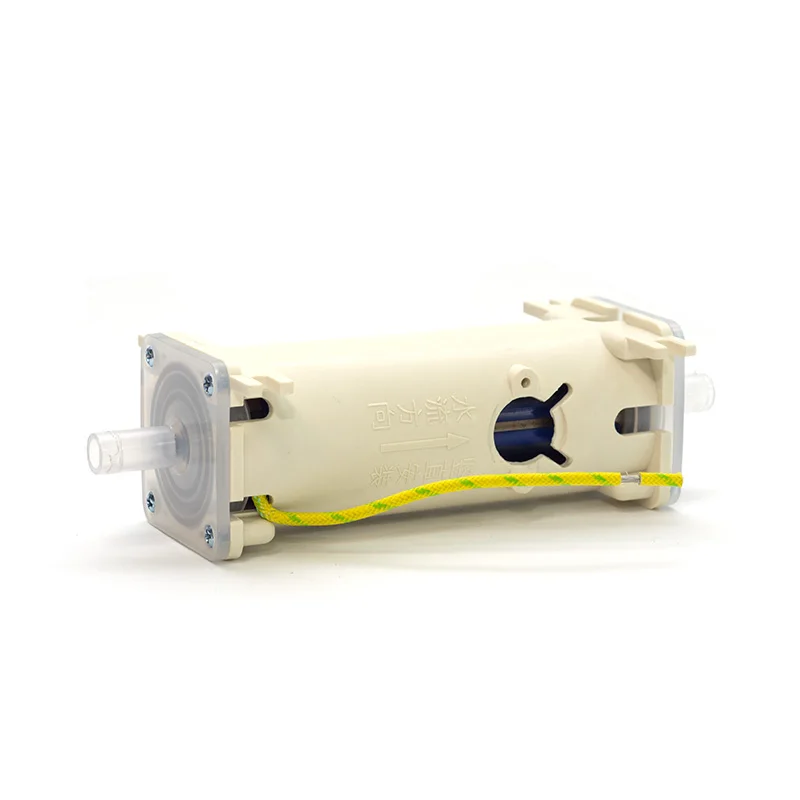

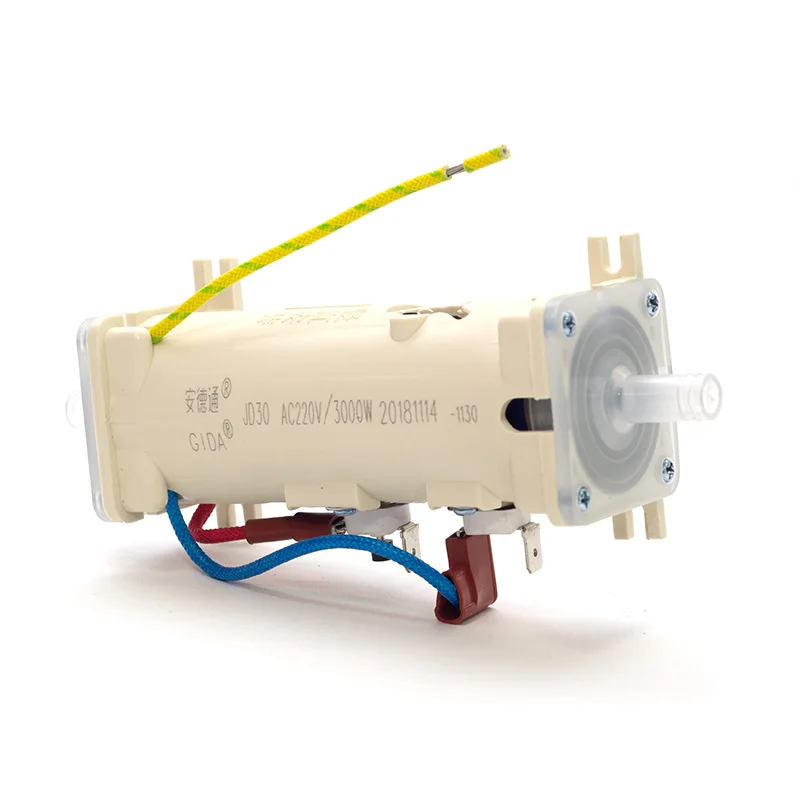

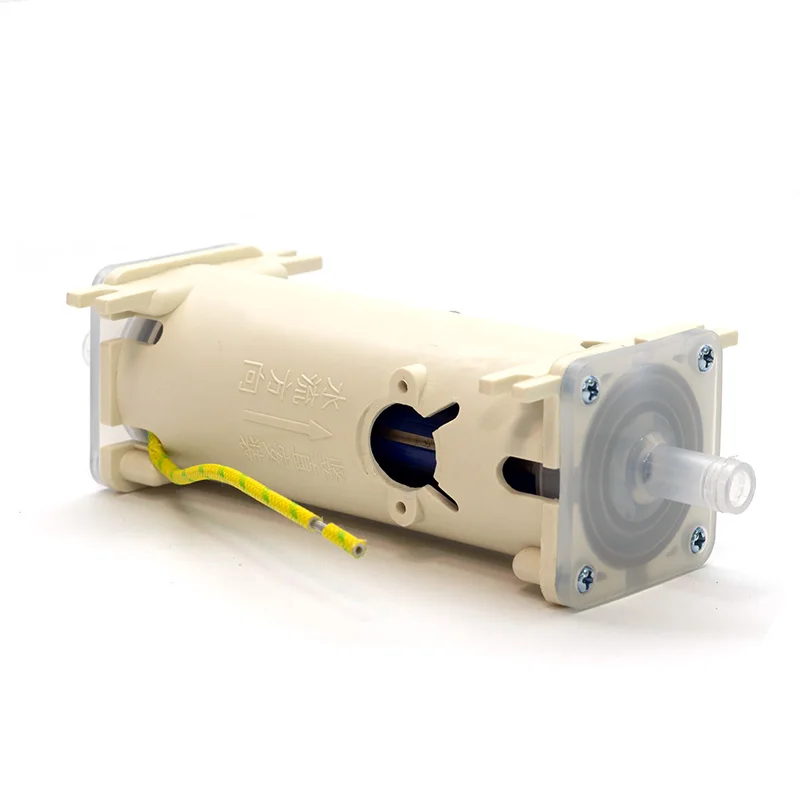

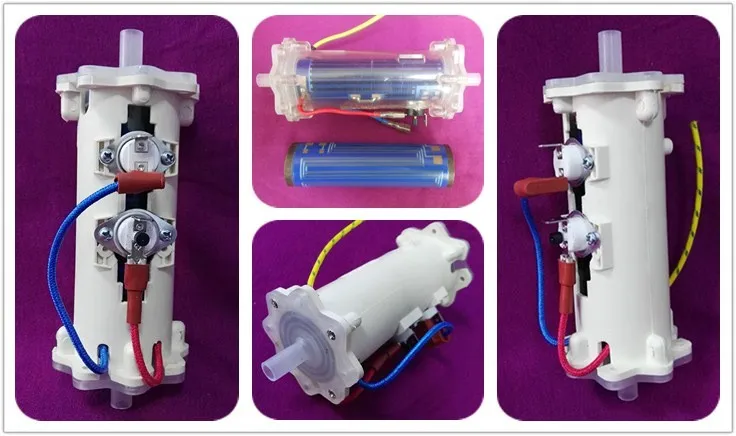

Thick Film Water Heater Tube Element Custom Made Heating Elements is made up by Thick Film Heating Tube, Thermostats, Lead Wires and Plastic Shield. With the tubular structure, it can heat water flow inside tube, by the electric heating circuit sintered between with 5 isolation layers on tube surface.
For applications where space is limited, this simple profile heater offers high thermal power density and fast response times to heat up or cool down (due to low thermal mass)
It's called "the most impact electric heating element", it's the ideal instant water heating element to replace traditional Immersion Electric Water Geyser Heating Elements.
Compared with traditional immersion water instant heating element, Thick Film Heating Element is advance in larger heating area (Tube Structure), higher power density(40w/cm²), faster Temperature Response (up to 150℃/S), Longer Life Span (above 10,000 hours) and better Thermal Transfer Efficiency(>96%).
Electric Thick Film Water Heating Element is special designed for Instant Water Dispenser, Water Geyser, Water Purifier and other home appliances water heaters.
With its tubular structure, it can heat water flow inside tube, by thick film electric heating circuit printed and sintered on tube surface. Its profile is simple and compact, it's easy to install and save lots space.
It’s equipped with automatic and one shot thermostats to prevent over heating.
You can get boiling water in 3 seconds, in the rate 550ml per minutes (3,000w).

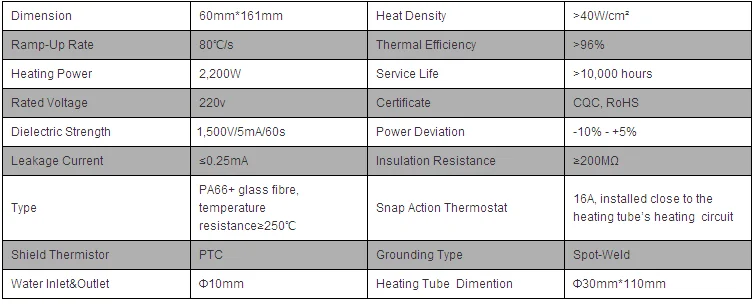

Specification

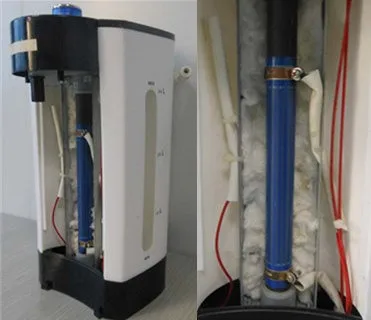

Electric Water Dispensers just require such kind of water instant heating tube element which takes small space and heat water quickly. It's the ideal heating element to replace immersion water heating tube elements.
Some clients have successfully applied UL/CE certificates for their finished products.
Related Products
Available Thick Film Heating Tube Element inlet and outlet diameter are 10mm, 16mm, G1/2 (20.95mm)
Avaiable power watts are 2.2kw, 3kw
Mainly applied in Water Flow Instant Heating. Due to its long life time (more than 10,000 hours) and higher thermal transfer, it's ideal to replace traditional immersion water heating elements.
Applications

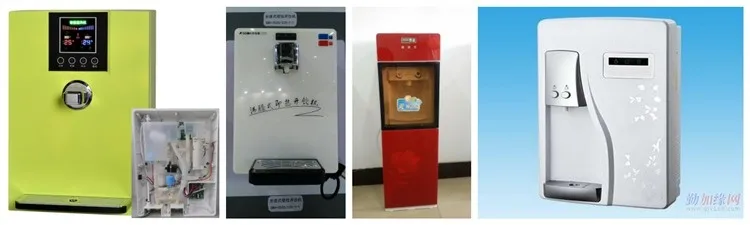

The most compact instant type heating element is the ideal heating element for novel and fashionable home appliances such as Water Dispenser, Water Purifier, Coffee Maker, Milk Machine, etc.
Some of our Thick Film Electric Heating Tubes are individual customer solutions which are designed to match our customers’ individual and specific requirements. During the development and application stages we work closely together with our customers in a partnership based on trust and mutual confidence.
About Us
Xinxiang Jieda was founded in 2012, which is a high-tech manufacturer that specializes in design, research, produce and sales rare-earth metal thick film electric heating tubes & elements.
Based on our fully mastery of thick film printing technology, we have become the first manufacturer to mass produce Stainless Steel Thick Film Heating Tube in China.
Our Thick Film Heating Tube & Heating Element work excellent in the fluid heating with continuous water. Due to its tubular structure, it can heat water inside tube, by electric thick film printed and sintered on tube surface. They are called the most compact instant type electric heating elements -- Small Size, Easy to Instant, High Heating Utilization, Safe, Stable Performance and can be Customized.
Those products are widely applied in water-boiling machines, drinking water dispensers, coffee makers, water heaters, water kettle, instant electric heating faucets, solar water showers and other electric appliances.
It can successfully replace the traditional immersion, cast aluminum, quarz and other heating elements. Make it possible to design more compact profile water heater products, increase energy utilization and save space.
OEM & ODM Service
Heating Power, Voltage, Stainless Steel Tube Dimension, Raw Materials and other special requirements can be customized.
Packaging & Delivery
------ Packed in Carton Box, placed on Wooden Pallet.
------ By Sea, FOB Tianjin Port, 40HQ, 40 GP, 20 GP, LCL, or Mix with Others Factory, no Space Waste, Save Freight Cost!
------ By Air, FedEx, DHL, TNT, UPS...
------ Support Global Dilivery!
