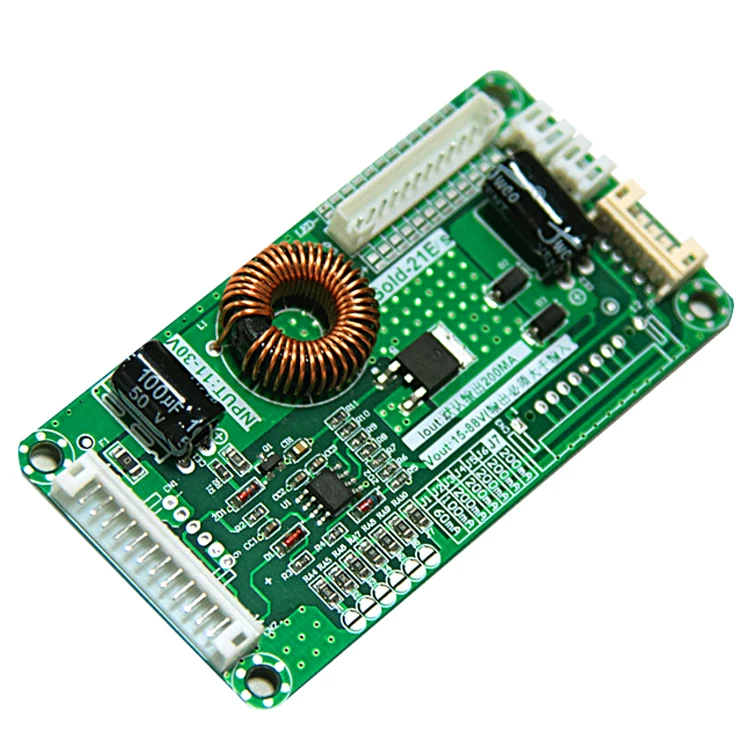

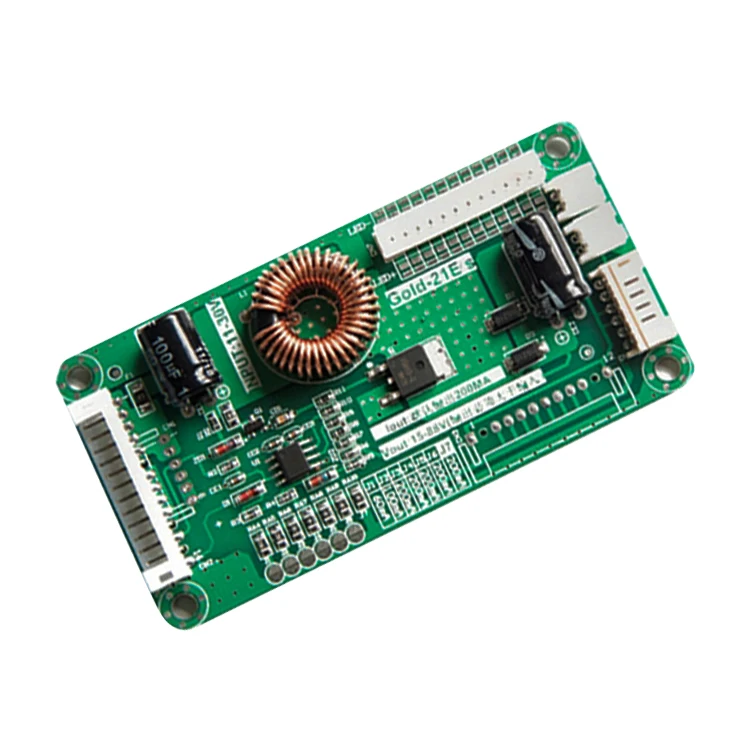

10 48 inch universal led tv inverter board constant current board for TV Gold 21E

LED tv inverter/ universal tv board/ constant current board for led tv   Gold-21E

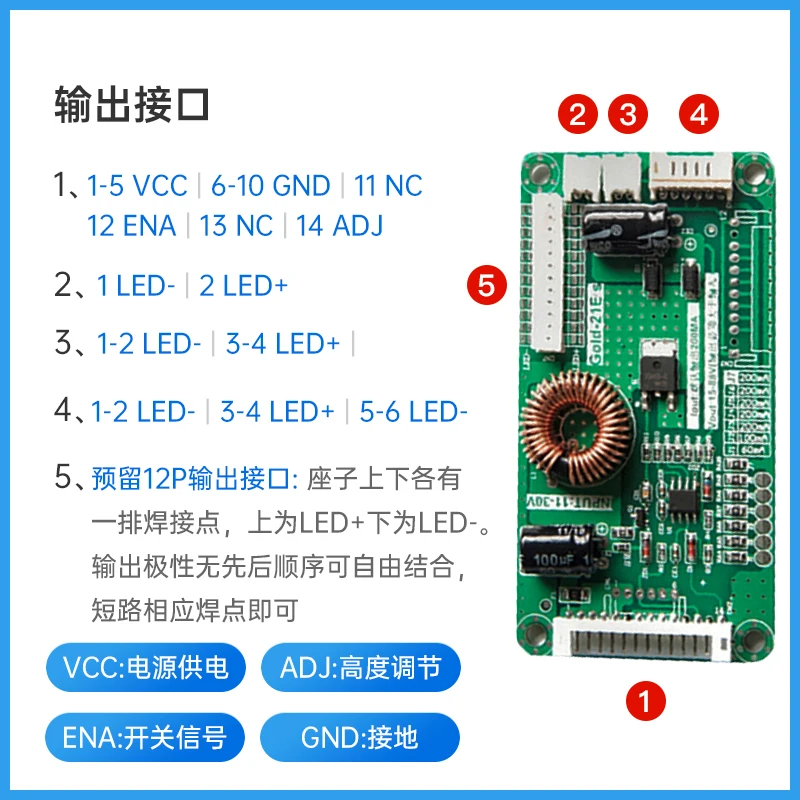

1. Connect the power, ground, and switch signals required by the boost board to the universal LED boost board.

VCC supply, ON switch signal, ADJ brightness control, GND ground

Tip: The same connection method as the LCD high-pressure plate

· The LED connection must pay attention to the interface definition (positive and negative) points, positive input power supply, do not reverse or wrong.

Packaging

Shipping

Air/Sea Shipment.

All orders are will be shipped within 5-15days after customers confirmed payment.

                    Your inquiry related to our products or prices will be replied ASAP.

                    •Well-trained and experienced staffs to answer all your enquires in fluent English.
                    •Any your customized LED board we can help you to design and put into product

1. We can ship the items by DHL, FedEx, TNT, UPS, EMS, Aramex and China Mail Post.

2. We need 1-3 days to process the goods after the payment arrived.

3. We are not responsible for any accidents or delays when goods were picked by logistics company.

4. The buyers should be responsible for the import fees when goods arrived at the destination.

All messages will be answered within 30mins.

If it's out of working time, please be patient, we will reply when we come back to work.

Please feel free to contact us via trademanager or email if you have any questions.
