Gluing→ End cutting→ Rough trimming→ Fine trimming→ Scraping→ Buffing
Specification
Model
full automatic
Functions
Gluing, End cutting, Rough trimming, Fine trimming, Scraping, Buffing
Workpiece thickness
10-60mm
Feed speed
13-20m/min
Workpiece width
≥60mm
Total power
9kw
Workpiece length
≥100mm
Air press
0.6Mpa
Edge height
15-65mm
Weight
1800kg
Edge thickness
0.4-3mm
Overall size
4600 x 1100 x 1600mm

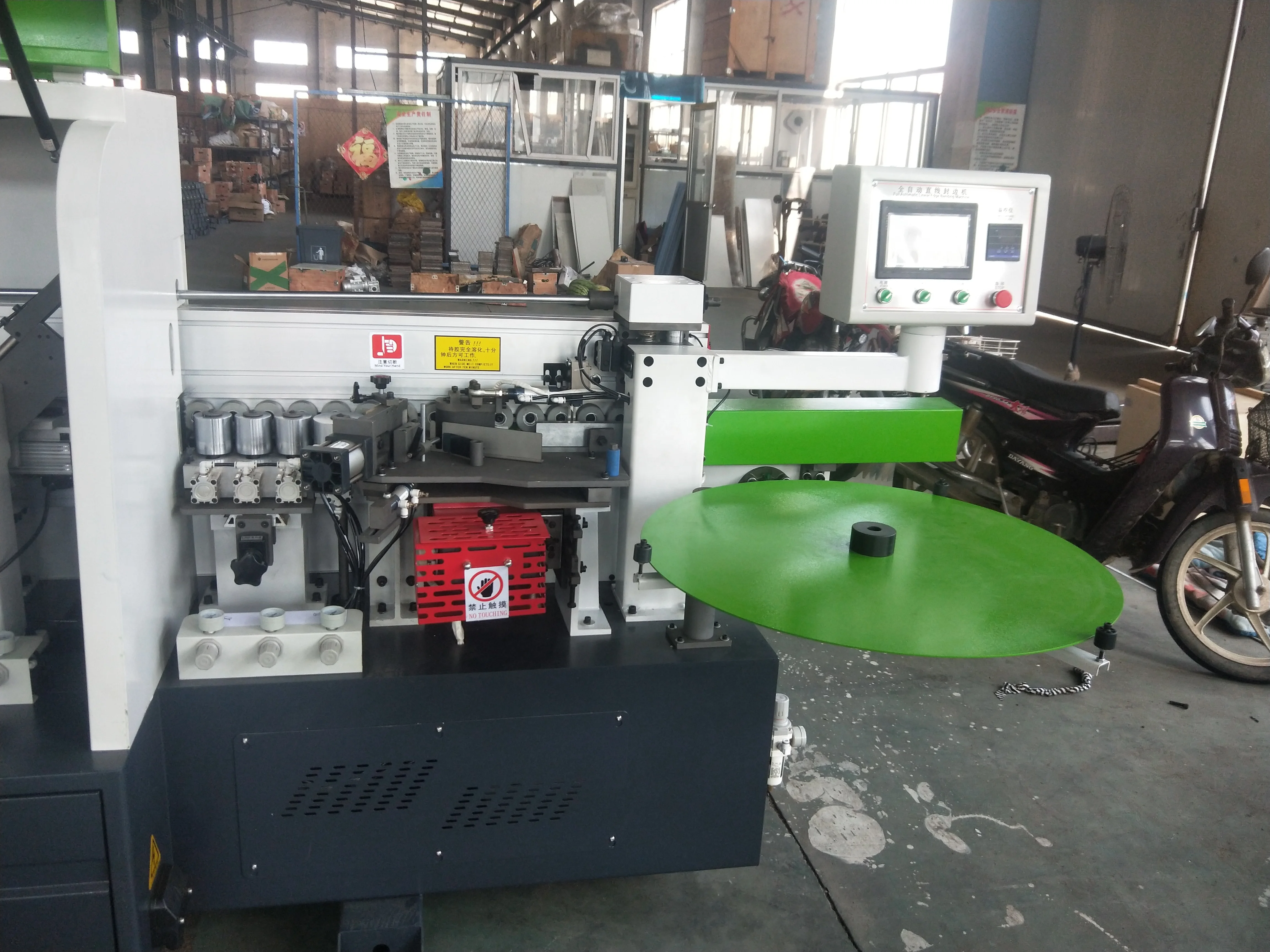

Details Images

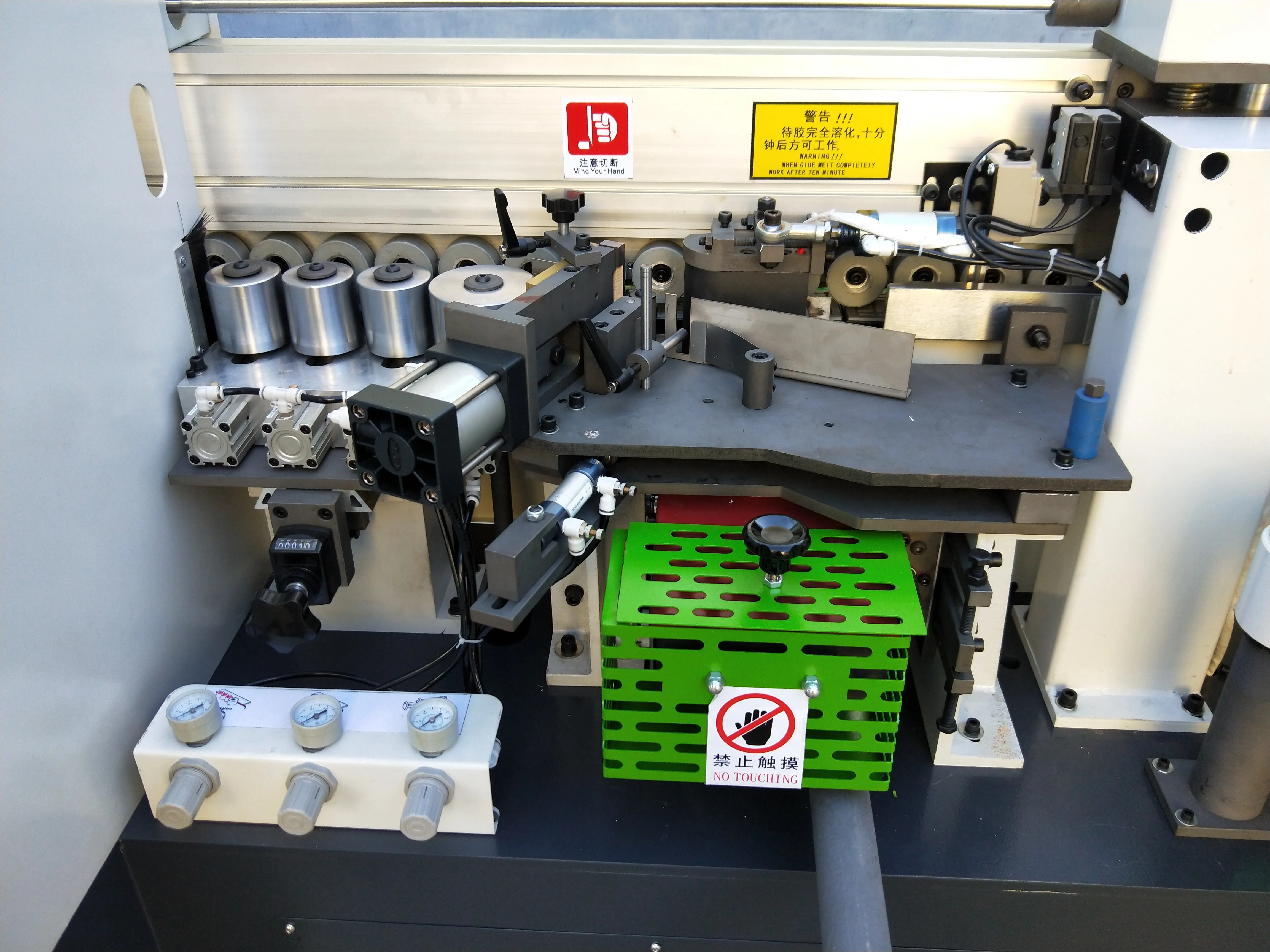

gluing and pressing

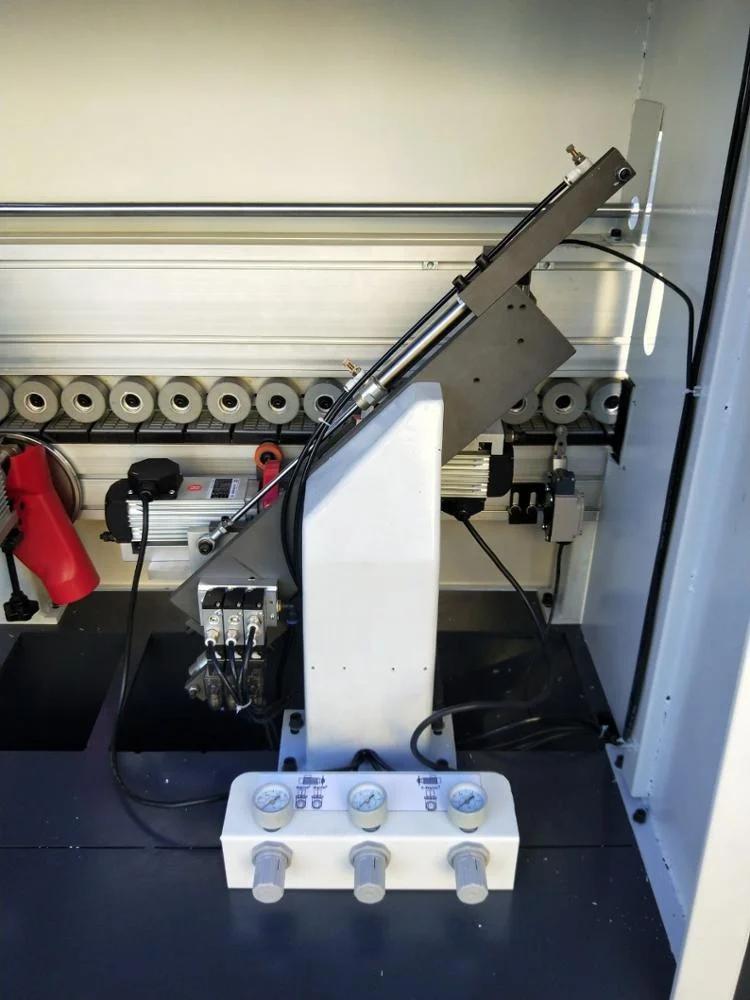

end trimming

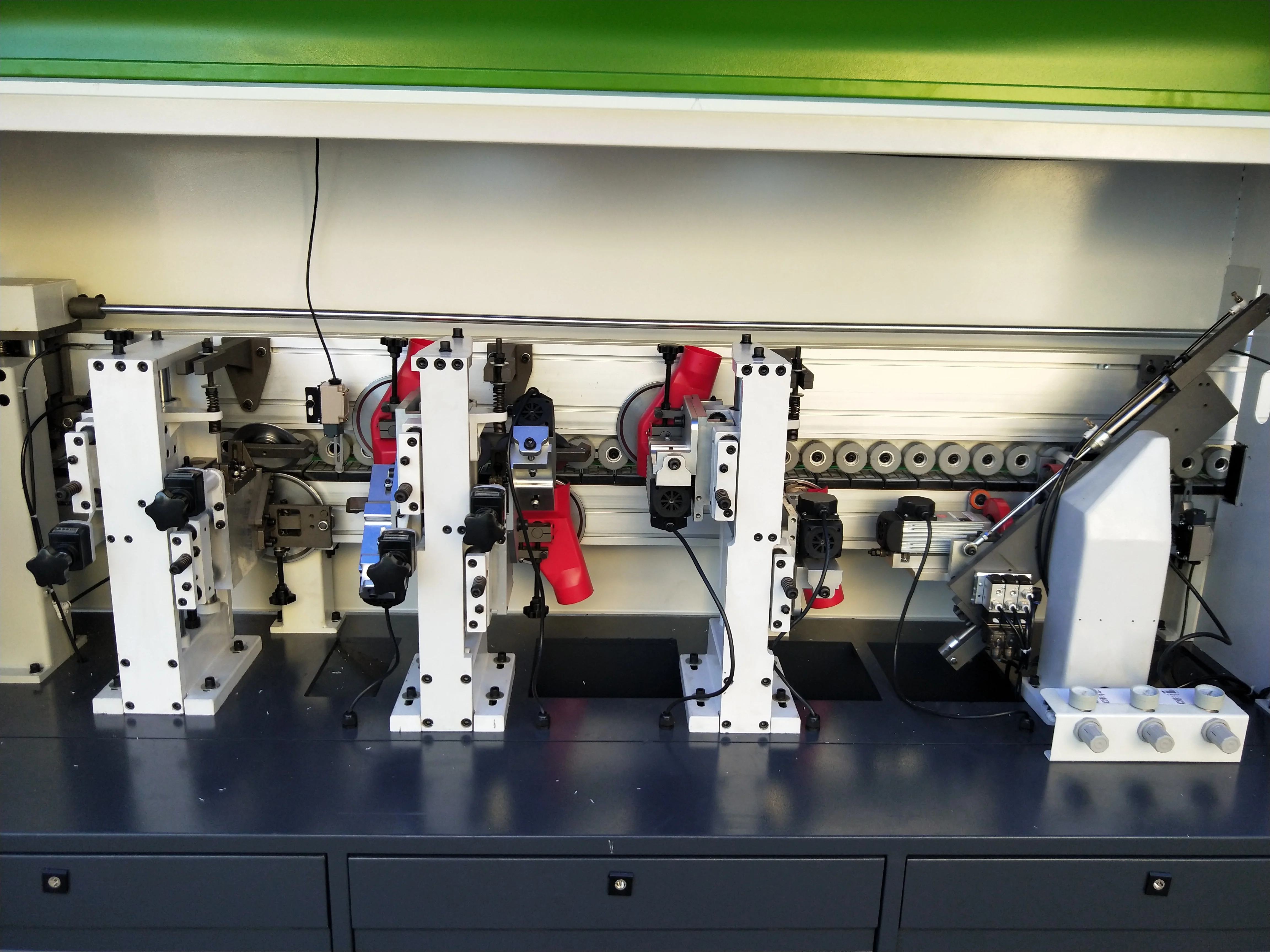

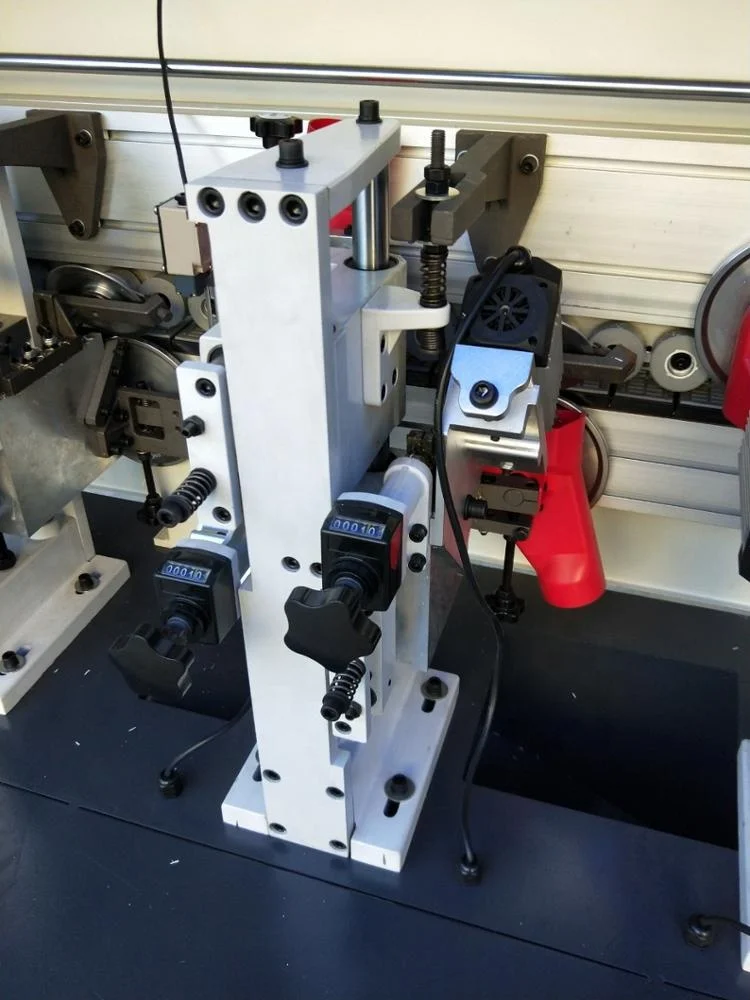

fine trimming
polishing and buffing
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
QINGDAO LUSEN MACHINERY MACHINERY CO.,LTD , IS LOCATED IN QINGDAO ,A BEAUTIFUL CITY ,WE HAVE MORE THAN 10 YEARS EXPERIENCE FOR WOODWORKING ,the main products is sanding machine , hydraulic clamp carrier , hot press machine , cold press machine , edge banding machine , panel saw and etc .welcome to order .
Recommend Products
Our service
(1) Pre-sale services:
* Provide the free consultation of the equipment . * Provide the standard device and the flow chart. * According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment. * Welcome to visit our factory.
(2)Services during the sales:
* Inspect the machine before leaving the factory. * Oversea install and debug the equipment. * Train the first-line operator.
(3)After sale services:
* 24 hours online service. * Provide the VIDEO with Install and debug the equipment. * Provide technical exchanging.
FAQ
Q1: Are you a manufacturer? A1:yes. We have 20 years manufacturer and export exprience.
Q2.About the MOQ A2.1 set, and we are OEM, I will give you the competitive price better than market.
Q3.May I buy a sample? A3. Of course ,sample order is welcome.
Q4.How can I place a order? A4.Just give me your nice inquiry,I will do my best to assist you.
Q5. If I want cheaper quality, can you produce? A5.Yes, just send us your quality details, such as the material, what cheaper parts instead etc, we will do that as your request and calculate the price.
Q6. If I order big quantity, what's the good price? A6.Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
