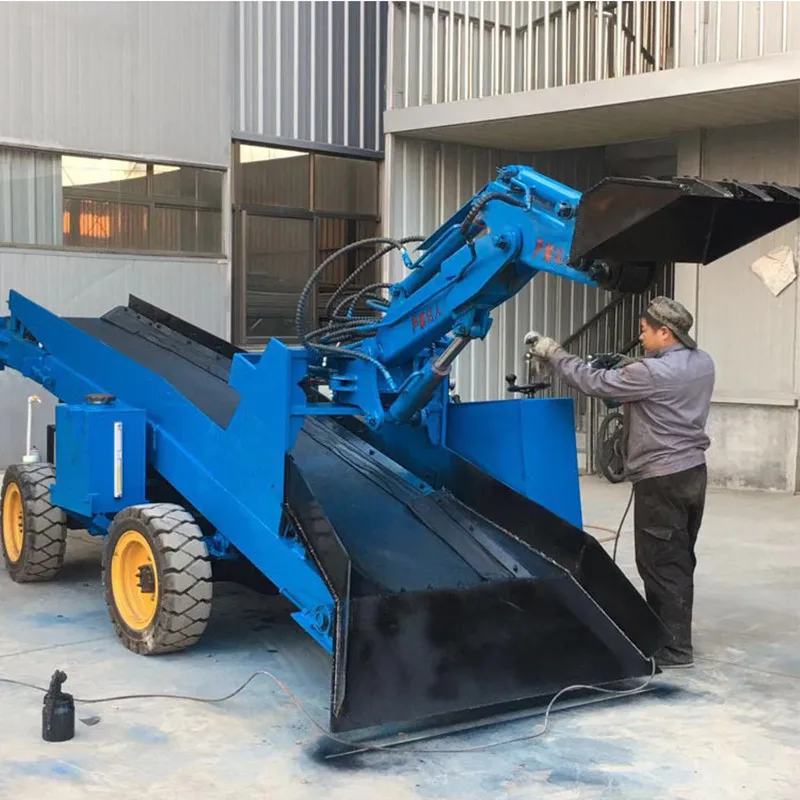

tracked wheel and digging arm trucking loader/hydraulic grilled slag machine

Product Overview

Description



Product Function and Application:



Mucking loader is one type of high efficiency ,multifunctional,environment protection machine integrating moving,digging,collecting,loading,conveying and dumping.

Mucking loader is used widely in the narrow and restricted tunnel of coal mine,metal mine,non-metal mine, hydropower project,subway and railway station project,national defence construction project etc.

Mucking loader also can be used for loading bulk material in the open-air operation.

Mucking loader also can be used for danger removal with its working boom.

Mucking loader can be equipped with breaking hammer that can repair bottom and side of tunnel,and break bigger rock into smaller after undertaking blasting .

The products adopt electric power full-hydraulic drive system,and adopt hydraulic pilot operation,no tail gas,environment protection.

Pushing force is large, digging range is wide,full face mucking,no manual work is needed to clean the working site.

Machine hydraulic system adopt air cooling,and come with seat and cab.

The products are safety and reliable and efficient and environment protection,labour-saving.

Products Advantage:
No tail gas,environment protection

Safty and compact structure

Easy to handle and maintain

Stable and durable performance

High efficiency and saving man power

Energy conservation

SPECIFICATION FOR MUCKING LOADER
Model	ZWY50	ZWY60	ZWY70	ZWY80	ZWY100
Power	15kw	15kw	15kw	19kw	19kw
Lifting Height	2000mm	2100mm	1900mm	1800mm	1740mm
Loading efficiency	50t/h	60t/h	70t/h	80t/h	100t/h
Traveling speed	3/6km/h	3/6km/h	3/6km/h	3/6km/h	2.5/1.4km/h
Adaptive tunnel dimension	1.5*1.8m	1.5*1.8m	1.8*2.2m	2.6*2.6m	3*3m
Arm maximum turning angle	73°	73°	73°	73°	73°
Size	4300*1500*1500mm	4300*1500*1500mm	5600*1700*1700mm	6000*1700*1770mm	6400*1730*1650mm
Weight	2500kg	2500kg	2530kg	2680kg	2990kg

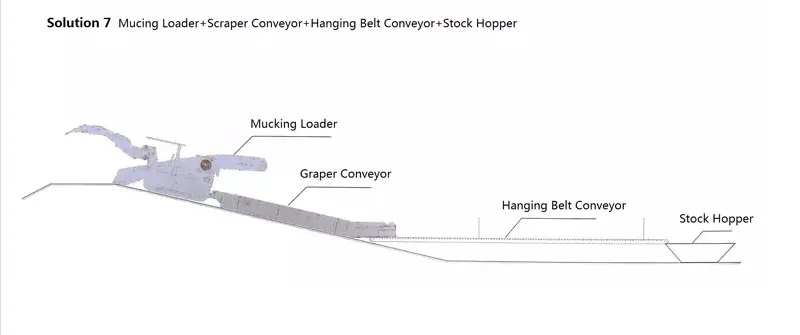

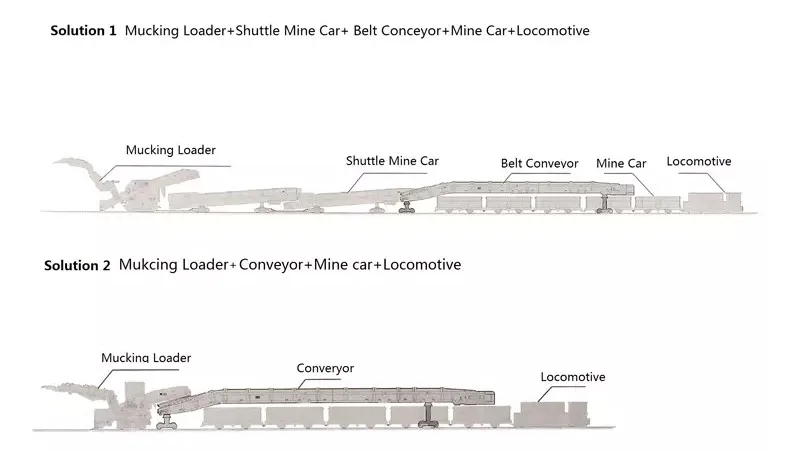

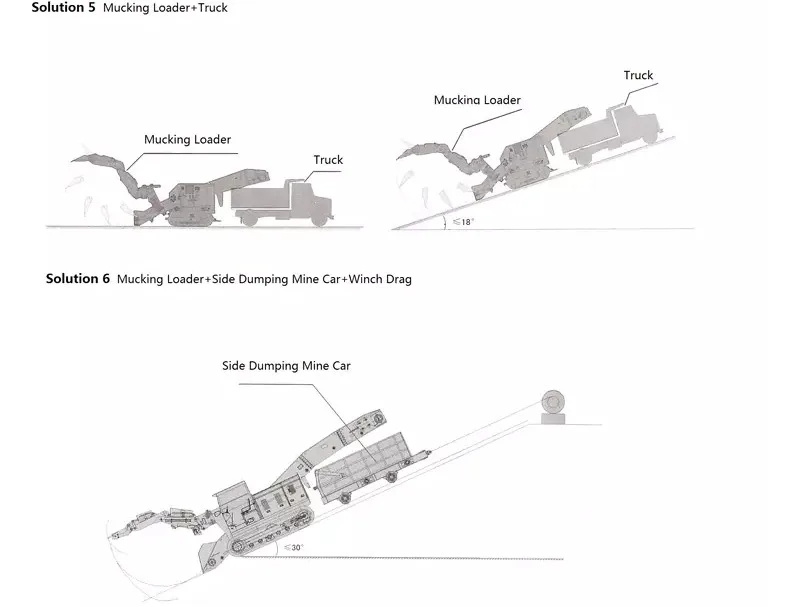

Complete solution:
