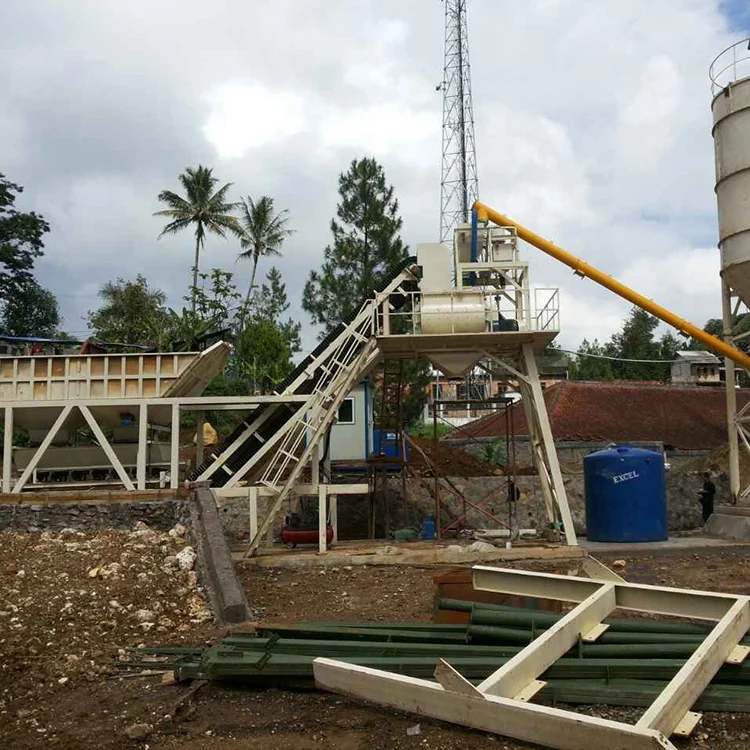

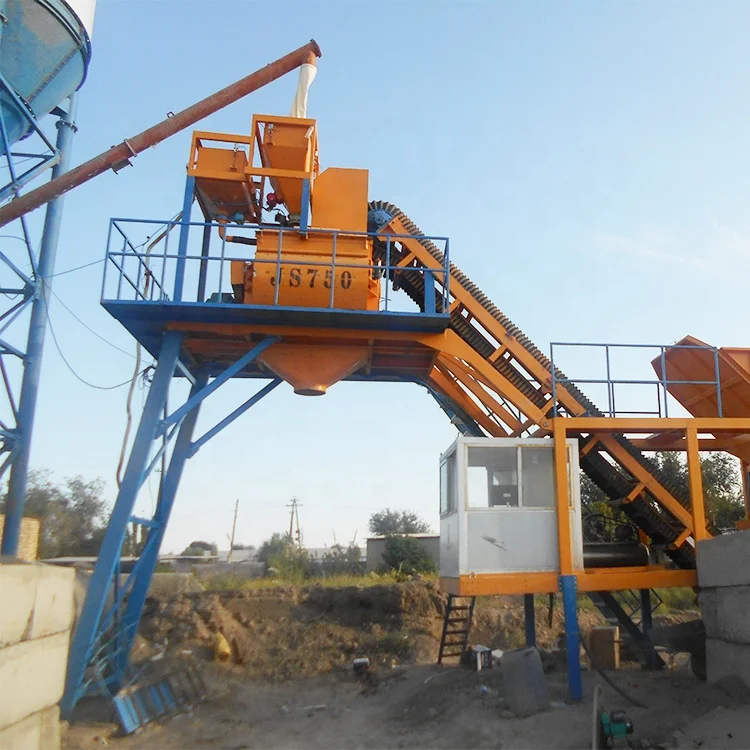

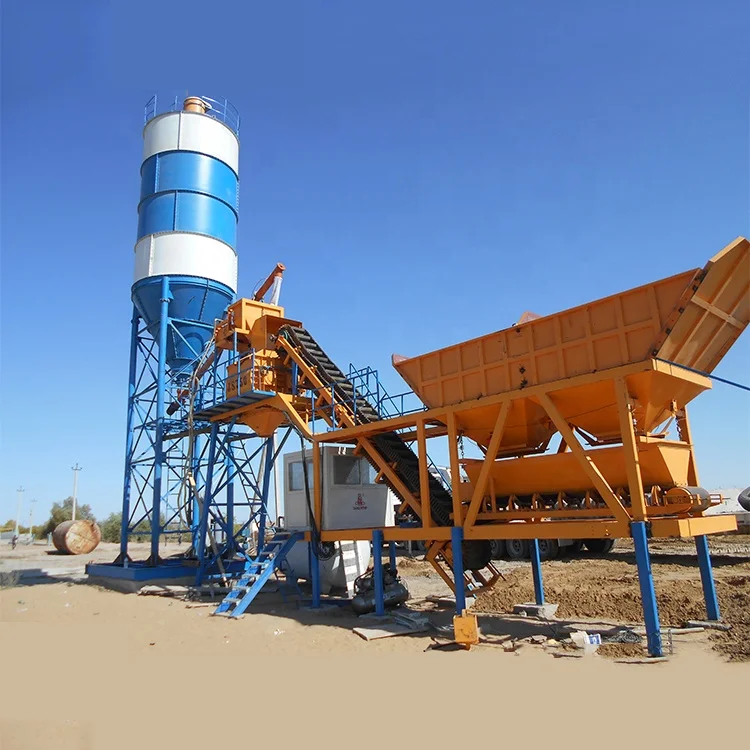

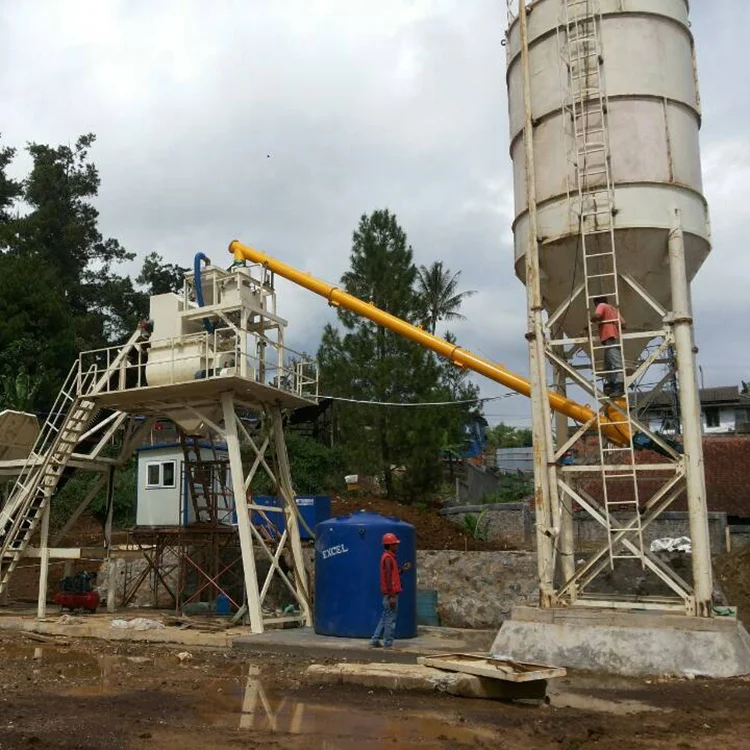

35m3/h Mobile Precast Dry Portable Ready Mix Concrete Plant

Product Overview

Description

I. Main Specifications:

Model	YHZS35
Productivity	35 m³/h
Twin Shaft Mixer	JS750
Mixer Volume	0.75 m³
Mixer Power	30kw
Max. Aggregate Size(broken stone/pebble)	60/80mm
Loading Type of Aggregate to the Mixer	Conveyor Belt
Aggregate Storage Hopper	4 m³ × 2
Aggregate Weighing	2000kg±2%
Cement Weighing	300kg±1%
Water Weighing	200kg±1%
Additive Weighing	25kg±2%
Control Mode	Full-automatic
Discharge Height	2800mm
Total Power	65kw
Total Weight	15T
Length(At work)	14500mm
Width (At work)	4050mm
High(At work)	7600mm



II.Feature:

Special Designed Compact Structure.
Hauling System for Easy Move.
Fast and Easy Installation and Dis-assembly.
Twin Shaft Forced Type Concrete Mixer
Operated Manually, Semi-automatically and Full-automatically.
Comprehensive Function (unique storage ratio, self compensation of aggregates drop, alarming of over scale, online modifying formula, etc.)

III. Technical Process:

YHZS series mobile concrete mixing plant consists of aggregate batching system, concrete mixing system, walking system, cement supply system, water supply system, cement weighing system, water weighing system, control system, etc.
All aggregates are fed into the aggregate batching machine by loader, and they are weighed on a belt or in a weighing hopper. After weighing, the aggregates are dropped to belt conveyor and transported to the concrete mixer by belt conveyor.
Cement is sent into the cement weighing hopper by screw conveyor. After weighing, cement is dropped into the cement mixer.
Water is pumped into the water weighing hopper by water pump. After weighing, water is dropped into the mixer.
After all materials are weighed and fed into the mixer, the mixer can begin to mix and produce fresh concrete.

Portable Ready Mix Concrete Plant







1, How about warranty?



  12 months after successfully installation. Life long technical support.



2, What certificate do you have?



ISO 9001 and GOST.



3, How about delivery time?

1-40 days after order confirmed, exact time on the base of order quantity, product type and peak/low season.



4, What is the payment terms?

30% T/T deposit and 70% T/T balance before shipment or 100% L/C at sight.



5, How about your after-sales service?



24 hours technical support and solution Free spare parts during waranty period and cost price parts beyond warranty



6, How can I get a quote?



Please feel free to contact us by email, phone, whatsapp, wechat or skype, we will feedback within 24 hours.



7, Can I visit your factory?



Your visiting will be warmly welcomed. Xinzheng International Airport in Zhengzhou is 60km away our facotry. Zhengzhou East Railway Station is 20km away our factory. Lots of flights and high speed trains from all China to our city.
