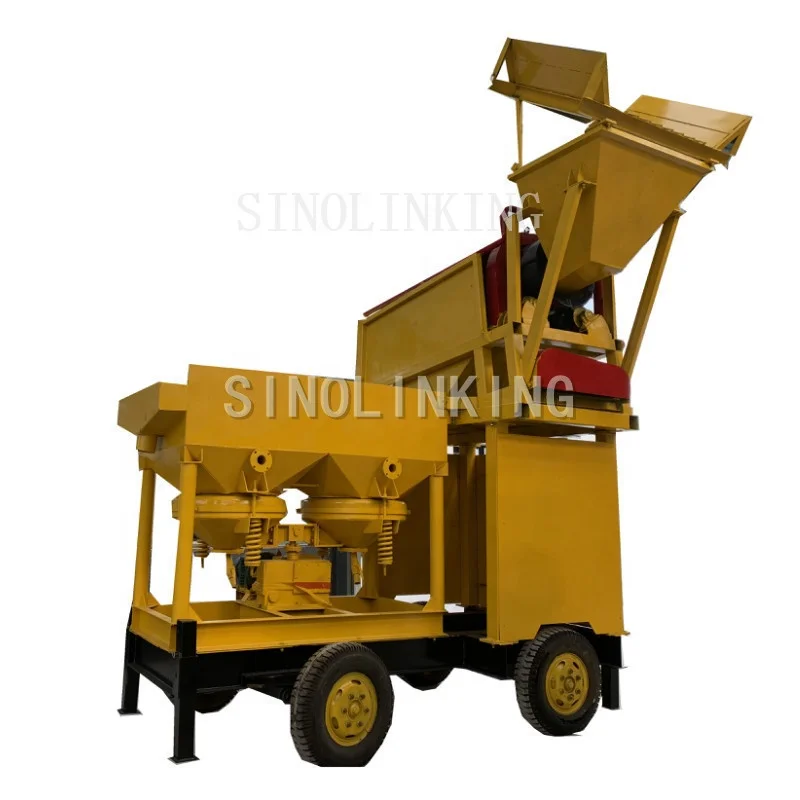

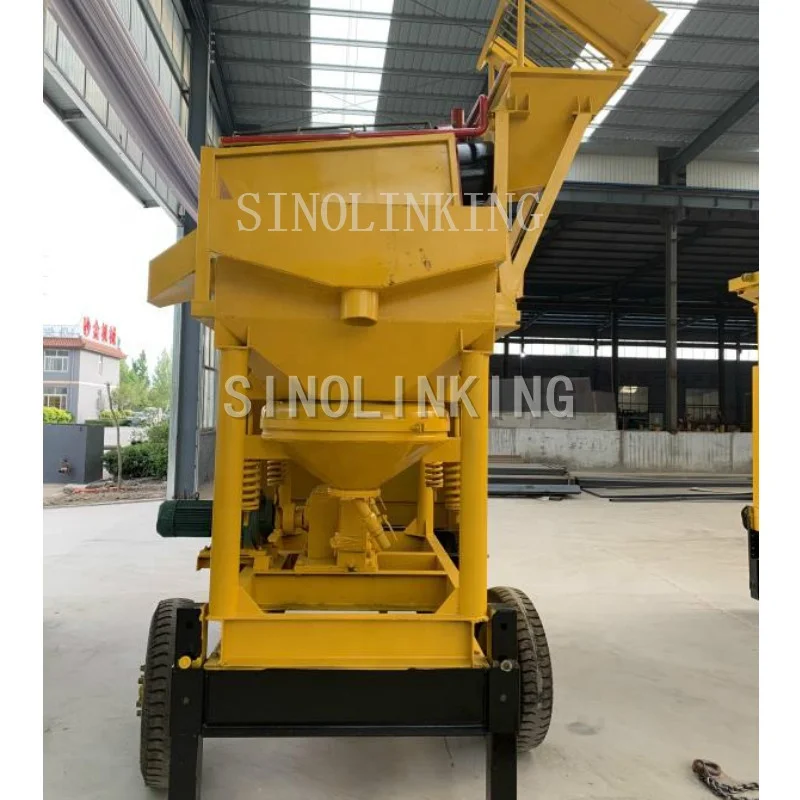

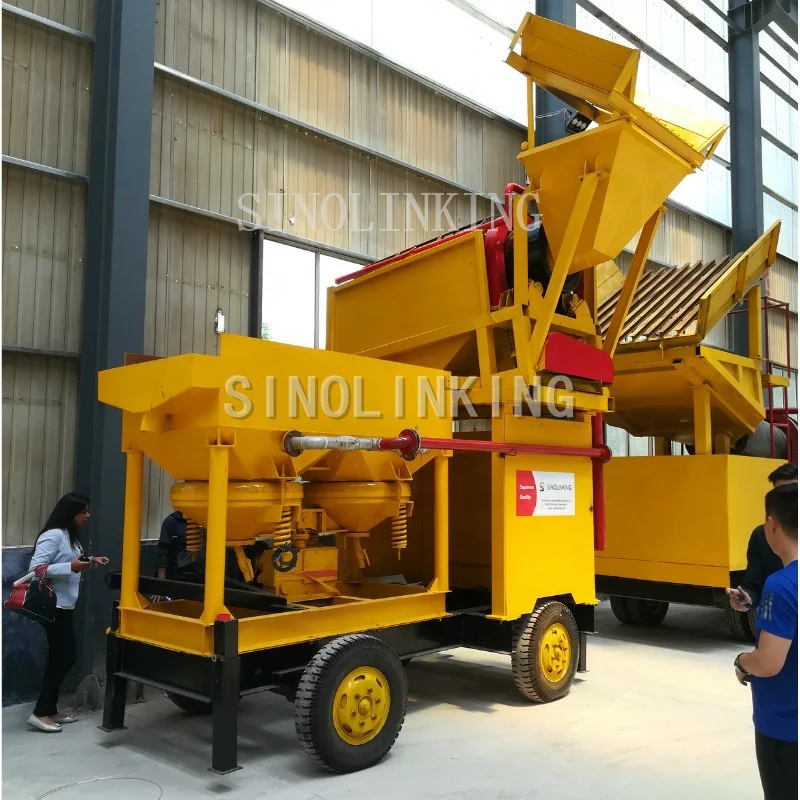

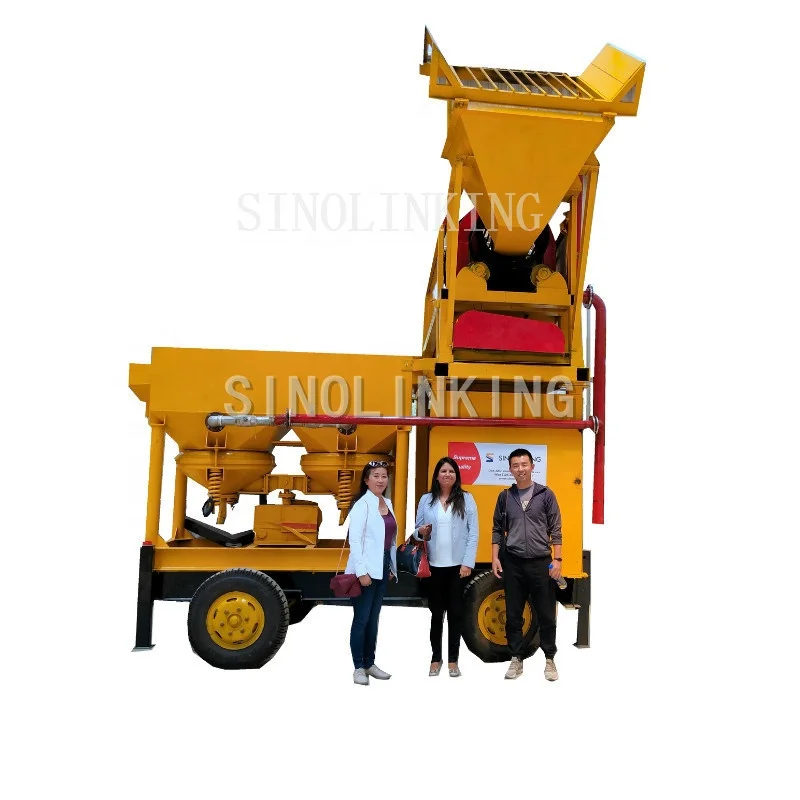

SINOLINKING diamond mining recovery machine for sale
- Category: >>>
- Supplier: Shandong Sinolinking Import And Export Co. Ltd.
Share on (62214406311):
Product Overview
Description
DESCRIPTION

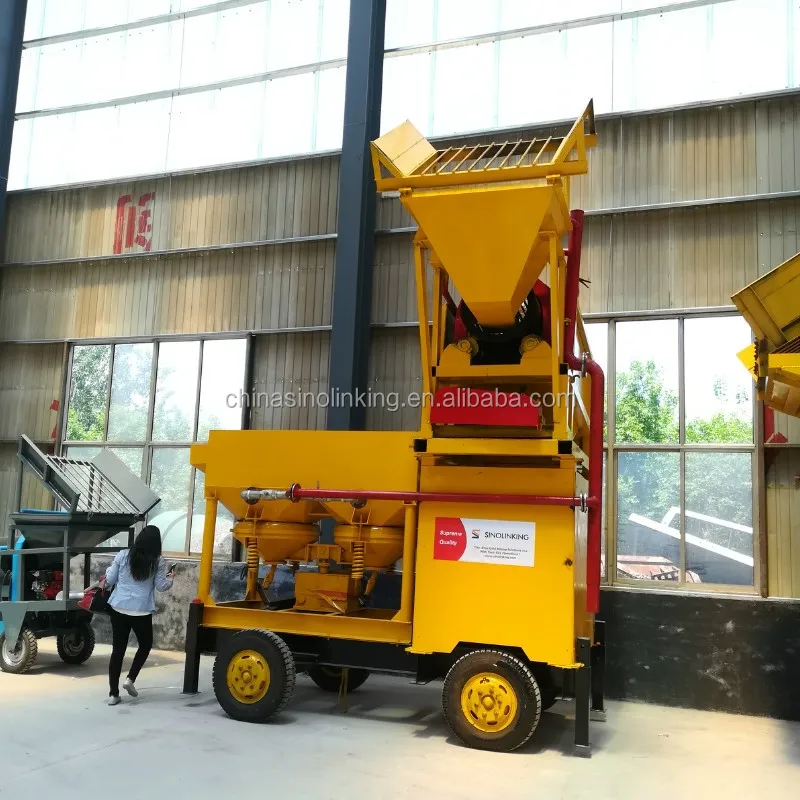

Features of Hot sale daimond washing plant from China
1) The SLK-MXZ series diamond washing plant are designed according to your specific mining conditions and requirements.
2) Feeding system with grizzly hopper feeder, water spray pipes inside the hopper for spray waters to the soils.
3) Heavy duty clay scrubber with inside high pressure water spray pipes for breaking off hard clay. (if required)
4) Double sieve trommel screen with NSK bearings and high pressure water spray pipes on both sides for washing, screening and separating.
5) Double diamond recovery systems to ensure highest recovery rate of diamond (up to 98%).
6) Water supplying systems with multiple sets of big power submersible slurry pumps, hoses, valves, etc.
8) Powering system with Cummins diesel generator with all batteries, cables and wires.
9) Multiple sets of heavy duty mining type tires with towing mechanism for fully mobility and portability.
10) Easy for installation, operation and maintaining.
11) One-Sop gold mining solutions from A to Z.
Specification of Hot sale diamond mining equipment from SINOLINKING | ||||||
Model | MXZ 10 | MXZ 50 | MXZ 200 | |||
Parameters | ||||||
Size /mm | 4000*1600*2100 | 7000*2000*3000 | 9800*3000*5175 | |||
Capacity | 10 tph | 50-80 tph | 200-300 tph | |||
Power | 24 kw | 50 kw | 150 kw | |||
Feeder Hopper /mm | 1200*1000 | 2000*2200 | 3800*3000 | |||
Clay Scrubber /mm | φ600*1000 | φ1000*2000 | φ1500*3000 | |||
Trommel Screen /mm | φ1000*2000 | φ1200*3000 | φ1800*4000 | |||
Sluice Box | 2 sets | 2 sets | 4 sets | |||
Water Supply /m³ | 100 m³ | 120 m³ | 370 m³ | |||
Wheels | 4 wheels | 6 wheels | 10 wheels | |||
Recovery Rate | 98% | 98% | 98% | |||
Detailed Images
Technical Details
Feeding System
Name: Grizzly Hopper Feeder
Size (mm): 1200*1000
Grizzly screen space: 90mm or as required
Grizzly material: Railway tracks
Remark: Water spray pipes along hopper sides
Function: to feed the materials evenly to the scrubber and trommel
Clay Processing System
Name: Clay Scrubber
Size (mm): φ600*1000 or according to processing capacity
Remark: with inside water spray pipes
Function: to break off hard clays to increase gold recovery
Screening System
Name: Gold Trommel Screen
Size (mm): φ1000*2000 or according to processing capacity
Remark: 2 layer trommel screen
Function: for washing, screening and separating the minerals
Water spray pipes: on both sides of the trommel
Mesh size: `12mm and 6mm or according to clients requirement

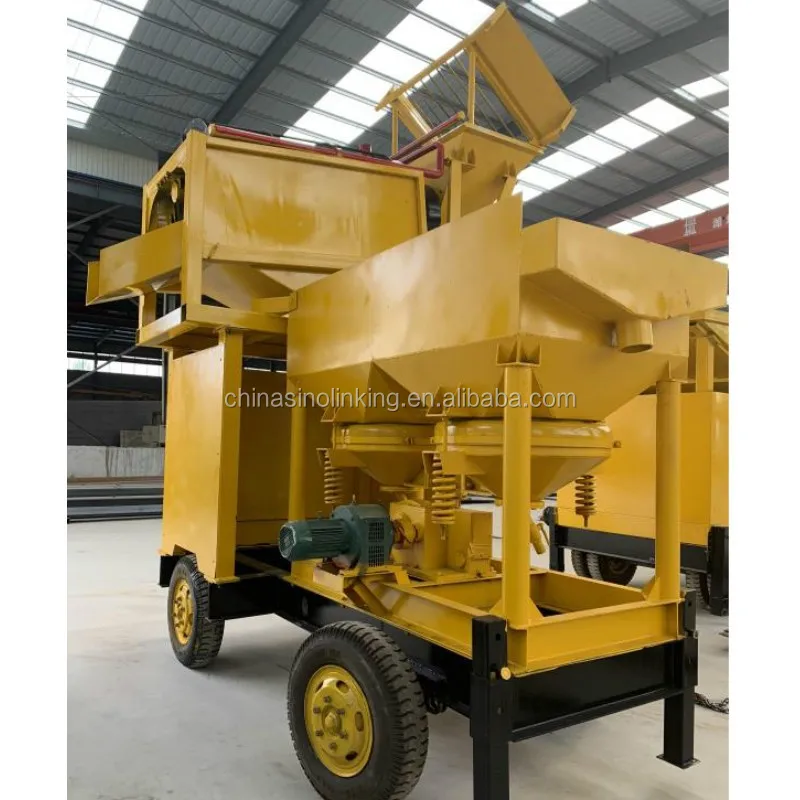

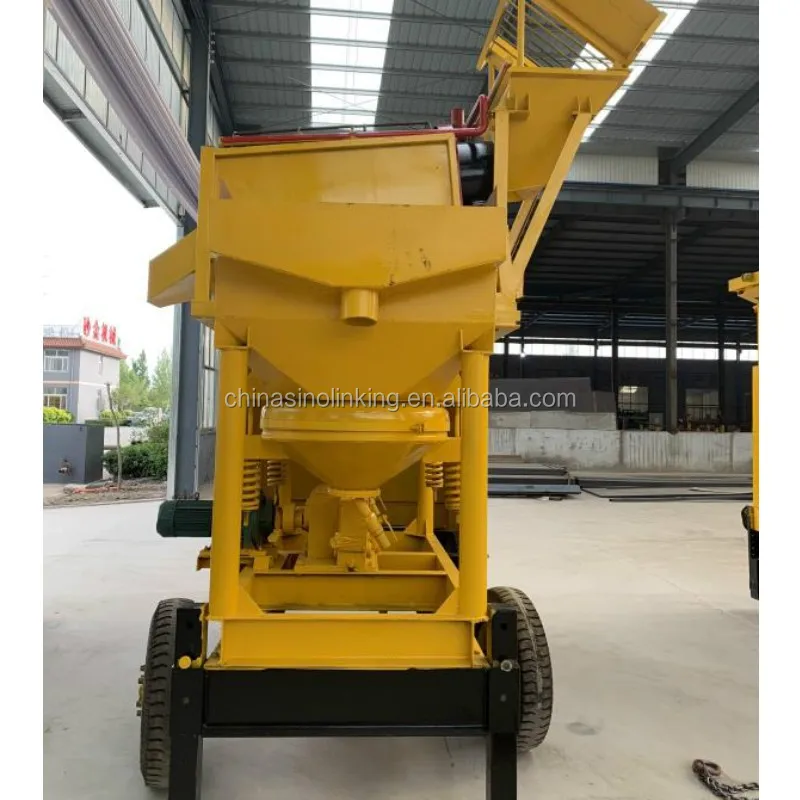

Diamond Recovery System

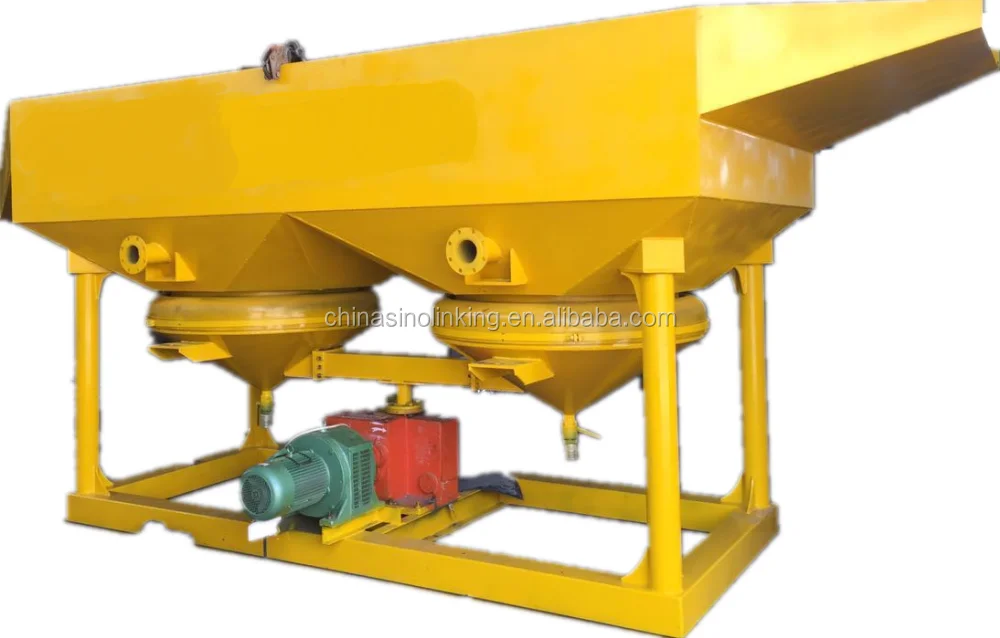

Name: Jigger concentrator
Jig concentrator size: 1550*780*1530mm
Sluice Size: 4m*0.6m
Sluice box carpet: Mitsubishi brand, imported from Japan
Function: for diamond recovery
Recovery rate: 98%

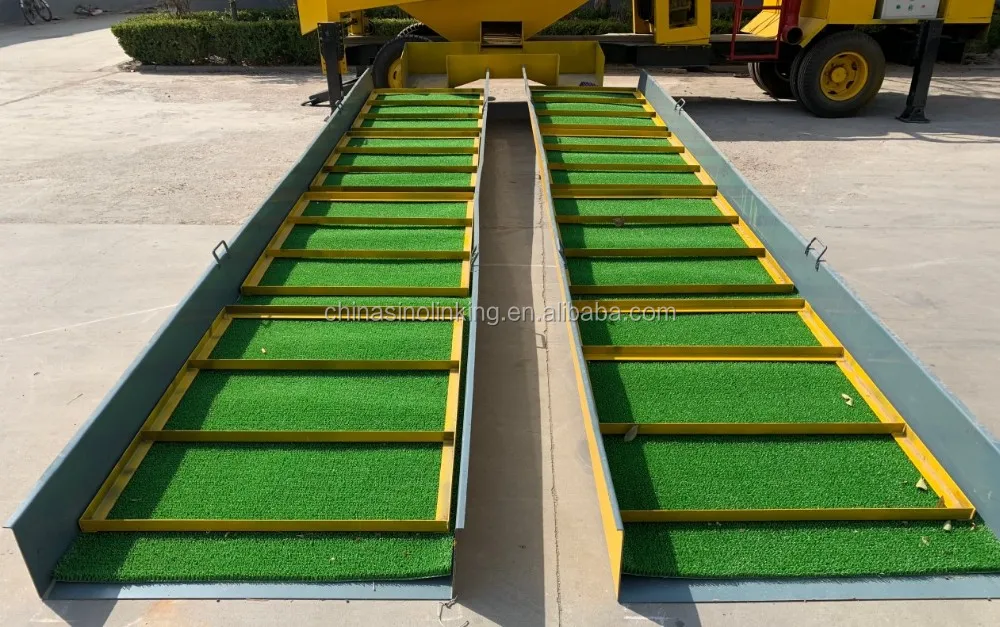

Diamond Recovery System
Name: Fixed Sluice with carpet
Sluice Size: 4m*0.6m
Sluice box carpet: Mitsubishi brand, imported from Japan
Function: for diamond recovery
Recovery rate: 98%
Water Supplying System
Name: Submersible slurry pump
Quantity: 1-3 pcs
Water flow: 100m³ per hour
Function: for supplying water to the wash plant
Powering system
Name: Cummins diesel Generator
Power: 100Kw-350Kw
Brand: Cummins, Weichai, or as required
Function: supplying power to all the systems
Related Products
SINOLINKING gold and diamond mining recovery machine for sale
Professional Diamond Mining Equipment Machine For sale
SINOLINKING diamond mining equipmenthttps://www.alibaba.com/product-detail/SINOLINKING-diamond-mining-equipment_62197056725.html?spm=a2747.manage.0.0.7d6271d2wyOdCy
SLK-MGT50 mobile gold wash plant with sluice
SLK-MGT100 gold wash plant with vibrating sluice
SLK-MGT200 gold wash plant with centrifugal concentrator and vibrating sluice
SLK-GT300 gold wash plant with centrifugal concentrator
We are professional of gold/diamond mining equipment manufacture in China since 2002, we have exported to over 35 countries with more than 300 successful projects. We can design and produce gold mining plant with processing capacity of 3-5 tons to 400 tons per hour, the gold dredger is 50 tons to 400 tons per hour. If you are interested, please click above to inquiry us, we will provide one-step gold mining solutions for your mining.
Our Service
Pre-Sales Service
* Receiving clients inquiry
* Studying clients mining conditions
* Introducing our machinery
* Propose the most suitable solution
After-Sales Service

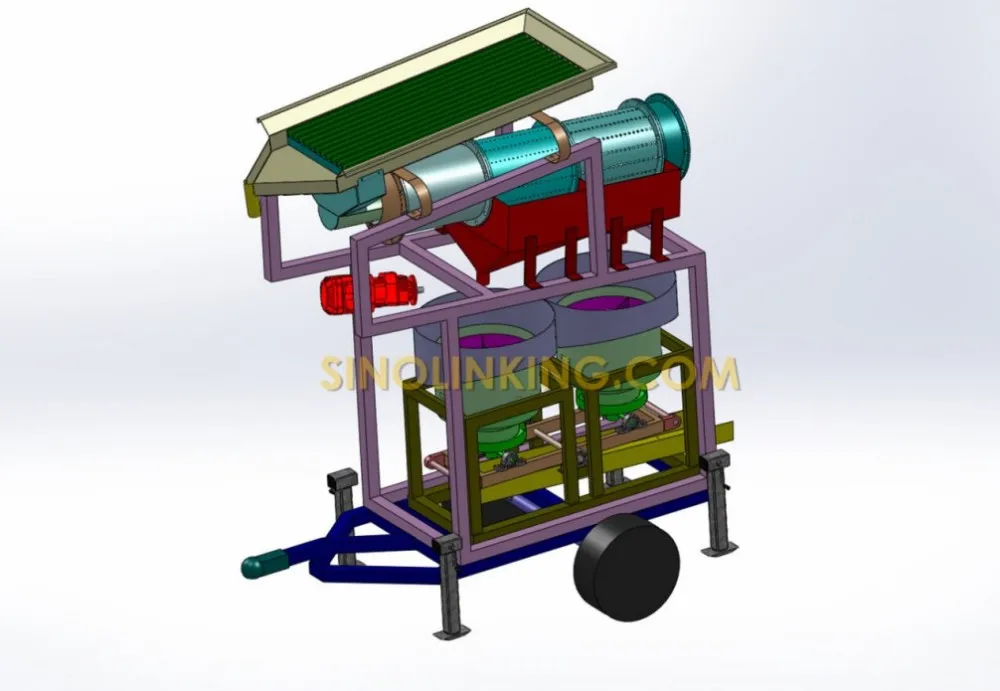

* Design outlet with 3D drawing photo
* Producing according to the design
* Inspection and testing before delivery
* Engineers installation and training service overseas
Packing & Delivery
Packaging of Hot sale sang gravel small trommel scre from China | ||
Container type | 20'GP, 40'HQ | |
Container qty | 1-6 pcs | |
Delivery time | 10-30 days | |
Price items | EXW, FOB, CIF | |
Spare parts | Free spare parts avaiable | |
1: How long takes for installation ? -Normally within 7-10 days if everything is ready. 2: What are the oversea service charge ? -Airline tickets, visa fees and salary | ||
Our Factory
Why Chose Us?
1. 15 Years factory
2. Exported to 35 countries
3. Over 300 projects worldwide
4. All customized design
5. Ensure highest recovery rate of gold
6. Short delivery time
7. Easy to install, operate and maintain
8. Super durable heavy duty machine
9. One-stop mining solution
10. Turn-key operations
FAQ
1. Are you factory?
Yes, established in 2002, over 15 years factory
2. How big are you?
In total 4 work shops, 12,000㎡, office 2000㎡, 65 workers
3. What equipment do you build?
Specialized in alluvial/placer gold/diamond mining equipment
4. Whats the capacity of the gold/diamond mining equipment
from 5TPH to 450TPH
5. What brand engine/diesel generator do you use?
Cummins, Weichai, Yuchai, etc, or as required
