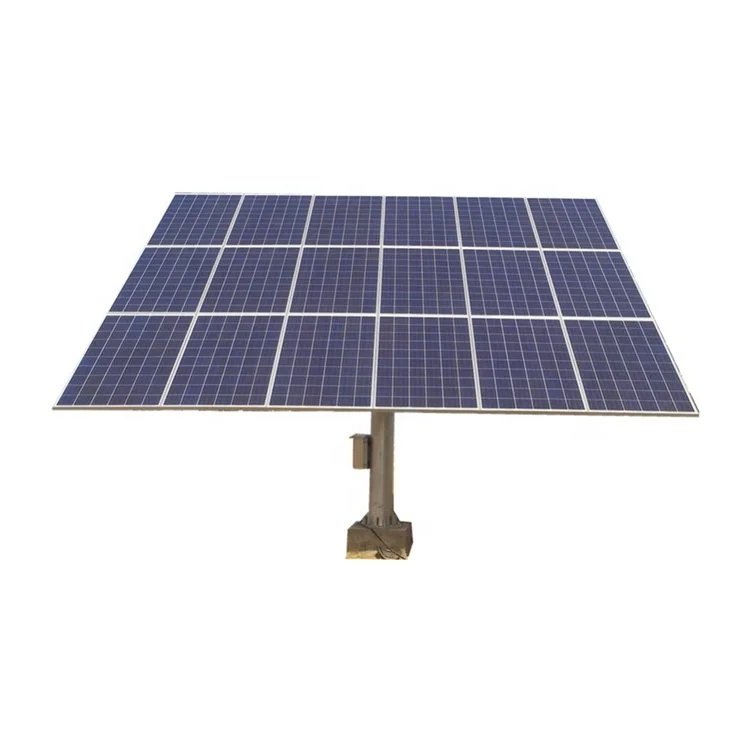

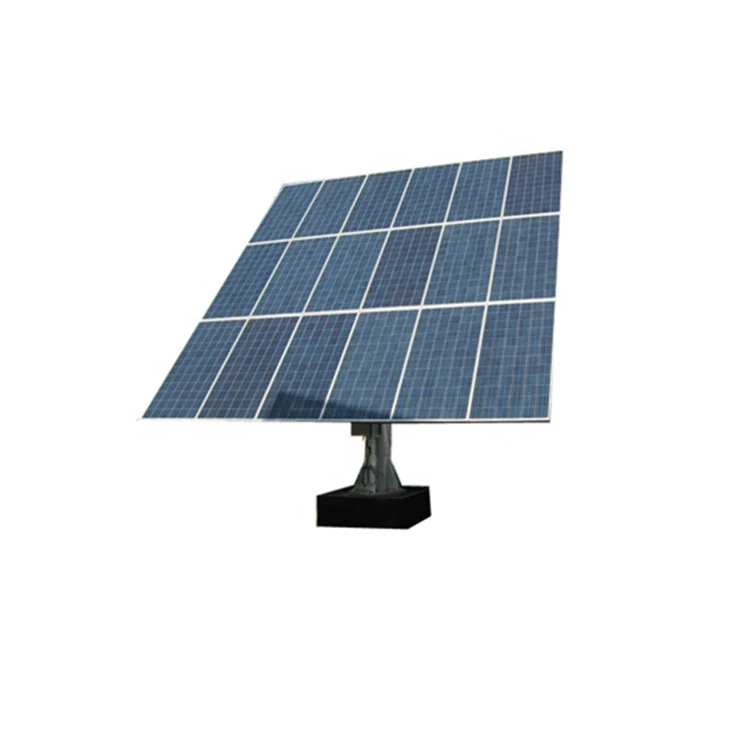

5kw dual axis tracking system
The dual axis solar tracking system uses high-precision astronomy algorithm to calculate the angle of the sun, combined with high-performance microcontroller (DSP core), making the system accurate and reliable, not rainy days interference,using international first-line brand tilt sensor, real-time closed-loop feedback tracking angle, automatic tracking, without human intervention.

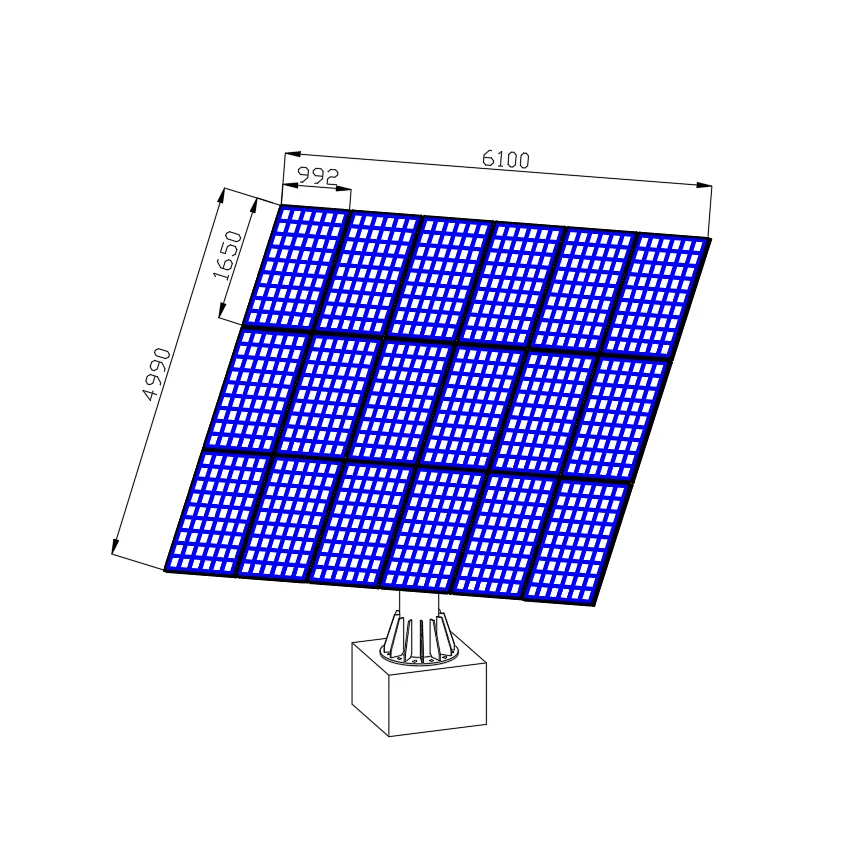

5kw dual-axis solar tracking system reference | ||||||
Module Number | 18 units | Module Size | 1650*992mm/1956*992mm | |||
Tracking Precision | ≤ 1° | Communicating Protocol | RS485-MODBUS | |||
Power Supply | 90~264VAC,47~63HZ | Electricity Consumption | ≤0.5(KW.h) | |||
X tracking Angle | -120°~ +120° | Y tracking Angle | +30°~ +90° | |||
Bracket Area | ≈ 33m2 | Operating Temperature | -40 ~ +70 ℃ | |||
Bracket Material | Hot Galvanizing steel | Device Weight | ≈ 890 KG | |||
Standard | GBT 29320-2012 ,CE,TUV | Design Life | > 25 years | |||
Our Advantages
Main Advantages:
Welcome to our company to see our patent and technology.
1) Power generation efficiency increased by 30%~50%.
2) Simple structure ,easy in installation and debugger application.
3).provide installation video ,introduction and foundation design drawing.
4) Cover a small area,you can grow shade-loving plant under the system.
5) The tracker could adjusts solar panels into horizontal level when meeting strong wind.
6) Exclusive design patent:dual axis solar bracket and solar controller.
Sunny day
Rainy day
Power generation comparison between dual axis solar tracking system and fixed solar system
* The following data was collected on August 17, 2019,sunny day.
From the following data,we can conclude that :113/79.1=1.428,which means ,the power generation of the dual axis system increased by 42.8% compared with fixed system.Time | Dual axis (Kw.h) | Fixed(Kw.h) |
5:00 - 6:00 | 0.17 | 0.05 |
6:00 - 7:00 | 4.8 | 0.57 |
7:00 - 8:00 | 8.75 | 2.96 |
8:00 - 9:00 | 10.02 | 5.78 |
9:00 - 10:00 | 10.5 | 8 |
10:00 - 11:00 | 10.6 | 9.56 |
11:00 - 12:00 | 10.6 | 10.3 |
12:00 - 13:00 | 10.75 | 10.67 |
13:00 - 14:00 | 10.78 | 10.2 |
14:00 - 15:00 | 10.48 | 8.79 |
15:00 - 16:00 | 10.12 | 7.08 |
16:00 - 17:00 | 9.2 | 4.09 |
17:00 - 18:00 | 5.73 | 0.75 |
18:00 - 19:00 | 0.5 | 0.3 |
Daily Total | 113 | 79.1 |
Manufacturing Technique
The following is all Jinhong self-design products which have already passed cetification.
We can also produce customized product as your requirement.
If you have any questions just contact me:whatsapp/wechat/phone/skype cara 0086-17863866900

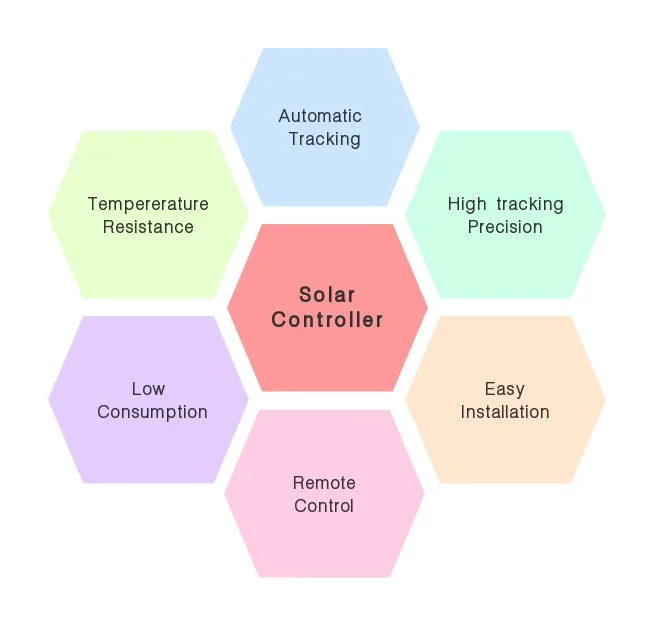

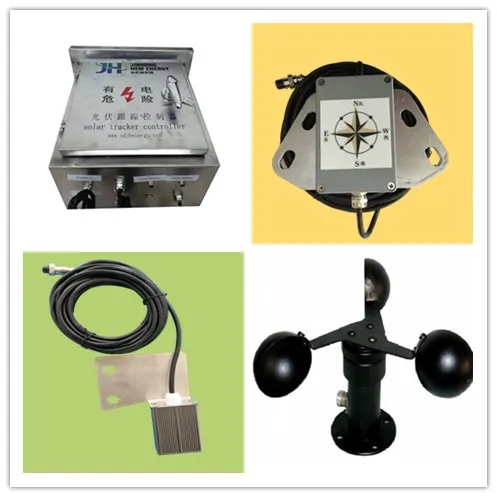

Jinhong solar controller
,the solar tracker can calculate the actual location of the sun accurately and track according to the local longitude,latitude and
time using high accuracy sun location algorithm.when the weather turning to sunny from cloudy,the solar tyracker can collect all
the solar energy immediately,realizing the most efficient solar tracking.
M-type auto tracking system
Structure: Double push rod
Capacity Max: 12pieces 1650*992mm
This type solar tracking system can tracking the sun azimuth angle ±45°，tracking tilt angle ±45°.The power generation can be increased more 40% than fixed bracket.dual axis solar tracking system 01

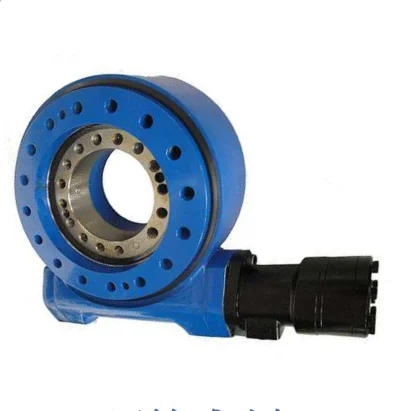

Structure: Push rod + slewing drive
Capacity Max: 24pieces 1650*992mm
It can tracking the azimuth angle about ±120°，tracking tilt angle 30°--+90°.The power generation can be increased more 45% than fixed bracket.
dual axis solar tracking system 02
Structure: Three slewing drive
Capacity Max:46piece 1650*992mm
The tracking angle and power generation as same as the 01 system.The difference is more stable more anti-wind like resisit typhoon,hurricane,blizzard .
Dual axis solar tracking system 03
Structure: Three slewing drive
Capacity Max: 84pieces 1956*992mm
Symmetrical double plane
The patented "Z" symmetrical structure completely eleminates the eccentricity of the bracket,which can drive the whole bracket with the minimum torque,greatly reducing the running consumption of the bracket and the high strength bracket ensures the stability of the whole system.
M-type semi-auto system
Structure: One push rod
Capacity Max: 10pieces 1650*992mm
Tracking the azimuth angle ±45° automatically ,adjust tilt angle manually.The price is more cheaper at the same time the power generation is more 28% than fixed bracket.
