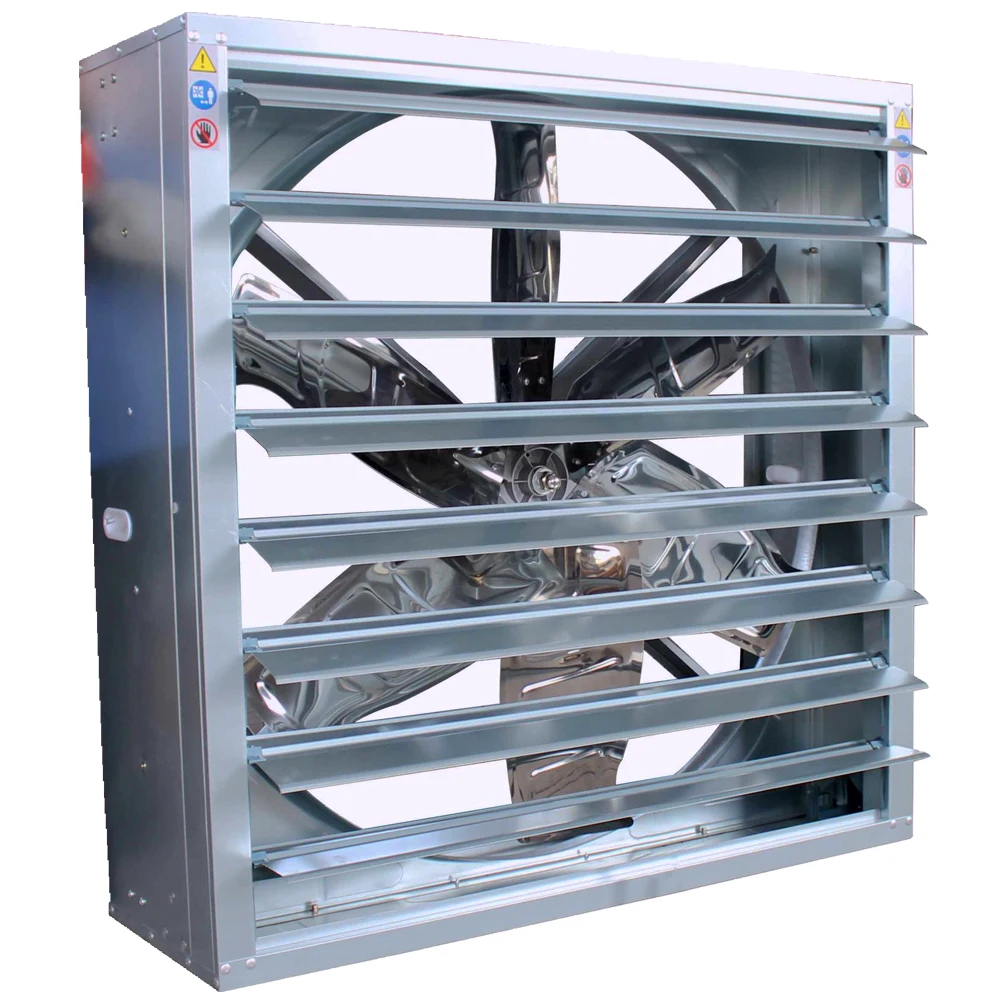

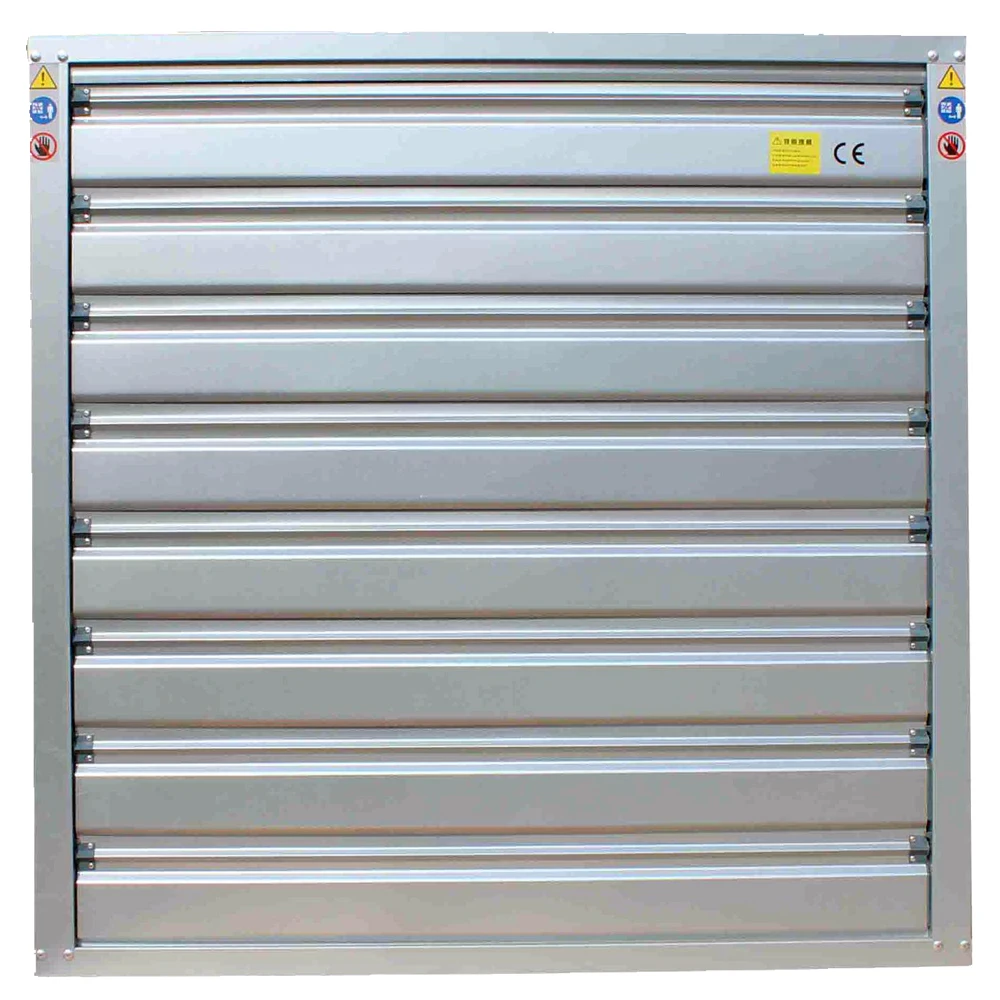

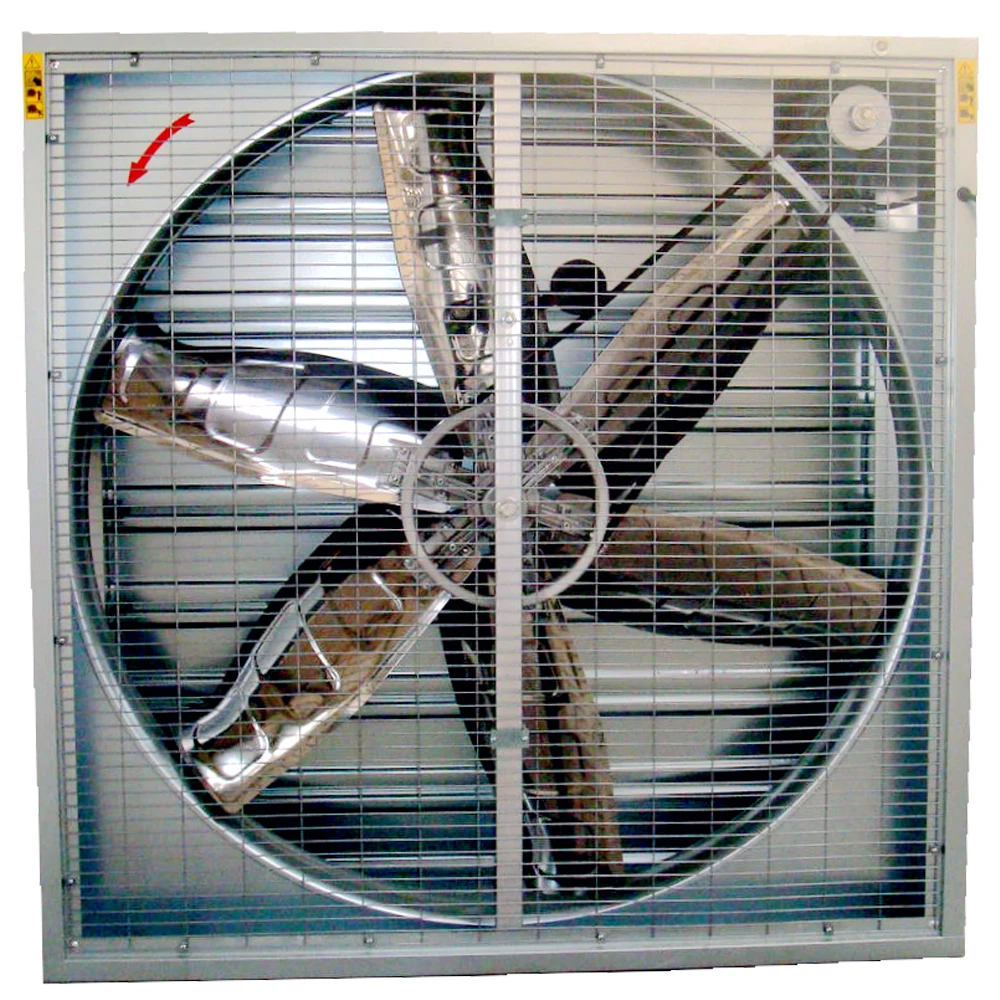

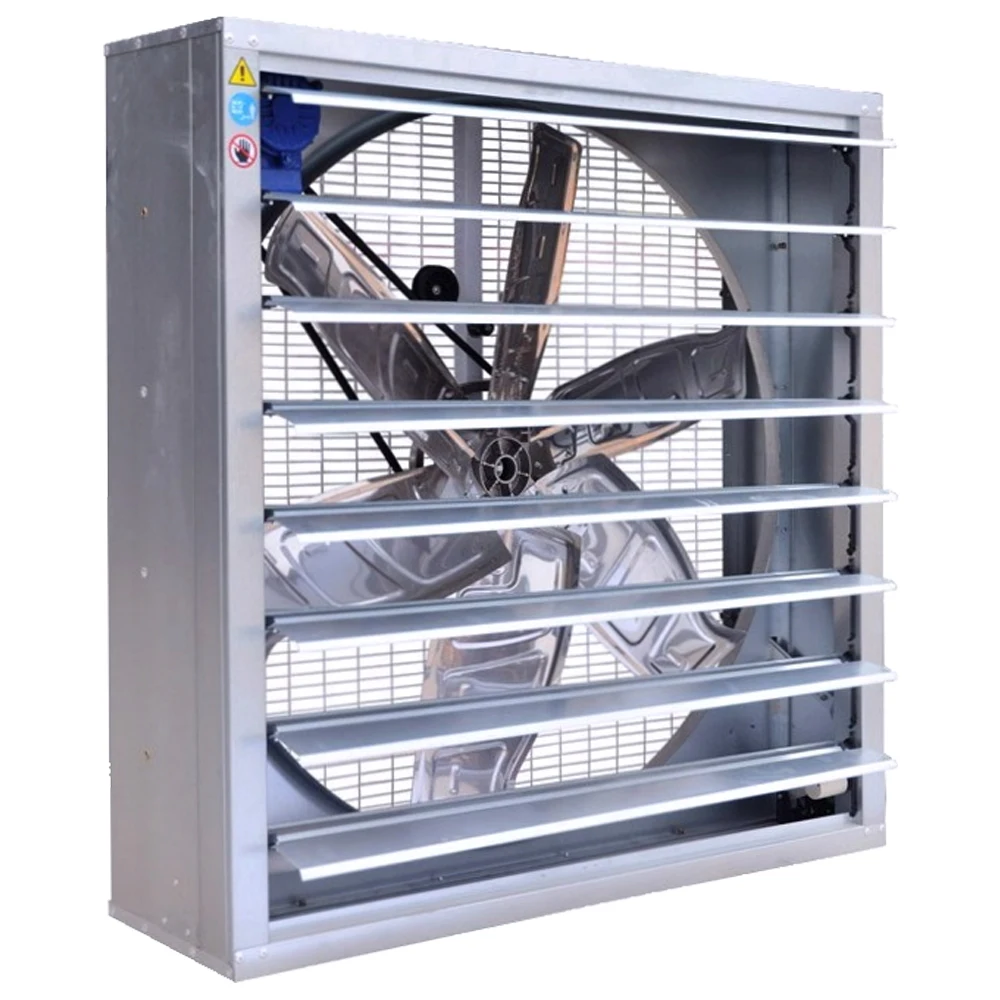

36 Inch 220 Volt Inverter Exhaust Fan
36-Inch 220 Volt Inverter Exhaust Fan
36-Inch 220 Volt Inverter Exhaust Fan
36-Inch 220 Volt Inverter Exhaust Fan
36-Inch 220 Volt Inverter Exhaust Fan
36-Inch 220 Volt Inverter Exhaust Fan

36 Inch 220 Volt Inverter Exhaust Fan

Share on (62214429986):


Price:$84.00 - $90.00

Quantity:


Product Overview

Description


Product Description

Product Application

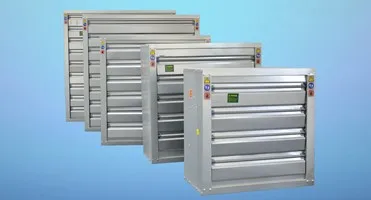

Exhaust fan is also called negtive pressure exhaust fan. It's an axial fan.Mainly used for ventilation and temperature cooling . It is a more economical ventilation and cooling products. It has a simple structure, easy to maintenance, large air volume, easy to install, etc.
It's widely used in factory, greenhouse, poultry farm, livestock farm, etc.

\t
SPECIFICATIONS FOR EXHAUST FAN
\t


Frame part
\t
Upper frame
\t
hot-dip galvanized steel, thickness:1mm
\t
Side&bottom frame
\t
hot-dip galvanized steel, thickness:0.8mm
\t
Shutter
\t
galvanized steel , thickness: 0.45mm
\t
Protecting net
\t
Galvanized iron, with plastic sprayed
\t



Blade part
\t
Blade material
\t
6 pcs of 430 stainless steel, thickness : 1.2mm
\t
Blade impeller&pulley
\t
High quality aluminum-magnesium alloy
\t
Belt
\t
Chinese famous Sanlux, Type B
\t
Bearing
\t
Imported from France, double row,waterproof
\t
Support pole
\t
Iron with plastic sprayed
\t


Motor part
\t
Motor brand
\t
Nosch/Shunbao/Laoyite/Siemens/ABB
\t
Motor spec
\t
100% copper wire,  IP55, Class F
\t
Motor pulley
\t
Cast Iron
\t
Motor base
\t
Cast Iron
\t
Model
\t
Blade diameter
(mm)
\t
Aif flow
(m3/h)
\t
Total pressure
(Pa)
\t
Noise decibels
(db)
\t
Power
(W)
\t
Voltage
(V)
\t
Dimension
(mm)
\t
EOF(c)-600
\t
500
\t
5700
\t
55
\t
≤70
\t
375
\t
380/220
\t
620x620x400
\t
EOF(c)-800
\t
720
\t
20000
\t
60
\t
≤60
\t
550
\t
380/220
\t
800x800x400
\t
EOF(c)-900
\t
750
\t
22000
\t
65
\t
≤65
\t
550
\t
380/220
\t
900x900x400
\t
EOF(c)-1000
\t
900
\t
25000
\t
70
\t
≤70
\t
750
\t
380/220
\t
1000x1000x400
\t
EOF(c)-1100
\t
1000
\t
32500
\t
70
\t
≤70
\t
750
\t
380/220
\t
1100x1100x400
\t
EOF(c)-1220
\t
1100
\t
38000
\t
70
\t
≤70
\t
750
\t
380/220
\t
1220x1220x400
\t
EOF(c)-1380
\t
1270
\t
44000
\t
70
\t
≤70
\t
1100
\t
380/220
\t
1380x1380x400
\t
EOF(c)-1530
\t
1400
\t
55800
\t
70
\t
≤70
\t
1500
\t
380/220
\t
1530x1530x400
\t
Reserve the right to change the parameters without prior notice.

Main Features

1) Simple structure, easy to maintenance and install.
2) Drop thAutomatic shutter open and close.
3) Low noise and large airflow
4) Long service life
5) Can be widely used for the place need ventilation

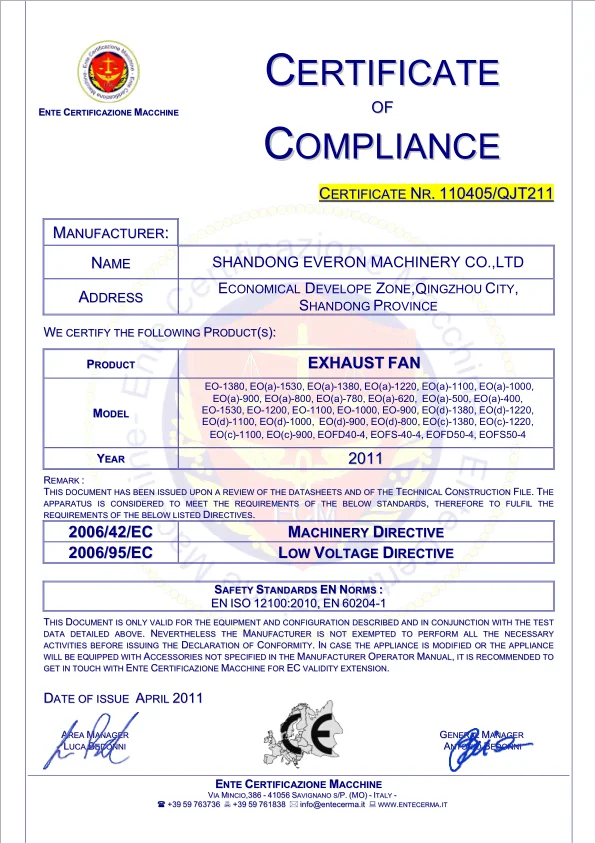

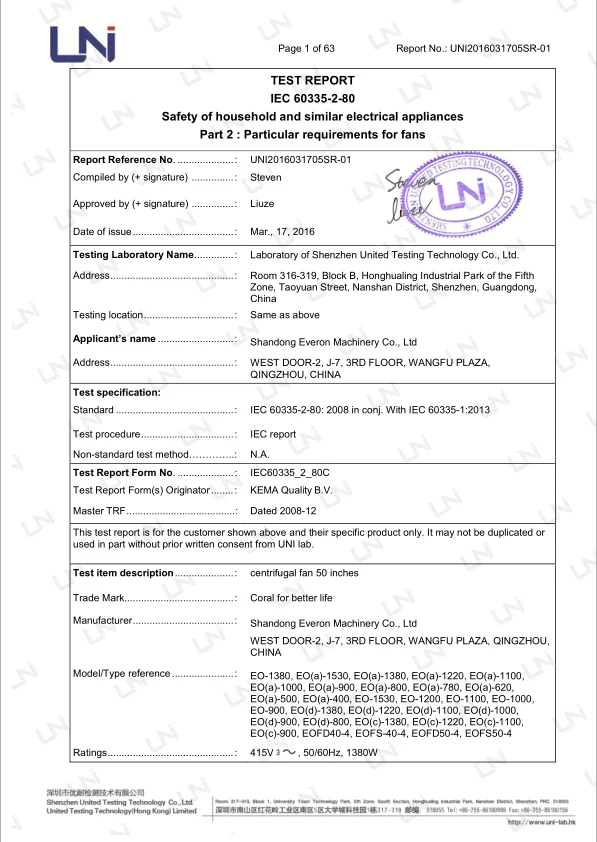

Certifications
Detailed Images

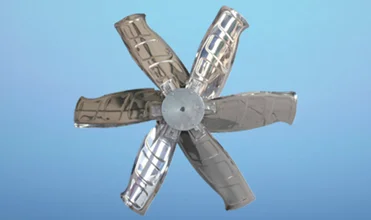

Blades

Name: Fan Blade

Material: Krupp stainless steel

Thickness: 1.2mm

Surface Finish: BA grade

The 6-blade propeller are with dynamic balance test, low noise and low vibration. Special blade shape design ensure large air flow, no deformation ,no broekn.

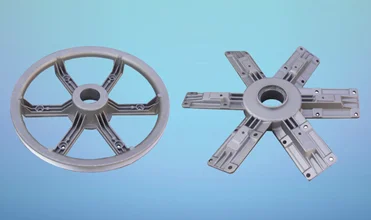

Impeller System

Name: Impeller&Pulley
Material: High strength aluminum-magnesium alloy
Weight: 1.5Kg
Special three reinforced ribs pulley design, blast-sanding treatment for attractive appearance, eliminate internal stress to improve its own rigidity and stability, never broken.

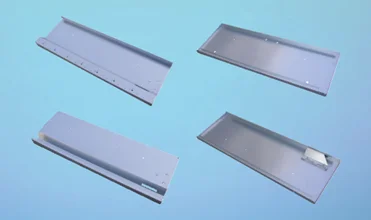

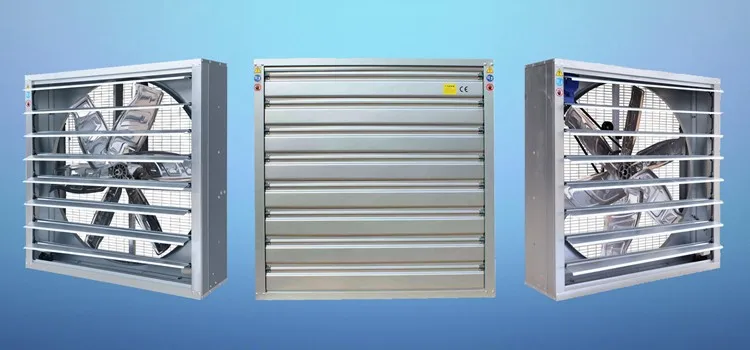

Frame

Name: Upper/bottom/left/right frame
Material: hot-dip galvanized steel
Thickness: Upper 1.0mm, others 0.8mm
Made by new CNC cut and punch machines, improvided fan quality up to top grade,aesthetic appearacence.

With plastic handles, easier to mount the fan.

The frame is shiny , high strength, anti-corrosion and durable

Belt and Bearing

Name: Belt&bearing
Brand: Sanlux/Mistsuboshi/Dongil
Original: China/Japan/Korea
Use China/Japan/Korea famour brand belts, ensure a longer service life, maintenance free

Use imported double-row bearing, with special waterproof design,high strength, low noise, long service life.

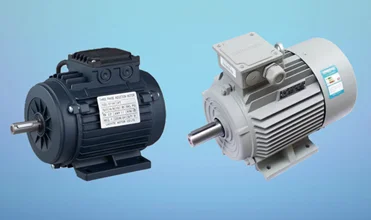

Motors

Brand: Nosch/Shunbao/Laoyite/Siemens/ABB
Original: China

Motor protection grade: IP55, Class F

Both China famous motor and Siemens/ABB motor are available. Motor voltage,frequency can be customized. When motor lack of phase, can power off automaticly.


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample order available.

* View our Factory.

After-Sales Service

* Training how to instal the fan, training how to mount the fan.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Assembled Fan Packaging
\t
Size
\t
1380(L) * 1380 (W) * 400 (D)
\t
Weight
\t
68KG
\t



Packaging Details
\t
The normal package is carton box(Size:1390*1390*410 mm). .If container is too tigher,we will use pe film for packing or pack it according to customers special request.
\t
Disassembled Fan Packaging
\t
Size
\t
Undetermined
\t
Weight
\t
68KG
\t



Packaging Details
\t
The normal package is carton box.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
