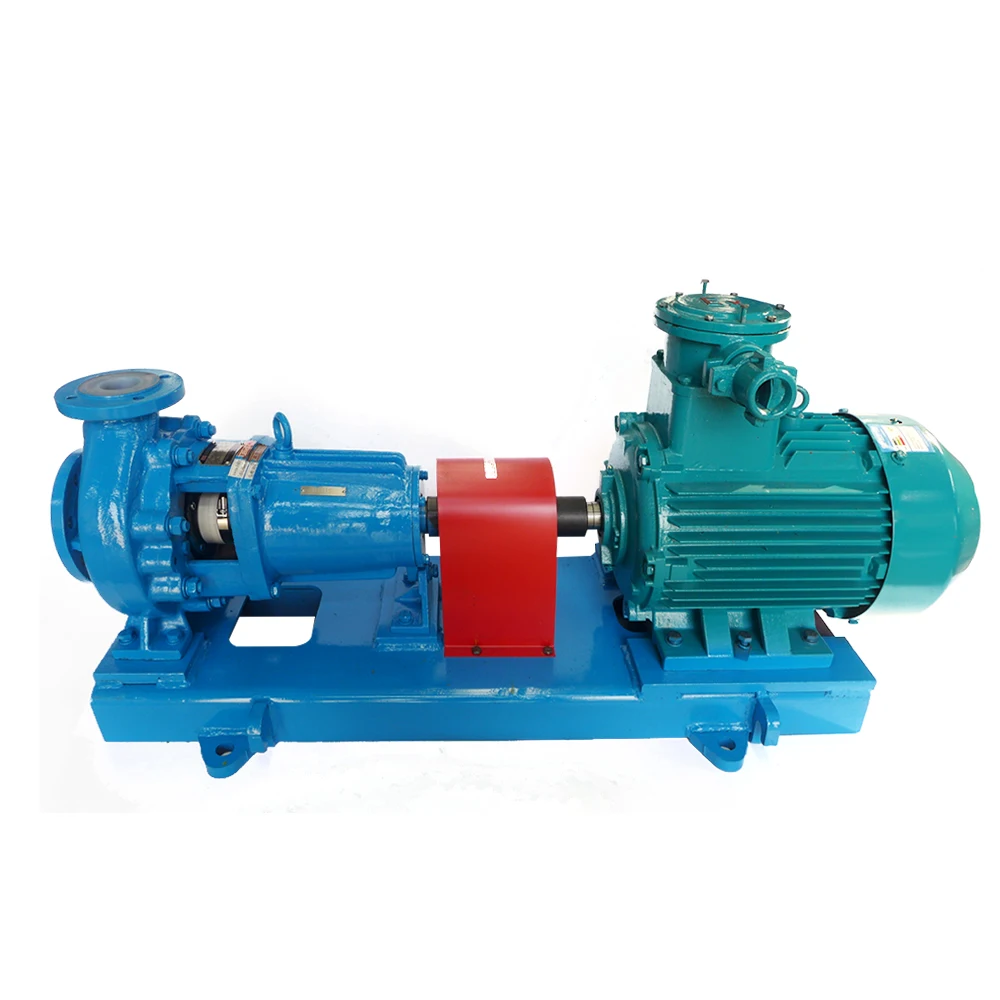

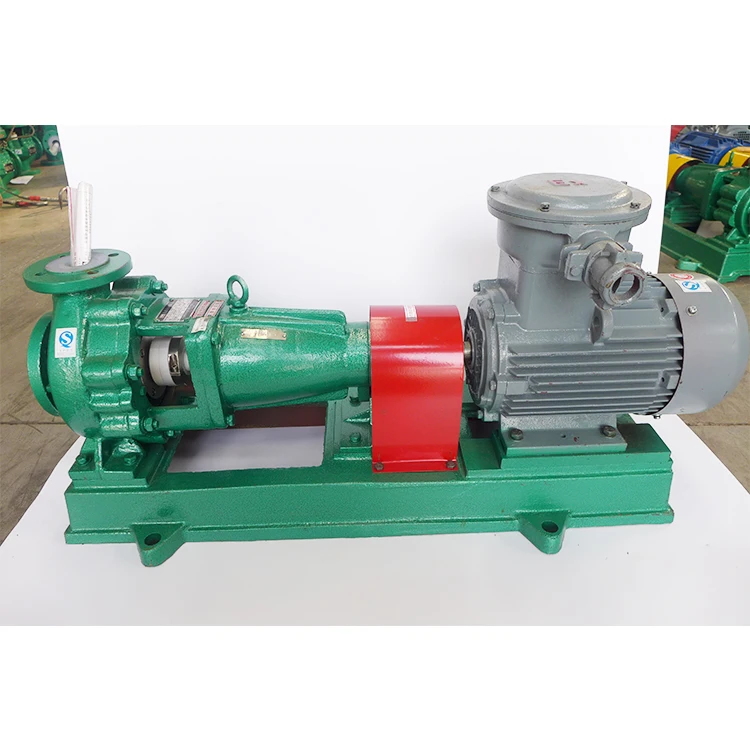

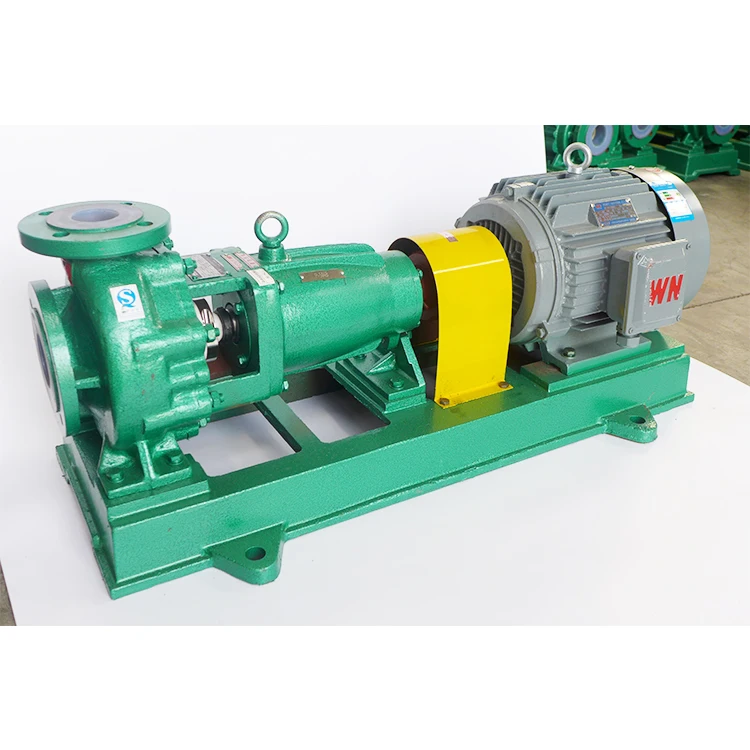

100 hp polypropylene centrifugal pump with Flame Proof Motor

Product Overview

Description

100hp polypropylene centrifugal pump with Flame Proof Motor



Click Here >>>>> Get more Information !!!



IHF series pump is a horizontal, non-metallic chemical centrifugal pump, compliant with ISO ISO2858, DIN EN 22858.

Operating range:
Flow: up to 400 m3/h, max 1761 GPM
Head: 80 m; 410 feet
Temperature: - 20 °C to +150 °C; -68 °F to +302 °F



Liquid:

acid, alkali,

salt solution,

strong oxidant,

organic solvents,

corrosive slurries, solvents,

hydrocarbons and other strong corrosive medium,

ammonia water ion film caustic soda,

waste water



Applilcation:

Acid pickling process

Painting process

Textile industry

Pharmacy and Health

Electroplating industry

Chlorine water and waste water treatment

Petroleum Industry

Chemical Industry

Adding acid process.





Lining process is the Patent technical:

The material is virgin, unfilled lining FEP,therefore it has the following features:

(1) Considerably easier and more reliable quality control.

(2) No reduction in the permeation resistance.

(3) Pure pharmaceutical and fine chemical media: no contamination

-Robust pump casing

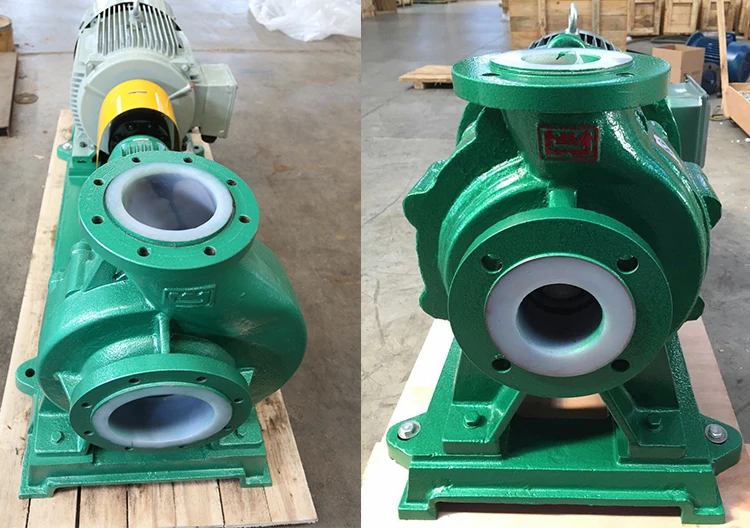

Pump casing and cover are made of HT200 iron lined with PFA, PTFE, and the impeller is made by WCB and wrapped by PTFA, PTFE, which enables that this type of centrifugal pump could be widely used in corrosive application and wear well. With ductile cast iron armouring absorbs all the hydraulic and pipeworkforces to DIN/ISO5199/Europump 1979. In contrast to partially or non-armoured plastic pumps, no expansion joints are required. Flange with service-minded through holes to DIN;ANSI,BS;JIS. For flushing system and monitoring device as required, the draining nozzle will be offered (pump housing picture)

-Reliable mechanical seal

Shaft seal is outside seal, stationary seal is alumina ceramic ( 99.9%), rotating seal is PTFE filling material or according to customer request.

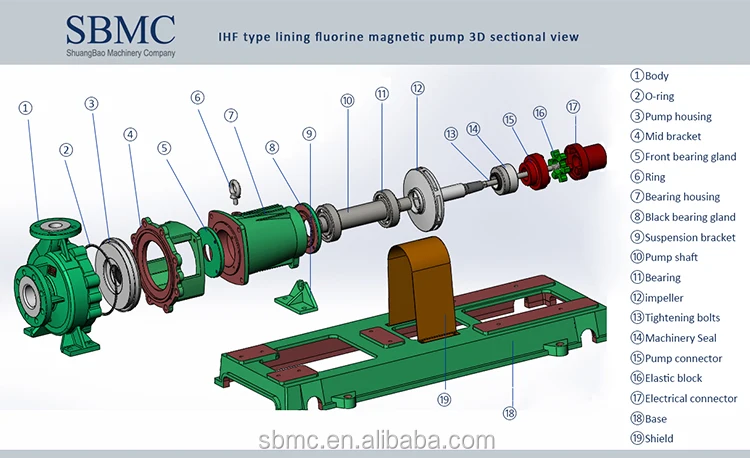

Materials of Construction:
The Pump's inlet diameter <150mm

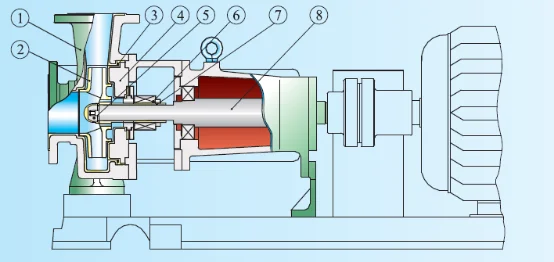

Item	Designation	Material
1	Pump housing	Cast iron HT200 with FEP/ PFA
2	Impeller	FEP fused with PTFE  /  PFA
3	Seal ring	Fluorubber
4	Pump cover	Cast iron HT200 with FEP/ PFA
5	Mechanical seal cover	SUS321 stainless steel
6	Mechanical seal	Silicon carbide ,hard alloy
7	Bearing box	Cast iron HT200 with F46
8	Pump shaft	45# Steel



The Pump's inlet diameter ≥150mm

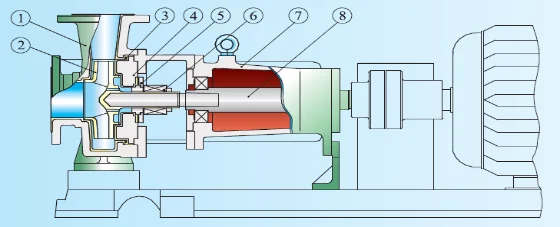

Item	Designation	Material
1	Pump housing	Cast iron HT200 with FEP
2	Impeller	FEP fused with PTFE
3	Seal ring	Fluorubber
4	Pump cover	Cast iron HT200 with FEP
5	Impeller cap	45# steel lined with FEP
6	Mechanical seal	Silicon carbide ,hard alloy
7	shaft sleeve	45# steel lined with FEP
8	Pump shaft	45# Steel
